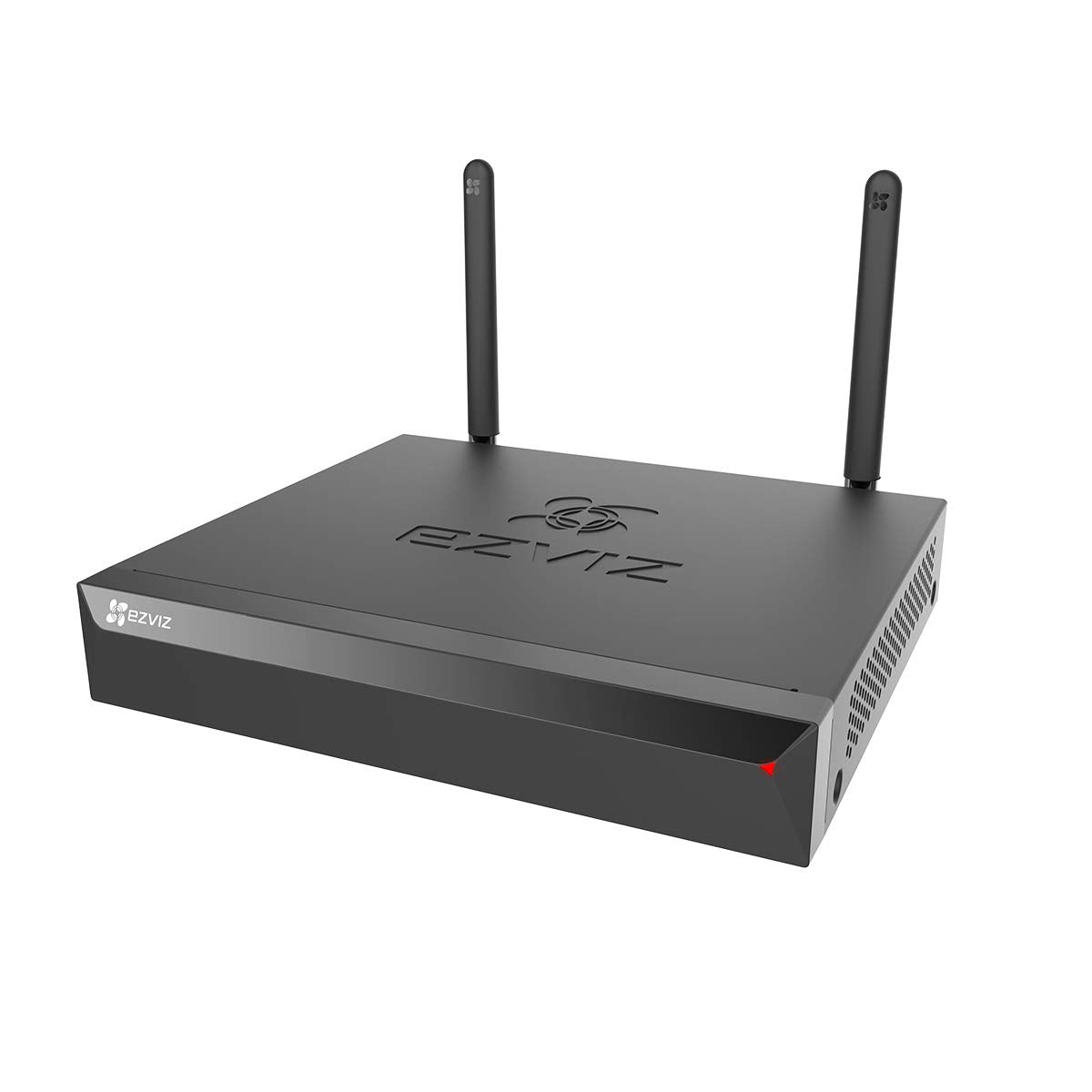

EZVIZ X5S-4W Wireless Network Video Recorder (NVR)

The EZVIZ X5S-4W is a wireless Network Video Recorder (NVR) designed to manage and store high-definition surveillance footage from up to four Wi-Fi cameras.

Key Features:

• High-Resolution Support: Capable of handling video inputs up to 3K resolution, ensuring detailed and clear recordings.

• Advanced Video Compression: Utilizes H.265 technology to efficiently compress video files, reducing storage requirements by up to 50% compared to H.264, while maintaining high video quality.

• Extended Wi-Fi Range: Equipped with two external antennas, it offers a wireless range of up to 100 meters (approximately 300 feet) in open environments, providing flexible camera placement options.

• Multiple Video Outputs: Features both HDMI and VGA outputs for connecting to monitors, supporting resolutions up to 2592×1944 at 30Hz for HDMI and 1920×1080 at 60Hz for VGA.

• Substantial Storage Capacity: Supports a 3.5-inch SATA hard drive with capacities ranging from 1TB to 8TB (hard drive not included), allowing for extensive video storage.

• Third-Party Camera Compatibility: Compliant with ONVIF (V.2.5) standards, enabling integration with a variety of third-party IP cameras.

Specifications:

• Model: CS-X5S-R100-4W

• Camera Access: Supports up to 4 wireless IP cameras with 3K resolution.

• Network Interface: One 10/100 Mbps adaptable Ethernet port.

• USB Ports: Two USB 2.0 interfaces for peripheral connections.

• Video Recording Modes: Offers manual, motion detection, scheduled, and event-triggered recording options.

• Playback Modes: Supports instant, normal, event, tag, and log event playback for flexible video review.

• Dimensions: 235 mm × 270 mm × 44.5 mm (9.25" × 10.6" × 1.75").

• Weight: Approximately 900 grams (31.7 ounces).



The EZVIZ X5S-4W NVR provides a reliable and efficient solution for managing and storing high-resolution surveillance footage, making it suitable for both home and business security systems.
