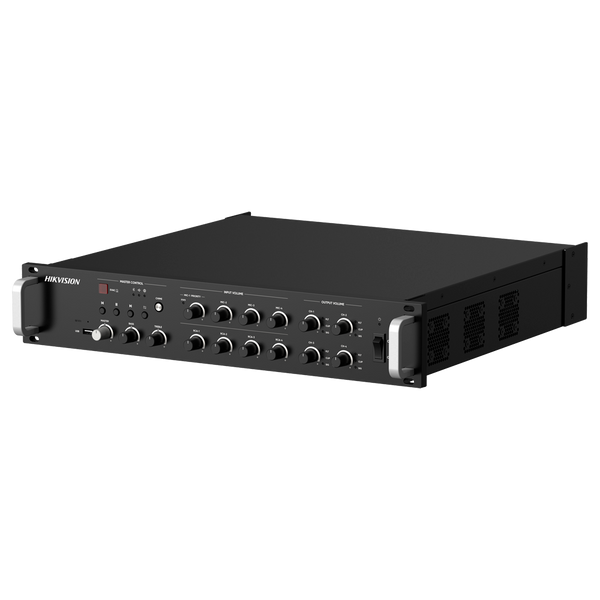

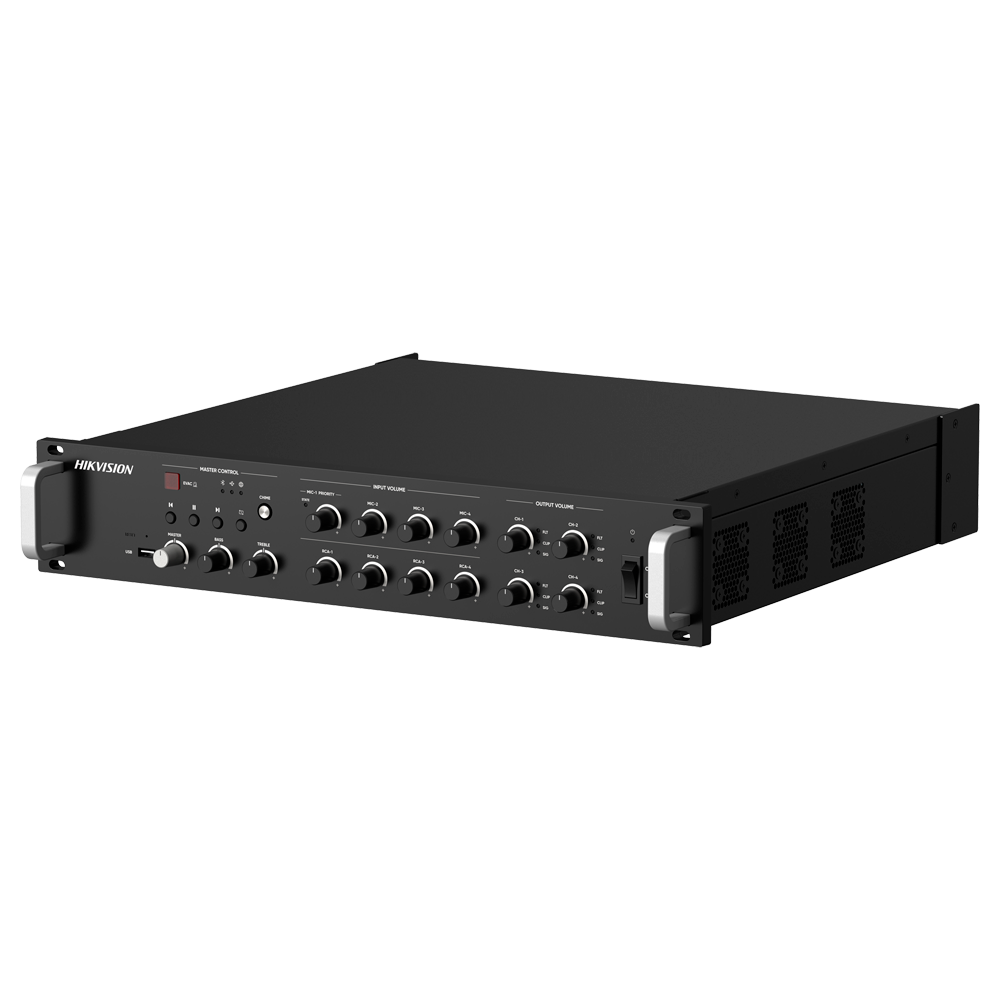

Hikvision 1000W 4-Zone Network Amplifier | DS-QAZ1A1000G1-VB4(B)
The Hikvision DS-QAZ1A1000G1-VB4(B) is a 1000 W, 4-zone network (IP) amplifier for public address systems. It plays audio from the network, USB, Bluetooth, microphones and RCA sources, and supports scheduled, live and emergency broadcasts with alarm linkage and text-to-speech (TTS).
Color: Black
Key Features:
Four Output Zones: Four output channels, each with its own volume knob, so different areas of a site can get different levels and content. Each channel delivers up to 250 W when all four run together.
Scheduled, Live and Emergency Broadcast: Run timed announcements and music, talk live, or send emergency messages. Alarm linkage and TTS let the amplifier play spoken text automatically when an alarm input is triggered.
Alarm Inputs and Output: One EVAC alarm input, one alarm input and one alarm output let you link the amplifier with fire, security or other systems.
Many Audio Sources: Four 6.35 mm microphone inputs, four RCA inputs, a USB 2.0 port (FAT32/exFAT drives up to 256 GB) and Bluetooth 5.0 (10 m), each with its own volume knob, plus bass and treble controls.
Built-in Storage: 4 GB of internal eMMC storage, with 1 GB for audio files, so you can keep regular announcements and music on the device.
Output Modes: Constant-voltage outputs (100 V / 70 V) for long speaker lines. Hikvision's datasheet for this (B) version also lists constant-impedance outputs (4 Ω / 8 Ω); the mode is set in the web interface and with a switch on the rear panel, and both must match.
Works with: Gigabit Ethernet (RJ45 10/100/1000 Mbps) and Hikvision's ISAPI and ISUP protocols plus RTP.
Good to know: Speakers and microphones are sold separately. Hikvision states the device is for use below 2,000 m altitude. In the box (per Hikvision datasheets): the device, a power cord and the regulatory compliance and safety information sheet.
Technical Specifications:
| Model | DS-QAZ1A1000G1-VB4(B) |
| Rated power | 1000 W, 4 zones (max. 250 W per channel with all four channels in use) |
| Frequency response | Speaker outputs: 50–20,000 Hz (±3 dB); RCA / 3.5 mm out: 50–20,000 Hz (±1 dB) |
| THD / SNR | THD < 0.5% @ 1 kHz, 1/3 rated power / SNR > 90 dB |
| Audio inputs | MIC 1–4: -28 dBV, 4.7 kΩ, unbalanced, 6.35 mm jack; RCA in 1–4: 0 dBV, 4.7 kΩ, unbalanced; USB 2.0 ×1; Bluetooth |
| Audio outputs | Constant voltage ×4 (100 V / 70 V COM); RCA out 1–2 (0 dBV); 3.5 mm out 1–2 (0 dBV) |
| Alarm | 1 EVAC alarm input, 1 alarm input, 1 alarm output |
| Network | 1 × RJ45 10/100/1000 Mbps; IPv4, HTTP, HTTPS, SSL/TLS, DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH |
| API | ISAPI, ISUP, RTP |
| Audio bit rate | G.711ulaw (64 Kbps), G.711alaw (64 Kbps), MP3 (128 Kbps), AAC (128 Kbps) |
| Local storage | Built-in 4 GB eMMC (1 GB for audio files) |
| Bluetooth | Bluetooth 5.0, 10 m |
| USB | USB 2.0; FAT32 (max. 32 GB per partition) and exFAT (max. 256 GB per partition) |
| Volume knobs | Total ×1, MIC input ×4, RCA input ×4, output channel ×4, treble ×1, bass ×1 |
| Protection | Short circuit, overcurrent, over temperature, anti-static, surge and electric shock protection |
| Power supply | 100–240 VAC |
| Power consumption | Standby: 80 W; max. working: 200 W (based on average playing time) |
| Material | Front panel PC+ABS; top and bottom covers SGCC |
| Dimensions | 495.97 × 90.89 × 473.18 mm |
| Weight | ≈ 6.6 kg (≈ 7.6 kg with package) |
| Color | Black |
| Operating conditions | -10 °C to 50 °C; humidity < 90% (no condensation) |
📄 Datasheet: Download the official Hikvision DS-QAZ1A1000G1-VB4(B) datasheet (PDF)
