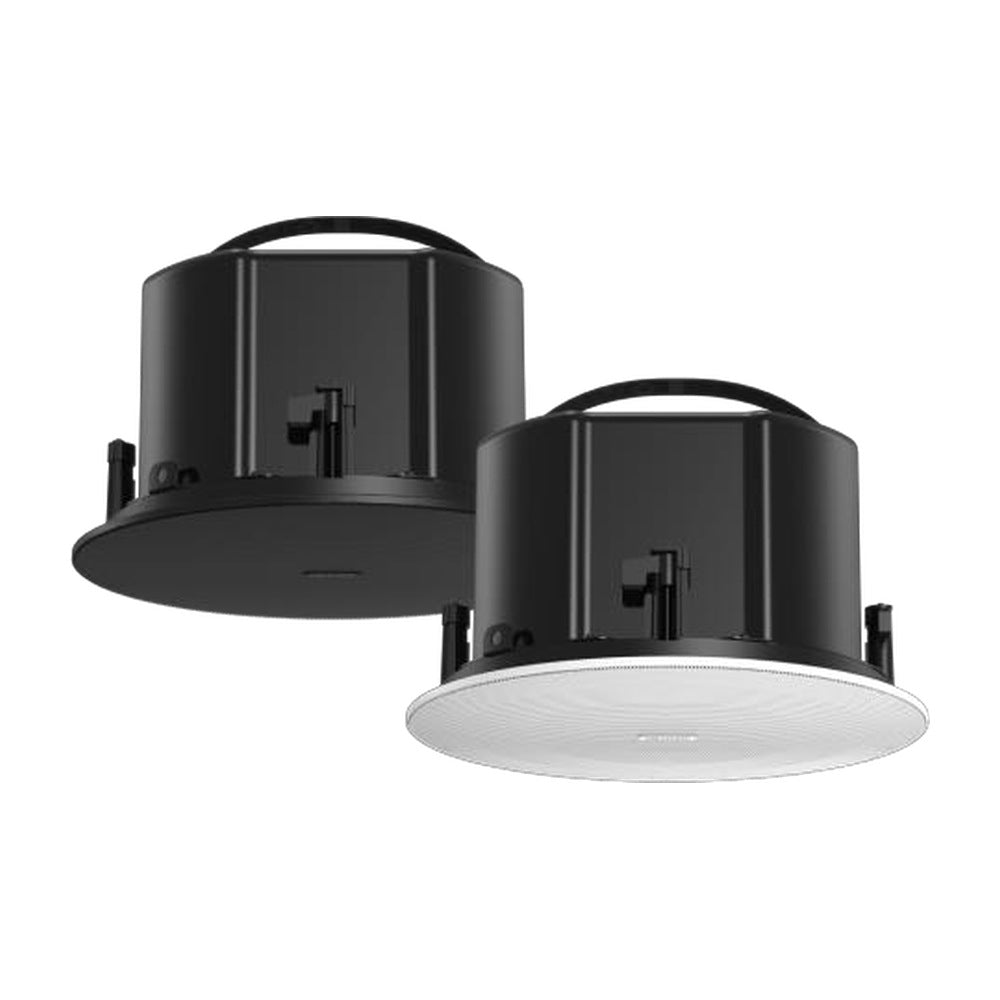

Hikvision 6.5" Frameless Ceiling Speaker 60W | DS-QAPS6R6-6
The Hikvision DS-QAPS6R6-6 is a passive two-way frameless ceiling speaker with a 1.2-inch tweeter and a 6.5-inch woofer. It is rated at 60 W and can be driven at 8 Ω or on a 100 V / 70 V constant-voltage line, with 91.5 dB sensitivity and a 85 Hz to 20 kHz (-10 dB) bandwidth.
Color: White / Black
Key Features:
Two-Way Driver Design: A 1.2-inch tweeter and a 6.5-inch woofer form a two-way speaker in one ceiling unit.
60 W Rated Power: Rated at 60 W with a maximum sound pressure level of 109 dB.
8 Ω or 100 V / 70 V Line: Can be connected to an 8 Ω amplifier output or to a 100 V / 70 V constant-voltage line.
Frameless Ceiling Design: A Ø 327.49 mm frameless design that installs in the ceiling, available in white or black.
Good to know: This is a passive speaker: the datasheet lists only an 8 Ω / 100 V / 70 V speaker-level input (no network or PoE input), so it must be driven by an external amplifier, which is not included.
Technical Specifications:
| Model | DS-QAPS6R6-6 |
| Speaker unit | 1 × 1.2-inch tweeter + 1 × 6.5-inch woofer |
| Rated power | 60 W |
| Impedance | 8 Ω |
| Constant voltage | 100 V / 70 V |
| Sensitivity (1 m, 1 W) | 91.5 dB |
| Maximum SPL | 109 dB |
| Effective bandwidth (-10 dB) | 85 Hz to 20 kHz |
| THD | < 1% |
| Material | Main body SPCC; base ABS + PC |
| Dimensions | Ø 327.49 × 179.69 mm (12.89" × 7.07") |
| Weight | 3.9 kg (8.6 lb) |
| Color | White / Black |
| Installation | Ceiling mounting |
📄 Datasheet: Download the official Hikvision DS-QAPS6R6-6 datasheet (PDF)
