Hikvision-C Analog Ceiling Speaker 10W | DS-QAE0210G1-V

Hikvision Analog Ceiling Speaker 10W | DS-QAE0210G1-V

The Hikvision DS-QAE0210G1-V is a white analog ceiling speaker for public address systems. It uses a single 5-inch speaker unit, connects to a 100 V audio line, and is rated at 5 W / 10 W, with a maximum sound pressure level of 104 dB and a frequency response of 80 Hz to 20 kHz.

Color: White

Key Features:

100 V audio input: The speaker takes a 100 V rated-voltage audio input, the line voltage used in PA installations. It is driven from the 100 V output of a PA amplifier, so several speakers can share one amplifier line.

5 W / 10 W rated power: The speaker is rated at 5 W / 10 W with an 8 Ω speaker unit, giving you two power levels to match the amplifier capacity and the loudness needed in each area.

Sound performance: The 5-inch speaker unit covers 80 Hz to 20 kHz and reaches a maximum sound pressure level of 104 dB.

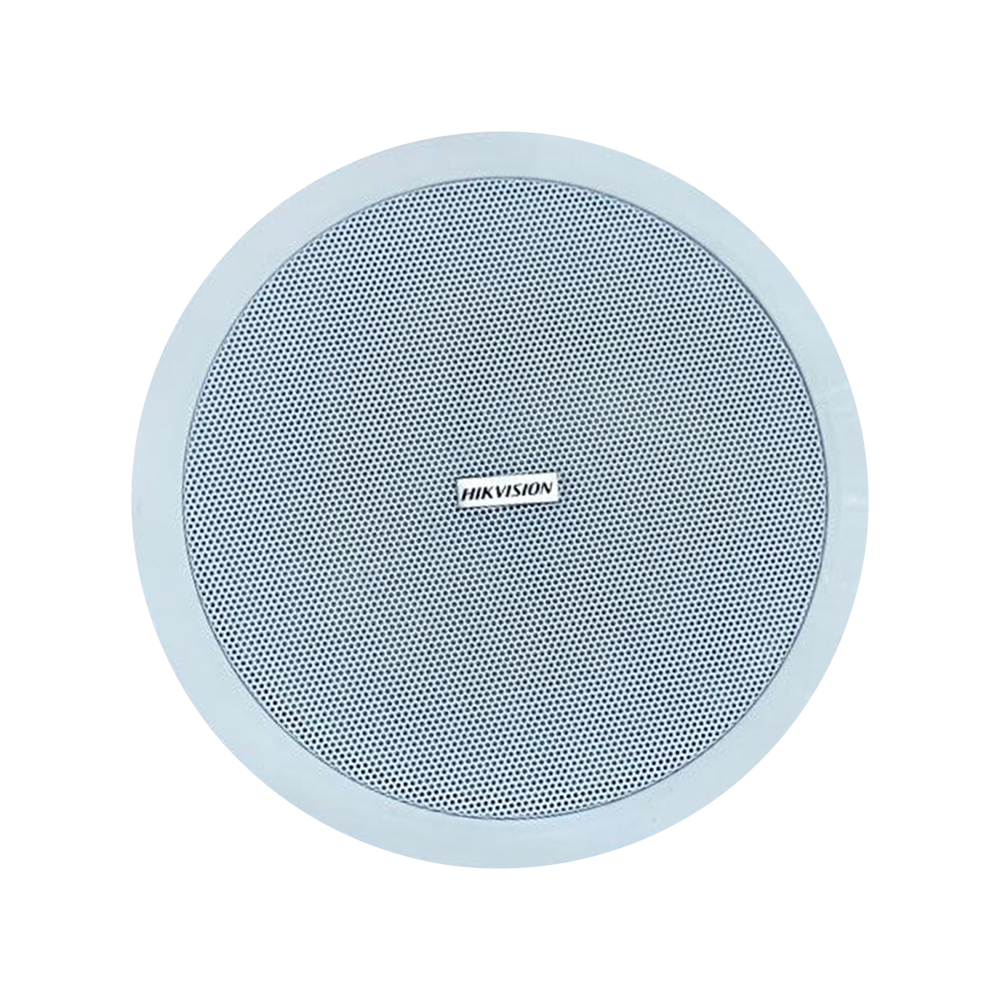

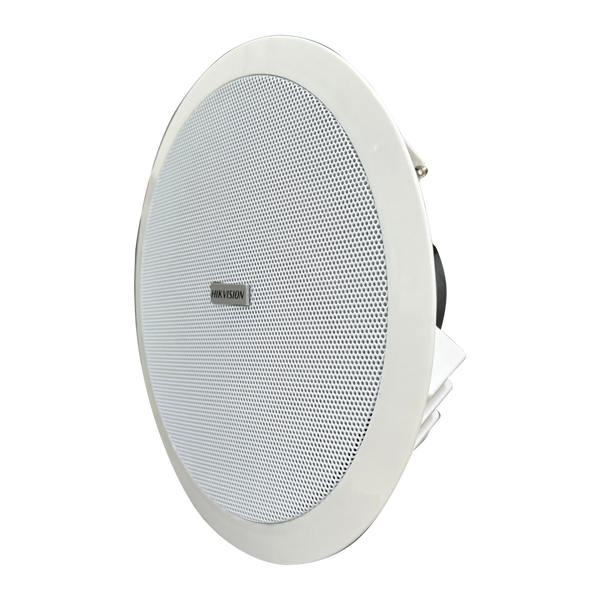

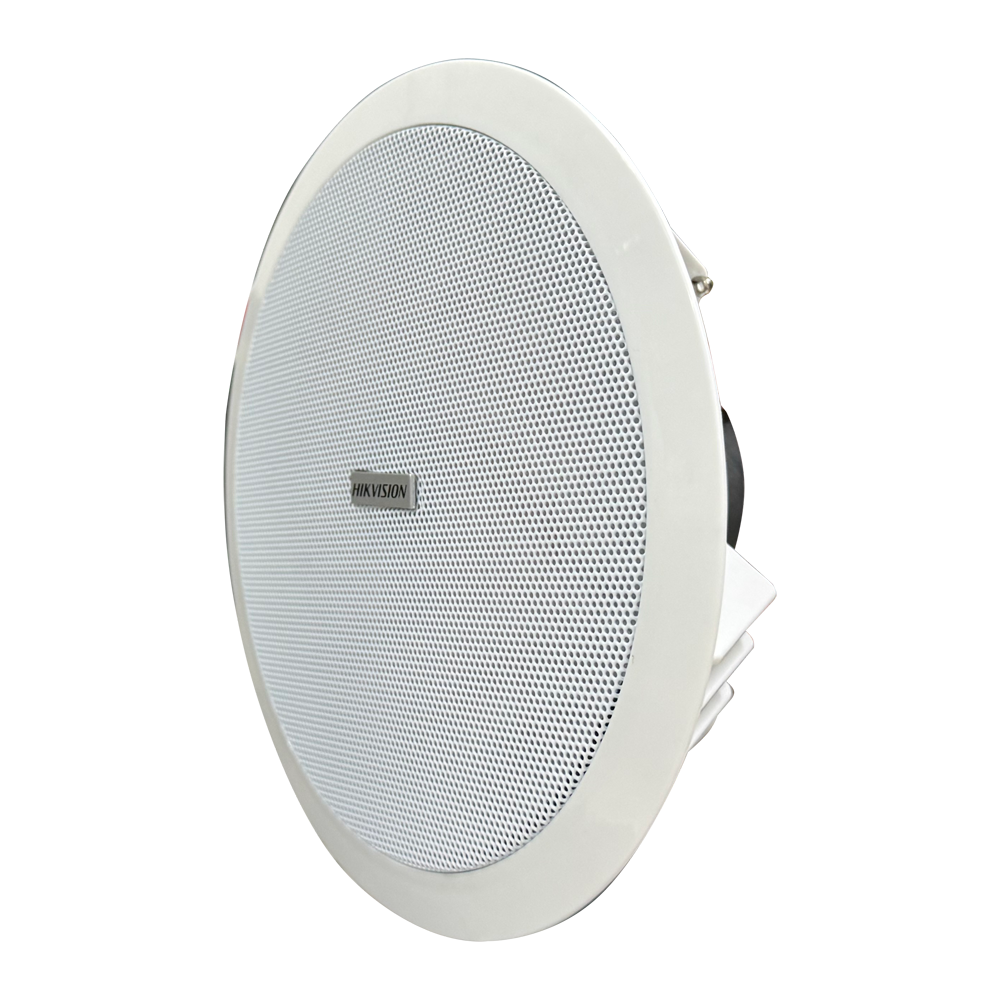

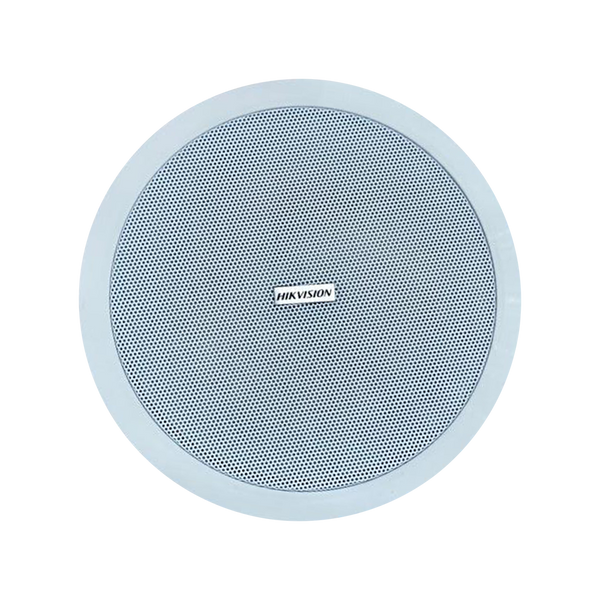

Ceiling design: A round white ceiling speaker with a plastic housing and a metal mesh grille, measuring Ø180 × 70 mm and weighing about 0.6 kg.

Working range: Rated to operate from -20 °C to 50 °C at up to 95% humidity (no condensation).

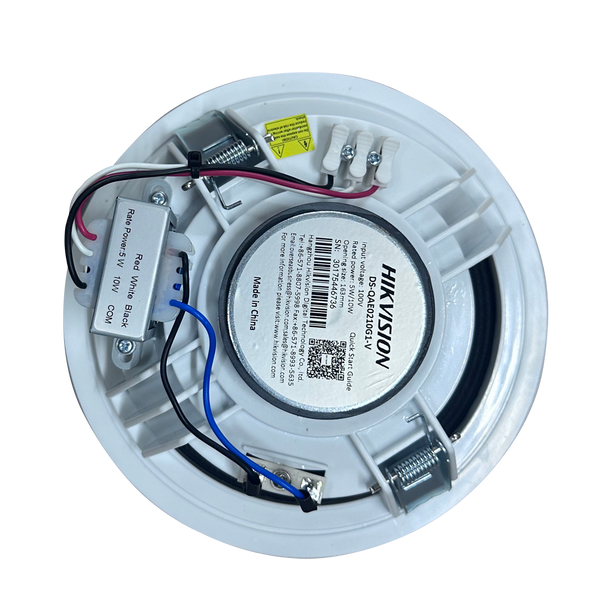

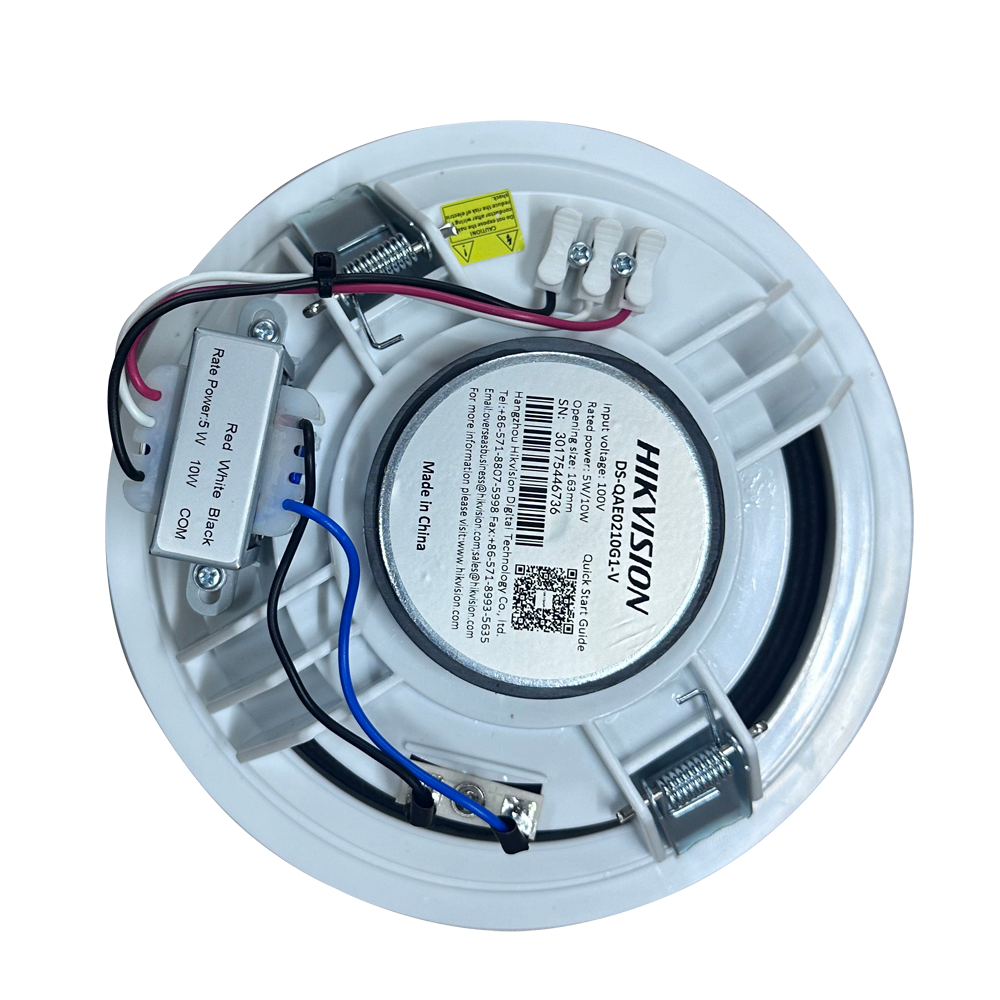

Good to know: This is an analog (passive) speaker with a 100 V audio input. It has no built-in amplifier and must be connected to a 100 V PA amplifier (sold separately).

Technical Specifications:
