Hikvision-C Analog Ceiling Speaker 15W | DS-QAE0215G1-V

Hikvision Analog Ceiling Speaker 15W | DS-QAE0215G1-V

The Hikvision DS-QAE0215G1-V is a white analog ceiling speaker for public address systems. It uses a single 5-inch speaker unit on a 100 V audio line, is rated at 10 W / 15 W, and delivers a maximum sound pressure level of 106 dB with a frequency response of 70 Hz to 18 kHz.

Color: White

Key Features:

100 V audio input: The speaker takes a 100 V rated-voltage audio input, the line voltage used in PA installations. It is driven from the 100 V output of a PA amplifier, so several speakers can share one amplifier line.

10 W / 15 W rated power: The speaker is rated at 10 W / 15 W with 8 Ω impedance, so you can match the power drawn from the amplifier to the loudness needed in each area.

Sound performance: Sensitivity of 93 dB ± 3 dB (1 m, 1 W), a maximum sound pressure level of 106 dB, and a frequency response of 70 Hz to 18 kHz from the 5-inch speaker unit.

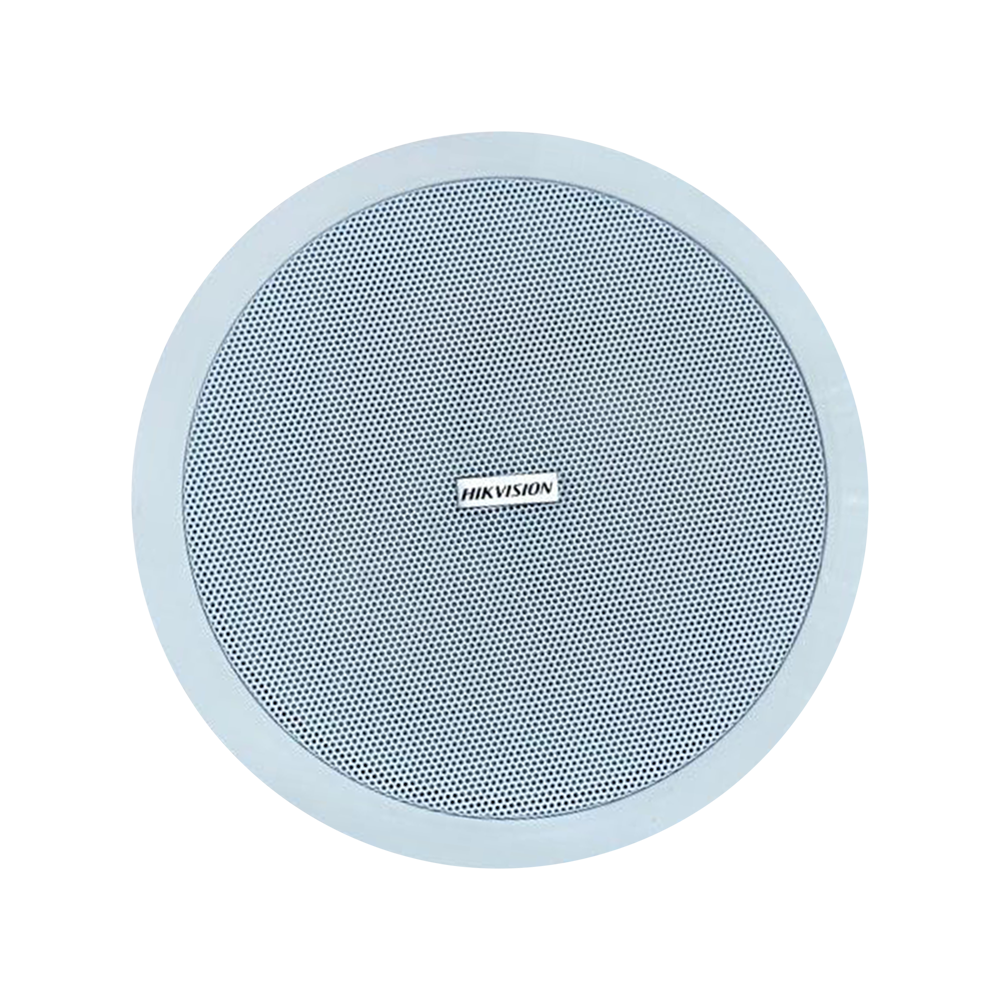

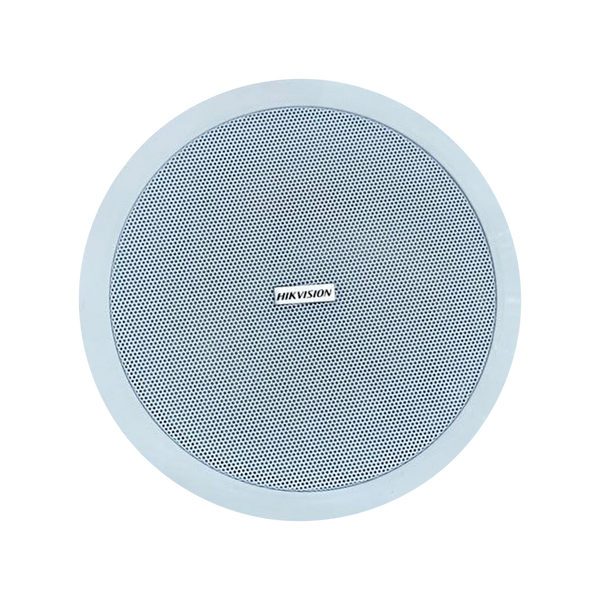

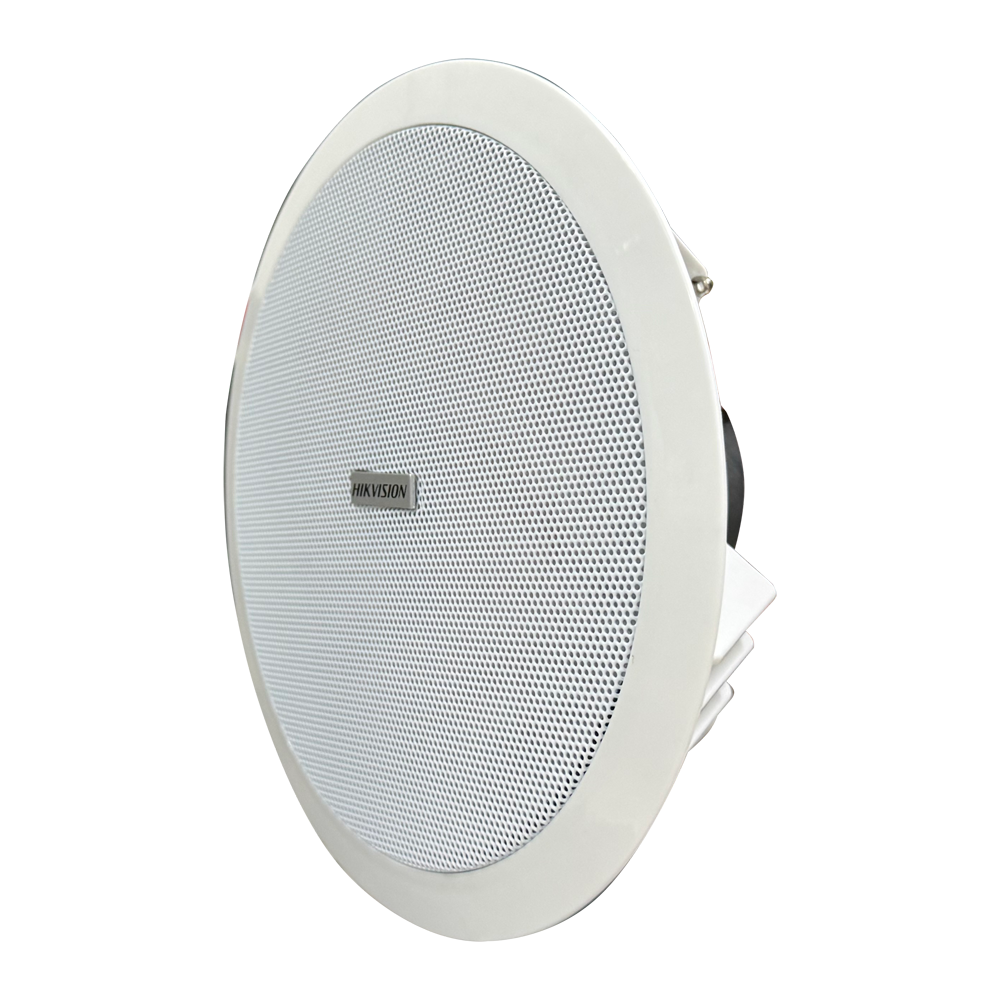

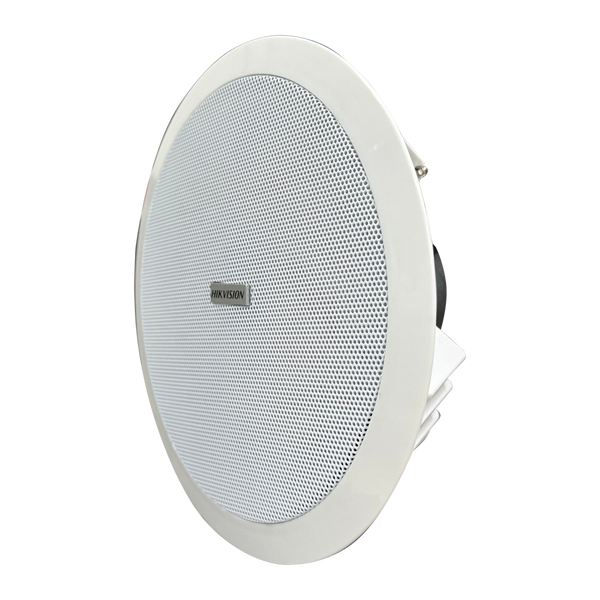

Ceiling design: A round white ceiling speaker with an ABS shell and iron mesh grille, measuring Ø186 × 80 mm and weighing about 803 g.

Working range: Rated to operate from -20 °C to 50 °C at below 95% humidity.

Good to know: This is an analog (passive) speaker with a 100 V audio input. It has no built-in amplifier and must be connected to a 100 V PA amplifier (sold separately). The package contains the speaker and a quick start guide.

Technical Specifications:

📄 Datasheet: Download the official Hikvision DS-QAE0215G1-V datasheet (PDF)
