Hikvision-C Analog Frameless Ceiling Speaker 6W | DS-QAE0606G2-V

Hikvision Analog Frameless Ceiling Speaker 6W | DS-QAE0606G2-V

The Hikvision DS-QAE0606G2-V is an analog frameless ceiling speaker for 100 V line public address systems. It has a 6-inch paper cone with a high-frequency unit, selectable 6 W or 3 W taps, up to 104 dB maximum sound pressure and a 90 Hz to 20 kHz frequency response.

Color: White

Key Features:

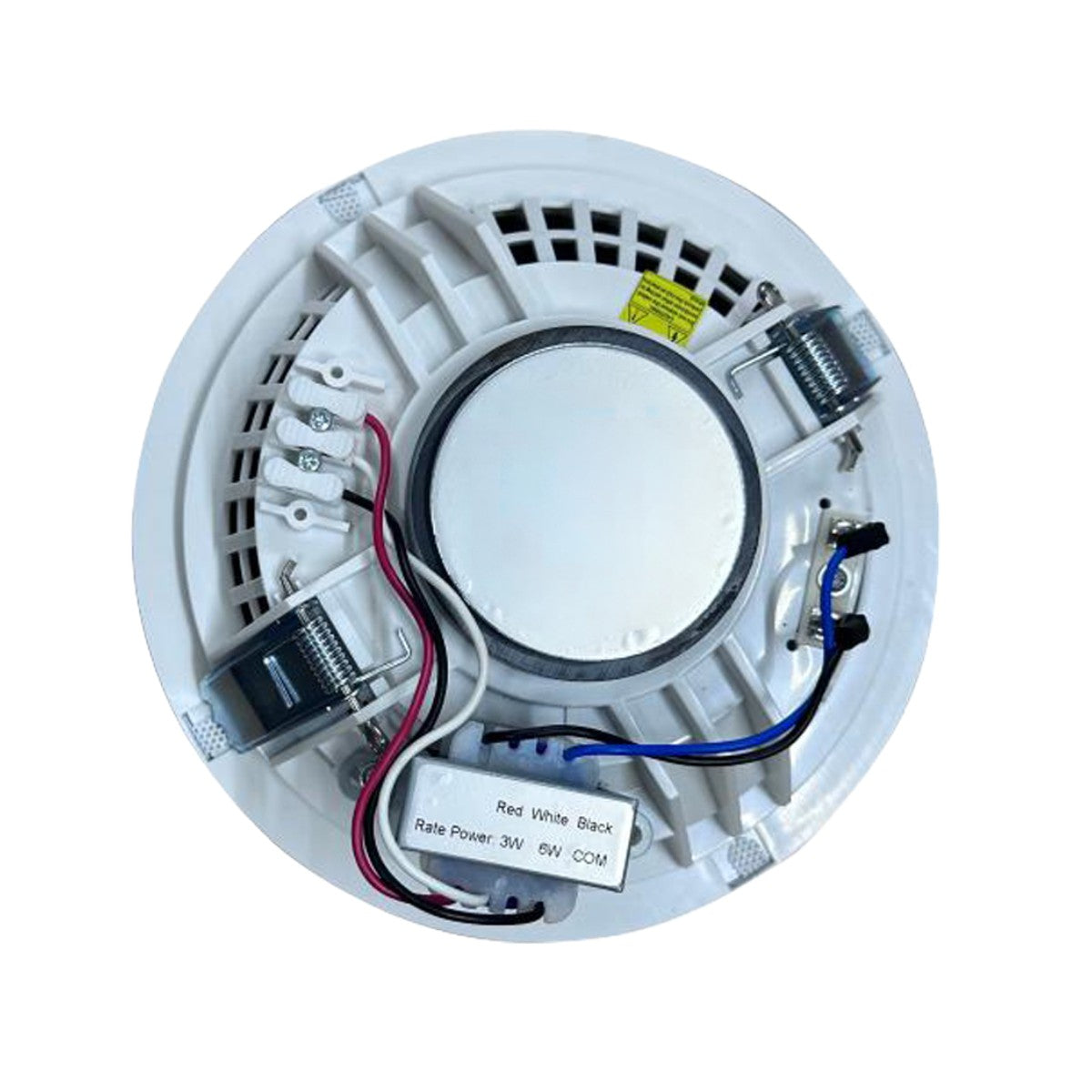

100 V line with 6 W / 3 W taps: The speaker runs on a 100 V line and can be wired at 6 W or 3 W. Choosing the tap sets how much amplifier power the speaker draws.

6-inch cone with high-frequency unit: A 6-inch paper cone is paired with a separate high-frequency unit, giving a wide 90 Hz to 20 kHz frequency response.

Up to 104 dB output: Sensitivity is 93 dB ±3 dB (1 m, 1 W) and the maximum sound pressure level is 104 dB.

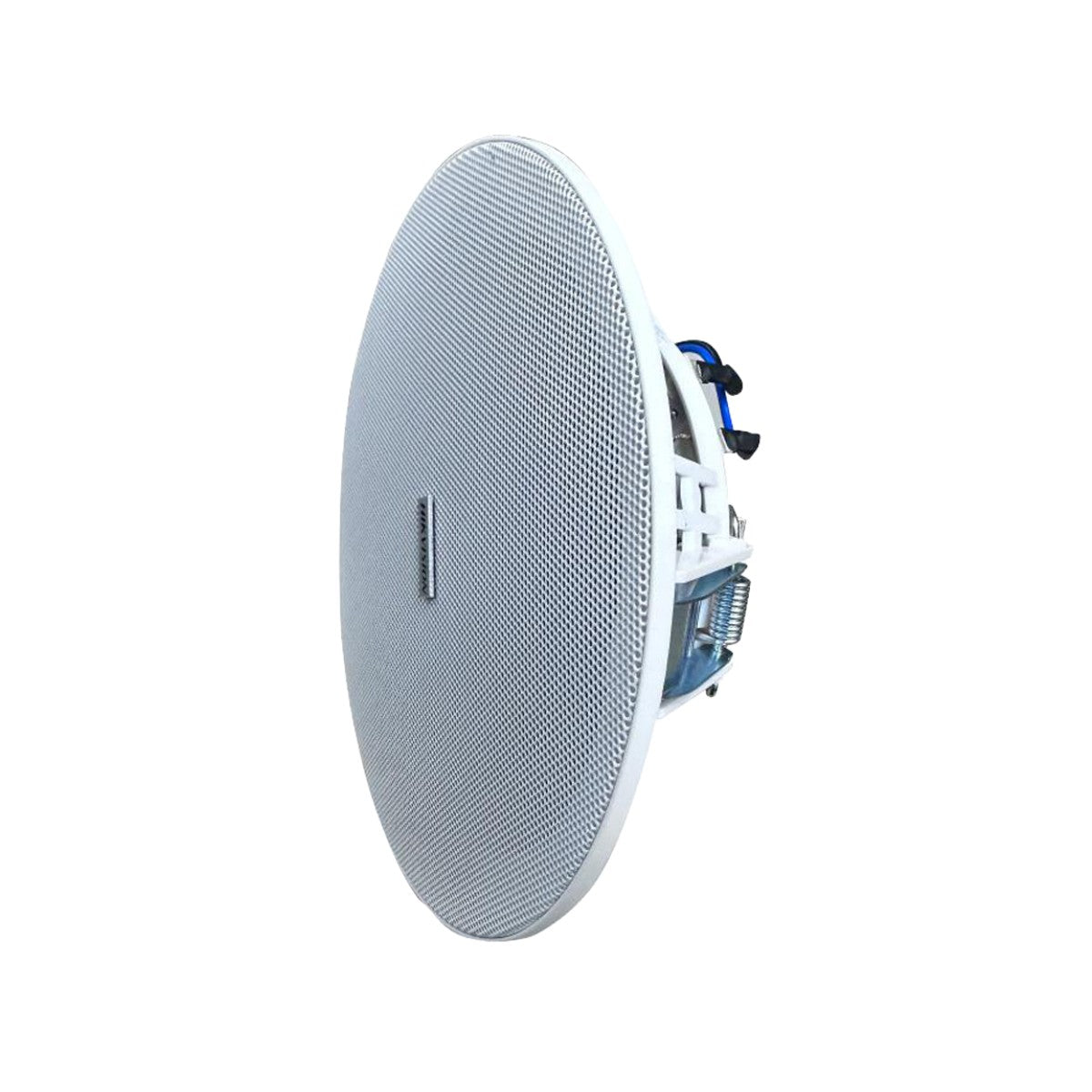

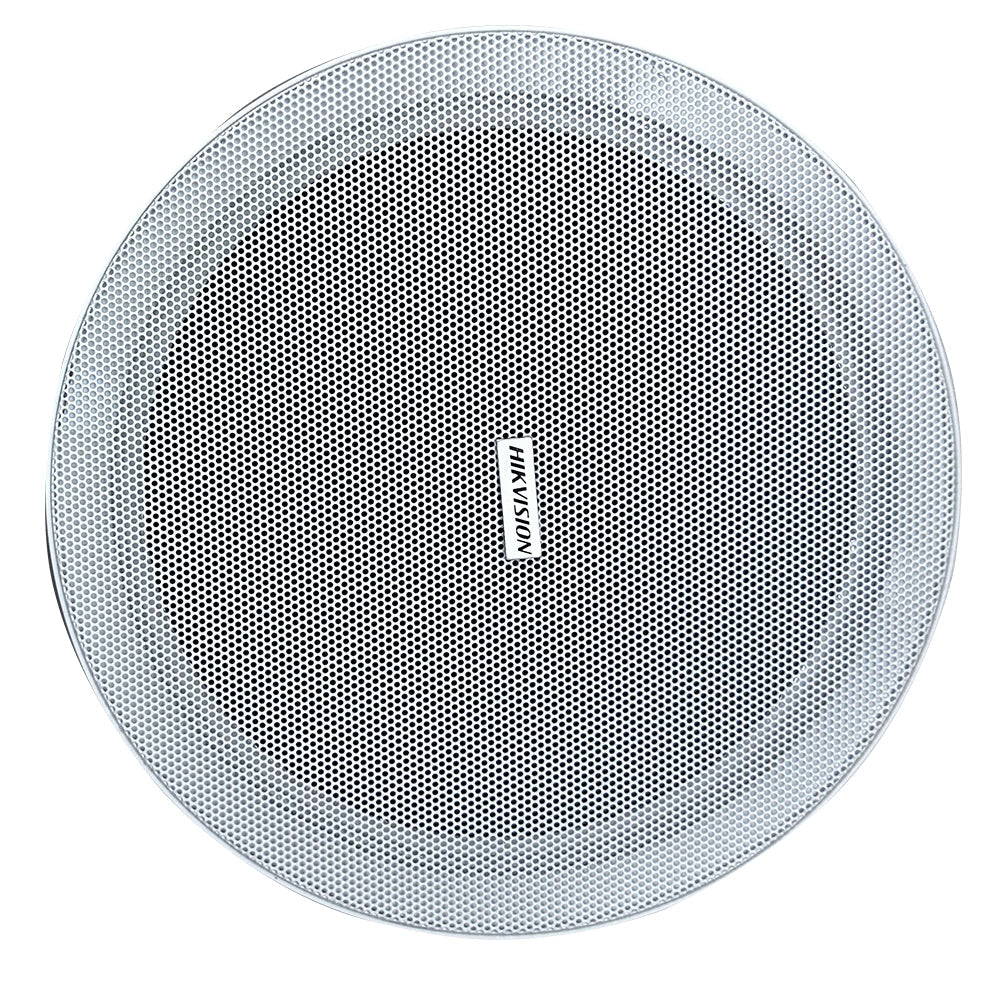

Frameless design: A white frameless design with a PC main body and ABS base, Ø 188 mm × 75 mm overall.

Good to know: This is a passive analog speaker: it has no built-in amplifier and no network connection. It must be driven by a 100 V line public address amplifier or mixer amplifier.

Technical Specifications:

📄 Datasheet: Download the official Hikvision DS-QAE0606G2-V datasheet (PDF)
