Hikvision 10W Analog Pendant Speaker | DS-QAZ0510G1

Hikvision 10W Analog Pendant Speaker | DS-QAZ0510G1

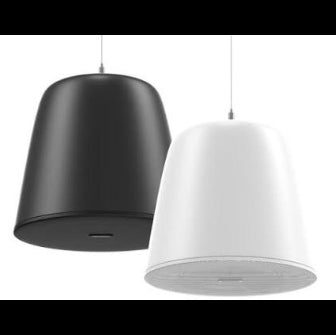

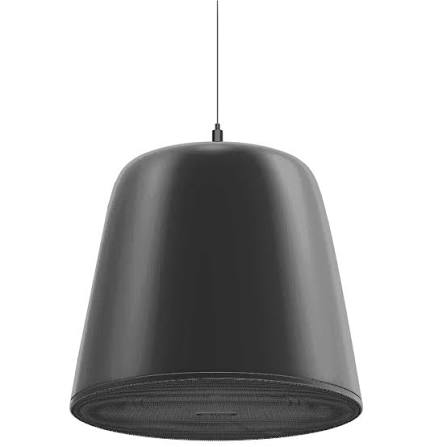

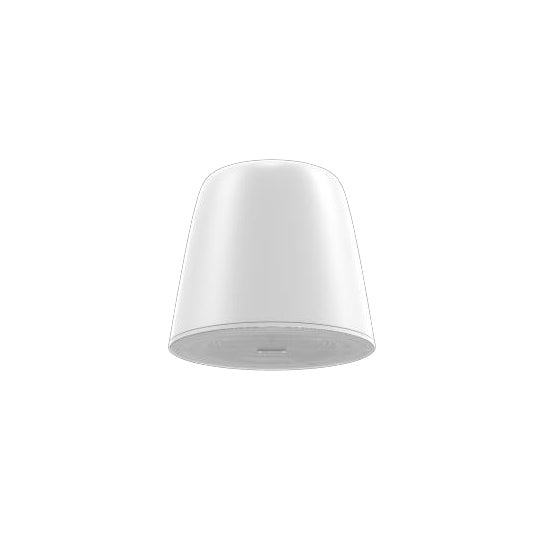

The Hikvision DS-QAZ0510G1 is a passive two-way analog pendant speaker for public address and background music systems. It combines a 1.0-inch tweeter with a 6.5-inch woofer, is rated at 10 W, and accepts 100 V or 70 V constant-voltage lines or an 8 Ω input. It reaches 98 dB maximum SPL at 1 m with a 120 Hz to 20 kHz (-10 dB) bandwidth.

Color: White / Black

Key Features:

Pendant speaker: Hikvision lists this model as a pendant speaker, meaning it hangs below the ceiling rather than being recessed into a ceiling cut-out.

Two-way driver design: A 1.0-inch tweeter and a 6.5-inch woofer share the frequency range for clear speech and fuller music than a single full-range driver of the same size.

Selectable power taps: On a 100 V line you can choose 10 W, 5 W or 2.5 W; on a 70 V line 10 W, 5 W, 2.5 W or 1.25 W. This lets you set each speaker's level and plan how many speakers one amplifier can drive.

Sound output: 89 dB sensitivity (1 m, 1 W), 98 dB maximum SPL at 1 m and total harmonic distortion of 1% or less.

Three input types: Works on 100 V or 70 V constant-voltage lines, or directly on an 8 Ω amplifier output.

Works with: 100 V or 70 V constant-voltage PA amplifiers, or amplifiers with an 8 Ω speaker output.

Good to know: This is a passive speaker; it needs a separate amplifier and does not connect to a network. Its rated operating temperature is -10 °C to 45 °C. Hikvision's packing list shows the speaker and a regulatory compliance and safety information sheet.

Technical Specifications:

📄 Datasheet: Download the official Hikvision DS-QAZ0510G1 datasheet (PDF)
