Hikvision-C 30W Analog Frameless Ceiling Speaker | DS-QAZ0630G1

Hikvision 30W Analog Frameless Ceiling Speaker | DS-QAZ0630G1

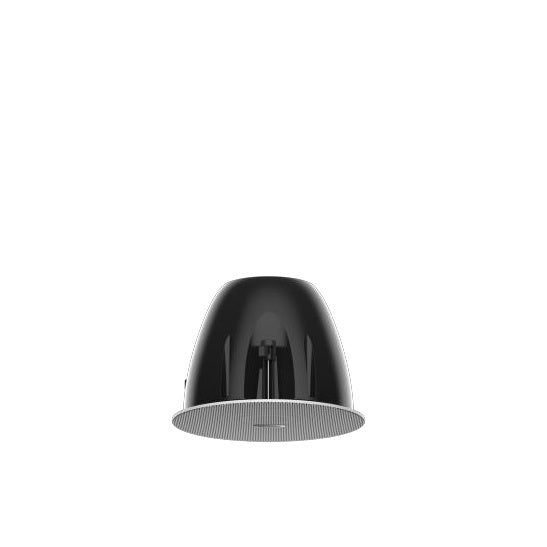

The Hikvision DS-QAZ0630G1 is a passive two-way analog ceiling speaker with a frameless design for public address and background music systems. It pairs a 1.0-inch tweeter with a 6.5-inch woofer, is rated at 30 W, and accepts 100 V or 70 V constant-voltage lines or an 8 Ω input. It reaches 104 dB maximum SPL at 1 m with an 80 Hz to 20 kHz (-10 dB) bandwidth.

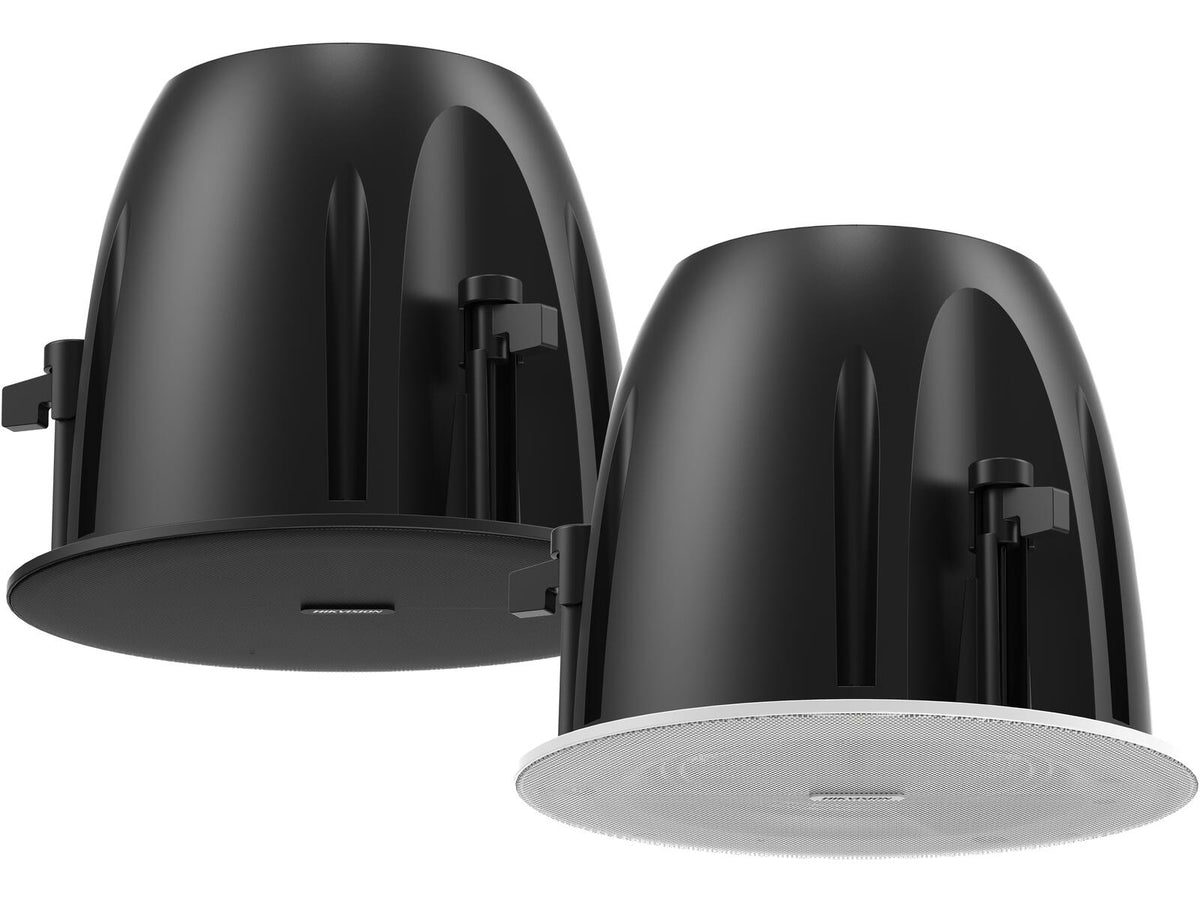

Color: White / Black

Key Features:

Two-way driver design: A 1.0-inch tweeter and a 6.5-inch woofer share the frequency range, giving clear speech and fuller music than a single full-range driver of the same size.

30 W with selectable taps: On a 100 V line you can choose 30 W, 15 W or 7.5 W; on a 70 V line 30 W, 15 W, 7.5 W or a lower tap. This lets you set each speaker's level and plan the load on your amplifier.

Strong output and wider bandwidth: 92 dB sensitivity (1 m, 1 W) and 104 dB maximum SPL at 1 m, with response down to 80 Hz (-10 dB) and total harmonic distortion of 1% or less. This suits larger rooms and music playback better than the 10 W model.

90° conical coverage: The speaker spreads sound in a 90° cone below it, which helps plan speaker spacing for even coverage.

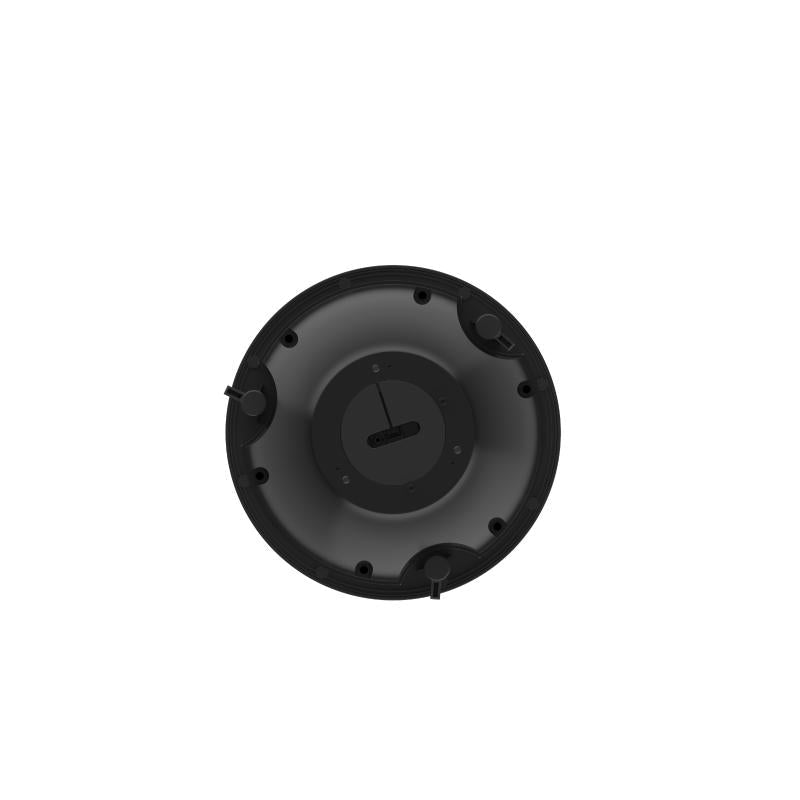

Frameless ceiling installation: PC main body with an ABS base, installed recessed in a Ø 270 mm ceiling cut-out.

Works with: 100 V or 70 V constant-voltage PA amplifiers, or amplifiers with an 8 Ω speaker output.

Good to know: This is a passive speaker; it needs a separate amplifier and does not connect to a network. Its rated operating temperature is -10 °C to 45 °C. Hikvision's packing list shows the speaker and a regulatory compliance and safety information sheet.

Technical Specifications:

📄 Datasheet: Download the official Hikvision DS-QAZ0630G1 datasheet (PDF)
