Hikvision 30W Analog Pendant Speaker | DS-QAZ0530G1

Hikvision 30W Analog Pendant Speaker | DS-QAZ0530G1

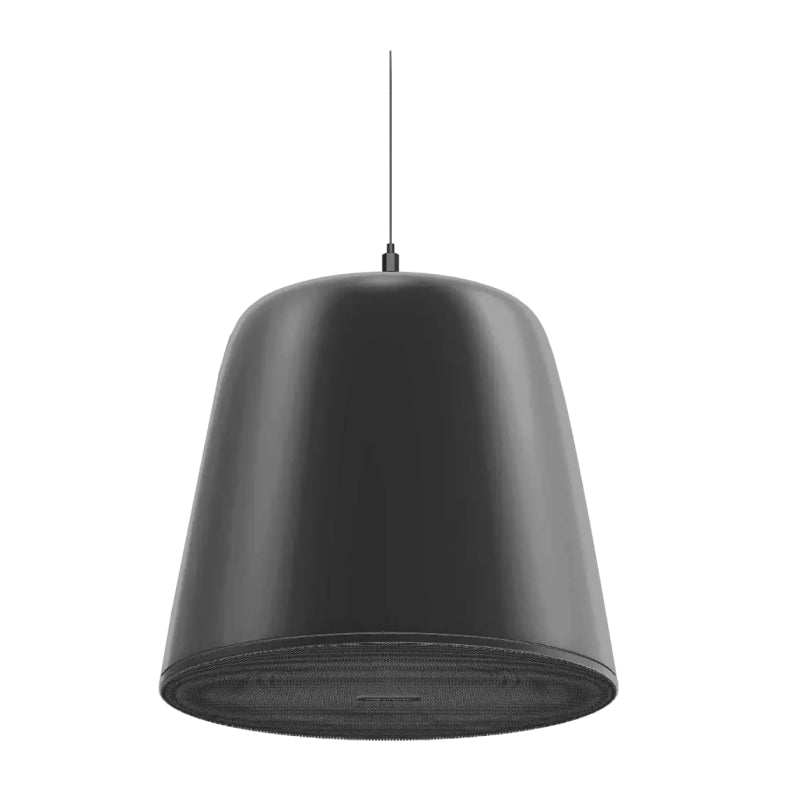

The Hikvision DS-QAZ0530G1 is a passive two-way analog pendant speaker for public address and background music systems. It pairs a 1.0-inch tweeter with a 6.5-inch woofer, is rated at 30 W, and accepts 100 V or 70 V constant-voltage lines or an 8 Ω input. It reaches 104 dB maximum SPL at 1 m with an 80 Hz to 20 kHz (-10 dB) bandwidth.

Color: White / Black

Key Features:

Pendant speaker: Hikvision lists this model as a pendant speaker, meaning it hangs below the ceiling rather than being recessed into a ceiling cut-out.

Two-way driver design: A 1.0-inch tweeter and a 6.5-inch woofer share the frequency range for clear speech and fuller music than a single full-range driver of the same size.

30 W with selectable taps: On a 100 V line you can choose 30 W, 15 W or 7.5 W; on a 70 V line 30 W, 15 W, 7.5 W or a lower tap. This lets you set each speaker's level and plan the load on your amplifier.

Strong output and wider bandwidth: 92 dB sensitivity (1 m, 1 W) and 104 dB maximum SPL at 1 m, with response down to 80 Hz (-10 dB) and total harmonic distortion of 1% or less, giving more output and bass than the 10 W model.

Three input types: Works on 100 V or 70 V constant-voltage lines, or directly on an 8 Ω amplifier output.

Works with: 100 V or 70 V constant-voltage PA amplifiers, or amplifiers with an 8 Ω speaker output.

Good to know: This is a passive speaker; it needs a separate amplifier and does not connect to a network. Its rated operating temperature is -10 °C to 45 °C. Hikvision's packing list shows the speaker and a regulatory compliance and safety information sheet.

Technical Specifications:

📄 Datasheet: Download the official Hikvision DS-QAZ0530G1 datasheet (PDF)
