Hikvision-C 60W Analog Amplifier with Bluetooth & USB | DS-QAE0A60G1-VB

Hikvision 60W Analog Amplifier with Bluetooth & USB | DS-QAE0A60G1-VB

The Hikvision DS-QAE0A60G1-VB is a 60 W analog amplifier for background music and announcements. It plays audio from Bluetooth, a USB flash drive, a microphone or an RCA line source, and drives both 100 V constant-voltage speaker lines and 4–8 Ω speakers.

Color: White

Key Features:

Four audio sources: Play music over Bluetooth from a phone, straight from a USB flash drive, or from an RCA line source such as a media player, and add a microphone for live announcements. This lets one small unit handle both music and paging.

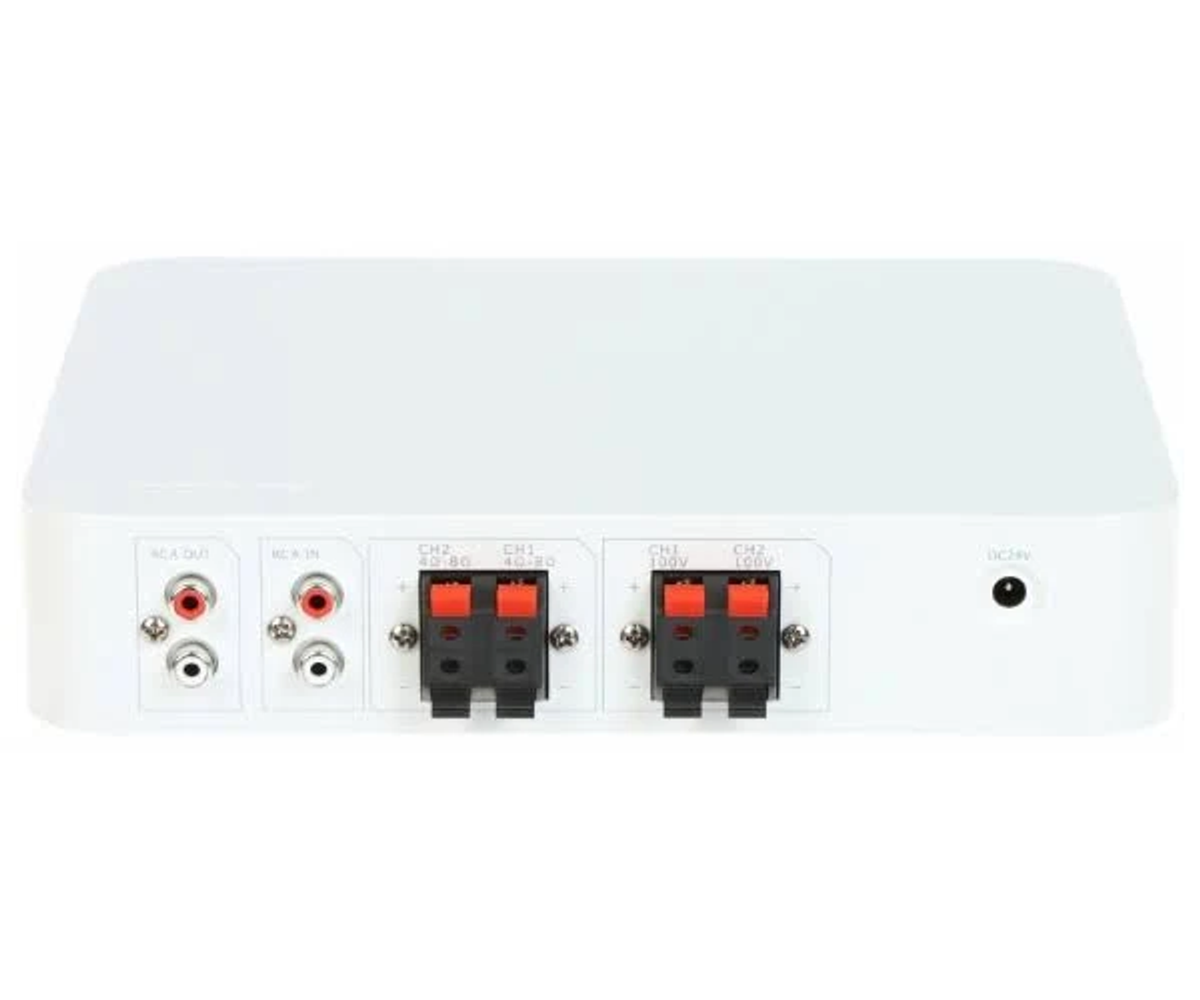

Constant voltage and constant resistance outputs: The amplifier has 100 V constant-voltage outputs for PA speaker lines as well as 4–8 Ω constant-resistance outputs. You can use it with 100 V ceiling or wall speakers, or with regular low-impedance speakers.

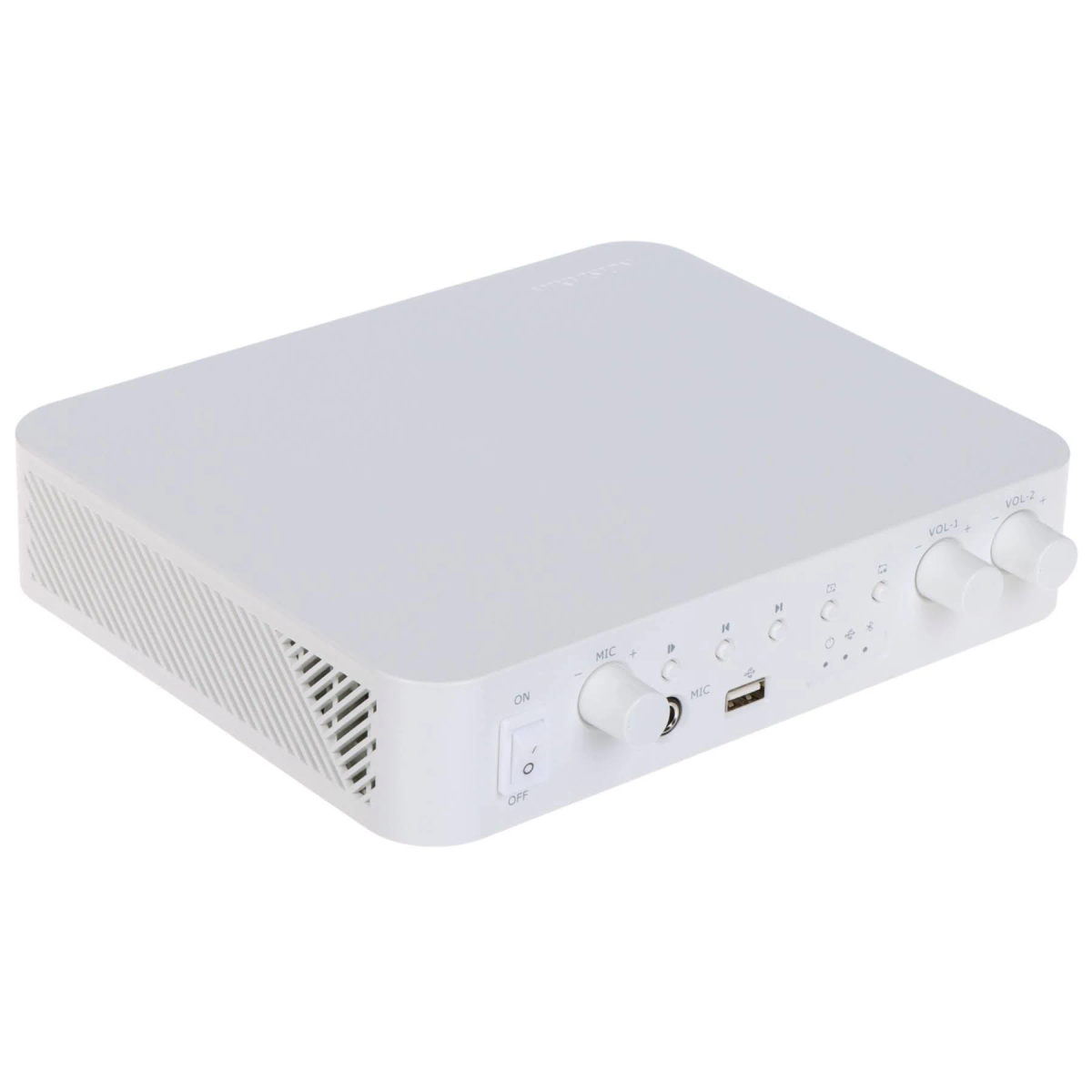

Separate microphone and zone volume: A dedicated microphone volume knob and two partition (zone) volume knobs let you set the announcement level and the level of each of the two outputs independently.

Two-channel mixing output: The amplifier supports two-channel audio mixing output, so the two zones can carry a mix of the selected sources.

Built-in protection: Short-circuit, overcurrent and over-temperature protection help protect the amplifier and the connected speakers during long operation.

Good to know: This is an amplifier only; speakers and microphone are not included. It runs on 24 V DC.

Technical Specifications:

📄 Datasheet: Download the official Hikvision DS-QAE0A60G1-VB datasheet (PDF)
