Hikvision-C 8-Channel Analog Mixing Console with DSP Effects | DS-QAPMCR8-A

Hikvision 8-Channel Analog Mixing Console with DSP Effects | DS-QAPMCR8-A

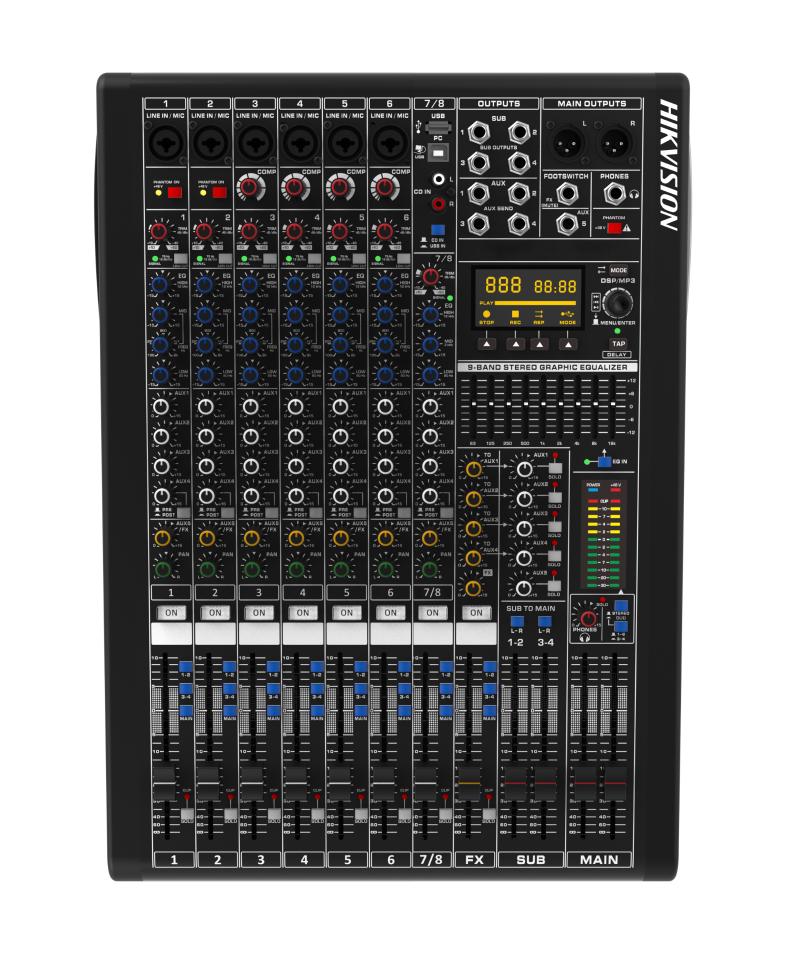

The Hikvision DS-QAPMCR8-A is an 8-channel analog mixing console with six Mic/Line inputs (XLR / ¼" TRS combo), a USB media and Bluetooth channel and a CD stereo input. It has 12 outputs (Main L/R, 4 SUB, 5 AUX and a stereo monitor), a built-in DSP effects processor with 14 effect types and 120 presets, and can be rack mounted.

Key Features:

Six Mic/Line Inputs: Each of the six input channels has a combo jack that accepts a balanced XLR microphone or a ¼" TRS instrument/line cable, so microphones and instruments can share the same console.

Channel Processing: The Mic/Line channels have 3-band EQ and a low-cut filter, and +48 V phantom power is available for condenser microphones. Channels 3 to 6 also have a built-in compressor.

Built-in DSP Effects: One DSP effects processor with 14 effect types and 120 presets adds effects to voice and music without an external effects unit.

USB and Bluetooth Playback: Play MP3 files from a USB flash drive or stream music wirelessly from a phone over Bluetooth, mixed in on their own channel alongside the microphones.

Flexible Outputs: 12 outputs (1 Main L/R, 4 SUB, 5 AUX, 1 stereo monitor) plus a graphic EQ on the output and a 3.2-inch LCD that shows effect parameters and USB playback information.

Good to know: This is a mixing console, not an amplifier. Its outputs are line-level, so passive loudspeakers need a separate power amplifier (for example a Hikvision DS-QAPAR professional amplifier) or powered speakers. Microphones, cables and speakers are sold separately.

Technical Specifications:

📄 Datasheet: Download the official Hikvision DS-QAPMCR8-A datasheet (PDF)
