HIKVISION DS-3E0526P-E/M 24 Port Gigabit Unmanaged POE Switch

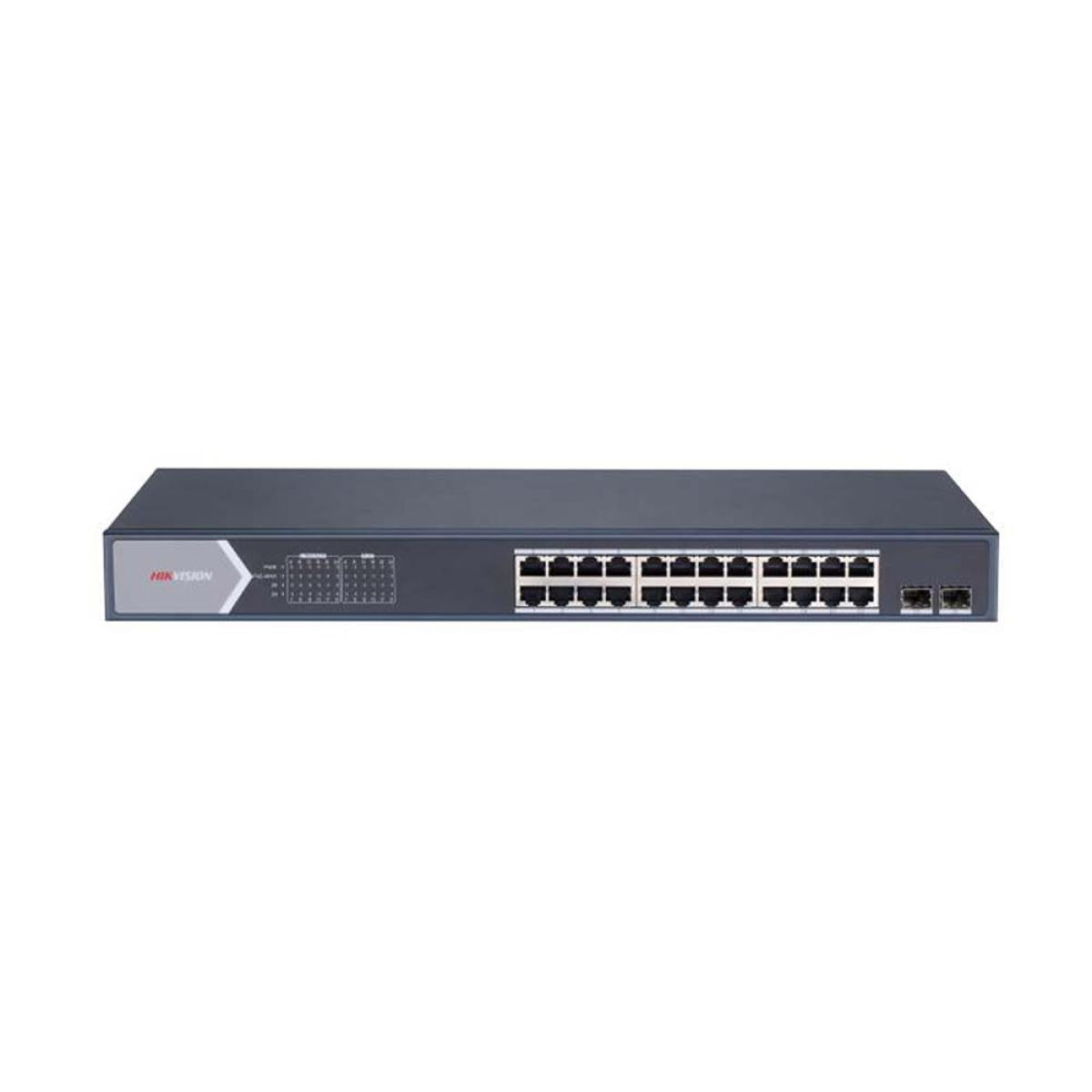

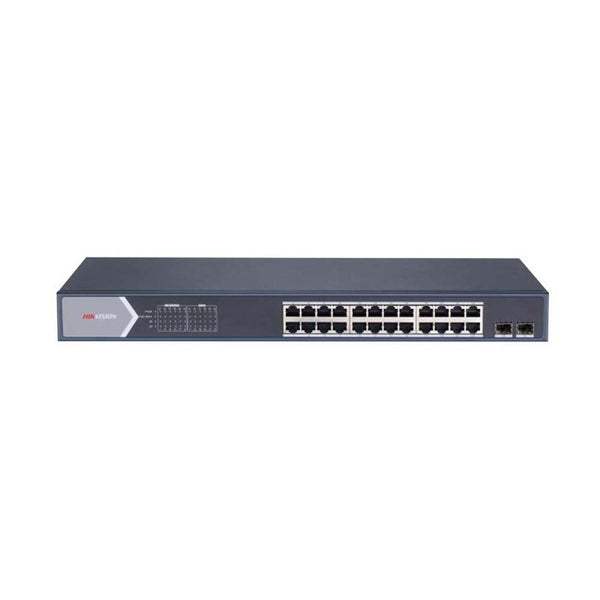

The Hikvision DS-3E0526P-E/M is a 24-port Gigabit unmanaged PoE switch for rack mounting, with 24 Gigabit PoE ports and 2 Gigabit SFP fiber ports. Its 225 W PoE budget powers IEEE 802.3af and 802.3at devices, with up to 30 W on a single port.
24 Gigabit PoE ports: Ports 1 to 24 carry power and Gigabit data over one cable each, so each powered device needs no separate power adapter at its location.
2 Gigabit SFP fiber ports: The two SFP ports take fiber modules for uplinks to a distant rack or the core network. Hikvision lists HK-SFP-1.25G modules as optional accessories.
225 W PoE budget: All 24 PoE ports share 225 W, and a single port can deliver up to 30 W. PoE power management keeps the total within the budget.
Wire-speed switching: A 52 Gbps switching capacity, a 38.69 Mpps forwarding rate and store-and-forward switching keep traffic flowing at full speed on all ports.
6 kV surge protection: The PoE ports have 6 kV surge protection, which helps protect the switch and the connected devices from power surges.
Metal rack-mount housing: The solid metal shell mounts in a rack with the supplied mounting ears and runs directly on 100 to 240 VAC.
Good to know
This is an unmanaged switch: it has no web interface, VLAN or other settings.
SFP fiber modules are optional accessories and are not part of the switch.
The 225 W PoE budget is shared by all PoE ports.
Technical Specifications
| Model | DS-3E0526P-E/M |
| Ports | 24 × Gigabit PoE RJ45, 2 × Gigabit SFP fiber |
| Number of Ports | 26 (24 × Gigabit RJ45 PoE, 2 × Gigabit SFP) |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Ports | Ports 1 to 24 |
| PoE Power Pin | End-span: 1/2 (+), 3/6 (-) |
| Max. Power per Port | 30 W |
| Total PoE Budget | 225 W |
| Switching Capacity | 52 Gbps |
| Packet Forwarding Rate | 38.69 Mpps |
| MAC Address Table | 8K |
| Internal Cache | 4.1 Mbits |
| Forwarding Mode | Store-and-forward |
| Management | Unmanaged |
| Surge Protection | 6 kV (PoE ports) |
| Housing | Metal |
| Installation | Rack (mounting ears) |
| Power Supply | 100 to 240 VAC, 50/60 Hz, max. 4 A |
| Power Consumption | 250 W max., 25 W idle |
| Dimensions (W × H × D) | 440 × 44 × 220.8 mm |
| Weight | 2.92 kg net, 4.12 kg gross |
| Operating Temperature | 0 °C to 45 °C |
| Operating Humidity | 5% to 95% (non-condensing) |
📄 Datasheet: Download the official Hikvision DS-3E0526P-E/M datasheet (PDF)
