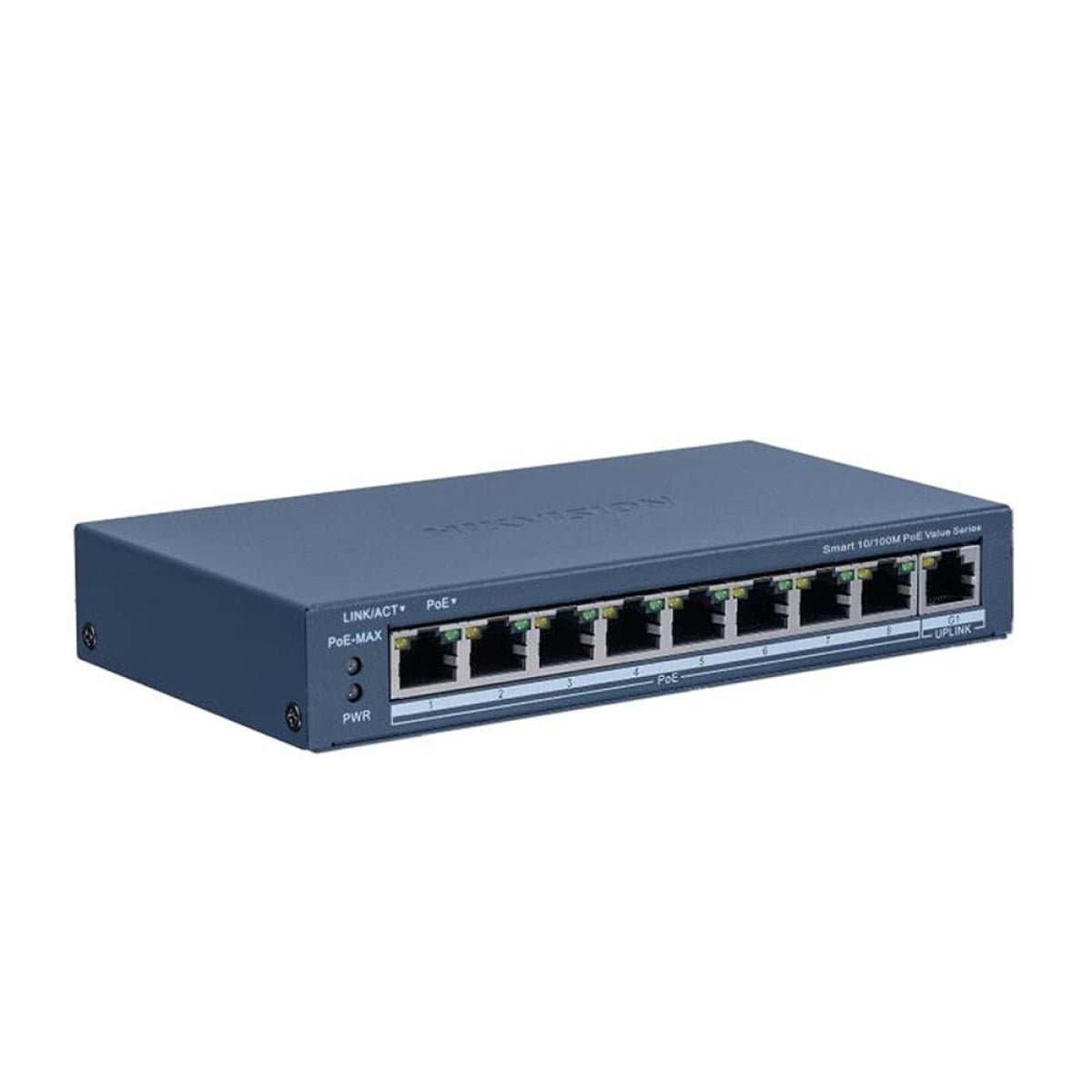

HIKVISION DS-3E1309P-EI/M 8 Port Fast Ethernet Smart POE Switch
The Hikvision DS-3E1309P-EI/M is a smart managed PoE switch with 8 × 10/100 Mbps PoE ports and 1 × Gigabit RJ45 port. Its 60 W PoE budget powers IEEE 802.3af and 802.3at devices, with up to 30 W on a single port.
8 PoE ports plus a Gigabit port: Ports 1 to 8 carry power and data to cameras or other PoE devices over one cable each. The Gigabit RJ45 port links the switch to the NVR or the main network, so the combined camera traffic has a faster path out.
60 W PoE budget: The eight PoE ports share 60 W in total, and a single port can deliver up to 30 W. Plan the connected devices so their total power stays within the budget.
PoE watchdog: On ports 1 to 8 the switch detects cameras that stop responding and restarts them automatically, which shortens downtime without a site visit.
Up to 300 m in Extend mode: In Extend mode, 802.3af/at cameras can be reached at up to 300 m. The real distance depends on the camera model and the condition of the cable.
Smart network functions: The switch supports 802.1Q VLAN, STP/RSTP loop prevention, cable detection and port isolation, and it can be managed through its web interface or Hik-Partner Pro (topology, alarms, port and PoE status).
Metal, fan-free and protected: The metal housing is fan-free for silent operation, the PoE ports have 6 kV surge protection, and the switch can be placed on a desk or mounted on a wall.
Good to know
The 8 PoE ports are 10/100 Mbps (Fast Ethernet); only the uplink port is Gigabit.
The 60 W PoE budget is shared by all PoE ports.
Long-range performance depends on the camera model and cable condition.
Technical Specifications
| Model | DS-3E1309P-EI/M |
| Ports | 8 × 10/100 Mbps PoE RJ45, 1 × Gigabit RJ45 |
| Number of Ports | 9 (8 × 10/100 Mbps RJ45 PoE, 1 × Gigabit RJ45) |
| Working Mode | Standard mode (default), Extend mode |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Ports | Ports 1 to 8 |
| Max. Power per Port | 30 W |
| Total PoE Budget | 60 W |
| MAC Address Table | 8K |
| Internal Cache | 4 Mbits |
| Smart Functions | PoE watchdog, 802.1Q VLAN, STP/RSTP, cable detection, port isolation |
| Long Range | Up to 300 m (Extend mode) |
| Surge Protection | 6 kV (PoE ports) |
| Housing | Metal, fan-free |
| Installation | Desktop or wall mount |
| Dimensions (W × H × D) | 170 × 27.6 × 93.1 mm |
| Net Weight | 0.4 kg |
| Operating Temperature | 0 °C to 40 °C |
| Operating Humidity | 5% to 95% (non-condensing) |
📄 Datasheet: Download the official Hikvision DS-3E1309P-EI/M datasheet (PDF)
