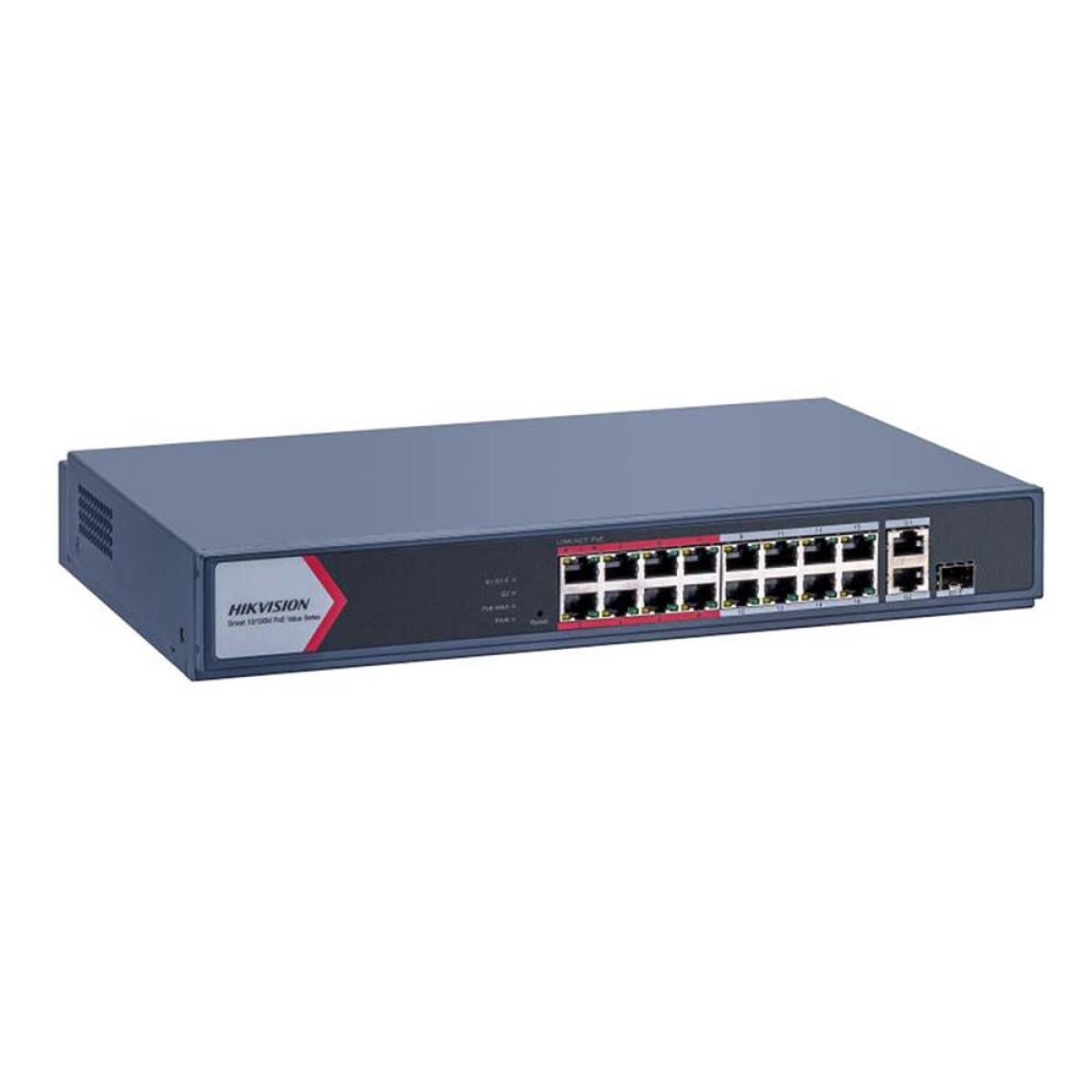

HIKVISION DS-3E1318P-EI/M 16 Port Fast Ethernet Smart POE Switch

HIKVISION DS-3E1318P-EI/M 16 Port Fast Ethernet Smart POE Switch

The Hikvision DS-3E1318P-EI/M is a rack-mount smart managed PoE switch with 16 × 10/100 Mbps PoE ports, 1 × Gigabit combo port (RJ45/SFP) and 1 × Gigabit RJ45 port. It provides a 130 W PoE budget for IEEE 802.3af and 802.3at devices, with up to 30 W on a single port.

16 PoE ports and two Gigabit uplinks: Ports 1 to 16 power and connect cameras or other PoE devices. The Gigabit combo port accepts either a copper cable or an SFP fiber module, and the second Gigabit RJ45 port links to the NVR or core network.

130 W PoE budget: All 16 PoE ports share 130 W, and any single port can deliver up to 30 W. Plan the connected devices so their total power stays within the budget.

VIP ports: Ports 1 to 8 are VIP ports: when bandwidth runs short, their data is forwarded first. Connect your most important cameras there.

PoE watchdog and long range: The switch restarts cameras on ports 1 to 16 that stop responding, and in long-range mode the PoE ports reach up to 300 m, depending on the camera and cable.

Smart network functions: Static link aggregation (one group) combines ports for more bandwidth and backup. The switch also supports 802.1Q VLAN, STP/RSTP, cable detection and port isolation, with management through the web interface or Hik-Partner Pro.

Rack-mount metal housing: The metal switch mounts in a standard rack using the supplied mounting ears, runs on 100 to 240 VAC, and has 6 kV surge protection on its ports.

Good to know

The 16 PoE ports are 10/100 Mbps (Fast Ethernet); the two uplink ports are Gigabit.

For a fiber link on the combo port, Hikvision lists HK-SFP-1.25G fiber modules as optional accessories.

The 130 W PoE budget is shared by all PoE ports.

Technical Specifications

📄 Datasheet: Download the official Hikvision DS-3E1318P-EI/M datasheet (PDF)
