HIKVISION DS-3E1326P-EI/M 24 Port Fast Ethernet Smart POE Switch

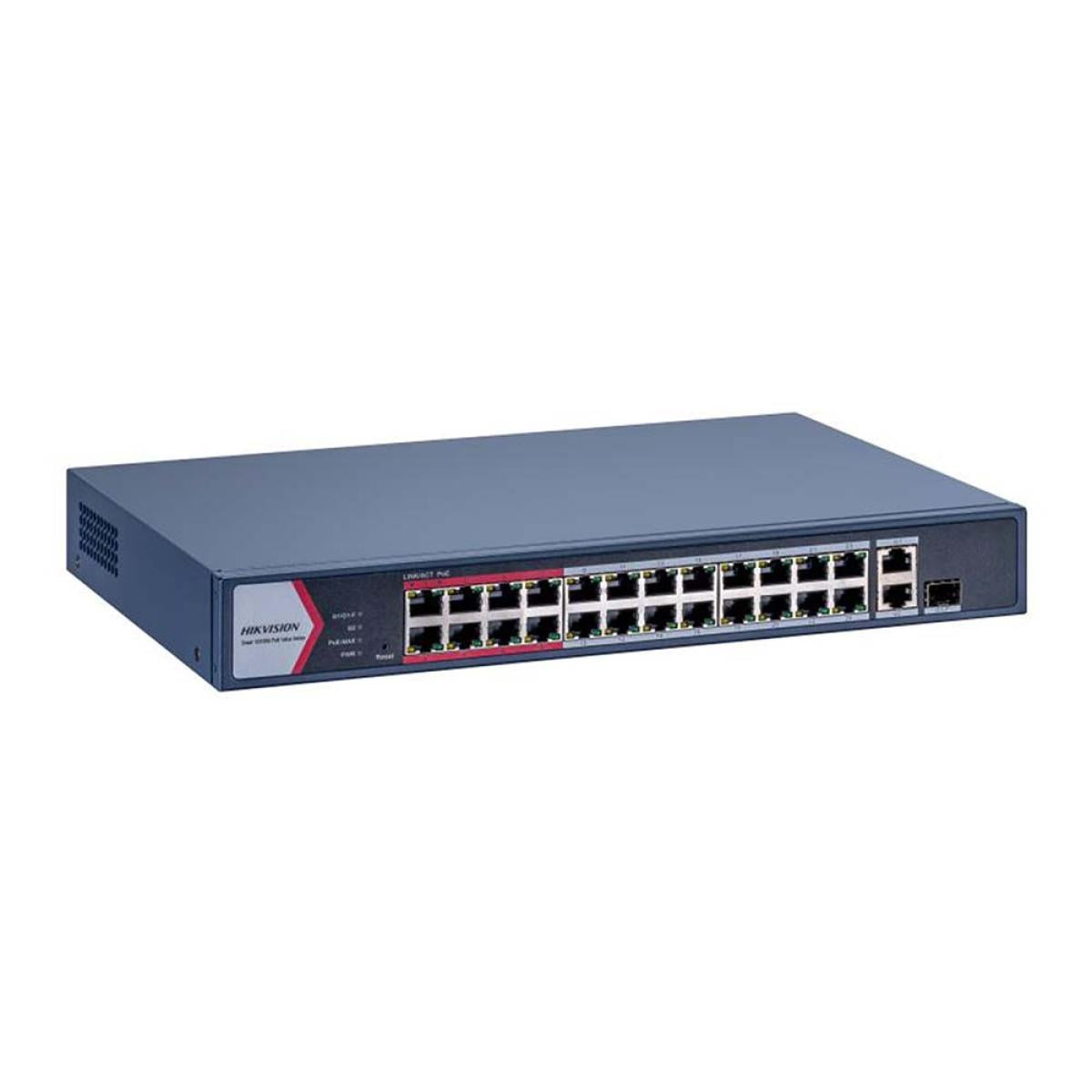

The Hikvision DS-3E1326P-EI/M is a rack-mount smart managed PoE switch with 24 × 10/100 Mbps PoE ports, 1 × Gigabit combo port (RJ45/SFP) and 1 × Gigabit RJ45 port. It provides a 230 W PoE budget for IEEE 802.3af and 802.3at devices, with up to 30 W on a single port.
24 PoE ports and two Gigabit uplinks: Ports 1 to 24 power and connect cameras or other PoE devices. The Gigabit combo port works as an RJ45 port with a cable or as a fiber port with an SFP optical module, and the second Gigabit RJ45 port links to the NVR or core network.
230 W PoE budget: All 24 PoE ports share 230 W, and any single port can deliver up to 30 W. Plan the connected devices so their total power stays within the budget.
VIP ports: Ports 1 to 8 are VIP ports: when bandwidth runs short, their data is forwarded first. Connect your most important cameras there.
PoE watchdog and long range: The switch detects and restarts cameras on ports 1 to 24 that stop responding, and the PoE ports reach up to 300 m in long-range mode. Long-range performance depends on the camera model and cable condition.
Smart network functions: Static link aggregation (one group), 802.1Q VLAN (up to 4094 VLANs), STP/RSTP loop prevention, port isolation, LLDP, port mirroring and cable detection (open circuit, short circuit and cable length) help build and troubleshoot a camera network.
Easy management: Manage the switch through its web interface, Hik-Partner Pro (port rate, bandwidth use, PoE usage, topology, alarms, port and device restart, remote upgrade) or HikCentral Pro. A fixed Super IP (10.180.190.200) gives direct access.
Rack-mount metal housing: The metal switch mounts in a rack with mounting ears, runs on 100 to 240 VAC and has 6 kV surge protection.
Good to know
The 24 PoE ports are 10/100 Mbps (Fast Ethernet); the two uplink ports are Gigabit.
To use the combo port as a fiber port, an SFP optical module is needed.
The 230 W PoE budget is shared by all PoE ports.
Technical Specifications
| Model | DS-3E1326P-EI/M |
| Ports | 24 × 10/100 Mbps PoE RJ45, 1 × Gigabit combo (RJ45/SFP), 1 × Gigabit RJ45 |
| Number of Ports | 26 (24 × 10/100 Mbps RJ45 PoE, 1 × Gigabit RJ45/SFP combo, 1 × Gigabit RJ45) |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Ports | Ports 1 to 24 |
| PoE Power Pin | 1/2 (-), 3/6 (+), 4/5 (+), 7/8 (-) |
| Max. Power per Port | 30 W |
| Total PoE Budget | 230 W |
| Switching Capacity | 14.8 Gbps (whole device), 8.8 Gbps (port performance) |
| Packet Forwarding Rate | 11.01 Mpps (whole device), 6.55 Mpps (port performance) |
| MAC Address Table | 16K |
| Internal Cache | 4 Mbits |
| VIP Ports | Ports 1 to 8 |
| Link Aggregation | Static, 1 group |
| VLAN | 802.1Q, VLAN ID 1 to 4094, Trunk and Access modes |
| Loop Prevention | 802.1D STP, 802.1w RSTP |
| Other Functions | PoE watchdog, port isolation, cable detection, LLDP, port mirroring, DHCP client |
| Long Range | Up to 300 m (ports 1 to 24) |
| Management | Web, Hik-Partner Pro, HikCentral Pro |
| Surge Protection | 6 kV |
| Housing | Metal |
| Installation | Rack (mounting ears) |
| Power Supply | 100 to 240 VAC, 50/60 Hz, max. 4 A |
| Power Consumption | 250 W max., 20 W idle |
| Dimensions (W × H × D) | 440 × 44 × 220.8 mm |
| Weight | 2.13 kg net, 3.1 kg gross |
| Operating Temperature | 0 °C to 45 °C |
| Operating Humidity | 5% to 95% (non-condensing) |
📄 Datasheet: Download the official Hikvision DS-3E1326P-EI/M datasheet (PDF)
