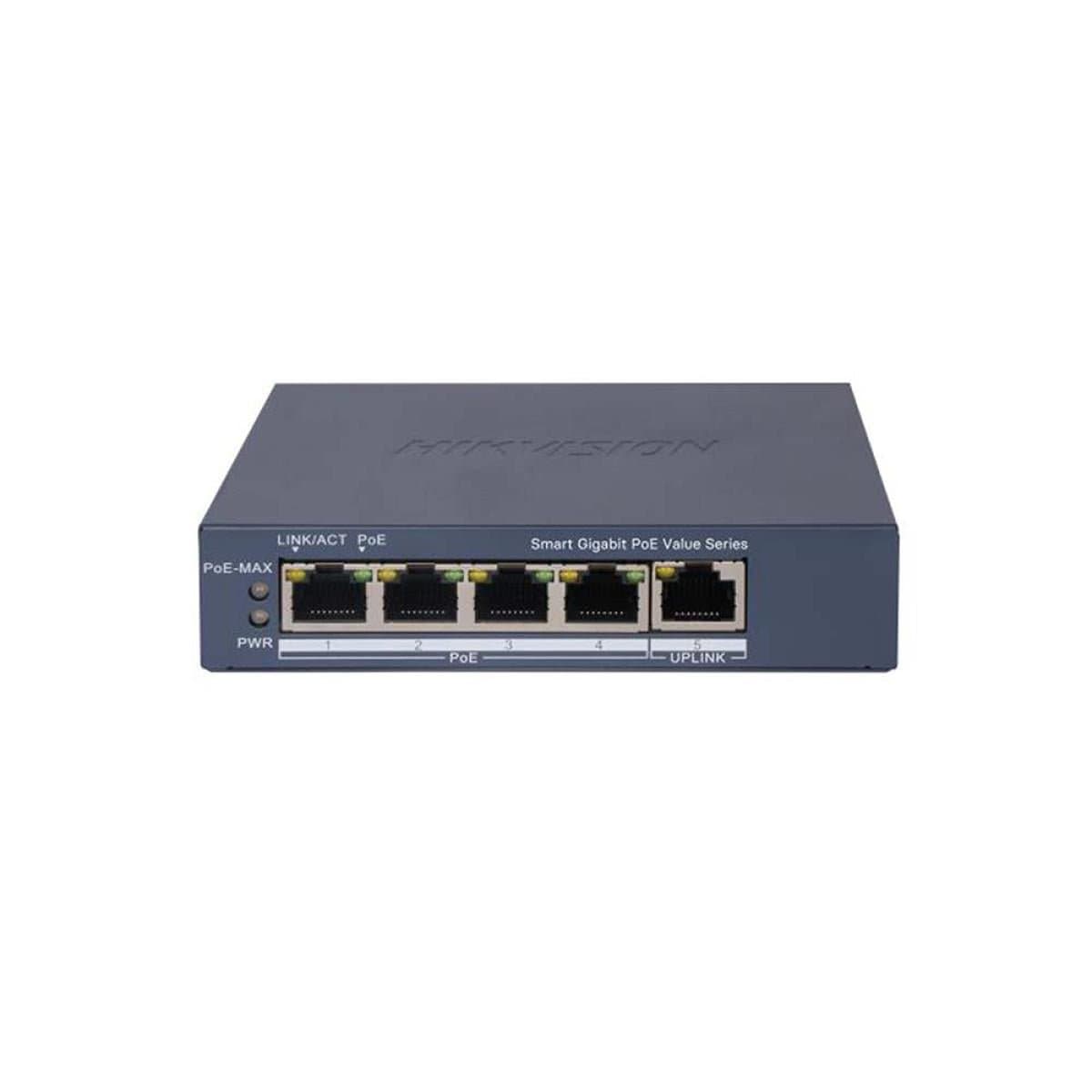

HIKVISION DS-3E1505P-EI/M 4 Port Gigabit Smart POE Switch

HIKVISION DS-3E1505P-EI/M 4 Port Gigabit Smart POE Switch

The Hikvision DS-3E1505P-EI/M is a 4-port Gigabit smart PoE switch for small IP camera systems. It has 4 Gigabit PoE ports and 1 Gigabit RJ45 uplink, a total PoE budget of 45 W (up to 30 W per port), and it can be managed from the web or remotely through Hik-Partner Pro.

Key Features

4 Gigabit PoE Ports + 1 Uplink: Ports 1 to 4 deliver data and power over one network cable to IP cameras or other PoE devices, following IEEE 802.3af and 802.3at. The fifth Gigabit RJ45 port connects the switch to your recorder or main network.

45 W PoE Budget, up to 30 W per Port: The switch can give up to 30 W to a single port, with 45 W shared across all four PoE ports. This covers typical PoE cameras, but the total load of all connected devices has to stay within 45 W.

Long-Range PoE up to 300 m: In long-range mode, ports 1 to 4 can reach cameras up to 300 m away, which is longer than a normal 100 m Ethernet run. This helps when a camera is far from the network cabinet.

PoE Watchdog: The switch automatically detects cameras on ports 1 to 4 that stop responding and restarts them by cycling their PoE power. A frozen camera can come back online without someone going to the site.

Smart Management: You can manage the switch through its web page, Hik-Central Pro, or remotely with one-click activation in Hik-Partner Pro, where you can see port rates, bandwidth use, PoE power use, topology and alarms, restart ports and upgrade the device. SNMP v1/v2c and LLDP are also supported.

VLAN, Loop Prevention and Cable Detection: 802.1Q VLAN (up to 32 VLANs) and port isolation help separate traffic, and STP/RSTP loop prevention protects the network if a cable loop is created by mistake. Cable detection shows open circuits, short circuits and cable length to help locate faults.

Metal Housing and 6 kV Surge Protection: The switch has a metal shell, 6 kV surge protection and a grounding terminal. It can be placed on a desk or mounted on a wall.

Good to know

• The PoE power budget is shared by all PoE ports; the total power of connected devices must stay within it.
• The 300 m long-range PoE distance is an extend mode; Hikvision notes that long-range performance may vary with the camera model and cable condition.
• Power comes from a 54 V DC adapter (connected with the attached power cord and adapter, per the datasheet).
• Operating temperature is 0 °C to 40 °C, so it is meant for indoor installation.

Technical Specifications

📄 Datasheet: Download the official Hikvision DS-3E1505P-EI/M datasheet (PDF)
