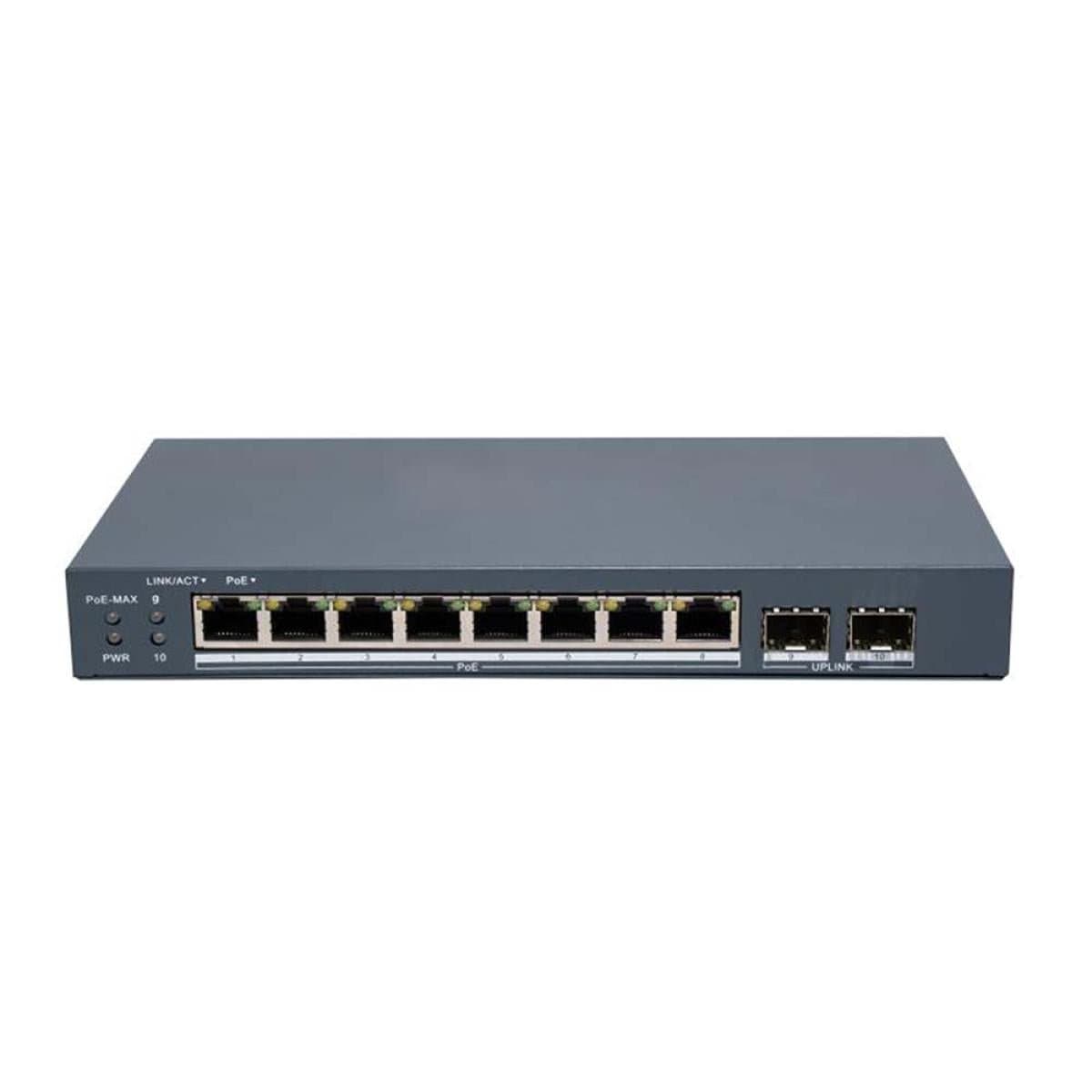

HIKVISION DS-3E1510P-EI/M-8P2F 8 Port Gigabit Smart POE Switch
HIKVISION DS-3E1510P-EI/M-8P2F 8 Port Gigabit Smart POE Switch
Couldn't load pickup availability
HIKVISION DS-3E1510P-EI/M-8P2F 8 Port Gigabit Smart POE Switch
The Hikvision DS-3E1510P-EI/M-8P2F is a 10-port smart managed switch with eight Gigabit PoE ports for IP cameras and two Gigabit SFP fiber ports for uplinks. Each PoE port gives up to 30 W, the switching capacity is 20 Gbps, and it can be managed through a web page, Hik-Partner Pro or HikCentral Pro.
8 Gigabit PoE ports: Ports 1–8 run at Gigabit speed and follow IEEE 802.3af and IEEE 802.3at, with up to 30 W per port. Each camera gets power and data over a single network cable.
2 SFP fiber uplinks: Two Gigabit SFP ports let you link the switch to the NVR room or core switch over fiber, which is useful when the distance is too long for copper cable. SFP modules are bought separately.
Up to 300 m long-range PoE: Ports 1–8 support long-range transmission of up to 300 m. Hikvision notes that the real distance depends on the camera model and the cable condition.
PoE watchdog and cable detection: The switch watches the cameras on ports 1–8 and restarts any camera that stops responding. Cable detection finds open circuits, short circuits and the cable length, so faults can be located quickly.
Smart management: It supports 802.1Q VLAN (up to 32 VLANs), STP/RSTP loop prevention, port isolation, static link aggregation, port mirroring, LLDP and SNMP v1/v2c. It can be set up from a web browser or managed remotely from Hik-Partner Pro and HikCentral Pro.
Who it's for / Works with
Hikvision IP surveillance systems that need Gigabit PoE for up to eight cameras and a fiber uplink. It is managed through Hik-Partner Pro and HikCentral Pro as well as its web page.
Good to know
SFP fiber modules are not part of the switch. The PoE power is shared by the eight PoE ports. The switch can sit on a desk or be wall-mounted. A fixed management IP (Super IP 10.180.190.200) is available for direct access.
Technical Specifications
| Model | DS-3E1510P-EI/M-8P2F |
| Ports | 8 × Gigabit PoE RJ45, 2 × Gigabit SFP |
| Number of Ports | 10 (8 × Gigabit PoE RJ45, 2 × Gigabit SFP) |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Ports | Ports 1–8 |
| Max. PoE per Port | 30 W |
| Long Range | Ports 1–8: up to 300 m |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| Internal Cache | 1.5 Mbit |
| MAC Address Table | 4K |
| VLAN | 802.1Q, VLAN ID 1–4094, max. 32 VLANs, Trunk / Access |
| Loop Prevention | 802.1D STP, 802.1w RSTP |
| Link Aggregation | Static, 3 groups |
| Management | Web, Hik-Partner Pro, HikCentral Pro, SNMP v1/v2c |
| Surge Protection | 6 kV |
| Power Supply | 54 V DC |
| Housing | Metal |
| Installation | Desk-mounted, wall-mounted |
| Operating Temperature | 0 °C to 40 °C |
| Operating Humidity | 5% to 95%, non-condensing |
| Dimensions (W × H × D) | 217.6 × 27.6 × 108.5 mm |
| Net Weight | 0.54 kg |
