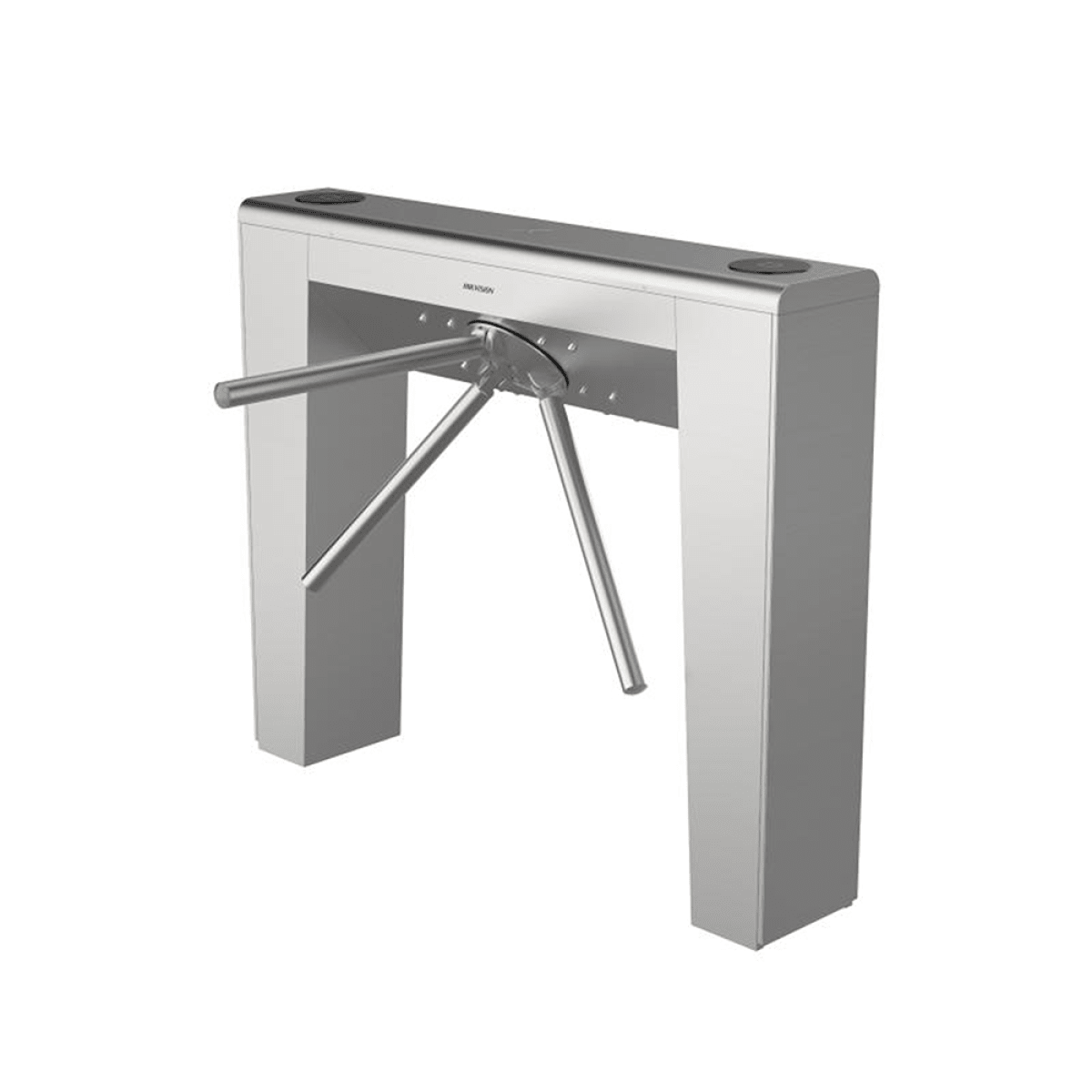

HIKVISION DS-K3G225X Value Tripod Turnstile Bidirectional (Entering/Exiting) LED indicates Stainless steel pipe Indoor and outdoor
HIKVISION DS-K3G225X Value Tripod Turnstile Bidirectional (Entering/Exiting) LED indicates Stainless steel pipe Indoor and outdoor
Couldn't load pickup availability
HIKVISION DS-K3G225X Value Tripod Turnstile Bidirectional (Entering/Exiting) LED indicates Stainless steel pipe Indoor and outdoor
The Hikvision DS-K3G225X is a value tripod turnstile from Hikvision with a bidirectional (entering/exiting) lane and an integrated access controller. It has a 550 mm lane width, a SUS304 stainless steel body, high-brightness LED passage indication, and drops its arms automatically when the fire alarm input is triggered.
Key Features
Bidirectional Lane: One lane handles both entering and exiting, so a single turnstile can control traffic in both directions. High-brightness LEDs show the entrance/exit direction and the passing status.
Integrated Access Controller: The access controller is supplied with the turnstile, with capacity for 500,000 cards and 500,000 events. It has a 10/100 Mbps Ethernet port and can be configured from a PC or mobile web browser.
Authentication Options: A person authenticates before passing, and Hikvision lists card, face and QR code as authentication modes for this series. Face and QR code use compatible access-control devices installed on the turnstile.
Fire Alarm Passing: When the fire alarm input is triggered, the arms drop automatically so people can evacuate quickly. This is important for buildings that need a clear emergency exit.
Stainless Steel, Indoor and Outdoor: The pedestal is SUS304 stainless steel and the arms are SUS304 stainless pipe, with IPX4 protection and a working range of -20 °C to 65 °C. Hikvision lists the application environment as indoor and outdoor, with a rated MCBF of at least 2 million cycles.
Who it's for / Works with
Hikvision states typical uses in attractions, offices, construction sites and residences, where a person must authenticate before passing through the lane.
Good to know
- Throughput is 25 to 60 persons per minute; Hikvision notes the actual rate depends on how people pass and authenticate.
- Stainless steel needs regular cleaning; Hikvision recommends monthly cleaning in normal conditions and weekly cleaning in harsh environments such as seaside sites.
- The DS-K3G225X is sold in several versions (for example -R/M-Dm55, -R/E-Dm55, -R/MQ-Dm55, -R/MPa-Dm55); the card type (EM or M1) depends on the exact version.
Technical Specifications
| Series | DS-K3G225X Value Tripod Turnstile |
| Lane | Bidirectional (entering/exiting) |
| Lane Width | 550 mm |
| Throughput | 25 to 60 persons per minute |
| Access Controller | Supplied |
| Card / Event Capacity | 500,000 / 500,000 |
| Card Type | EM or M1 (depends on the version) |
| Authentication Modes | Card, face, QR code |
| Wired Network | 10/100 Mbps self-adaptive Ethernet |
| Interfaces | 1 × network, 2 × lock control, 2 × exit button, 2 × alarm output, 4 × RS-485, 2 × RS-232, 2 × Wiegand, 1 × fire alarm input, 2 × case input |
| Configuration | PC web, mobile web, keypad |
| Communication Protocol | TCP/IP |
| Audio Prompt | Supported |
| MCBF | ≥ 2 million times |
| Barrier Material | SUS304 stainless pipe |
| Pedestal Material | SUS304 stainless steel 1.0 mm and 0.8 mm |
| Power Supply | 100 to 240 VAC, 50/60 Hz |
| Power Consumption | Standby 35 W, working 45 W, peak 55 W |
| Protective Level | IPX4 |
| Working Temperature | -20 °C to 65 °C |
| Working Humidity | 0% to 95% (no condensing) |
| Dimensions (without package) | 1200 mm × 233 mm × 1000 mm |
| Net Weight | 30.58 kg |
| Application Environment | Indoor and outdoor |
📄 Datasheet: Download the official Hikvision DS-K3G225X datasheet (PDF)
