HIKVISION DS-KH8350-WTE1 KH8 Series Indoor Station

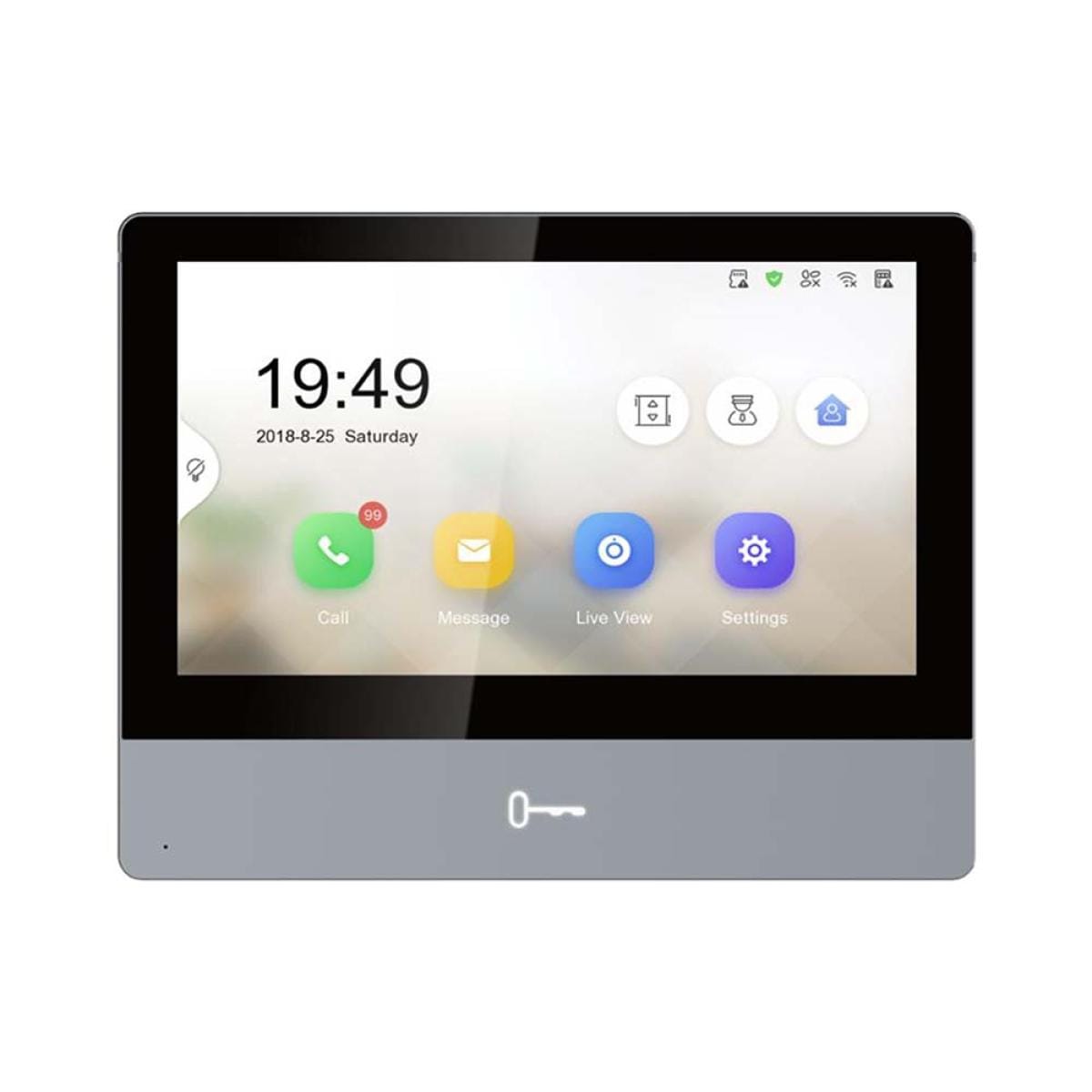

The Hikvision DS-KH8350-WTE1 is a KH8 series network indoor station for Hikvision IP video intercom systems. It has a 7-inch IPS capacitive touch screen (1024 × 600), works with the Hik-Connect app, and is powered by standard PoE (IEEE 802.3af) or 12 VDC.
Key Features
7-inch IPS Touch Screen: The 7-inch colorful IPS capacitive touch screen at 1024 × 600 shows visitors clearly and is easy to operate. Hikvision notes the KH8350 is a Reddot award winner.
Hik-Connect App Control: With the Hik-Connect app you can receive calls, open the door and watch live view remotely. You do not need to be at home to answer a visitor.
Easy Setup without a PC: A setup wizard lets you configure the whole system from the touch screen, so a PC is not needed for installation.
Live View, Messages and Alarms: You can view the door station and up to 16 linked network cameras, and visitors can leave voice messages when nobody answers. Eight alarm inputs let you connect alarm detectors, and the station supports elevator access control.
Network and Power: It connects by RJ-45 10/100 Mbps Ethernet or 2.4 GHz Wi-Fi (802.11b/g/n), and is powered by standard PoE (IEEE 802.3af) or 12 VDC. A TF card up to 128 GB is supported.
Who it's for / Works with
It works as the indoor monitor in a Hikvision IP video intercom system, linking up to 17 door stations, 16 indoor extensions and 16 network cameras.
Good to know
- This is an indoor station only; a door station is not included.
- The 12 V power adapter and table bracket are optional accessories (DS-KAW50-1, DS-KABH8350-T).
- Wi-Fi is 2.4 GHz only.
Technical Specifications
| Model | DS-KH8350-WTE1 |
| Screen | 7-inch colorful IPS, capacitive touch |
| Resolution | 1024 × 600 |
| Operating System | Linux |
| Audio | Built-in omnidirectional microphone and loudspeaker; noise suppression and echo cancellation |
| Audio Compression | G.711U / G.711A, 64 Kbps |
| Network Protocol | TCP/IP, SIP, RTSP |
| Wired Network | 1 × RJ-45 10/100 Mbps self-adaptive |
| Wi-Fi | 2.4 GHz, IEEE 802.11b/g/n |
| Linked Devices | 17 door phones, 16 indoor extensions, 16 network cameras |
| Notices | 200 |
| Alarm Input / Output | 8 / 2 |
| Lock Control | 2 high/low level relays (3.3 V / 0 V) |
| RS-485 | 1 (half duplex) |
| TF Card | Up to 128 GB |
| Power Supply | 12 VDC, 1 A, or IEEE 802.3af standard PoE |
| Power Consumption | ≤ 8 W |
| Installation | Surface mounting |
| Working Temperature | -10 °C to 55 °C |
| Working Humidity | 10% to 90% (non-condensing) |
| Dimensions (W × H × D) | 180 mm × 140 mm × 22.4 mm |
| Net Weight | 355 g |
| Languages | Includes English and Arabic (31 languages) |
📄 Datasheet: Download the official Hikvision DS-KH8350-WTE1 datasheet (PDF)
