HIKVISION DS-KIS212 4-Wire HD Video Intercom Kit

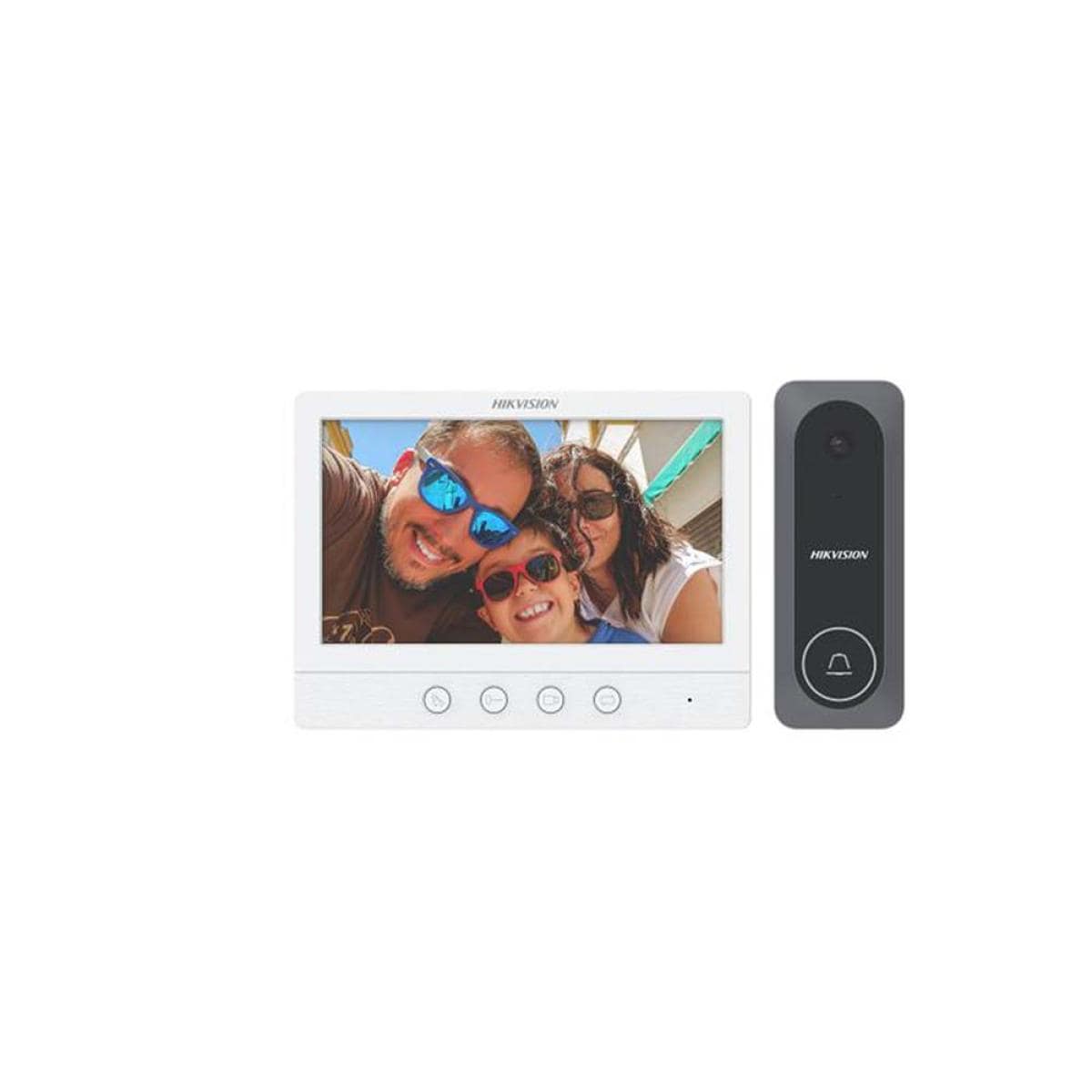

The Hikvision DS-KIS212 is a four-wire HD video intercom kit with a door station and a 7-inch indoor monitor. It uses HD TVI video (1280 × 720 at the door station), lets visitors call with one press and lets you unlock the door with one press, and a system can grow to 2 door stations and 3 indoor stations.
Key Features
HD Video over Four Wires: The kit sends HD TVI video from the door station over a four-wire connection, with a 1280 × 720 stream at 60 fps. The door camera covers 130° horizontally and 70° vertically.
One-Press Call and Unlock: The visitor presses one button to call, and you press one button on the monitor to unlock the door. The door station has one lock relay (max. 30 V, 1 A).
7-inch Indoor Monitor: The indoor station has a 7-inch colorful TFT screen at 1024 × 600, with four physical buttons, a built-in microphone and a loudspeaker. It also has one BNC input for an analog camera.
Expandable and Plug & Play: Installation is plug & play over four wires. One system supports up to 2 door stations and 3 indoor stations (the monitor links 2 indoor extensions and 2 door phones), and the door station has IR light up to 3 m for night calls.
Good to know
- This is a four-wire analog (HD TVI) kit, not an IP kit; it has no network or Wi-Fi connection listed in the datasheet.
- Hikvision lists the door station application environment as indoor, with no IP protection rating.
- Both units run on 12 VDC.
Technical Specifications
| Model | DS-KIS212 |
| Door Station Video | HD TVI, 1280 × 720 @ 60 fps |
| Door Station FOV | Horizontal 130°, vertical 70° |
| Supplement Light | IR, up to 3 m |
| Door Station Lock Control | 1 relay, max. 30 V 1 A |
| Door Station Button | 1 physical button |
| Door Station Power | 12 VDC, max. 4 W |
| Door Station Working Temp. | -30 °C to +60 °C |
| Door Station Dimensions | 136 mm × 51 mm × 20 mm |
| Door Station Material | Plastic |
| Indoor Station Screen | 7-inch colorful TFT, 1024 × 600 |
| Indoor Station Operation | 4 physical buttons |
| Indoor Station Interfaces | 4 four-wire (2 for indoor extensions, 2 for door phones), 1 BNC, 1 debugging port |
| Linked Analog Camera | 1 |
| Indoor Station Power | 12 VDC, ≤ 5 W |
| Indoor Station Working Temp. | -10 °C to +55 °C |
| Indoor Station Dimensions (W × H × D) | 178 mm × 132 mm × 19 mm |
| Installation | Surface mounting (both units) |
| System Capacity | Max. 2 door stations and 3 indoor stations |
📄 Datasheet: Download the official Hikvision DS-KIS212 datasheet (PDF)
