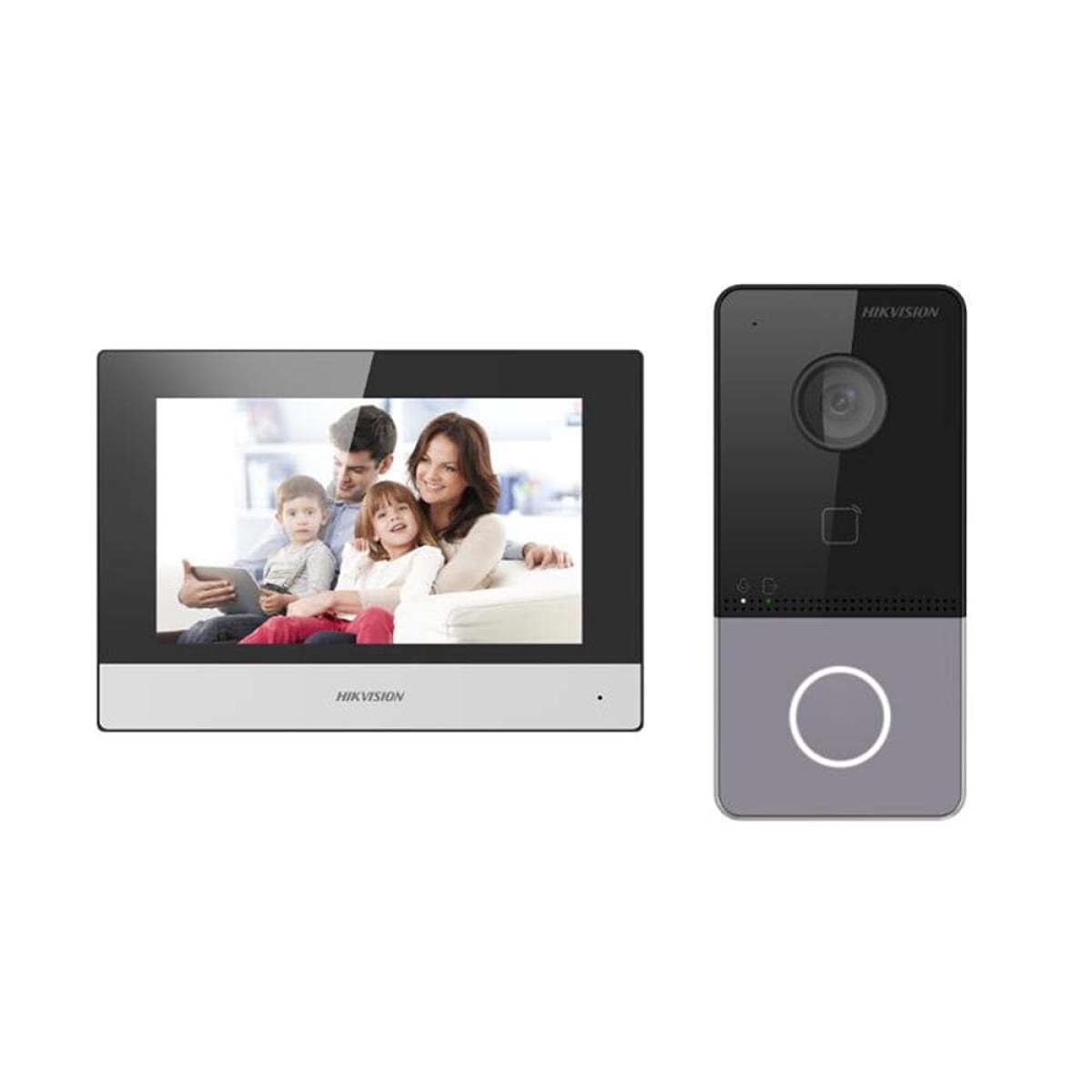

HIKVISION DS-KIS603-P(B) IP Video Intercom Kit

IP video intercom kit for villa or house, only one call button;DS-KV6113-WPE1 x1;DS-KH6320-WTE1 x1;PSU x2;

Specifications

Door Station

System Parameters

Operation System
Embedded Linux operation system

Flash
32 MB

RAM
128 MB

Video Parameters

Camera
2 MP HD camera

Night Vision
Low illumination IR supplement mode: up to 3 m

Backlight Compensation
Supported

Digital Noise Reduction
Supported

WDR
True WDR

Field of View (FOV)
• Horizontal: 129°
• Vertical: 75°

Video Compression Standard
H.264

Video Stream
• Main stream: 1080p @ 30 fps, 720p @ 25 fps
• Sub stream: D1 @ 25 fps

Motion Detection
Supported

Anti-Flicker Frequency
50 Hz / 60 Hz

Audio Parameters

Audio Input
Built-in omnidirectional microphone

Audio Output
Built-in loudspeaker

Audio Quality
Noise suppression and echo cancellation

Audio Compression Standard
G.711 U

Audio Compression Rate
64 Kbps

Audio Communication
Two-way audio communication

Network Parameters

Network Protocol
TCP/IP, RSTP

Wired Network
10/100 Mbps Ethernet

Device Interfaces

RS-485
1

Alarm Input
4

Debugging Port
1

Grounding
1

Tamper Switch
1

General

Power Consumption
< 10 W

Power Supply
• IEEE802.3af Standard PoE
• 12 VDC

Working Temperature
-40°C to 53°C (-40°F to 127.4°F)

Working Humidity
10% to 95%

Protection Level
IP65

Indicators
2

Installation
Surface mounting

Dimensions
138 × 65 × 27 mm

Indoor Station

System Parameters

Operation System
Embedded Linux operation system

Memory
128 MB

Flash
32 MB

Display Parameters

Display
7-inch Colorful TFT Screen

Resolution
1024 × 600

Operation Method
Capacitive touch screen

Audio Parameters

Audio Input
Built-in omnidirectional microphone

Audio Output
Built-in loudspeaker

Audio Quality
Noise suppression and echo cancellation

Audio Compression Standard
G.711 U

Audio Compression Rate
64 Kbps

Network Parameters

Wired Network
10/100 Mbps self-adaptive Ethernet

Wireless Network
Wi-Fi 802.11 b/g/n

Network Protocols
TCP/IP, SIP, RTSP

Network Interface
1 × RJ-45 10/100 Mbps self-adaptive

Device Interfaces

RS-485
1

Alarm Input
8-channel alarm inputs

Relay Output
2

TF Card
Supports up to 32 GB (SD 2.0 or lower)

General

Power Consumption
≤ 6 W

Working Temperature
-10°C to 55°C (14°F to 131°F)

Working Humidity
10% to 90%

Dimensions (L × W × H)
200 × 140 × 15.1 mm
(7.9" × 5.5" × 0.6")

Note: Product performance is based on testing in a controlled environment. Actual results may vary depending on environmental conditions and usage.
