HIKVISION DS-KIS608-P IP Video Intercom Kit

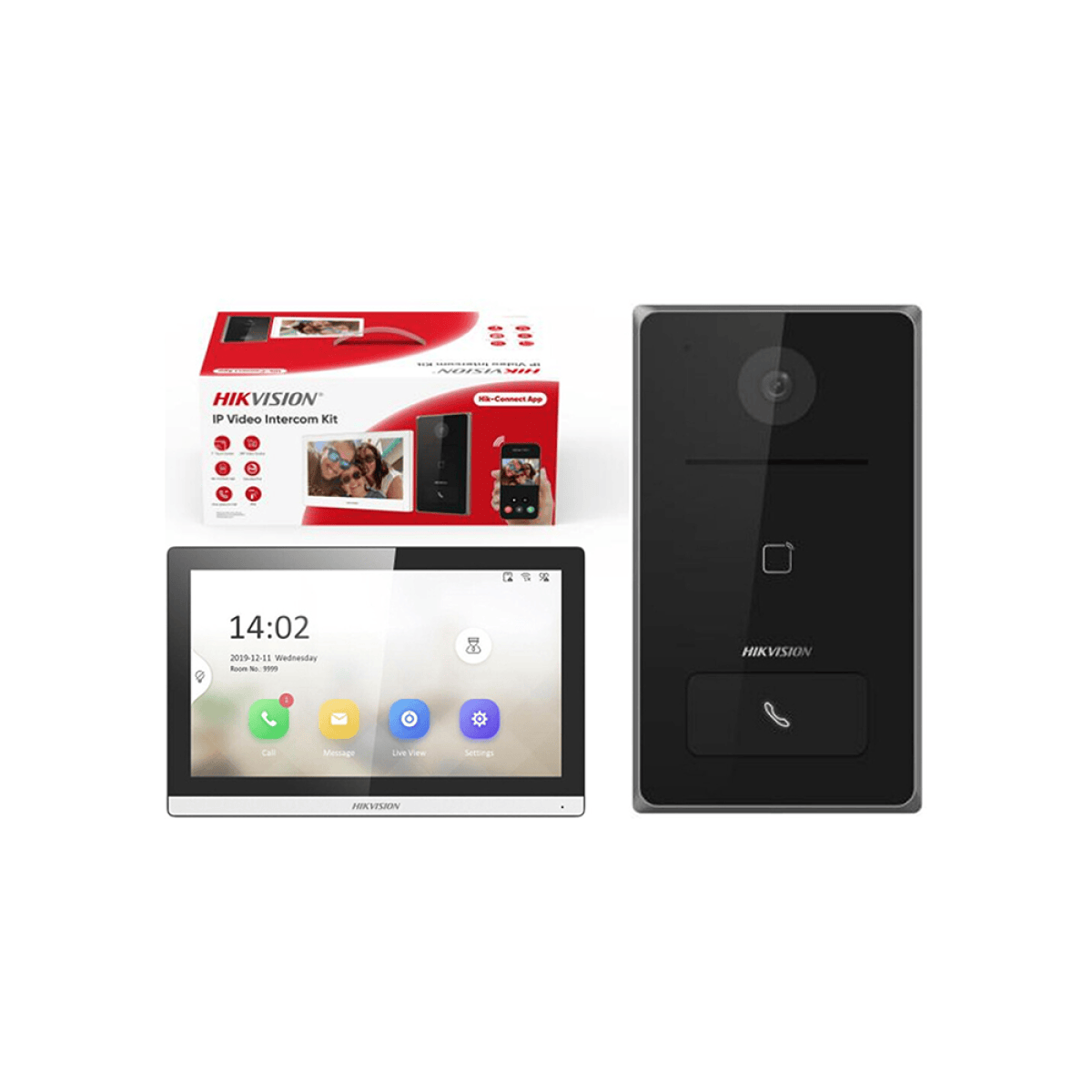

The Hikvision DS-KIS608-P is an IP video intercom kit with a one-button door station and a 7-inch touch-screen indoor station. It uses standard PoE, works with the Hik-Connect app, and comes with two power supplies and a 32 GB TF card.
Key Features
2 MP Door Station: The door station has a 2 MP HD camera with a 129° horizontal and 75° vertical field of view, True WDR and low-light IR up to 2.5 m. The main stream is up to 1080p, and motion detection is supported.
Hik-Connect App Control: The kit works with the Hik-Connect mobile app, so you can handle visitors from your phone. Both the door station and the indoor station support Wi-Fi (2.4 GHz, 802.11b/g/n) as well as wired Ethernet.
Weatherproof Door Station: The door station is rated IP65 and works from -40 °C to 53 °C. It has one lock relay (max. 30 VDC, 2 A), a door contact input, 4 alarm inputs and a tamper switch, and it can be surface or flush mounted.
7-inch Touch-Screen Indoor Station: The indoor station has a 7-inch colorful TFT capacitive touch screen at 1024 × 600, 8 alarm inputs, 2 relay outputs and a TF card slot up to 128 GB. Both units support standard PoE (IEEE 802.3af) or 12 VDC.
Good to know
- The kit includes power adapters (2 × PSU); a PoE switch is not listed in the kit.
- Wi-Fi on both units is 2.4 GHz only.
Technical Specifications
| Model | DS-KIS608-P |

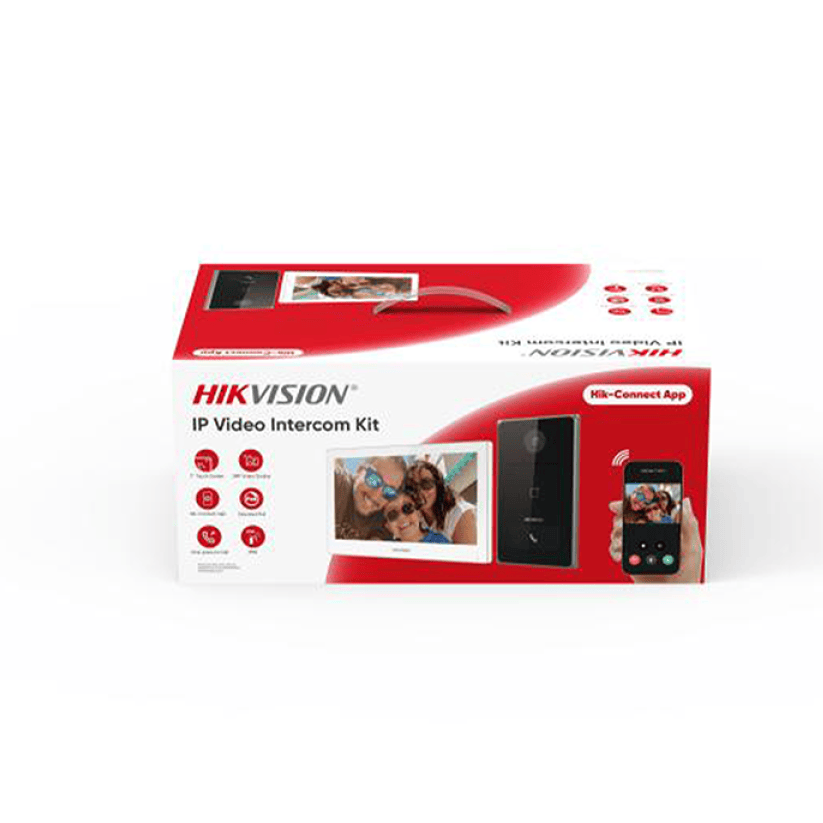

| Kit Contents | 1 × door station, 1 × indoor station, 2 × PSU, 1 × 32 GB TF card |
| Door Station Camera | 2 MP HD, True WDR, BLC, DNR |
| Door Station FOV | Horizontal 129°, vertical 75° |
| Night Vision | Low illumination IR, 2.5 m |
| Video Compression / Main Stream | H.264; 1080p @ 25/30 fps |
| Door Station Network | 1 × RJ-45 10/100 Mbps, Wi-Fi 2.4 GHz 802.11b/g/n |
| Door Station Interfaces | 1 × lock relay (max. 30 VDC 2 A), 1 × door contact input, 4 × alarm input, 1 × RS-485, tamper |
| Door Station Protection | IP65 |
| Door Station Power | IEEE 802.3af PoE or 12 VDC, < 10 W |
| Door Station Working Temp. | -40 °C to 53 °C |
| Door Station Installation | Surface or flush mounting |
| Door Station Dimensions | 181.6 mm × 103.6 mm × 29.5 mm |
| Indoor Station Screen | 7-inch colorful TFT, capacitive touch, 1024 × 600 |
| Indoor Station Network | 1 × RJ-45 10/100 Mbps, Wi-Fi 2.4 GHz 802.11b/g/n |
| Indoor Station Alarm Inputs / Relay Outputs | 8 / 2 |
| Indoor Station TF Card | Up to 128 GB |
| Indoor Station Power | 12 VDC 1 A or IEEE 802.3af PoE, ≤ 5 W |
| Indoor Station Working Temp. | -10 °C to 50 °C |
| Indoor Station Dimensions | 175 mm × 113.5 mm × 21 mm |
📄 Datasheet: Download the official Hikvision DS-KIS608-P datasheet (PDF)
