Hikvision AX Hybrid Pro Alarm Kit 433 MHz | DS-PHA64-Kit-WB(B)

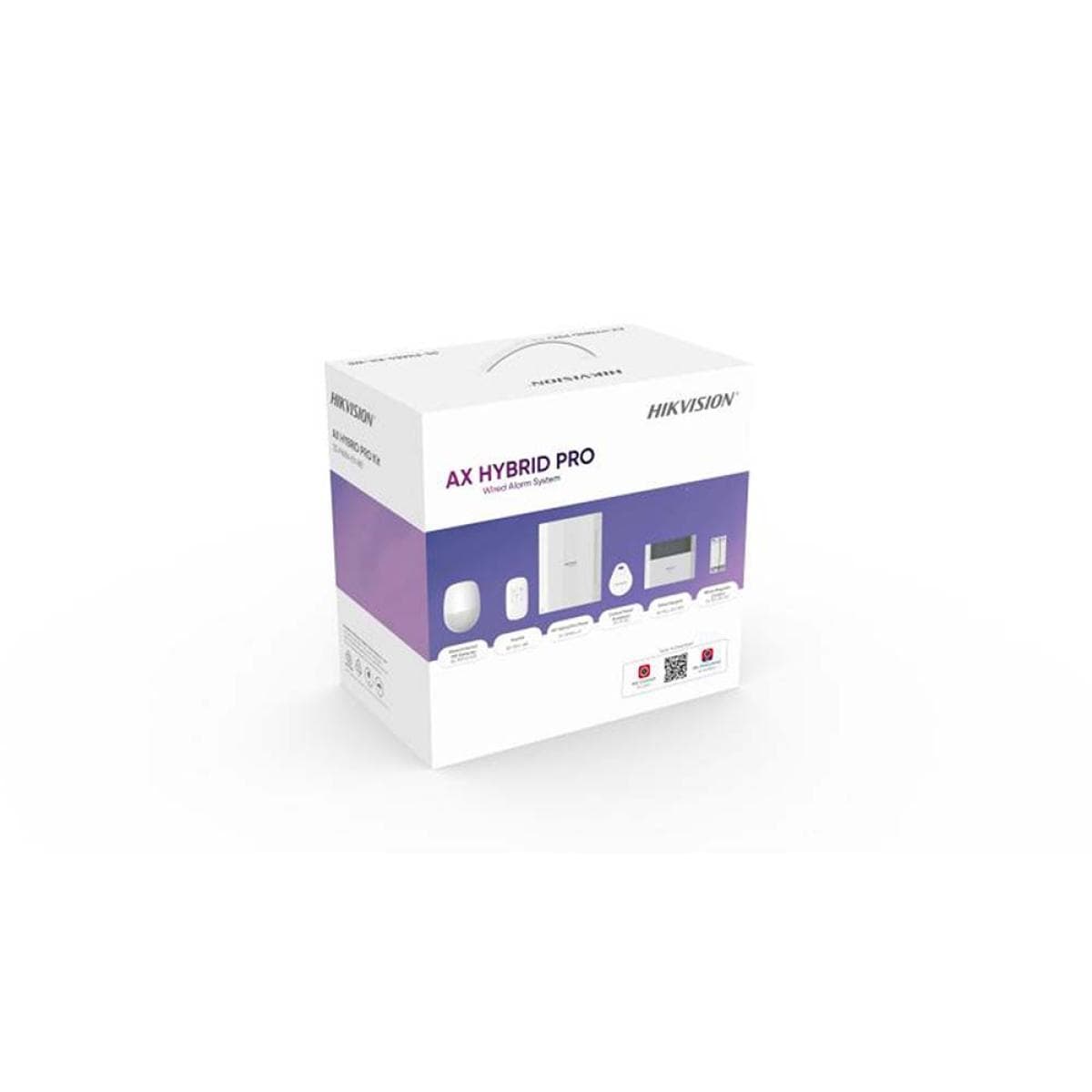

The Hikvision DS-PHA64-Kit-WB(B) is an AX Hybrid Pro (433 MHz) alarm kit built around the DS-PHA64-LP(B) hybrid control panel. The panel supports up to 64 zones (8 on-board) and 32 areas and connects over Ethernet and 2.4 GHz Wi-Fi. The kit contents are listed below by model number.
What's in the Kit:
| DS-PHA64-LP(B) | x 1 (AX Hybrid PRO control panel) |
| DS-PK1-LRT-HWB | x 1 |
| DS-PD1-MC-WS | x 1 |
| DS-PDP18-EG2(B) | x 2 |
| DS-PKF1-WB | x 1 |
| DS-PT-M1 | x 2 |
Key Features:
Hybrid Panel, 64 Zones: The control panel has 8 on-board zones and expands to 64 zones in total (up to 8 wired PIRCAM), with 32 areas, so a site can be divided into separately armed areas.
Inputs and Outputs: Up to 64 alarm inputs and 64 alarm outputs (including 2 on-board relay outputs and 2 on-board I/O outputs), a wired on-board sounder output, a 12 V / 1.2 A bell output and a 12 V / 1.5 A AUX output.
Connectivity and Reporting: 1 x RJ45 10/100M Ethernet port and 2.4 GHz Wi-Fi (802.11b/g/n), with optional 3G/4G or GPRS modules. SMS notifications are supported with a GPRS/3G/4G module, and alarm receiving centre protocols include ISAPI, Cloud P2P, DC-09 (ADM-CID/SIA-DCS), CSV-IP and ISUP 5.0.
Users and Backup Power: 1 installer, 1 administrator and 62 operator accounts. The panel runs from 100 to 240 VAC and supports a 12 V 7 Ah lead-acid backup battery for up to 36 hours of operation.
Technical Specifications (control panel):
| Model | DS-PHA64-Kit-WB(B) |
| Zones | 64 (8 on-board zones, max 8 wired PIRCAM) |
| Areas | 32 |
| Users | Installer: 1, Administrator: 1, Operator: 62 |
| Tags | 64 |
| Alarm inputs | 64 (including 8 on-board zones) |
| Alarm outputs | 64 (including 2 on-board relay outputs and 2 on-board I/O outputs) |
| Power outputs | Bell: max 12 V, 1.2 A; AUX: max 12 V, 1.5 A |
| Sounder output | 1 wired on-board |
| Ethernet | 1 x RJ45, 10/100M |
| Wi-Fi | 802.11b/g/n, 2.4 GHz |
| Mobile network | Optional 3G/4G or GPRS module |
| ARC protocols | ISAPI, Cloud P2P, DC-09 (ADM-CID/SIA-DCS), CSV-IP, ISUP 5.0 |
| Tamper protection | 2 switches (removal from mounting, front cover opening) |
| Indicators | 4 on-board LEDs: AC power, system status, PSTN status, mobile communication status |
| Power input | 100 to 240 VAC (on-board transformer) |
| Backup battery | 12 V 7 Ah lead-acid (not included), up to 36 hours |
| Operating temperature | -10 °C to 40 °C |
| Operating humidity | 10% to 90% |
| Shell material | Plastic |
| Dimensions (W x H x D) | 261 x 199 x 86.4 mm |
| Weight | 997 g |
Good to know: The 12 V 7 Ah backup battery is not included in the kit.
