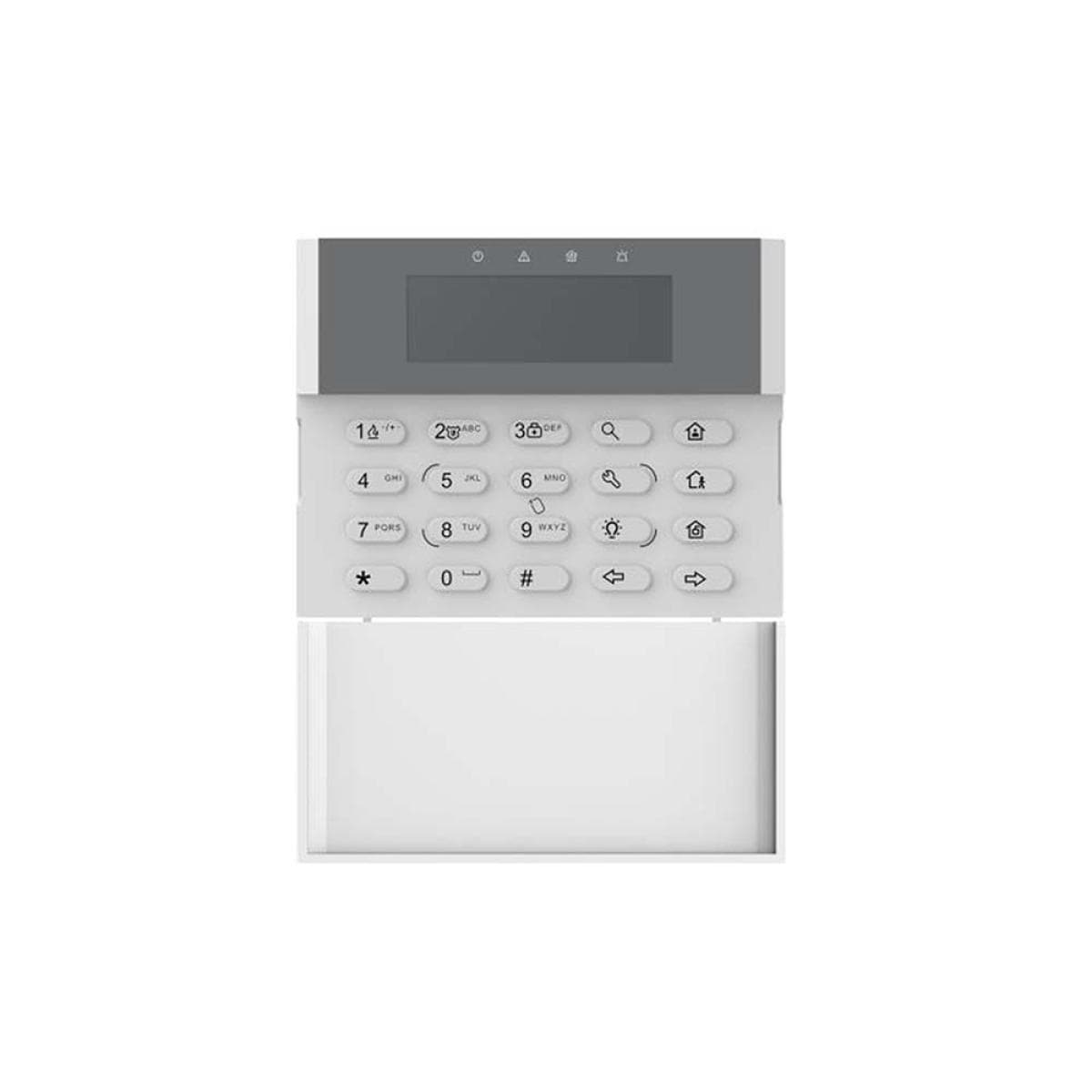

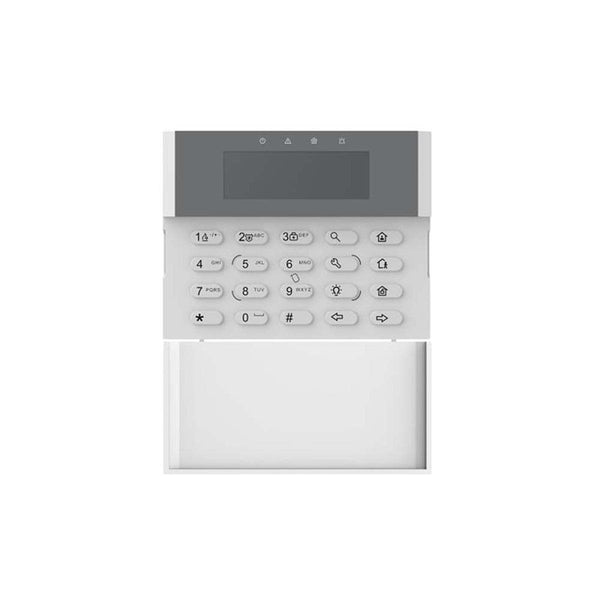

The Hikvision DS-PK1-LRT-HWB is a wired LCD keypad for the Hikvision AX Hybrid Pro control panels DS-PHA48-EP and DS-PHA64-LP. It connects to the panel over RS-485 and runs on 12 VDC. A built-in 433 MHz wireless transceiver and tag reader let users arm and disarm with keyfobs and tags as well as with the keys.

LCD Screen: The LCD screen can show your company name, phone number and the time. Four indicators show power, faults, armed and alarm states, and the keys have a white backlight, so the system status is clear at a glance.

One-Touch Arming: Users can arm the system with one touch, without entering a password. This makes daily arming quick for everyone in the home or office.

Emergency Keys: Dedicated fire, panic and medical alarm keys let users raise an alarm straight from the keypad, without going through menus.

Keyfobs and Tags: The built-in wireless transceiver and tag reader let the keypad work with keyfobs and tags for arming and disarming. The keypad supports up to 64 keyfobs.

On-Board Inputs and Output: The keypad has 2 on-board alarm inputs and 1 on-board alarm output. This adds zones and an output at the keypad location without extra modules.

Function Keys: 8 function keys cover query, away arm, stay arm, disarm, alarm output, project, left and right, next to the numeric keys 0 to 9, * and #.

Who it's for / Works with

Hikvision AX Hybrid Pro control panels DS-PHA48-EP and DS-PHA64-LP, connected over RS-485.

Good to know

This is a wired keypad: it needs an RS-485 connection to the panel and a 12 VDC supply.

The back-cover tamper switch is damaged when a tamper alarm is triggered.

DS-PK1-LRT-HWB is the 433 MHz version. Hikvision also makes an 868 MHz version, DS-PK1-LRT-HWE.

Technical Specifications

📄 Datasheet: Download the official Hikvision DS-PK1-LRT-HWB datasheet (PDF)
