Hikvision 3G/4G Communication Module | DS-PM2-S(AU)
The Hikvision DS-PM2-S(AU) is a 3G/4G communication module for the Hikvision AX Hybrid Pro series control panel. It adds a cellular reporting path over FDD-LTE and dual-band UMTS/HSDPA/HSPA+ networks.
Key Features:
Cellular Reporting: Adds 3G/4G reporting to a compatible AX Hybrid Pro series control panel, so alarm reports can travel over the mobile network.
4G LTE Bands: Supports FDD-LTE bands B1, B3, B5, B7, B8 and B28.
3G Support: Supports dual-band UMTS/HSDPA/HSPA+ on bands B1 and B5.

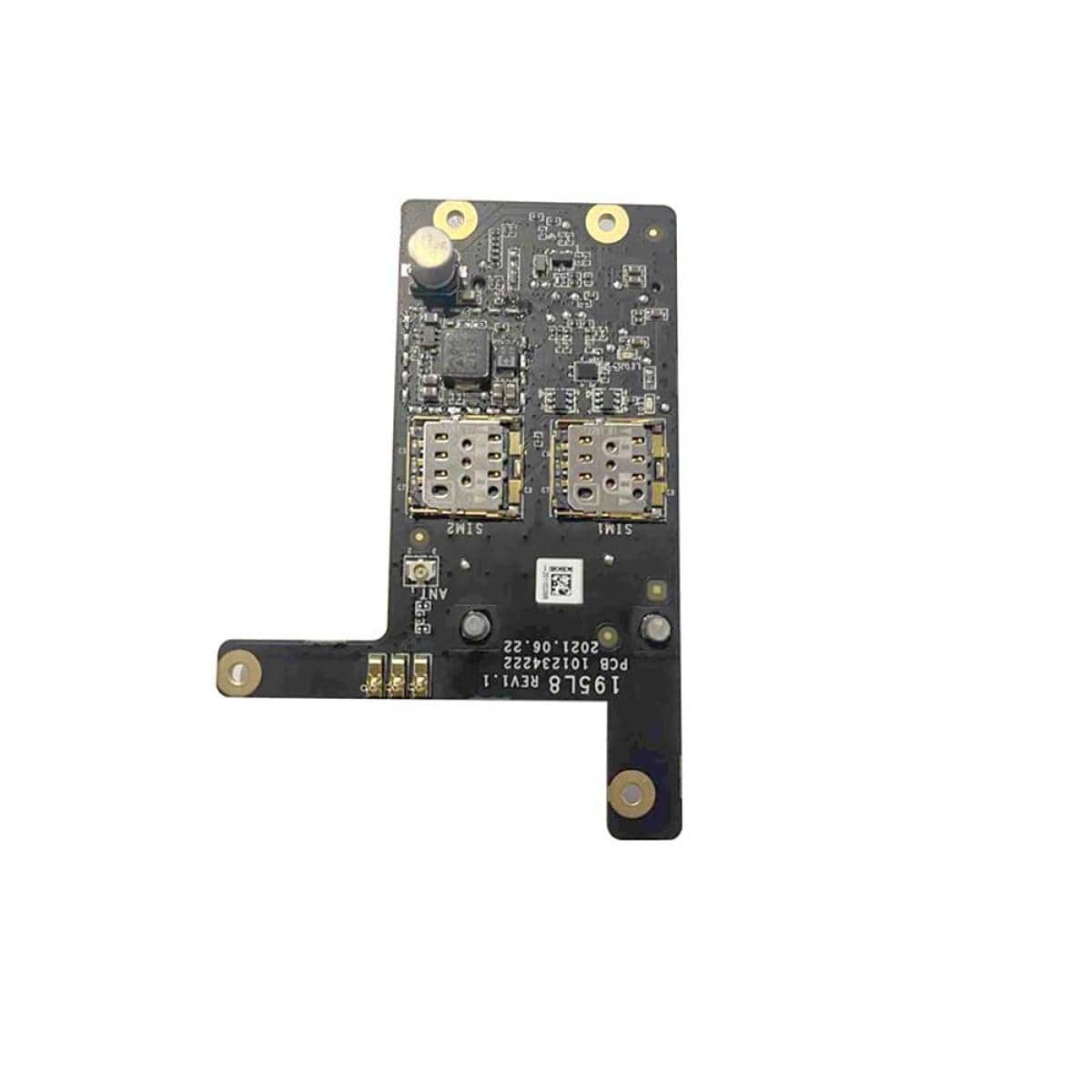

Compact Board: A small 62.03 × 88.28 mm board weighing 28 g.
Technical Specifications:
| Model | DS-PM2-S(AU) |
| Type | 3G/4G communication module |
| FDD-LTE | B1/B3/B5/B7/B8/B28 |
| UMTS/HSDPA/HSPA+ | B1/B5 |
| Report method | 3G/4G |
| Dimensions | 62.03 × 88.28 mm |
| Weight | 28 g |
| Operating temperature | -10 °C to +40 °C |
Compatibility: Designed for the Hikvision AX Hybrid Pro series control panel (sold separately).
📄 Datasheet: Download the official Hikvision DS-PM2-S(AU) datasheet (PDF)
