HIKVISION DS-TMG001-3D Straight Pole

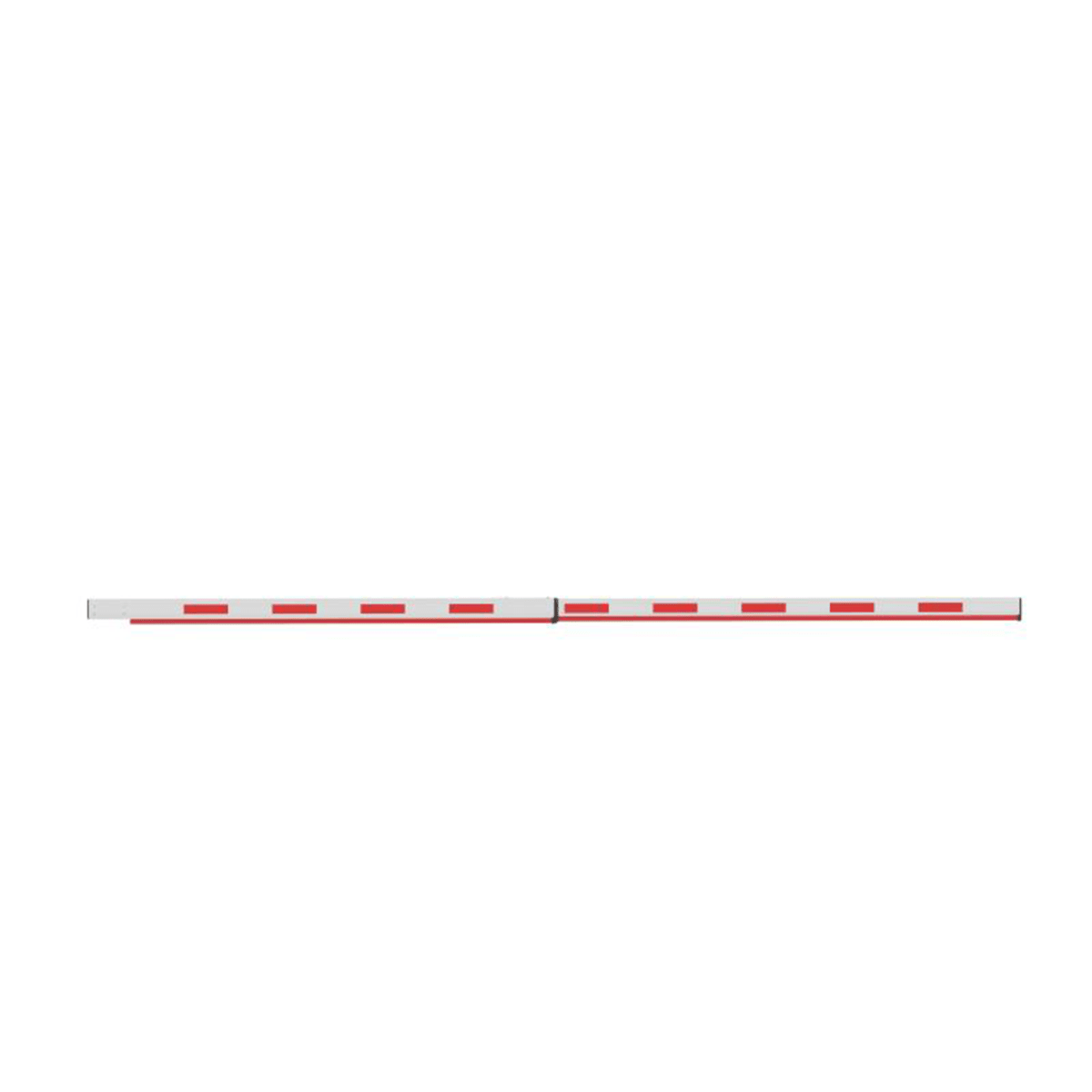

This is a Hikvision straight boom pole with a built-in strip light, from the DS-TMG001-3 series of barrier gate accessories. The pole is made of aluminium profile and comes in 3 m and 4 m lengths in the official datasheet. The strip light along the pole makes the barrier arm easier for drivers to see.
Strip Light: A strip light runs along the pole, so the barrier arm is visible to approaching drivers, especially at night.
Aluminium Profile: The pole is made of aluminium profile with a 50 × 95 mm cross-section, which keeps it light: 3.5 ± 0.2 kg for the 3 m pole and 4.5 ± 0.2 kg for the 4 m pole.
Two Lengths: Hikvision lists the 3 m and 4 m poles with strip light under this series. Choose the length that matches the width of the lane.
Good to know
This is the boom pole only; the barrier gate operator is not included.
Two lengths exist (3 m and 4 m). Please confirm the length with us when ordering.
Technical Specifications
| Series | DS-TMG001-3 straight pole with strip light |
| Material | Aluminium profile |
| Dimensions, 3 m pole | 3000 × 50 × 95 mm |
| Dimensions, 4 m pole | 4000 × 50 × 95 mm |
| Weight, 3 m pole | 3.5 ± 0.2 kg |
| Weight, 4 m pole | 4.5 ± 0.2 kg |
| Package, 3 m pole | 3050 × 55 × 100 mm, 4.1 ± 0.2 kg |
| Package, 4 m pole | 4050 × 55 × 100 mm, 5.3 ± 0.2 kg |
📄 Datasheet: Download the official Hikvision DS-TMG001-3 datasheet (PDF)
