HIKVISION DS-TMG320-MR 32 Series Barrier Gates Value Right Side

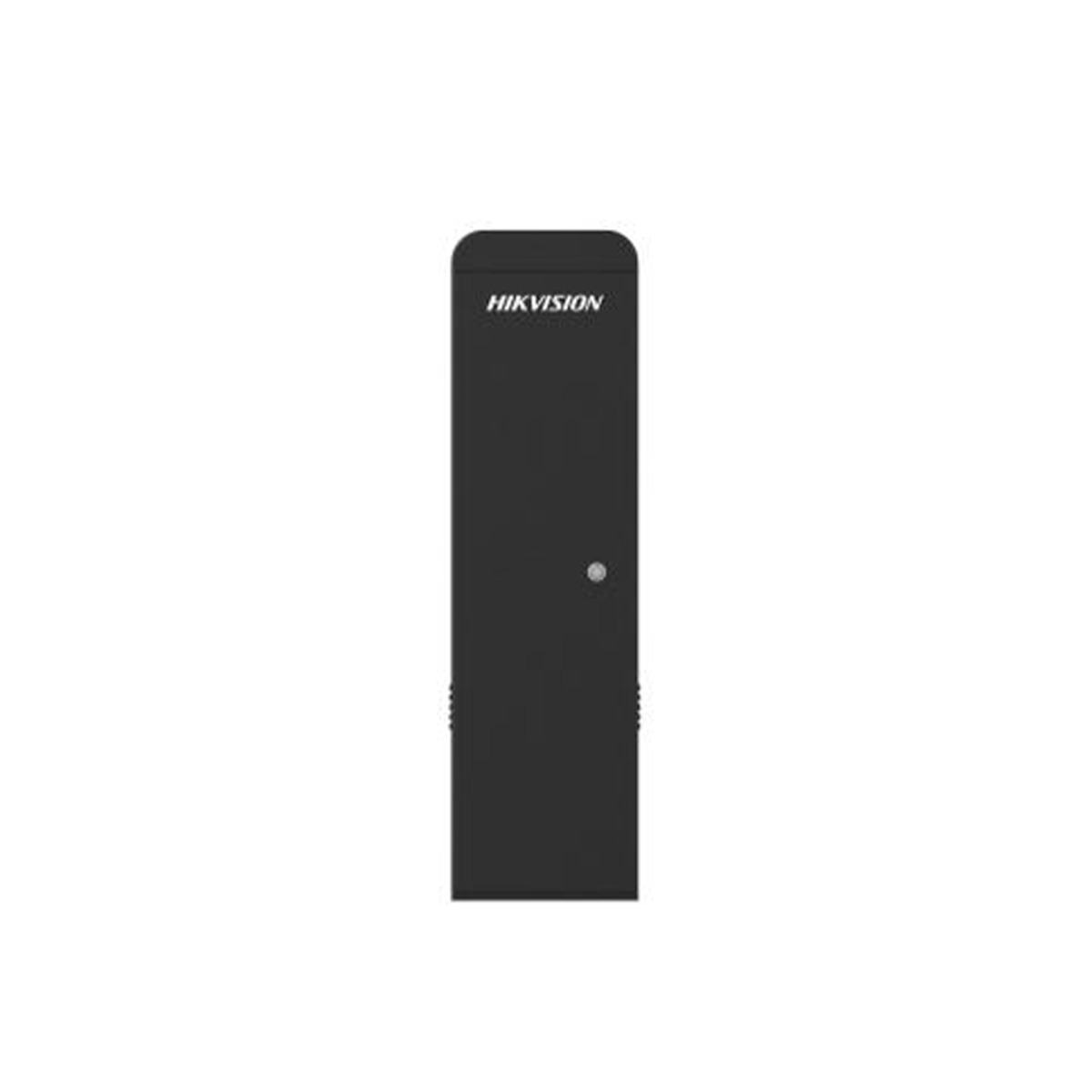

The Hikvision DS-TMG320-MR is a 32 Series barrier gate body with the boom pole on the right side, in the value version without body indicator lights. It uses a quiet 24 VDC brushless motor, runs from a 110 to 220 VAC supply and is rated for 2,500,000 cycles. You can set it up from a phone over Bluetooth and control it with 433.5 MHz remotes.
Side installation, compact body: The 32 Series gate is built for convenient side installation with a compact structure. The housing is 1.5 mm SGCC steel in black with a silver pattern, and the boom pole is mounted at a height of 880 mm.
Quiet DC brushless motor: A small DC brushless motor runs at 24 VDC with low noise. Hikvision states it increases output torque and allows precise control, and the gate is rated for 2,500,000 cycles at a 100% duty cycle.
Anti-fall protection: The gate supports several anti-fall modes, such as IR sensors, vehicle detectors and radars, through one dedicated interface. These devices help keep the boom from coming down on a vehicle or person in the lane.
Adjustable closing delay: The boom pole closing can be delayed from 1 to 600 seconds. This lets you match the gate to how long vehicles need to pass at your entrance.
Bluetooth app setup and remotes: You can configure the gate from a smartphone app over Bluetooth. It works with 433.5 MHz remote controllers, up to 64 can be bound, and the remote control distance is 30 m.
One chuck for all poles: A standardized chuck fits all types of boom pole, which makes fitting or changing the pole simpler.
Good to know
- Hikvision lists DS-TMG320-MR as the barrier body. Boom poles are separate models (see Matched boom pole types).
- The M models (ML / MR) take poles up to 4 m; longer poles are for the LL / LR models.
- Raising the boom during a power cut needs the optional emergency barrier-lifting module.
Technical Specifications
| Model | DS-TMG320-MR |
| Series | 32 Series barrier gate |
| Boom pole direction | Right |
| Body indicators | Without indicator |
| Housing | SGCC, 1.5 mm, black background with silver pattern |
| Boom pole installation height | 880 mm |
| Matched boom pole types | DS-TMG001-3D (3 m octagonal), DS-TMG001-3D (4 m octagonal), DS-TMG001-3D (2.6-4 m), DS-TMG002-3D (1.5+1.5 m), DS-TMG001-6L (3 m reinf) |
| Rising / falling speed | 3 m pole: 3 s / 3 s; 4 m pole: 3.5 s / 3.5 s |
| Boom pole falling delay | 1 to 600 s |
| Number of cycles | 2,500,000 |
| Duty cycle | 100% |
| Motor | DC brushless motor |
| Power supply | 110 to 220 VAC |
| Working voltage | 24 VDC |
| Consumption | 100 W |
| Remote controller frequency | 433.5 MHz |
| Max. remote controllers bound | 64 |
| Remote control distance | 30 m |
| Bluetooth | Supported |
| Interfaces | Rising to limit, falling to limit, open, close, stop, RS-485, IR/vehicle detector/radar, LED indicators (1 group each) |
| Rising boom pole on power-off | Optional (emergency barrier-lifting module ordered separately) |
| Protection | IP54 |
| Working temperature | -30 °C to 70 °C (-22 °F to 158 °F) |
| Dimensions | 1040 × 340 × 298.3 mm |
| Weight | 37.79 kg |
| Package | 1143 × 436 × 403 mm, 40.9 kg |
