HIKVISION DS-TMG420 Barrier gates with straight boom pole
HIKVISION DS-TMG420 Barrier gates with straight boom pole
Couldn't load pickup availability

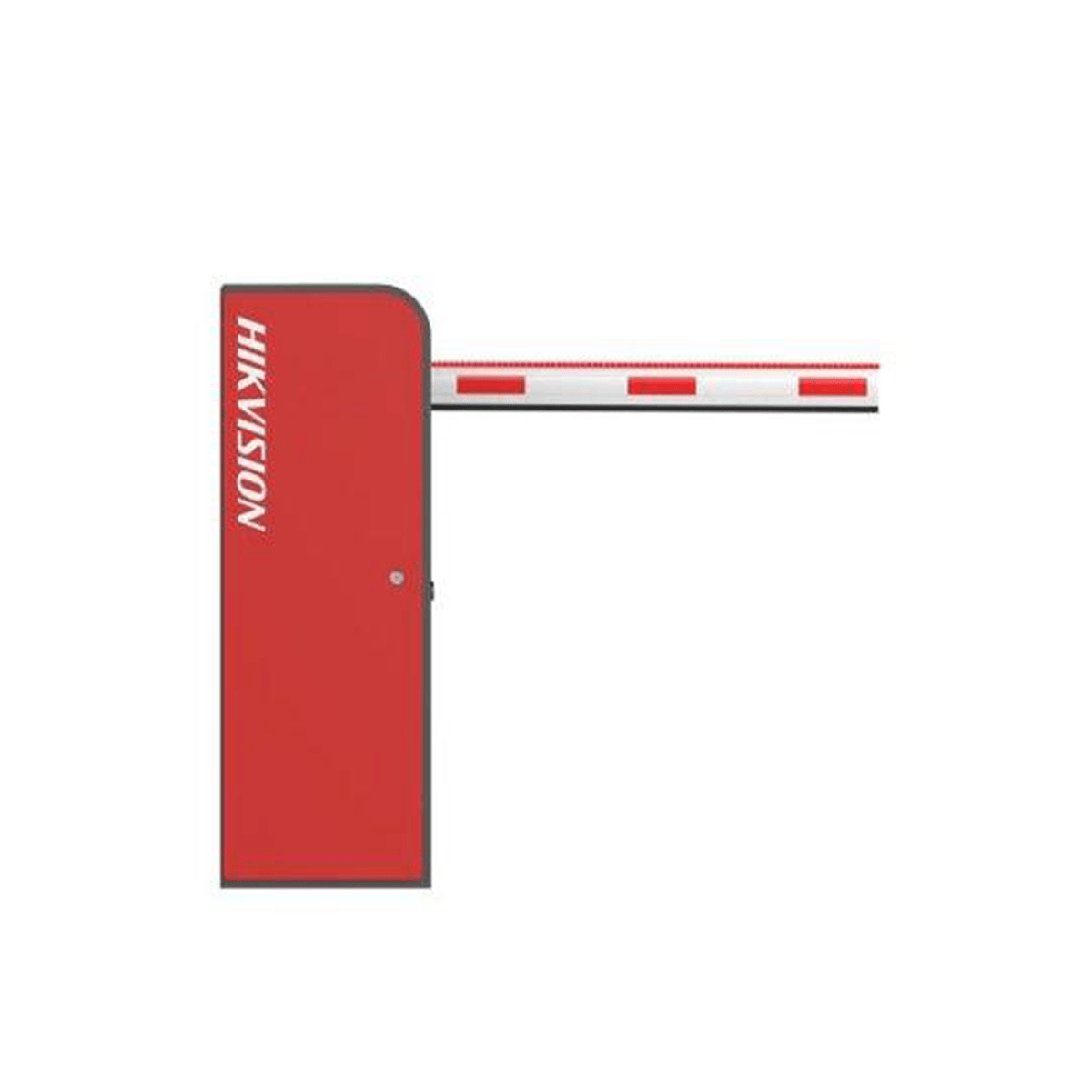

HIKVISION DS-TMG420 Barrier gates with straight boom pole
Adopts integrated machine core. Parallel gear decelerates linkage arm transmission to ensure stability and efficiency.Supports convenient side installation with compact structure.Adopts quenching process for carbon steel gear to realize wear-resistant and impact-resistant functions and extend product life.Adopts small DC brushless motor with low noise to increase output torque and realize precise intelligent control.Supports rebound for obstacle and opening priority.Adopts DC variable frequency control to enable smooth operation with fast boom pole opening and slow boom pole closing.Supports event log to enable convenient monitoring.Supports multiple anti-fall modes such as IR, vehicle detectors, and radars.Supports fault code detection on the nixie tube, log record, and abundant status indicating. Based on the fault code displayed on the nixie tube, you can realize quickly problems locating and maintenance.Supports manually opening boom pole. You can turn hand wheel to keep barrier gate opening during power cutoff.Delayed boom pole closing (10 s delay time by default). Supports 99 shifts (initial status 2 s, 2 s gap between each shift).Supports auto boom pole opening during power cutoff. The barrier gate can open automatically to allow fire trucks in (optional components required).
Specifications
| Barrier Housing | |
|---|---|
| Barrier Housing Material | SGCC |
| Barrier Housing Thickness | 1.5 mm |
| Barrier Housing Color | Iron gray |
| Boom Pole Installation Height | 885 mm |
| Body Indicators | DS-TMG420 DS-TMG420-L DS-TMG420-R: no body indicator DS-TMG420/B DS-TMG420-L/B DS-TMG420-R/B DS-TMG420/A/B DS-TMG420-L/A/B DS-TMG420-R/A/B: with body indicator. Green: arrow indicator. Red: prohibition indicator |
| Boom length | 5m |
| Barrier Gate General | |
| Matched Boom Pole Type | Cylinder boom pole: 1 to 4 m anti-collision Octagonal boom pole: 1 to 6 m Octagonal telescopic boom pole: 4 to 6 m Boom pole ≥ 5 m: with spindle rod |
| Rising Speed | 3m octagonal and 3m anti-collusion round: 2s 4m octagonal and 4m anti-collusion round: 3s 6m octagonal: 5s |
| Falling Speed | 3m octagonal and 3m anti-collusion round: 2s 4m octagonal and 4m anti-collusion round: 3s 6m octagonal: 5s |
| Boom Pole Direction | DS-TMG420 DS-TMG420/B DS-TMG420/A/B: right by default direction switchable DS-TMG420-L/B DS-TMG420-L/A/B: Left DS-TMG420-R/B DS-TMG420-R/A/B: Right |
| Boom Pole Falling Delay | 10 s by default (configurable) min. 2 s (every 2 s followed a gap) |
| Number of Cycles | 5 000 000 |
| Working Voltage | 220 VAC |
| Consumption | DS-TMG420 DS-TMG420-L DS-TMG420-R: Max. 125 W DS-TMG420/B DS-TMG420-L/B DS-TMG420-R/B: Max. 139 W DS-TMG420/A/B DS-TMG420-L/A/B DS-TMG420-R/A/B: Max. 155 W |
| Temperature and Humidity | Temperature: -30 °C to 60 °C (-22 °F to 140 °F) Humidity: ≤ 90% |
| Rising Boom Pole for Poweroff | Optional not supported by default |
| Motor Type | DC brushless motor |
| Approval | |
| Security | CE-LVD:
CB: IEC 62368-1: 2014 IEC 62368-1: 2018 |
| Environment | ROHS |
| Protection | IP54 IK09 |
| Barrier Gate | |
| Duty Cycle | 100% |
| Interface | |
| Rising to Limit | 1 group |
| Falling to Limit | 1 group |
| Open | 1 group |
| Close | 1 group |
| RS-485 | 1 group |
| Stop | 1 group |
| IR/Vehicle Detector/Radar | 1 group |
| Boom Pole | |
| Boom Pole Dimensions | 2 m octagonal boom pole: 98 × 45 × 2000 mm (3.86 × 1.77 × 78.74 inch)
3 m octagonal boom pole: 98 × 45 × 3000 mm (3.86 × 1.77 × 118.11 inch) 4 m octagonal boom pole: 98 × 45 × 4000 mm (3.86 × 1.77 × 157.48 inch) 5 m octagonal boom pole: 119 × 55 × 5000 mm (4.69 × 2.17 × 196.85 inch) 6 m octagonal boom pole: 119 × 55 × 6000 mm (4.69 × 2.17 × 236.22 inch) 3 m boom pole with LED strip light: 95 × 49 × 3013 mm (3.74 × 1.93 × 118.62 inch) 4 m boom pole with LED strip light: 95 × 49 × 4013 mm (3.74 × 1.93 × 157.99 inch) 4 m octagonal telescopic boom pole: 110 × 44 × 2970 mm (4.33 × 1.73 × 116.93 inch) 5 m octagonal telescopic boom pole: 110 × 44 × 3470 mm (4.33 × 1.73 × 136.61 inch) 6 m octagonal telescopic boom pole: 110 × 44 × 6000 mm (4.33 × 1.73 × 236.22 inch) 2 m anti-collision round boom pole: 80 × 80 × 2000 mm (3.15 × 3.15 × 78.74 inch) 3 m anti-collision round boom pole: 80 × 80 × 3000 mm (3.15 × 3.15 × 118.11 inch) 4 m anti-collision round boom pole: 80 × 80 × 4000 mm (3.15 × 3.15 × 157.48 inch) |
| Boom Pole Weight | 2 m octagonal boom pole: 2.5 ± 0.3 kg (5.51 ± 0.66 lb.)
3 m octagonal boom pole: 2.8 ± 0.3 kg (6.17 ± 0.66 lb.) 4 m octagonal boom pole: 3.45 ± 0.3 kg (7.60 ± 0.66 lb.) 5 m octagonal boom pole: 5.9 ± 0.3 kg (13.00 ± 0.66 lb.) 6 m octagonal boom pole: 6.8 ± 0.3 kg (15.21 ± 0.66 lb.) 3 m boom pole with LED strip light: 3.4 ± 0.3 kg (7.50 ± 0.66 lb.) 4 m boom pole with LED strip light: 4.4 ± 0.3 kg (9.70 ± 0.66 lb.) 4 m octagonal telescopic boom pole: 4.42 ± 0.3 kg (9.74 ± 0.66 lb.) 5 m octagonal telescopic boom pole: 4.85 ± 0.3 kg (10.69 ± 0.66 lb.) 6 m octagonal telescopic boom pole: 5.65 ± 0.3 kg (12.46 ± 0.66 lb.) 2 m anti-collision round boom pole: 2.5 ± 0.3 kg (5.51 ± 0.66 lb.) 3 m anti-collision round boom pole: 3.5 ± 0.3 kg (7.71 ± 0.66 lb.) 4 m anti-collision round boom pole: 4.5 ± 0.3 kg (9.92 ± 0.66 lb.) |
| Boom Pole Material | AL6061 |
| General | |
| Data Sheet | 📄 Download Datasheet |
| Physical Specifications | |
| Weight | 43.00kg |
| Width X Depth X Height | 370.00mm x 1,060.00mm x 262.00mm |
