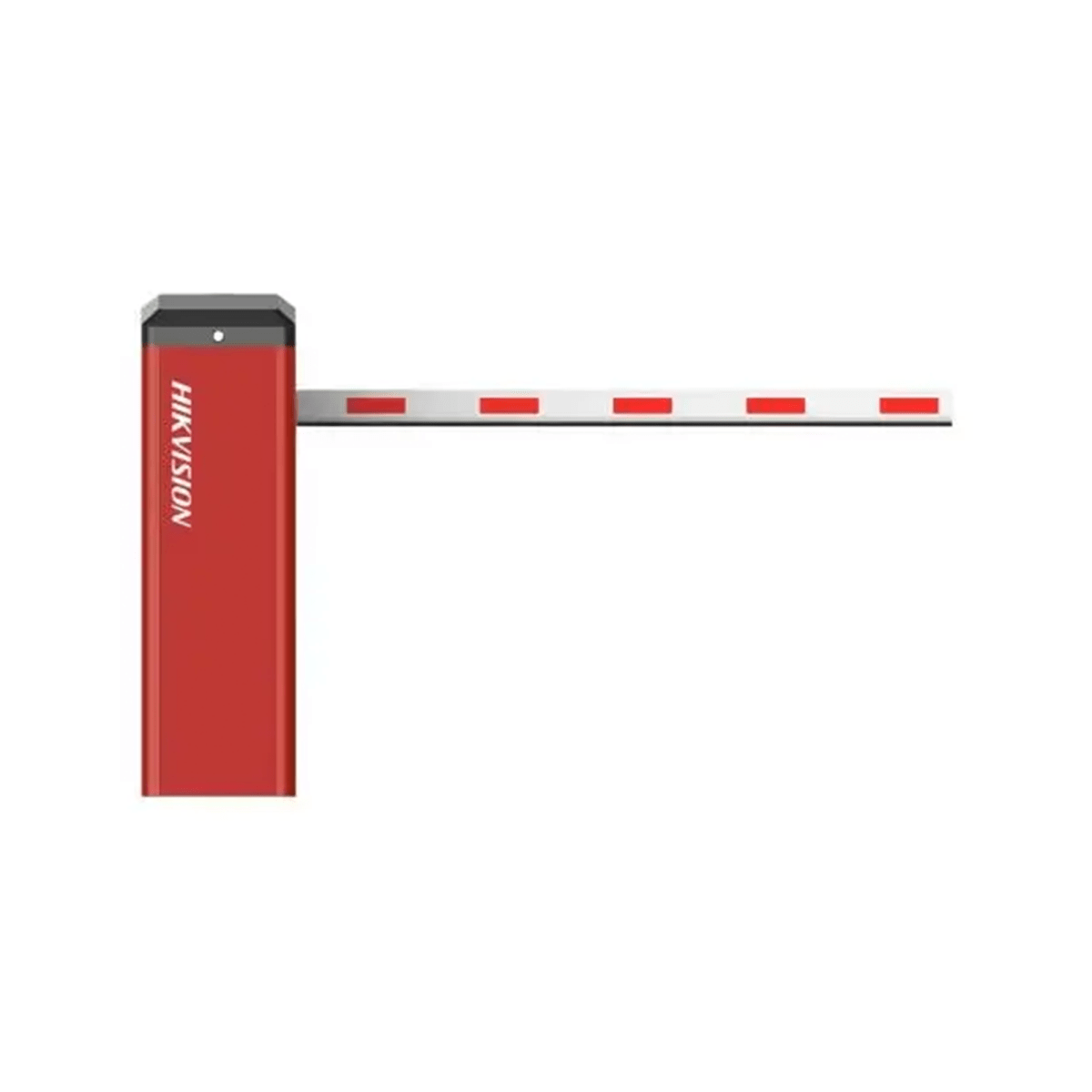

HIKVISION DS-TMG520 Barrier gates with straight boom pole
DC frequency conversion. The rising and falling speeds can be adjusted independently. The boom pole can rise in high speed to let the vehicle pass quickly.The boom pole can fall in low speed to avoid hitting vehicle and pedestrian.High protection level. The chassis is produced with 2 mm cold rolled steel sheets in numerically-controlled precision. The surface is coated with plastic powder which is anti-UV, antistatic, non-peeling, and non-fading. The dustproof and waterproof level conforms to IP54.Multiple control modes. Rising priority. The boom pole can be controlled via relay, remote controller, and software command.Multiple anti-hitting modes via induction, IR, pressure wave, etc.The boom pole direction is adjustable from left to right, or from right to left.Anti-condensation. The electric motor is in low consumption even when the barrier gate is not in working status, which will keep the motor in normal temperature. So even in cold weather, the lube will not be frozen to guarantee the normal running of barrier gate.Auto lock. Even when the power is cut off, you can use tool to keep the barrier gate working.
Specifications
| Barrier Housing | |
|---|---|
| Barrier Housing Material | SGCC |
| Barrier Housing Thickness | 2.0 mm |
| Barrier Housing Color | Orange |
| Boom Pole Installation Height | 880 mm |
| Body Indicators | without indicator |
| Boom length | 5m |
| Barrier Gate General | |
| Matched Boom Pole Type | Round boom pole: 1 to 4 m
anti-collision Octagonal boom pole: 1 to 6 m Octagonal telescopic boom pole: 4 to 6 m Boom pole ≥ 5 m: with spindle rod |
| Boom Pole Direction | right by default direction switchable |
| Boom Pole Falling Delay | 10 s by default (configurable) min. 10 s (every 10 s followed a gap) |
| Number of Cycles | 5000000 |
| Working Voltage | 220 VAC ± 15% |
| Consumption | 300 W |
| Temperature and Humidity | -30 °C to 70 °C (-22 °F to 158 °F) |
| Rising Boom Pole for Poweroff | Optional not supported by default |
| Motor Type | DC brushless motor |
| Approval | |
| Security | CE-LVD:
CB: IEC 62368-1: 2014 IEC 62368-1: 2018 |
| Environment | ROHS |
| Protection | IP54 |
| Barrier Gate | |
| Duty Cycle | 100% |
| Interface | |
| Rising to Limit | 1 group |
| Falling to Limit | 1 group |
| Open | 1 group |
| Close | 1 group |
| RS-485 | 1 group |
| Stop | 1 group |
| IR/Vehicle Detector/Radar | 1 group |
| Boom Pole | |
| Boom Pole Dimensions | 2 m octagonal boom pole: 98 × 45 × 2000 mm (3.86 × 1.77 × 78.74 inch)
3 m octagonal boom pole: 98 × 45 × 3000 mm (3.86 × 1.77 × 118.11 inch) 4 m octagonal boom pole: 98 × 45 × 4000 mm (3.86 × 1.77 × 157.48 inch) 5 m octagonal boom pole: 119 × 55 × 5000 mm (4.69 × 2.17 × 196.85 inch) 6 m octagonal boom pole: 119 × 55 × 6000 mm (4.69 × 2.17 × 236.22 inch) 3 m boom pole with LED light bar: 95 × 49 × 3013 mm (3.74 × 1.93 × 118.62 inch) 4 m boom pole with LED light bar: 95 × 49 × 4013 mm (3.74 × 1.93 × 157.99 inch) 4 m octagonal telescopic boom pole: 110 × 44 × 2970 mm (4.33 × 1.73 × 116.93 inch) 5 m octagonal telescopic boom pole: 110 × 44 × 3470 mm (4.33 × 1.73 × 136.61 inch) 6 m octagonal telescopic boom pole: 110 × 44 × 6000 mm (4.33 × 1.73 × 236.22 inch) 2 m anti-collision round boom pole: 80 × 80 × 2000 mm (3.15 × 3.15 × 78.74 inch) 3 m anti-collision round boom pole: 80 × 80 × 3000 mm (3.15 × 3.15 × 118.11 inch) 4 m anti-collision round boom pole: 80 × 80 × 4000 mm (3.15 × 3.15 × 157.48 inch) |
| Boom Pole Weight | 2 m octagonal boom pole: 2.5 ± 0.3 kg (5.51 ± 0.66 lb.)
3 m octagonal boom pole: 2.8 ± 0.3 kg (6.17 ± 0.66 lb.) 4 m octagonal boom pole: 3.45 ± 0.3 kg (7.60 ± 0.66 lb.) 5 m octagonal boom pole: 5.9 ± 0.3 kg (13.00 ± 0.66 lb.) 6 m octagonal boom pole: 6.8 ± 0.3 kg (15.21 ± 0.66 lb.) 3 m boom pole with LED light bar: 3.4 ± 0.3 kg (7.50 ± 0.66 lb.) 4 m boom pole with LED light bar: 4.4 ± 0.3 kg (9.70 ± 0.66 lb.) 4 m octagonal telescopic boom pole: 4.42 ± 0.3 kg (9.74 ± 0.66 lb.) 5 m octagonal telescopic boom pole: 4.85 ± 0.3 kg (10.69 ± 0.66 lb.) 6 m octagonal telescopic boom pole: 5.65 ± 0.3 kg (12.46 ± 0.66 lb.) 2 m anti-collision round boom pole: 2.5 ± 0.3 kg (5.51 ± 0.66 lb.) 3 m anti-collision round boom pole: 3.5 ± 0.3 kg (7.71 ± 0.66 lb.) 4 m anti-collision round boom pole: 4.5 ± 0.3 kg (9.92 ± 0.66 lb.) |
| Boom Pole Material | AL6061 |
| General | |
| Data Sheet | 📄 Download Datasheet |
| Physical Specifications | |
| Weight | 59.30kg |
| Width X Depth X Height | 486.00mm x 1,248.00mm x 480.00mm |
