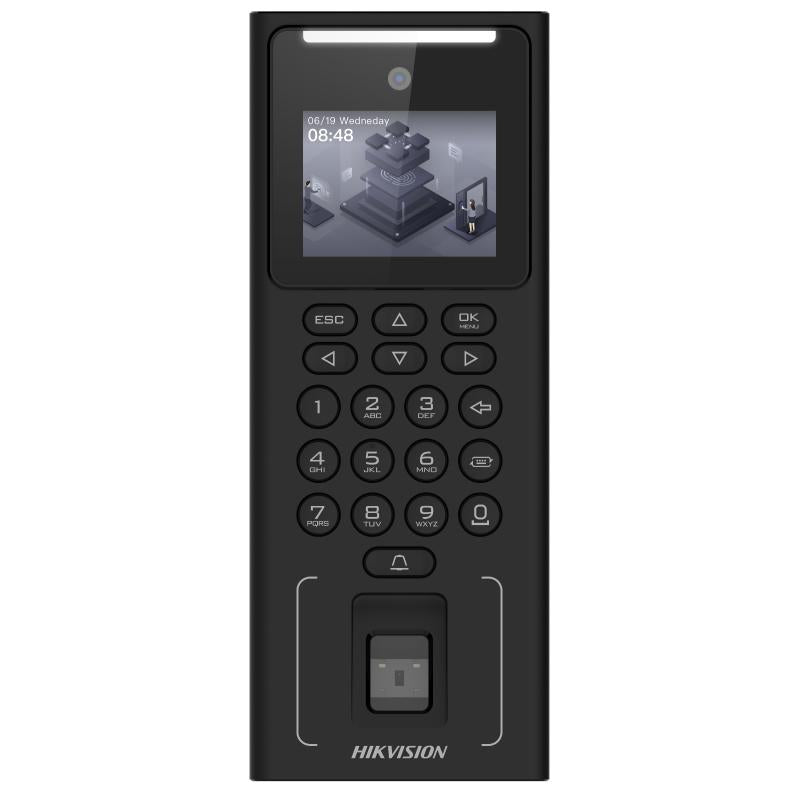

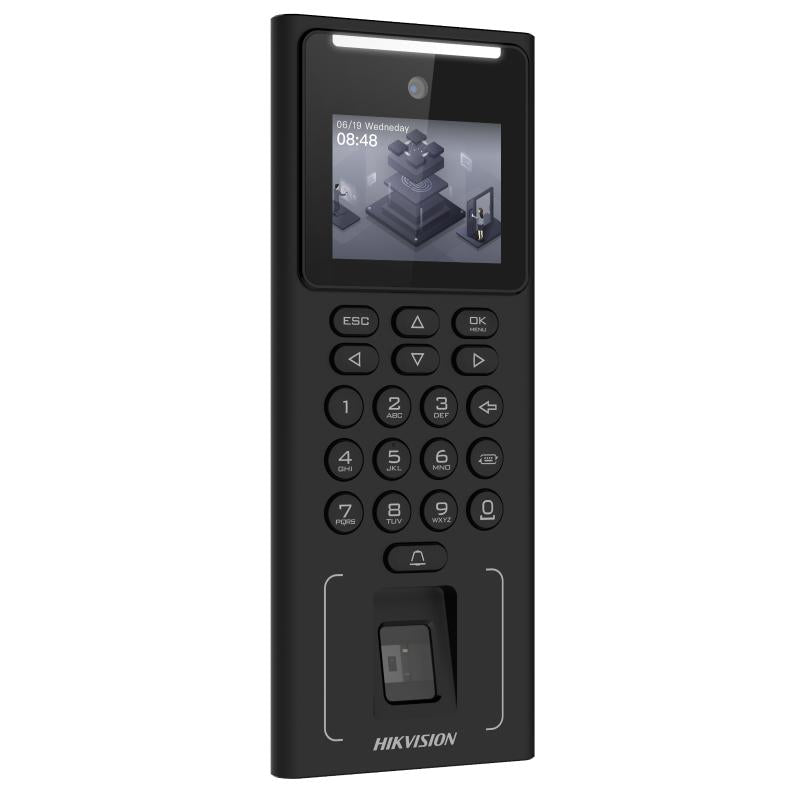

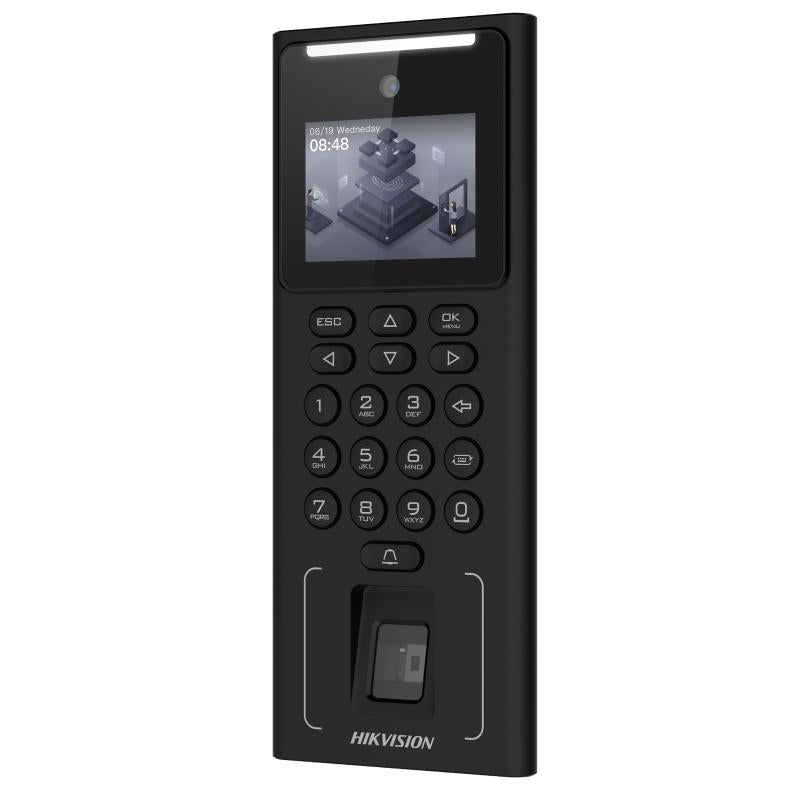

Hikvision Face & Fingerprint Attendance & Access Control Terminal | DS-K1T321MFWX
The Hikvision DS-K1T321MFWX is a face recognition terminal for door access and time attendance. It identifies people by face, fingerprint, M1 card or PIN code, and stores up to 500 faces, 3,000 fingerprints, 3,000 cards and 150,000 events. It has a 2.4-inch LCD screen, a 2 MP lens and works on a wired network or 2.4 GHz Wi-Fi.
Four ways to identify a person: Each user can be checked by face, fingerprint, M1 card or a PIN typed on the keypad. You can use the method that suits each person or each door, so visitors with a card and staff with a fingerprint can use the same terminal.
Fast face recognition: The terminal uses a deep learning algorithm and recognizes a face in under 0.2 seconds per user. Face anti-spoofing is supported, which helps stop someone from opening the door with a photo of an enrolled person.

Capacity for a small or medium site: It stores up to 500 faces, 3,000 fingerprints and 3,000 cards, and keeps up to 150,000 events. The event log is what you use later for attendance records and to check who opened the door and when.
Screen and camera: A 2.4-inch LCD screen guides the user, and the 2 MP lens (720P video stream) covers 25° horizontally and 43° vertically, which suits a person standing in front of the device.
Wired network or Wi-Fi: The terminal has a 10/100 Mbps RJ-45 port and 2.4 GHz Wi-Fi (802.11b/g/n). You configure it from a PC web client or a mobile web client, and it supports the ISAPI and ISUP 5.0 protocols and Hik-Partner Pro.

Door and reader connections: It has a lock control output, exit button input, door contact input and tamper. One RS-485 port connects a secure door control unit or a card reader, and one Wiegand port (Hik 26-bit / 34-bit) is available.
Who it's for / Works with
Buildings, enterprises, financial sites and other areas that need controlled entry, as Hikvision lists for this terminal. It works with Hikvision secure door control units or card readers over RS-485, and with Hik-Partner Pro.
Good to know
- The card reader reads M1 cards only.
- The power supply is 12 VDC (up to 6 W).
- Working temperature -10 °C to 55 °C, humidity 0 to 90% (no condensing).
- The menu supports Arabic and English, among other languages.
Technical Specifications
| Model | DS-K1T321MFWX |
| Screen | 2.4-inch LCD |
| Camera | 1 lens, 2 MP (video stream 720P) |
| Field of view | HFOV 25°, VFOV 43° |
| Authentication | Face, fingerprint, card (M1), PIN |
| Face capacity | 500 |
| Fingerprint capacity | 3,000 |
| Card capacity | 3,000 |
| Event capacity | 150,000 |
| Face recognition time | < 0.2 s per user |
| Face anti-spoofing | Supported |
| Network | 1 × RJ-45, 10/100 Mbps |
| Wi-Fi | 2.4 GHz, 802.11b/g/n |
| Interfaces | 1 lock control, 1 exit button, 1 door contact input, 1 tamper, 1 RS-485, 1 Wiegand (Hik 26/34 bit), 1 USB |
| Protocols | ISAPI, ISUP 5.0 |
| Power supply | 12 VDC |
| Power consumption | ≤ 6 W |
| Working temperature | -10 °C to 55 °C |
| Working humidity | 0 to 90% (no condensing) |
📄 Datasheet: Download the official Hikvision DS-K1T321MFWX datasheet (PDF)
