Hikvision Face & Fingerprint Attendance & Access Control Terminal | DS-K1T343MFWX

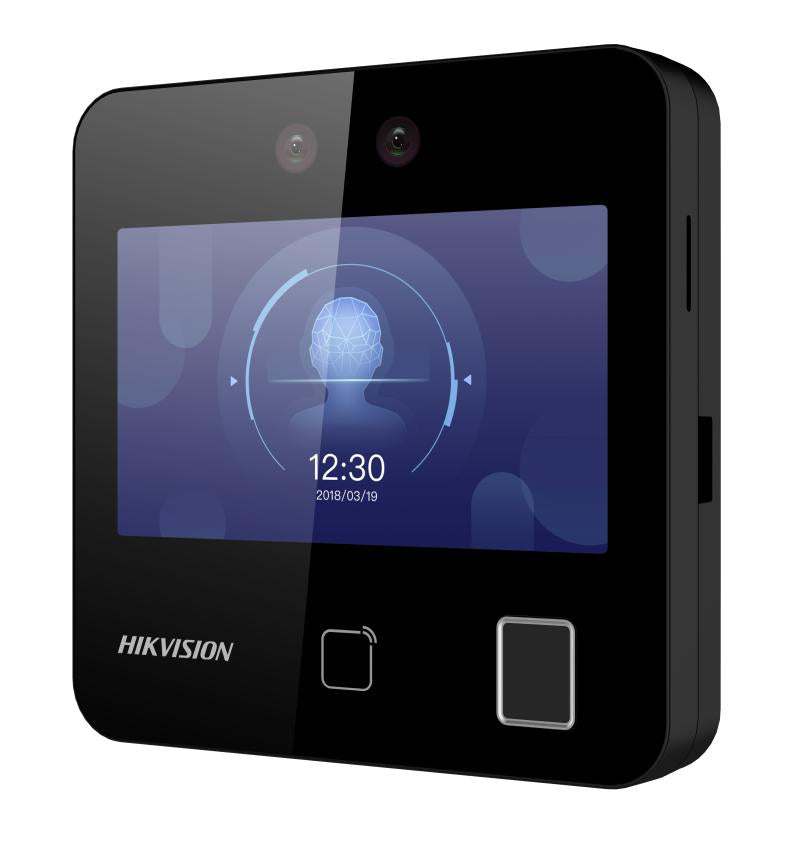

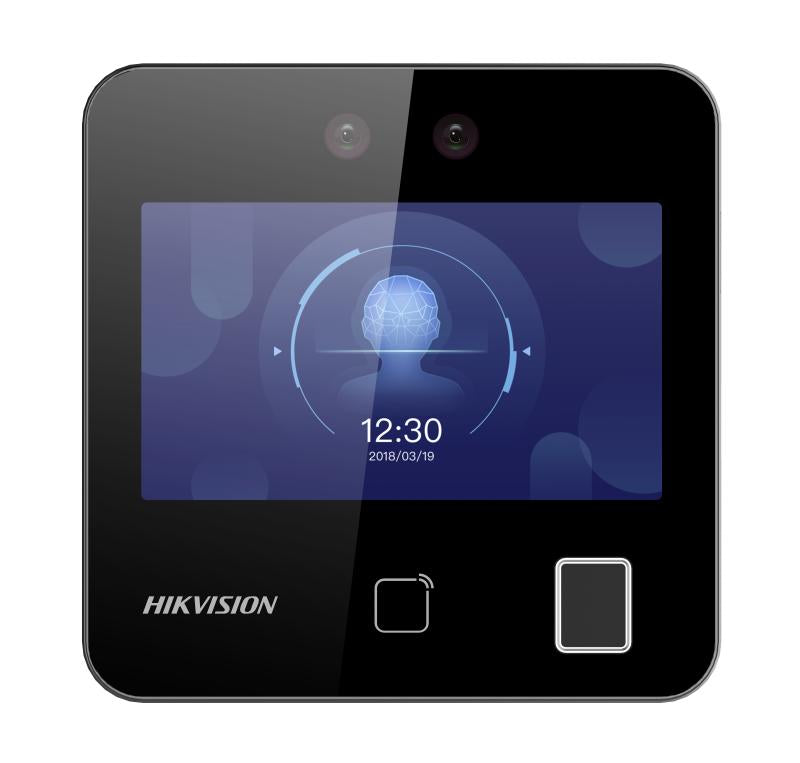

The Hikvision DS-K1T343MFWX is a face recognition terminal for access control and time attendance that also reads fingerprints and M1 cards. It has a 4.3-inch touch screen and a 2 MP camera, stores up to 1,500 faces, 3,000 fingerprints and 3,000 cards, and connects to the network by Ethernet or 2.4 GHz Wi-Fi.
Three ways to identify people: Staff can be identified by face, by fingerprint or with an M1 card (13.56 MHz). This gives flexibility: for example, a person whose face is not enrolled can still use a card or fingerprint at the same terminal.
Fast face recognition: Face recognition takes less than 0.2 seconds per person. At the start and end of a shift, this keeps the queue at the door short.
User capacity: The terminal holds up to 1,500 faces, 3,000 fingerprints and 3,000 cards. Check that the number of users at your site fits these limits before choosing this model.
4.3-inch touch screen and 2 MP camera: The capacitive touch LCD is used to operate the terminal on site. The 2 MP camera captures faces for recognition.
Wired or Wi-Fi network: The terminal has a 10/100 Mbps Ethernet port and built-in Wi-Fi (802.11 b/g/n, 2.4 GHz). Wi-Fi is useful where running a network cable to the door is difficult.
Door control interfaces: It has outputs and inputs for a lock, an exit button and a door contact, plus a tamper input, RS-485, Wiegand (Hik 26-bit and 34-bit) and a USB port. This allows it to open an electric lock directly and to work with other access control equipment.
Good to know
Supports 2.4 GHz Wi-Fi only. The terminal is powered by 12 VDC 1 A; the power adapter is included.
Technical Specifications
| Brand | Hikvision |
| Model | DS-K1T343MFWX |
| Screen | 4.3-inch capacitive touch LCD |
| Camera | 2 MP |
| Authentication | Face, fingerprint, M1 card |
| Card Type | M1 card, 13.56 MHz |
| Face Capacity | 1,500 |
| Fingerprint Capacity | 3,000 |
| Card Capacity | 3,000 |
| Face Recognition Duration | < 0.2 s per user |
| Network | 1 x RJ-45 10/100 Mbps; Wi-Fi 802.11 b/g/n (2.4 GHz) |
| Interfaces | Lock control, exit button, door contact input, tamper, RS-485 (half duplex), Wiegand (Hik 26-bit / 34-bit), USB |
| Power Supply | 12 VDC, 1 A (adapter included) |
| Operating Temperature | -10 °C to 40 °C |
| Operating Humidity | 0 to 90% (non-condensing) |
| Dimensions | 118.4 × 118.4 × 21.8 mm |
| Net Weight | 0.23 kg |
| Mounting | Wall mounting, base mounting |
