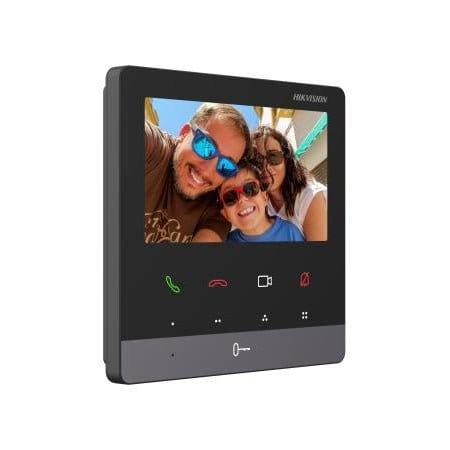

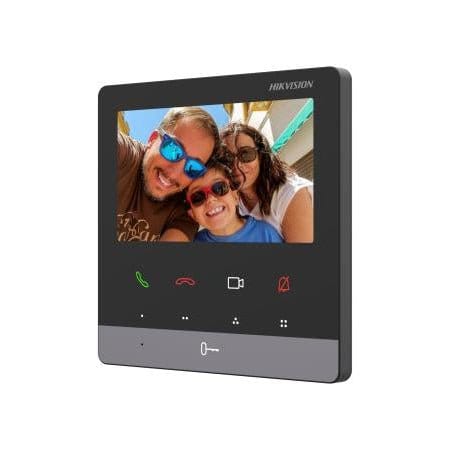

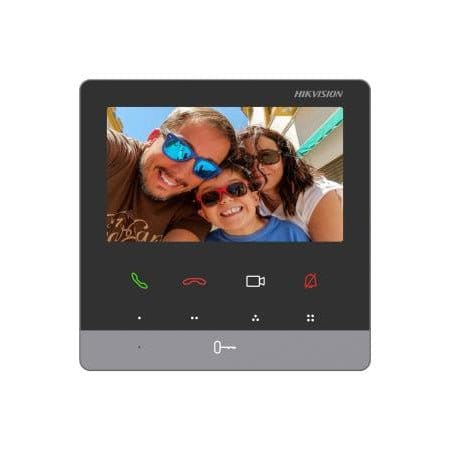

Hikvision IP Intercom Video Indoor Unit 4" Wired | DS-KH6100-E1
The Hikvision DS-KH6100-E1 is an IP network video indoor station with a 4.3-inch colour screen (480 × 272). You view door stations and linked cameras on the screen and operate it with 9 touch buttons, 4 of which can be customised. It runs on standard PoE over one network cable.

4.3-inch colour screen: The 480 × 272 TFT screen shows who is at the door. The screen itself is not a touch screen; you operate the unit with the touch buttons below it.
Live view: Besides answering calls, you can open live video from the door stations and the cameras linked to the system.
Touch buttons: There are 9 touch buttons, and 4 of them can be customised to the functions you use most.

Clear two-way audio: The built-in microphone and loudspeaker use noise suppression and echo cancellation, with adjustable volume.
Wired PoE: Power comes from IEEE 802.3af PoE through the network cable, or from 12 VDC. The station uses a wired 100 Mbps network connection.
System expansion: The station supports up to 16 linked indoor extensions and stores up to 200 events and 200 notices. It communicates over TCP/IP, SIP and RTSP.
Good to know
The screen is not touch-sensitive; control is by the touch buttons.
There is no Wi-Fi; a network cable is required (wired model).
A PoE switch or 12 VDC power supply is needed and is not included.
Technical Specifications
| Model | DS-KH6100-E1 |
| Screen | 4.3-inch colour TFT, non-touch |
| Resolution | 480 × 272 |
| Operation | 9 touch buttons (4 customisable) |
| Audio | Built-in microphone and loudspeaker, noise suppression and echo cancellation |
| Audio Compression | G.711 U, G.711 A |
| Event / Notice Capacity | 200 / 200 |
| Linked Indoor Extensions | Up to 16 |
| Protocols | TCP/IP, SIP, RTSP |
| Network | 1 × RJ45, 100 Mbps |
| Wi-Fi | No |
| Power Supply | IEEE 802.3af PoE or 12 VDC |
| Power Consumption | ≤ 4 W |
| Installation | Wall or table mounting |
| Dimensions | 120 × 120 × 21 mm |
| Weight | 191.8 g (without package) |
| Operating Temperature | -10 °C to 50 °C |
| Operating Humidity | 10% to 90% |
📄 Datasheet: Download the official Hikvision DS-KH6100-E1 datasheet (PDF)
