Hikvision IP Video Intercom Kit Wired/WiFi | DS-KIS606-P
Hikvision IP Video Intercom Kit Wired/WiFi | DS-KIS606-P
Couldn't load pickup availability
Hikvision IP Video Intercom Kit Wired/WiFi | DS-KIS606-P

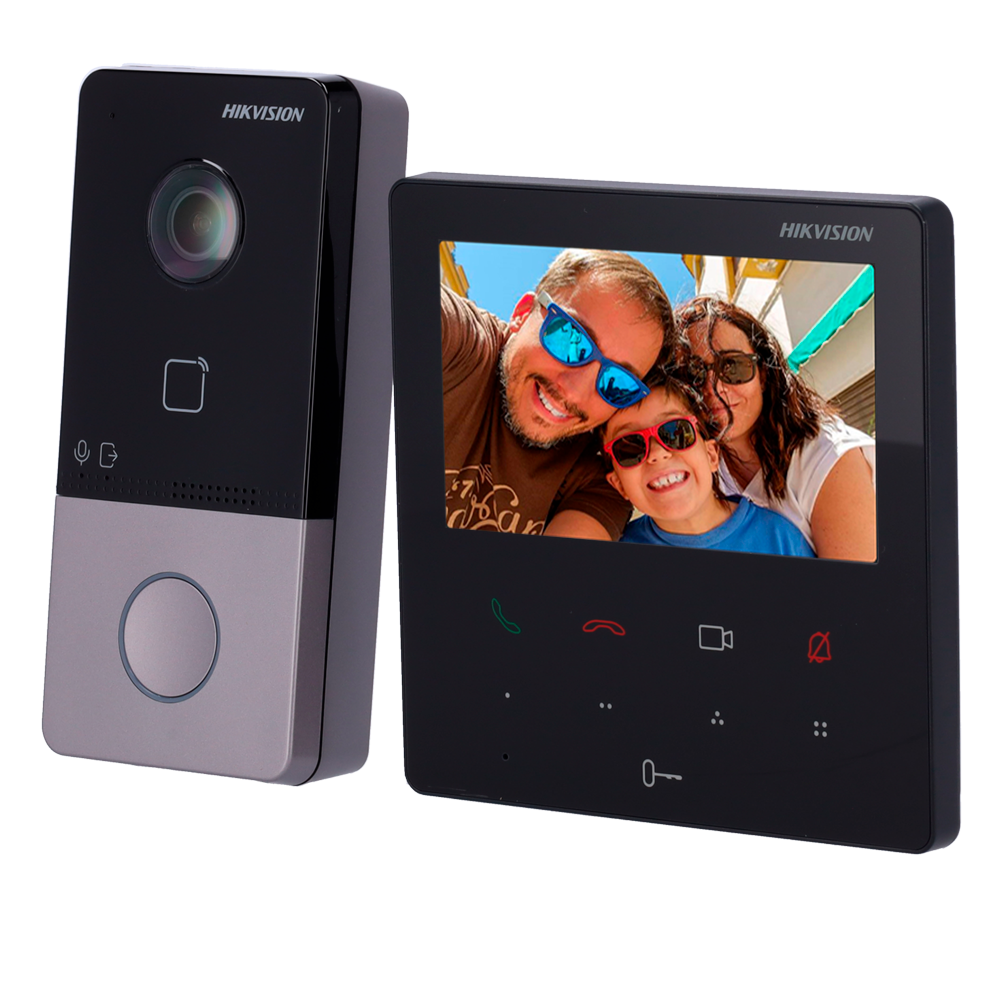

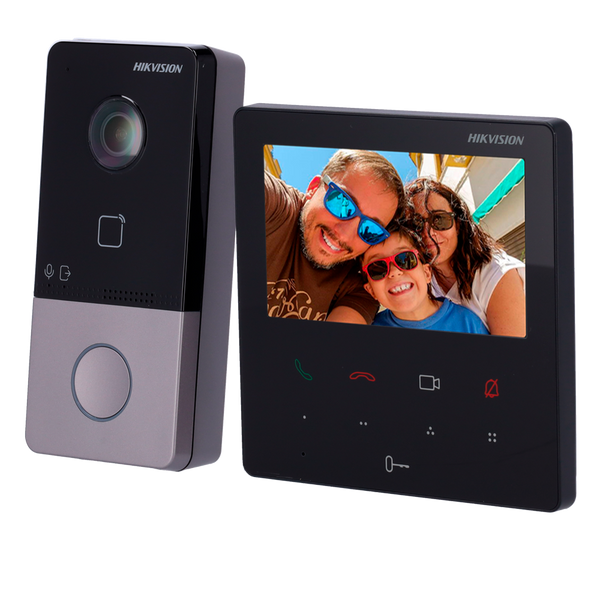

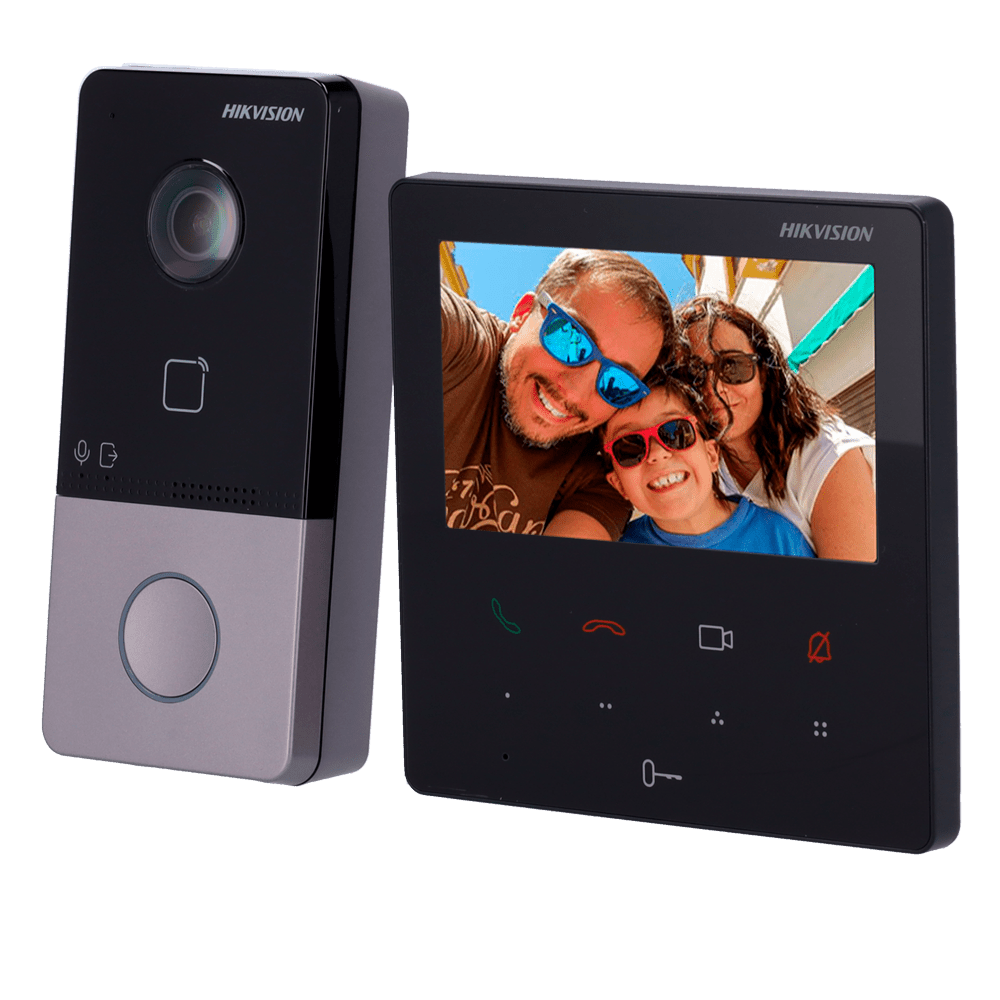

The Hikvision DS-KIS606-P is a network (IP) video intercom kit for a villa or house. It combines the DS-KV6113-PE1(C) door station, with a 2 MP camera and one call button, and the DS-KH6110-WE1 indoor station with a 4.3-inch touch screen. Both power adapters are in the box, and the Hik-Connect app lets you control the system from your phone.
One-press call: The visitor presses the single call button on the door station, and the indoor station rings with live video of the entrance.
2 MP door camera: The door station records 1920 × 1080 video with a 131° horizontal and 78° vertical field of view. 120 dB WDR keeps faces readable against bright sunlight or shadows.
Night view: IR light on the door station lights up visitors at up to 3 m, so you can still see who is at the door after dark.
Built for outdoors: The door station is rated IP65 and works from -40 °C to 55 °C. A DS-KABV6113-RS rain shield is included for extra cover.
4.3-inch touch screen indoor station: The DS-KH6110-WE1 has a 4.3-inch capacitive touch screen (480 × 272). It connects by network cable or 2.4 GHz Wi-Fi.
Clear two-way audio: Both units have a built-in microphone and loudspeaker with noise suppression and echo cancellation, so you can talk to visitors clearly.
Door lock control: The door station has one lock relay (max. 30 VDC, 2 A) plus inputs for an exit button and a door contact, so it can open an electric lock or gate.
App and expansion: With the Hik-Connect app you get calls and control on your phone. The system supports up to 16 linked indoor stations, so more monitors can be added later.

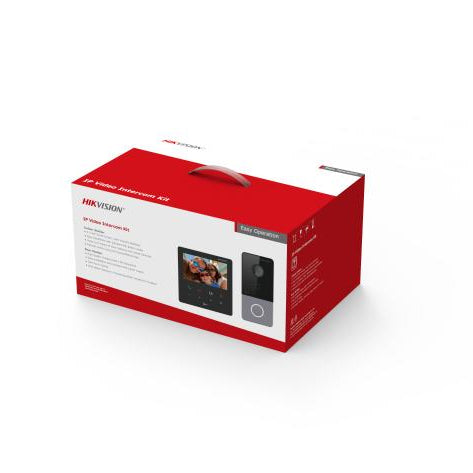

What's in the Box
- DS-KV6113-PE1(C) door station × 1
- DS-KH6110-WE1 indoor station × 1
- DS-KABV6113-RS rain shield × 1
- Power adapter × 2
Good to know
The electric lock, exit button and cabling are not part of the kit.
The lock relay is rated max. 30 VDC, 2 A; choose a lock within this rating.
Wi-Fi on the indoor station is 2.4 GHz only (802.11 b/g/n).
Technical Specifications
| Kit Model | DS-KIS606-P |
| Door Station | DS-KV6113-PE1(C) |
| Camera | 2 MP, 1920 × 1080 main stream |
| Field of View | Horizontal 131°, vertical 78° |
| WDR | 120 dB |
| Supplement Light | IR, up to 3 m |
| Video Compression | H.264 |
| Call Button | 1 |
| User / Card Capacity | 2,000 users / 10,000 cards |
| Linked Indoor Stations | Up to 16 |
| Lock Control | 1 relay, max. 30 VDC 2 A |
| Door Station Interfaces | 1 × RJ45 10/100 Mbps, RS-485, 4 alarm inputs, exit button, door contact, tamper |
| Door Station Power | IEEE 802.3af PoE or 12 VDC |
| Door Station Protection | IP65 |
| Door Station Temperature | -40 °C to 55 °C |
| Indoor Station | DS-KH6110-WE1 |
| Indoor Screen | 4.3-inch capacitive touch screen, 480 × 272 |
| Indoor Network | 1 × RJ45 10/100 Mbps, Wi-Fi 802.11 b/g/n 2.4 GHz |
| Indoor Power | IEEE 802.3af PoE or 12 VDC, ≤ 4 W |
| Indoor Installation | Wall or table mounting |
| Indoor Temperature | -10 °C to 50 °C |
| Audio | Built-in microphone and loudspeaker, noise suppression and echo cancellation |
| App | Hik-Connect |
📄 Datasheet: Download the official Hikvision DS-KIS606-P datasheet (PDF)
