Hikvision Smart Android Video Intercom Indoor Station 10.1" | DS-KH9510-WTE1

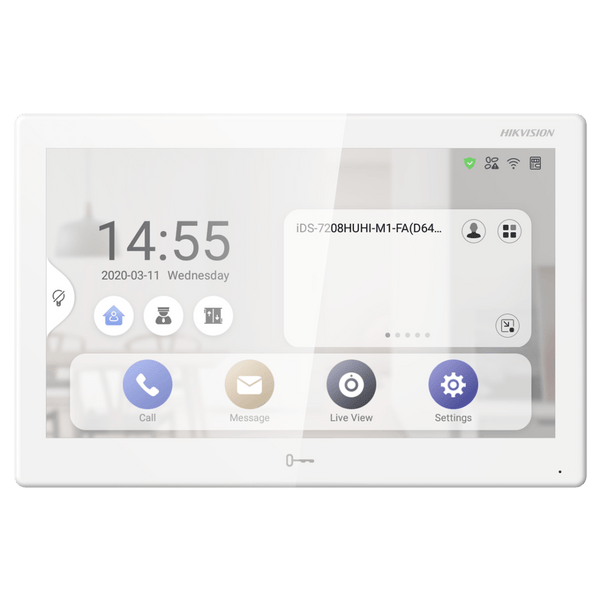

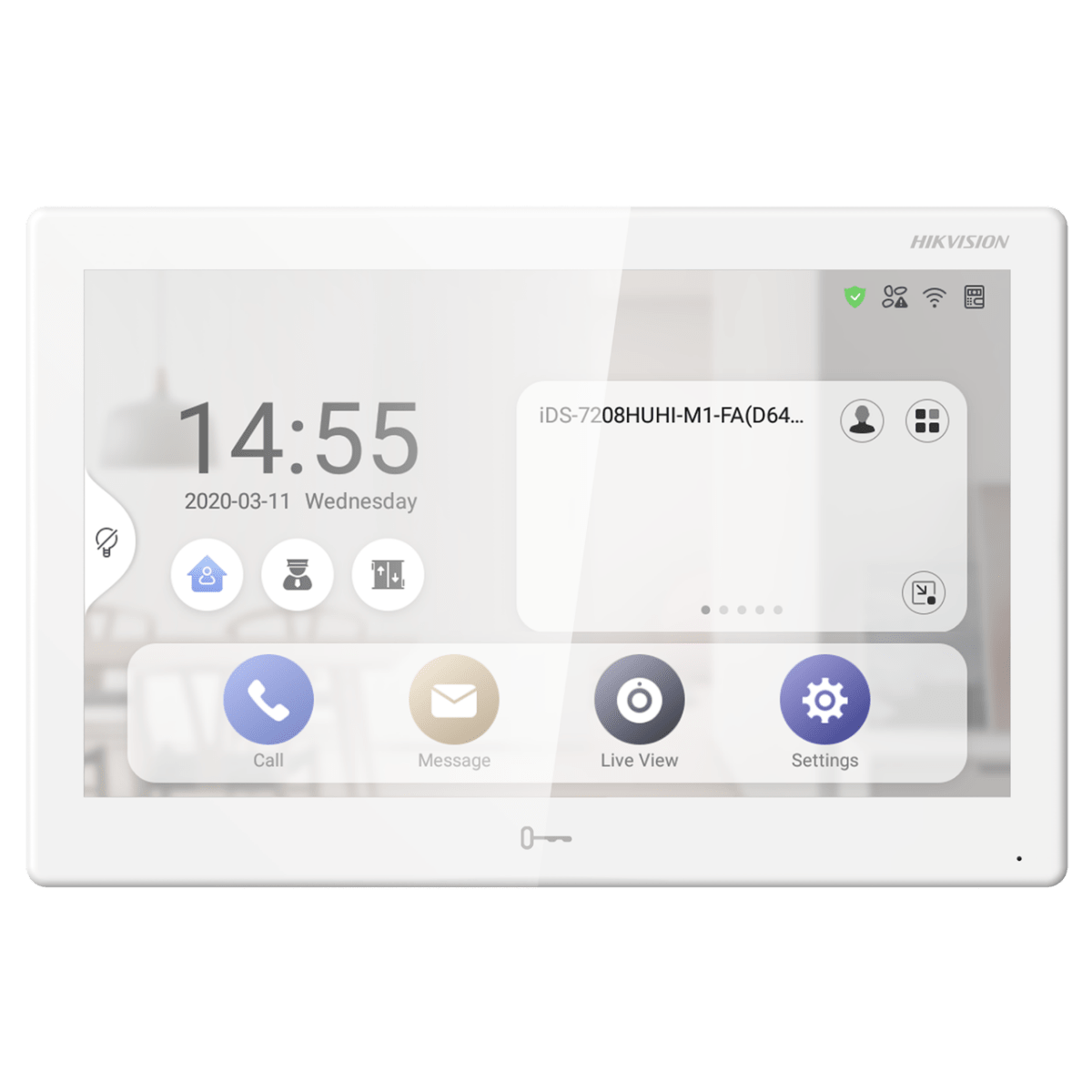

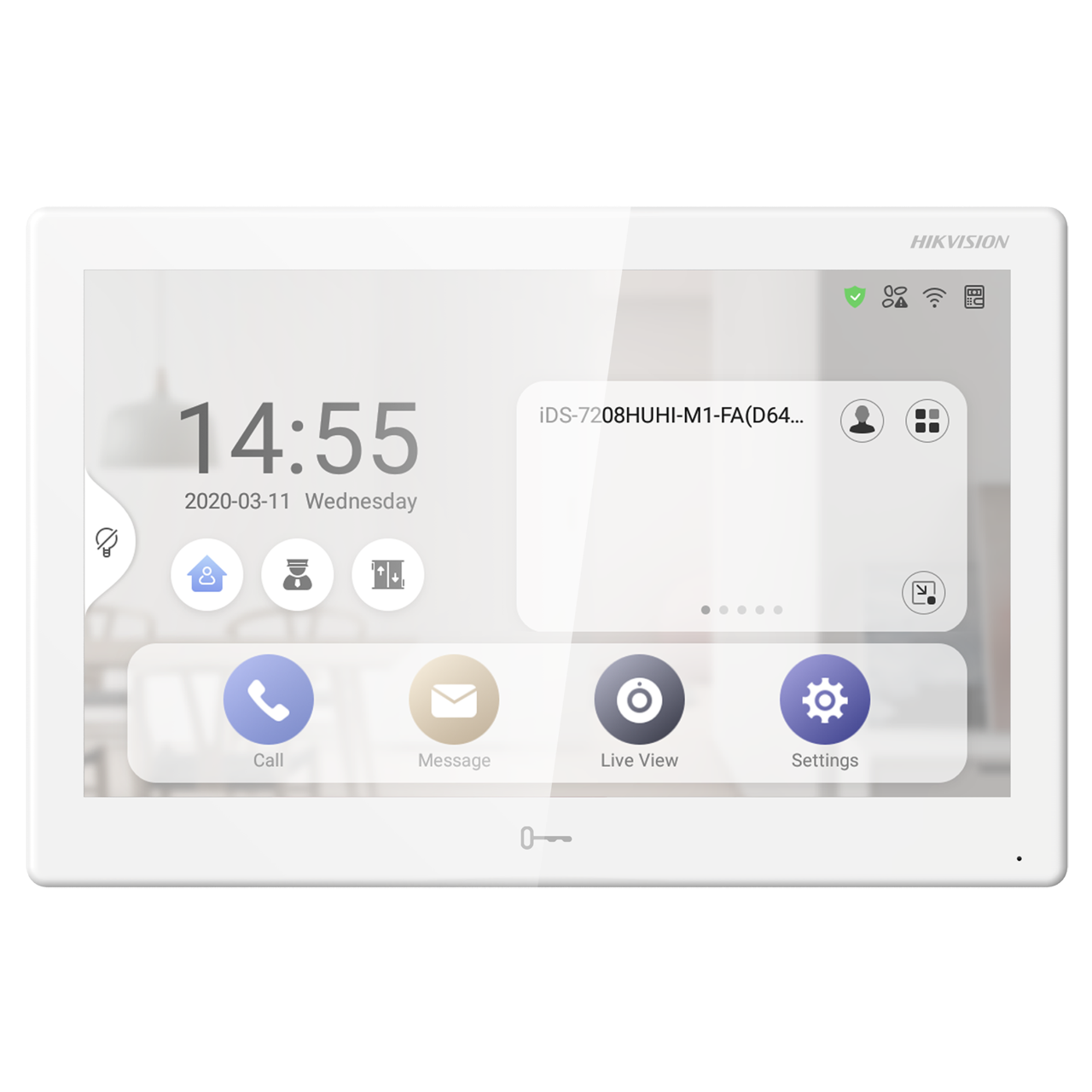

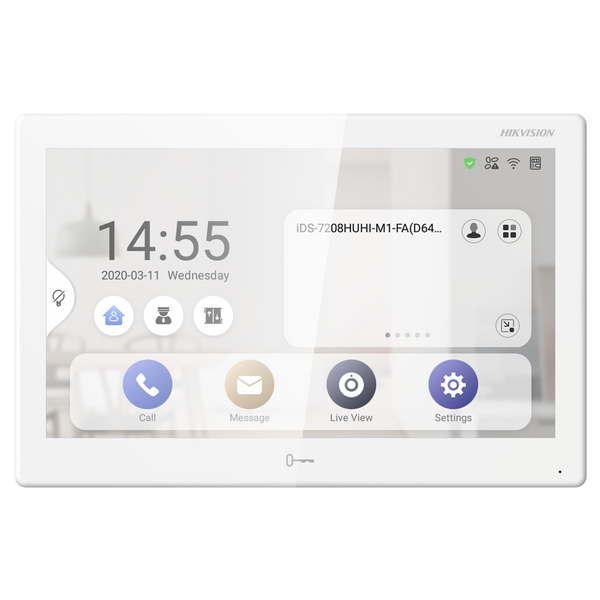

The Hikvision DS-KH9510-WTE1 is a 10.1-inch video intercom indoor station that runs an embedded Android system. It has a 1024 × 600 IPS capacitive touch screen, connects by wired network or Wi-Fi, and is powered by standard PoE or 12 VDC.
10.1-inch touch screen: The colorful IPS capacitive touch screen has a resolution of 1024 × 600. Calls, live view and settings are all handled by touch on a large screen.
Android system: The station runs an embedded Android operating system with 8 GB eMMC storage, and the official datasheet states it supports Android app installation.
Wired or Wi-Fi network: It has one 10/100 Mbps RJ-45 port and Wi-Fi 802.11 b/g/n, and uses the TCP/IP, SIP and RTSP protocols. You can install it where a network cable reaches or connect it over Wi-Fi.
Clear two-way audio: A built-in omnidirectional microphone and loudspeaker handle calls, with noise suppression and echo cancellation for clearer speech.
Alarm inputs and RS-485: There are 8 alarm inputs and one RS-485 interface for connecting detectors and other devices to the station.
PoE or 12 VDC power: The station takes standard PoE (IEEE 802.3af), so one cable can carry data and power, or a 12 VDC, 1 A supply. Power consumption is 8 W or less.
Good to know
- For indoor use only, surface mounting.
- Working temperature is -10 °C to 50 °C.
Technical Specifications
| Model | DS-KH9510-WTE1 |
| Operating system | Embedded Android |
| Flash | 8 GB eMMC |
| Screen | 10.1-inch colorful IPS, capacitive touch |
| Resolution | 1024 × 600 |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Audio quality | Noise suppression and echo cancellation |
| Audio compression | G.711U, G.711A |
| Network interface | 1 × RJ-45, 10/100 Mbps self-adaptive |
| Wi-Fi | 802.11 b/g/n |
| Protocols | TCP/IP, SIP, RTSP |
| Alarm inputs | 8 |
| RS-485 | 1 |
| Installation | Surface mounting |
| Power supply | IEEE 802.3af standard PoE; 12 VDC, 1 A |
| Power consumption | ≤ 8 W |
| Working temperature | -10 °C to 50 °C |
| Working humidity | 10% to 90% |
| Dimensions | 254 × 166 × 26.65 mm |
| Weight | 875 g (without package), 1060 g (with package) |
📄 Datasheet: Download the official Hikvision DS-KH9510-WTE1 datasheet (PDF)
