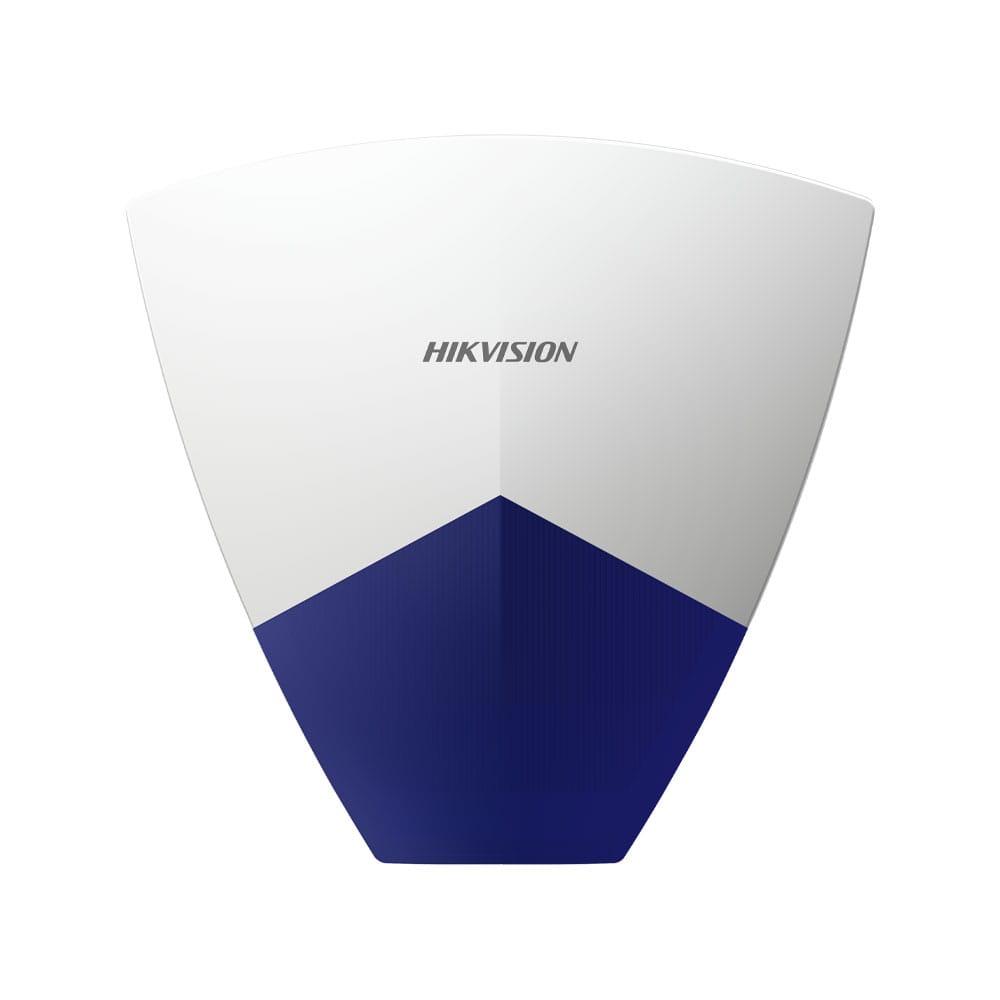

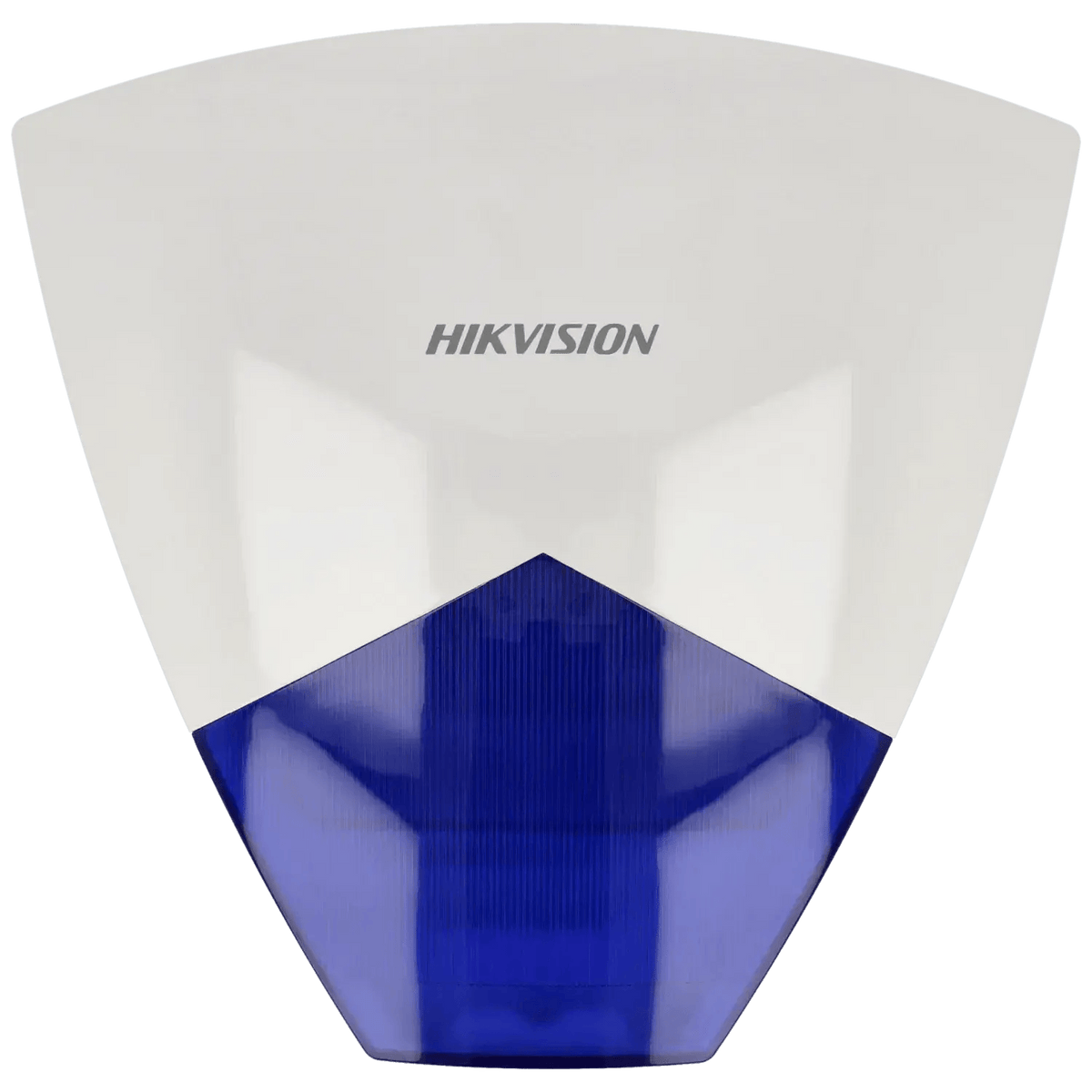

Hikvision Wired External Sounder with Blue Strobe | DS-PS102X/BLUE
The Hikvision DS-PS102X/BLUE is a wired external alarm sounder with a blue LED strobe. It delivers up to 110 dB and is controlled from the alarm panel BELL/PGM output.
Color: White body with blue strobe lens
Key Features:
Loud Alarm: Sound level up to 110 dB at 1 m.
External Use: IP55 protection in a PC + ABS housing.
Sound & Strobe: Sound and LED flash indication can be set separately.
Three Alarm Tones: Fire, medical/panic and intrusion tones.
Panel Controlled: Triggered by the panel BELL/PGM output, positive or negative.
Tamper Protection: Front-cover and wall tamper protection.
Technical Specifications:
| Model | DS-PS102X/BLUE |
| Sound level | 110 dB at 1 m (maximum) |
| Ingress protection | IP55 |
| Power supply | 9 to 16 VDC (typical 12 VDC) |
| Maximum current | 180 mA @ 12 VDC |
| Operating humidity | 10% to 90% |
| Tamper protection | Front-cover tamper and wall/back-cover tamper |
| Control | Triggered from the panel BELL / PGM output, positive or negative active |
| Alarm tones | Three selectable tones (fire, medical/panic, intrusion alarm) |
| Sound and LED strobe | Sound and LED flash can be configured separately |
| Housing material | PC + ABS plastic |
| Application | External (outdoor) wired sounder with LED strobe |
Compatibility: Connects to any wired alarm panel with a BELL/PGM output.
📄 Datasheet: Download the official Hikvision DS-PS102X/BLUE datasheet (PDF)
