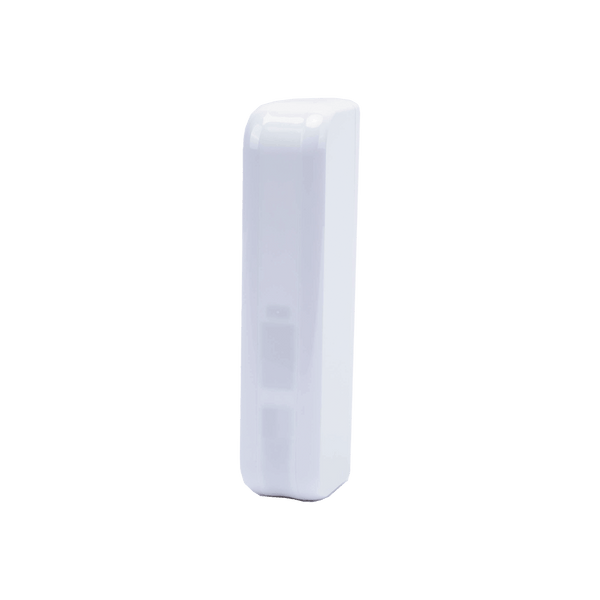

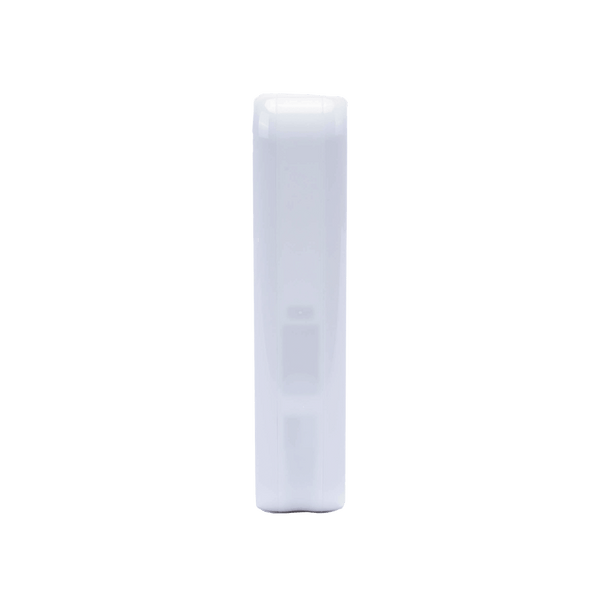

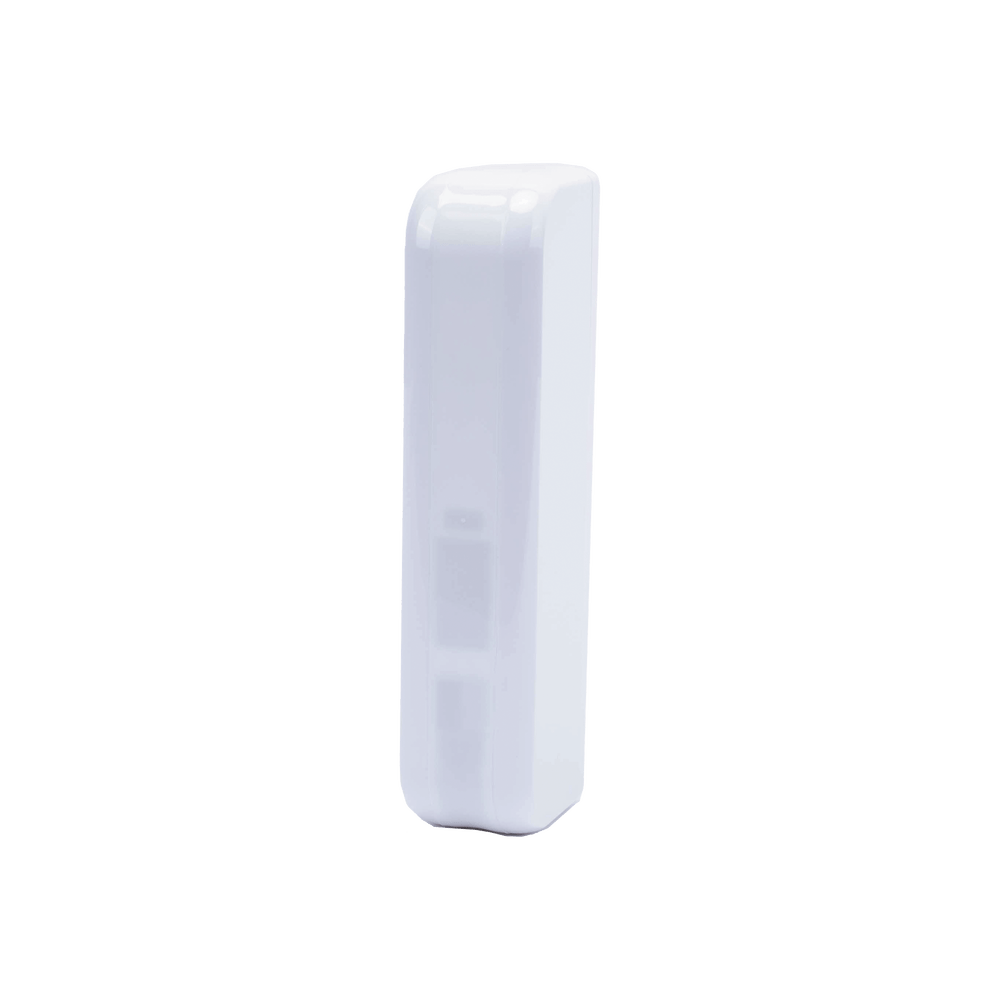

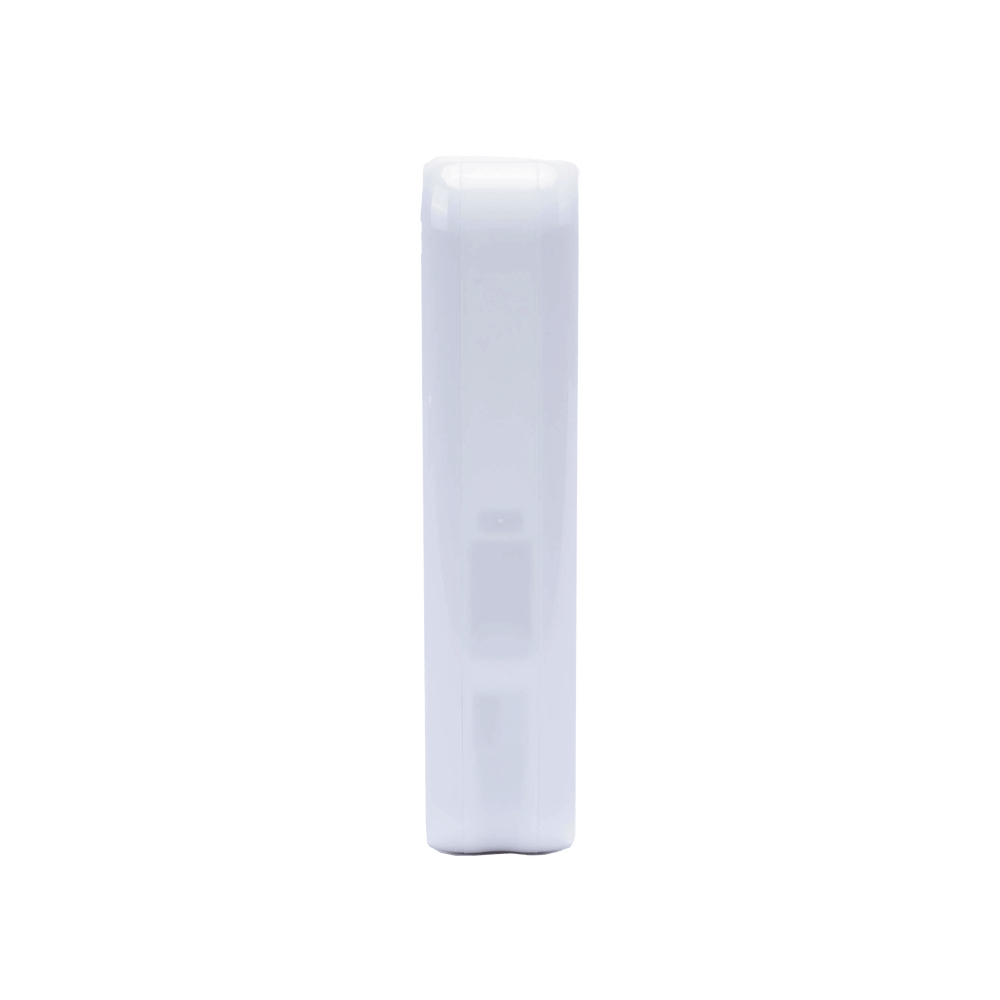

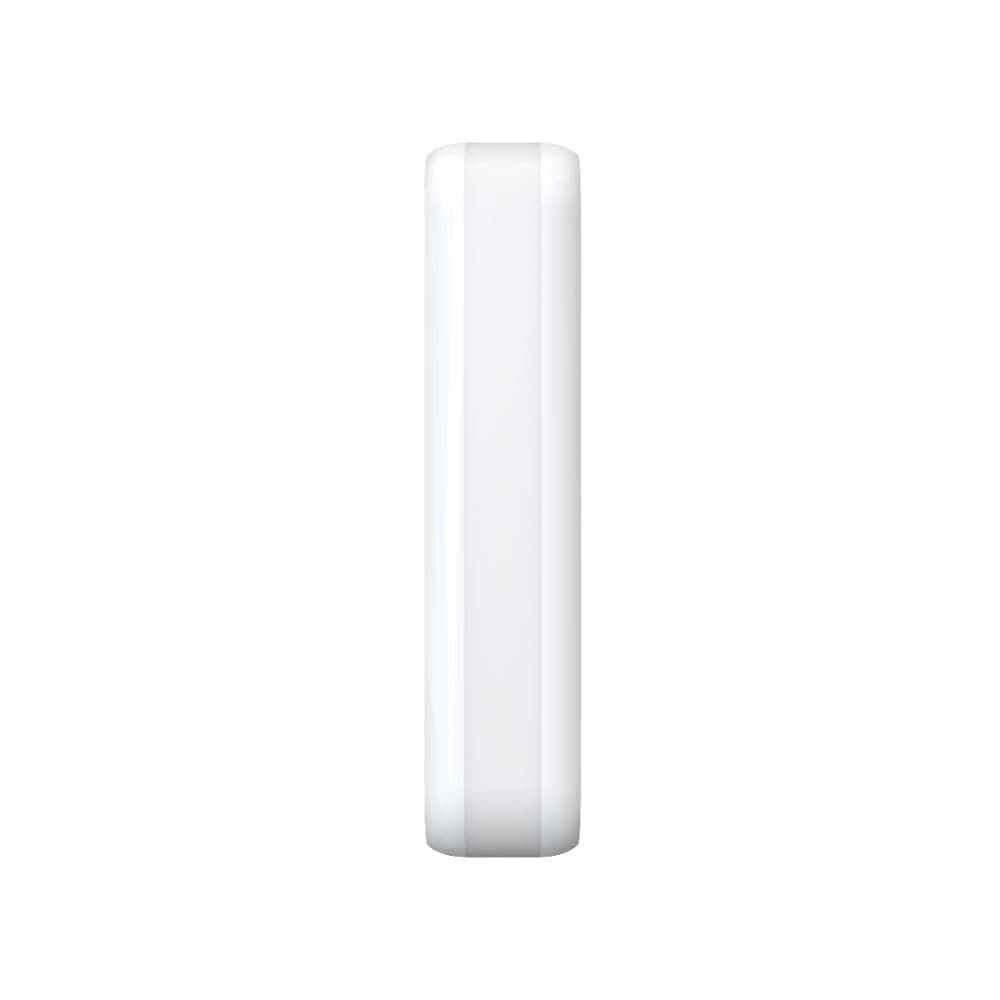

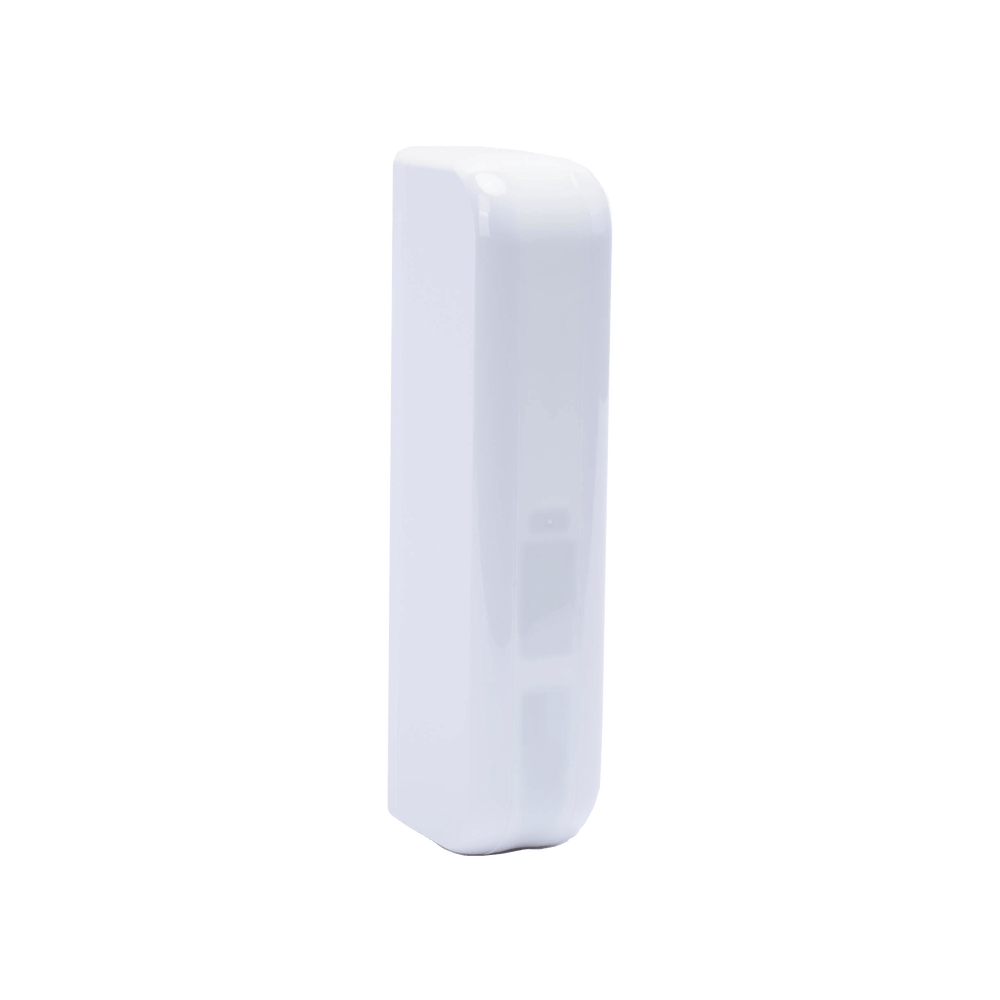

Hikvision Wired Slim PIR Curtain Detector with Anti-Masking | DS-PDC10AM-VG3
The Hikvision DS-PDC10AM-VG3 is a wired slim PIR curtain detector with active IR anti-masking and IP65 protection for indoor and outdoor use, part of the Hikvision AX Hybrid PRO wired range.
Color: White
Key Features:
Slim Curtain Design: Fits window frames, with a 10 m range on walls or 6 m on ceilings.
IP65 Weather Resistance: For indoor and outdoor application.
Active IR Anti-Masking: Detects attempts to block the detector.
Directional Detection: Left-to-right, right-to-left or off (jumper selectable).
Flexible Wiring: Selectable EoL resistors for alarm and tamper-proof wiring, with front and rear tamper protection.
Technical Specifications:
| Model | DS-PDC10AM-VG3 |
| Detection method | Passive infrared (PIR) with active IR anti-masking |
| Detection range | Wall mount: 10 m; ceiling mount: 6 m |
| Detection angle | 5° (curtain) |
| Detection zones | 32 |
| Detectable speed | 0.2 to 3 m/s |
| Sensitivity | Auto |
| White light filter | 6500 lux |
| Digital temperature compensation / creep zone protection / digital processing / sealed optics | Supported |
| Anti-masking | Supported (active IR) |
| Directional detection | Supported (L->R, R->L or off, jumper selectable) |
| Tamper protection | Front and rear |
| Alarm output | Normally closed (NC) |
| LED indicator | Blue (alarm), green + orange (mask) |
| Power supply | 9 to 16 VDC (typical 12 VDC) |
| Power consumption | 22 mA max. |
| Ingress protection | IP65 |
| Operating humidity | 10% to 90% |
| Dimensions (W x H x D) | 29.2 x 134.4 x 39.5 mm |
| Weight | 77.5 g |
| Mounting height | 2 to 4 m |
| Mounting method | Wall or ceiling; L-shaped adapter included |
| Application scenario | Indoor and outdoor |
Compatibility: Part of the Hikvision AX Hybrid PRO wired alarm range (NC alarm output).
