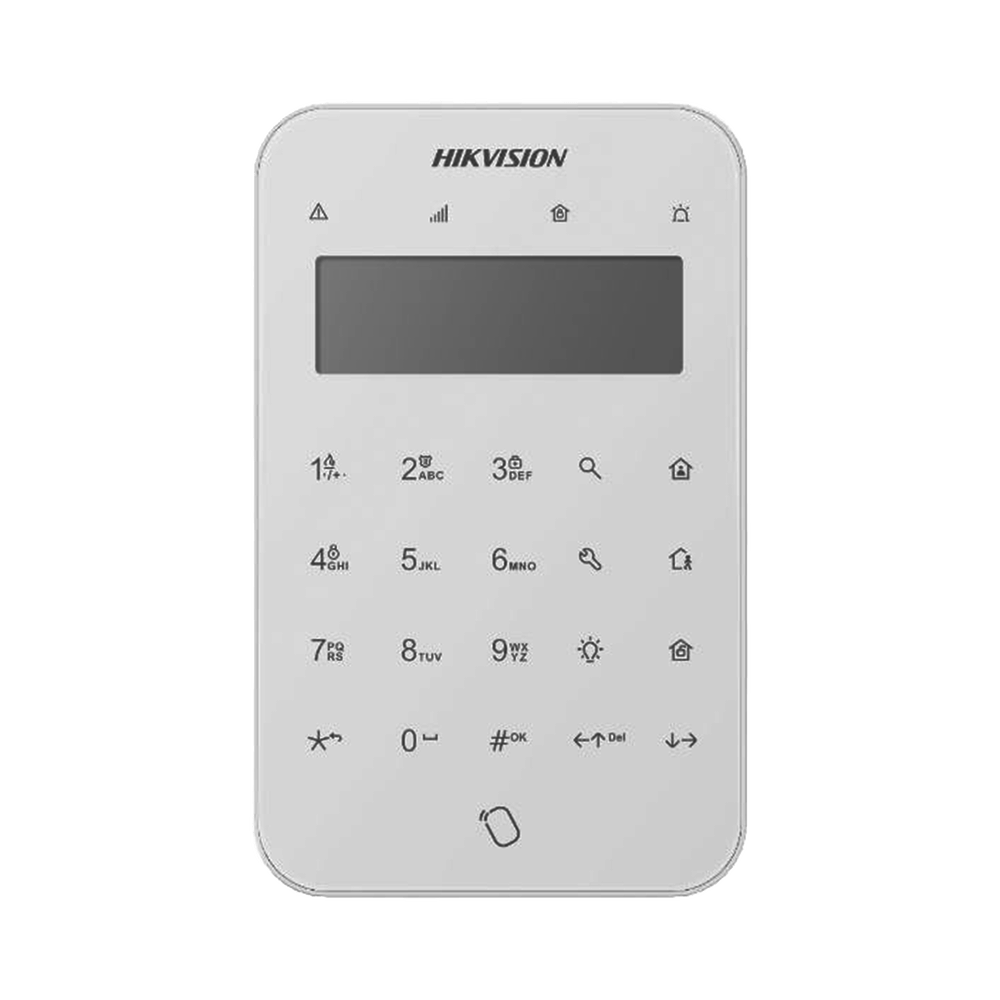

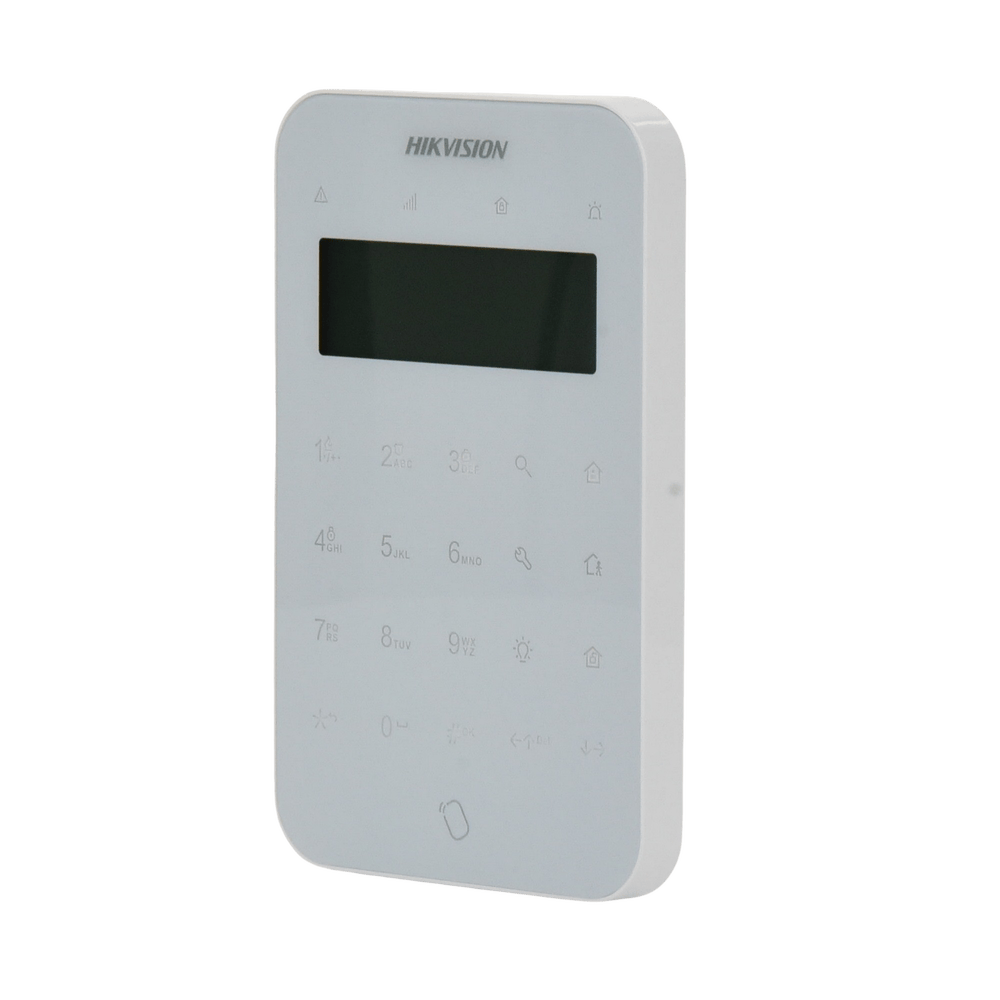

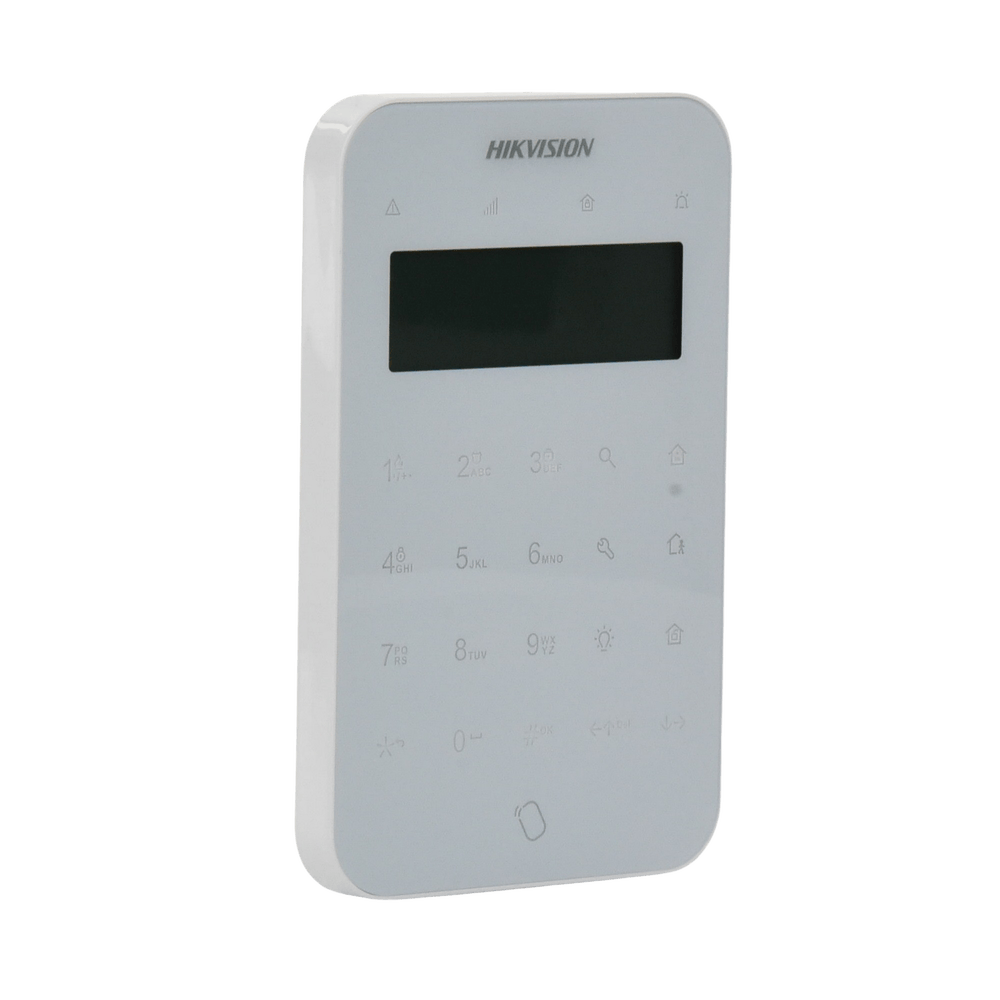

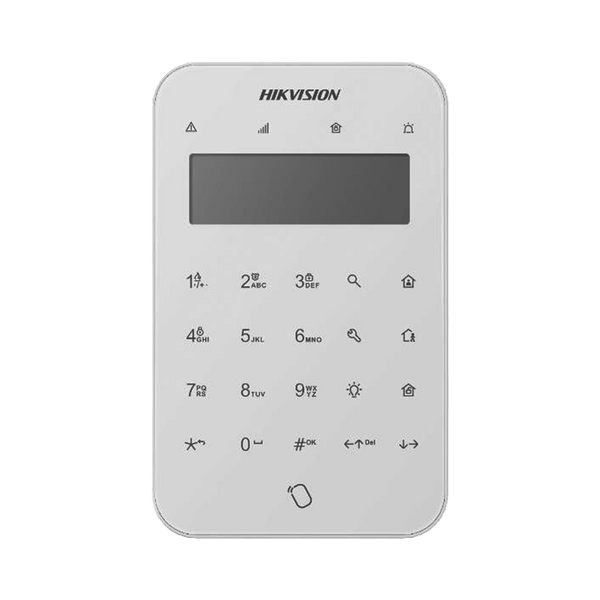

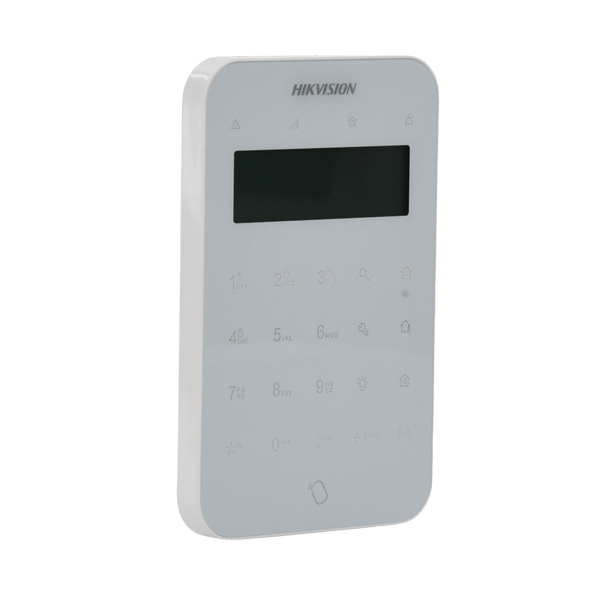

Hikvision Wireless LCD Keypad with Card Reader | DS-PK1-LT-WB
The Hikvision DS-PK1-LT-WB is a wireless LCD keypad with a built-in card (tag) reader for the Hikvision AX PRO alarm system. Arm, disarm and check system status right from the wall.
Color: White
Key Features:
LCD Status Display: LCD screen and LEDs show system status, with configuration through the LCD screen.
Arming Control: Stay/away arming, disarming, silent alarm and output control.
One-Push Alarms: One-push fire, panic and medical alarms.
Built-in Tag Reader: Built-in tag (card) reader.
Backlit Touch Keys: Full touch keys with LED backlight.
Two-Way Wireless: 433 MHz Tri-X two-way wireless with up to 800 m range in open area, fully configurable remotely through the app.
Technical Specifications:
| Model | DS-PK1-LT-WB |
| Wireless frequency | 433 MHz |
| Wireless technology | Tri-X two-way wireless |
| RF range (open area) | 800 m |
| Battery | 4 x CR123 |
| Standby battery life | Up to 2 years |
| Operating temperature | -10 °C to +55 °C |
| Operating humidity | 10% to 90% |
| Dimensions (W x H x D) | 174.63 x 109.62 x 25.25 mm |
| Weight | 348 g with batteries / 282 g without |
| Installation | Wall mount |
| Tamper protection | Front and rear |
| Built-in tag (card) reader | Yes |
| Display | LCD screen with LED status indicators |
| Color | White |
Compatibility: Works with the Hikvision AX PRO wireless alarm system (control panel sold separately).
📄 Datasheet: Download the official Hikvision DS-PK1-LT-WB datasheet (PDF)
