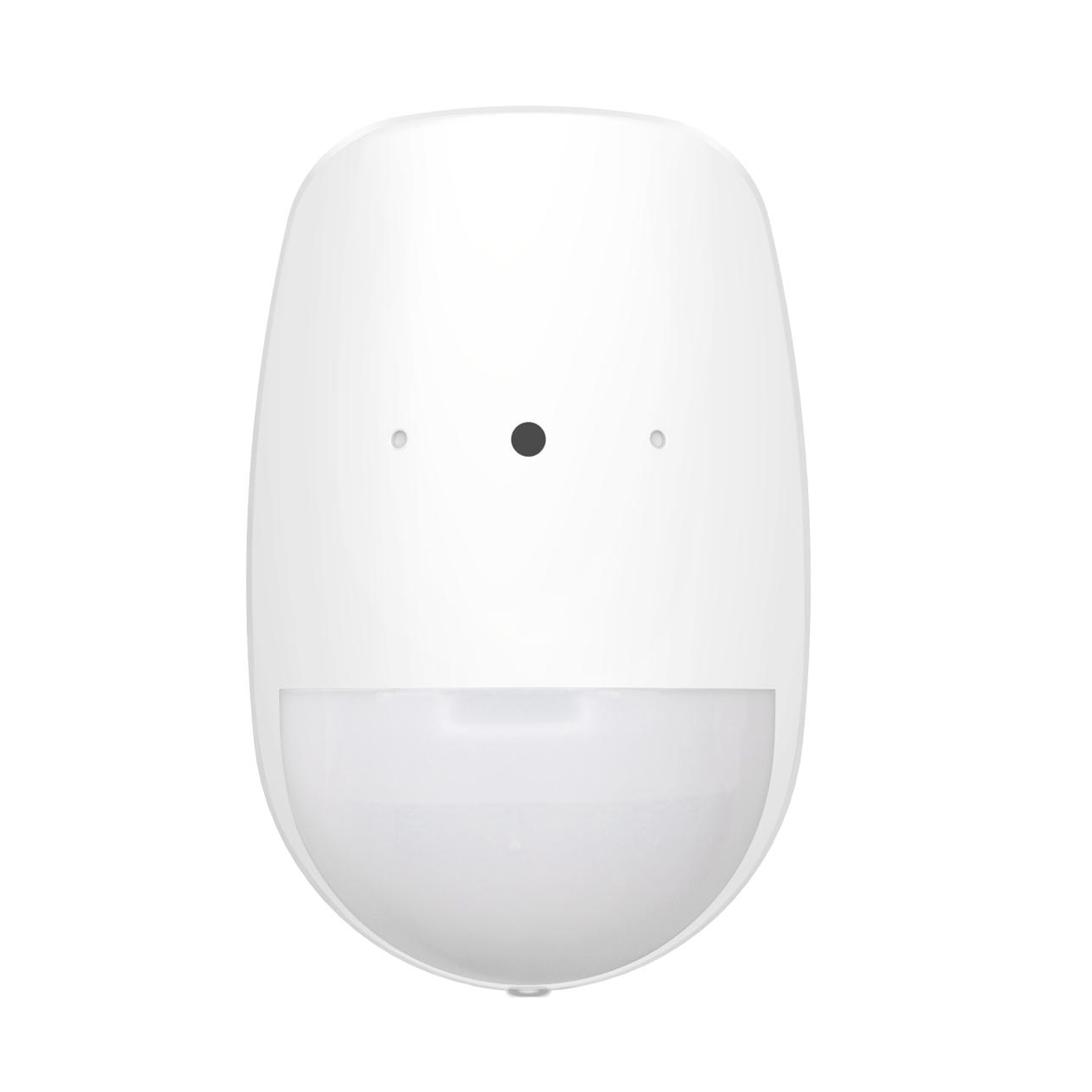

Hikvision Wireless PIR & Glass Break Detector | DS-PDPG12P-EG2-WB
Hikvision Wireless PIR & Glass Break Detector | DS-PDPG12P-EG2-WB
Couldn't load pickup availability
Hikvision Wireless PIR & Glass Break Detector | DS-PDPG12P-EG2-WB
The Hikvision DS-PDPG12P-EG2-WB combines a passive infrared (PIR) motion detector and an acoustic glass break sensor in one wireless AX PRO device. It covers 12 m / 85.9° for motion and 8 m / 120° for glass break, ignores pets up to 30 kg, and runs on two CR123A batteries for up to 4 years of standby.
Color: White
Key Features:
Two Detectors in One: The PIR sensor detects movement up to 12 m across 85.9° with 52 detection zones, while the acoustic sensor listens for breaking glass up to 8 m away. One device protects both the room and its windows.
Pet Immunity: Up to 30 kg pet immunity, with Auto, High and Pet PIR sensitivity modes, helps reduce false alarms from pets.
Glass Types: Detects breaking float, plate, tempered, wired, laminated and double-glazed glass from 2.4 mm to 6.4 mm thick, for panes from 0.3 x 0.3 m up to 3 x 3 m.
Reliable Detection: Digital temperature compensation, creep zone protection, sealed optics and a 6500 lux white light filter support stable PIR performance.
Tri-X Two-Way Wireless: Talks to the AX PRO panel over two-way 433 MHz RF with frequency hopping, with up to 1 km range in free space. It is fully configurable remotely through the app and can be enrolled by power-up, remote ID or QR code.
Easy Battery Change: Two replaceable CR123A batteries with a PCB-protected design, up to 4 years standby.
Technical Specifications:
| Model | DS-PDPG12P-EG2-WB |
| Detection method | Passive infrared, acoustic sensor |
| PIR detection range / angle | 12 m / 85.9° |
| Detection zones | 52 |
| Detectable speed | 0.3 to 2 m/s |
| Pet immunity | 30 kg |
| PIR sensitivity | Auto, High, Pet |
| White light filter | 6500 lux |
| Glass break range / angle | 8 m / 120° |
| Glass thickness | 2.4 mm to 6.4 mm |
| Glass size | 0.3 x 0.3 m to 3 x 3 m |
| Tamper protection | Front, rear |
| LED indicator | Green (PIR), red (glass break), blue (alarm) |
| Transmission | Tri-X Wireless, two-way RF, 433 MHz, frequency hopping |
| Range (free space) | 1 km |
| Enrolling method | Power up, remote ID, QR code |
| Battery | CR123A x 2 (3 V) |
| Battery life | Up to 4 years (standby) |
| Operating temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Operating humidity | 10% to 90% |
| Dimensions (W x H x D) | 65.5 x 103 x 48.5 mm |
| Weight | 134 g |
| Mounting | Wall, 1.8 to 2.4 m height |
| Application scenario | Indoor |
Works with: Hikvision AX PRO wireless alarm panels (433 MHz -WB range).
Good to know: Wall and ceiling brackets (DS-PDB-IN-Wallbracket, DS-PDB-IN-Ceilingbracket) are optional accessories and are sold separately. Hikvision notes that glass break sensitivity level 8 is more sensitive but is not compliant with EN50131-2-7-1.
📄 Datasheet: Download the official Hikvision DS-PDPG12P-EG2-WB datasheet (PDF)
