Hikvision AX PRO Wireless Alarm Kit | DS-PWA96-Kit-WB

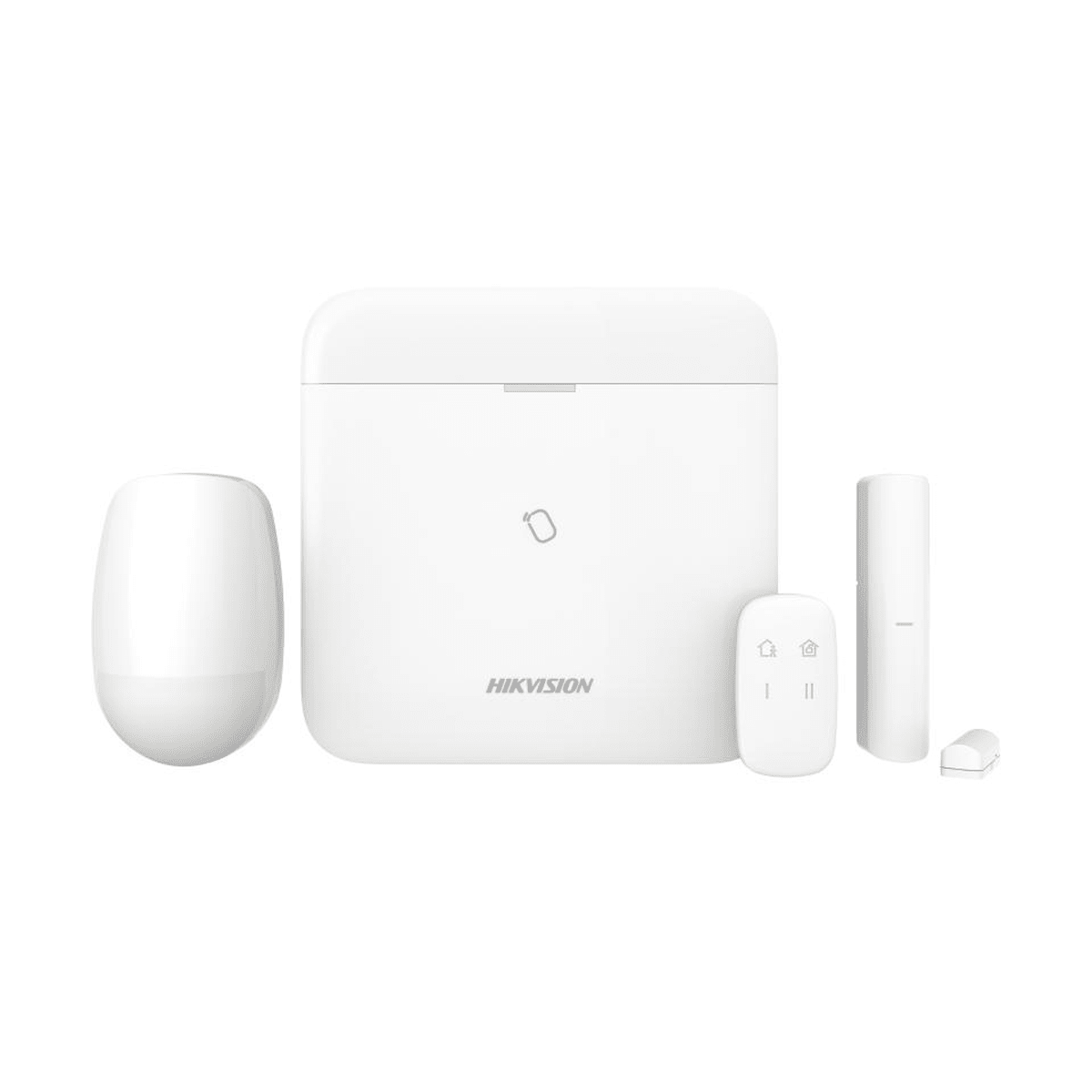

The Hikvision DS-PWA96-Kit-WB is a 433 MHz AX PRO wireless intrusion alarm starter kit. In one box you get the DS-PWA96-M-WB control panel, a keyfob, a wireless PIR motion detector and a wireless door/window magnetic contact. The panel connects over wired network, Wi-Fi and 3G/4G, and can grow to 96 wireless zones as you add AX PRO devices.
Color: White
What's in the Kit:
DS-PWA96-M-WB × 1: AX PRO wireless control panel (the hub of the system).
DS-PKF1-WB × 1: Wireless keyfob for arming and disarming.
DS-PDP15P-EG2-WB × 1: Wireless PIR motion detector.
DS-PDMC-EG2-WB × 1: Wireless magnetic contact for doors and windows.
Key Features:
Room to Grow: The panel supports up to 96 zones (including up to 48 PIRCAMs), 32 areas and 48 tags, plus 48 keyfobs, 8 keypads (including tag reader), 6 wireless sounders (3 internal + 3 external), 4 wireless repeaters and 6 multi transmitters, so you can start with the kit and extend it later.
Users and Arm Modes: 46 users plus 1 installer and 1 admin. Away and Stay arm modes, automatic arm/disarm timers and forced arming with open zones are supported, and the event log stores 5000 entries.
Built-in Voice, Speaker and Tag Reader: The panel has voice prompts, a built-in loudspeaker and a built-in tag reader, with LEDs for arm/disarm, alarm, tamper, fault, cloud and power status.
Multiple Communication Paths: Wired network, Wi-Fi and on-board 3G/4G with dual SIM slots, plus an RS232 output. Wireless devices talk to the panel over two-way 433 MHz RF with frequency hopping and AES encryption.
Video Verification and Remote Control: Supports video verification (4 on-board video clips) and remote control through the user and installer apps. Programming is available through Hik-Connect, Hik-Partner Pro, the web portal, iVMS-4200 and Convergence Cloud, with firmware upgrades by app or web portal.
Alarm Receiving Centre Ready: Supports SIA DC09 (SIA level 2, Contact ID), ISUP and ISAPI (SDK), and Hik-IP Receiver / Hik-IP Receiver Pro (Sur-Gard & Ademco 685).
Backup Battery: Built-in power supply with an on-board lithium battery that lasts up to 12 hours at normal temperature (significantly less at low temperatures).
Technical Specifications (DS-PWA96-M-WB control panel):
| Kit Model | DS-PWA96-Kit-WB |
| Kit Contents | DS-PWA96-M-WB × 1, DS-PKF1-WB × 1, DS-PDP15P-EG2-WB × 1, DS-PDMC-EG2-WB × 1 |
| Zones | 96 (up to 48 PIRCAMs) |
| Areas / Tags | 32 / 48 |
| Users | 46 users, 1 installer, 1 admin |
| On-board Video Clips | 4 |
| Event Log | 5000 |
| Arm Modes | Away / Stay |
| Wireless | Two-way RF, 433 MHz, frequency hopping, AES encryption |
| Network | Wired network, Wi-Fi, on-board 3G/4G |
| SIM Slots | Dual |
| RS232 Output | Supported |
| ARC Protocols | SIA DC09 (SIA level 2, Contact ID), ISUP, ISAPI (SDK) |
| Device Management | 48 keyfobs, 8 keypads (incl. tag reader), 6 wireless sounders (3 internal + 3 external), 4 repeaters, 6 multi transmitters |
| Power Supply | Built-in |
| Backup Battery | Built-in Li battery, up to 12 hours at normal temperature |
| Operating Temperature | -10 °C to +55 °C |
| Panel Housing | Plastic, white |
| Panel Dimensions (W × H × D) | 170.0 × 170.0 × 38.6 mm |
| Panel Weight | 557.5 g |
Works with: Other 433 MHz AX PRO wireless devices (WB series) can be added to the panel, such as detectors, keypads, sounders and repeaters (sold separately).
📄 Datasheet: Download the official Hikvision DS-PWA96-Kit-WB datasheet (PDF)
