Hikvision Wireless Smart Plug | DS-PSP1-WB
The Hikvision DS-PSP1-WB is a wireless smart plug that plugs into a wall socket and switches the appliance connected to it. It communicates over two-way 433 MHz wireless with AES-128 encryption, handles loads up to 10 A, and can be switched by scenarios: by alarm, by operation, by fault, by schedule or manually.
Key Features
Scenario Control: The plug can be switched by alarm, by operation, by fault, by schedule or manually. This lets an appliance follow a timetable or react to an event in the alarm system.
Secure Two-Way Wireless: The plug talks to the system over two-way 433 MHz wireless protected by AES-128 encryption, so switching commands travel over an encrypted link.
Plug In, No Wiring: It installs by plugging into a socket, with a power button for enrollment and a single green/red status LED. The body measures 52 x 52 x 88 mm and weighs 85 g.
Good to know
- Maximum load is 10 A; check the rating of the appliance before connecting it.

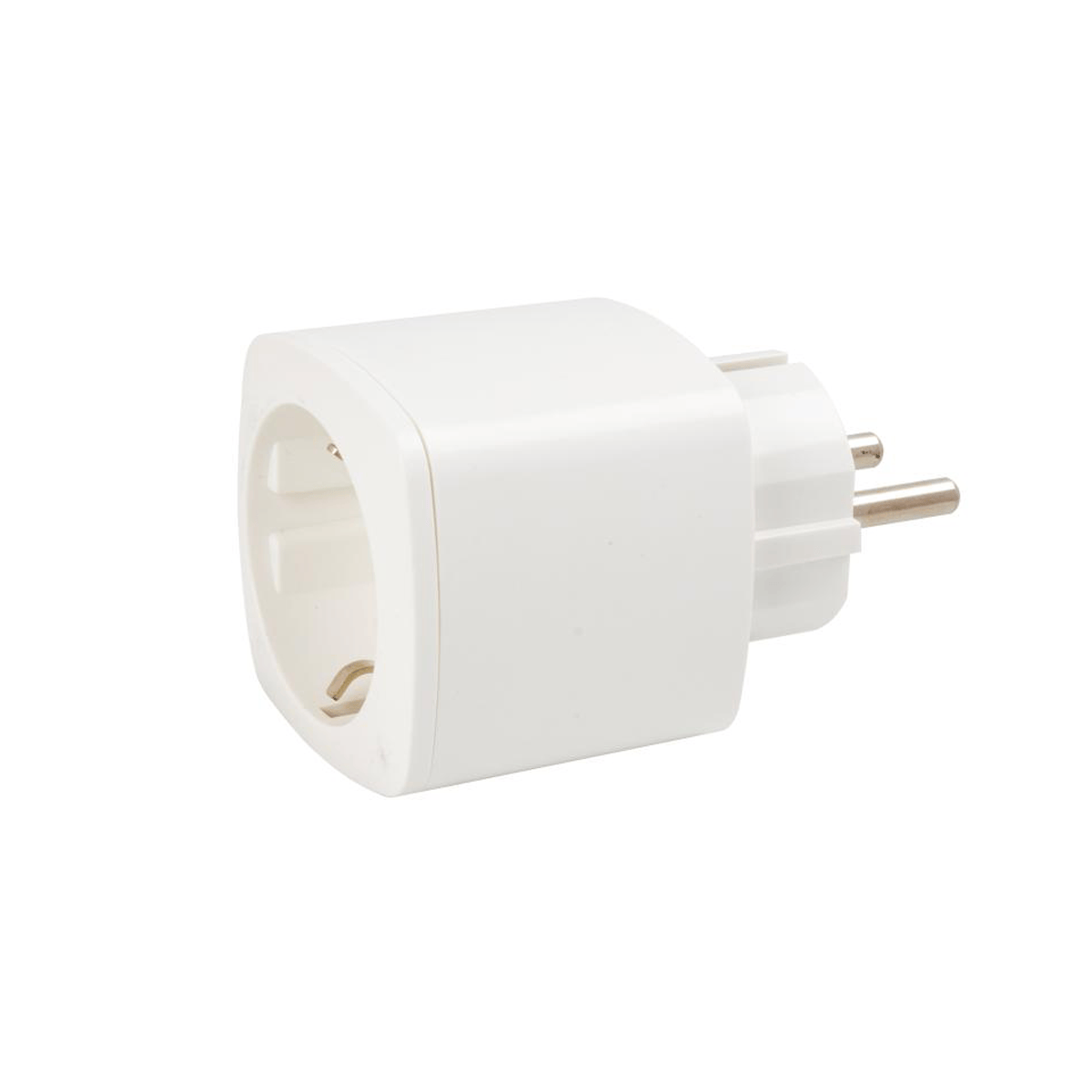

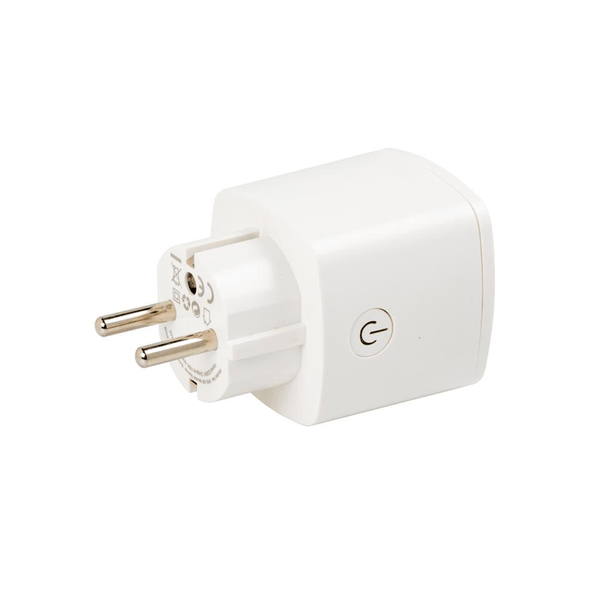

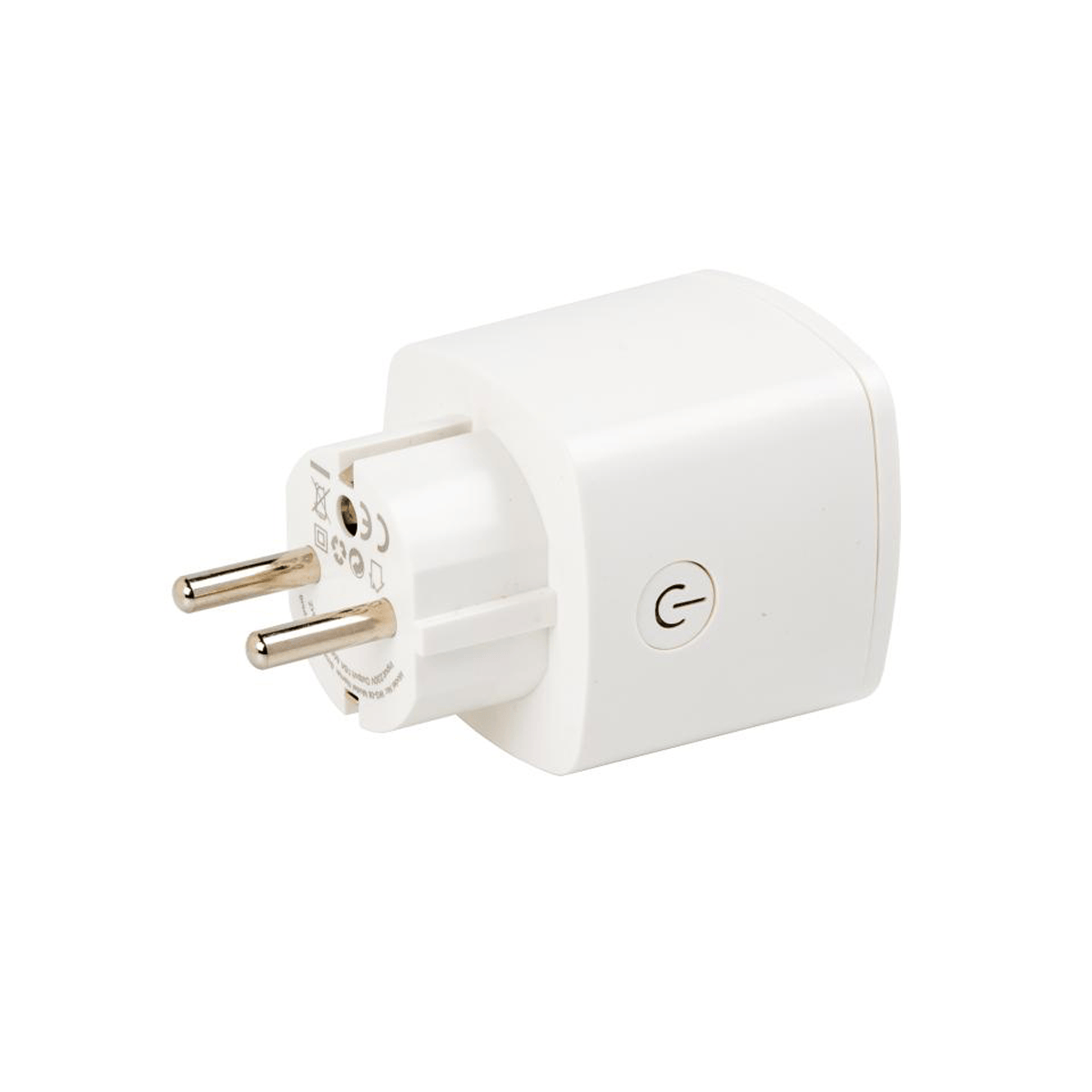

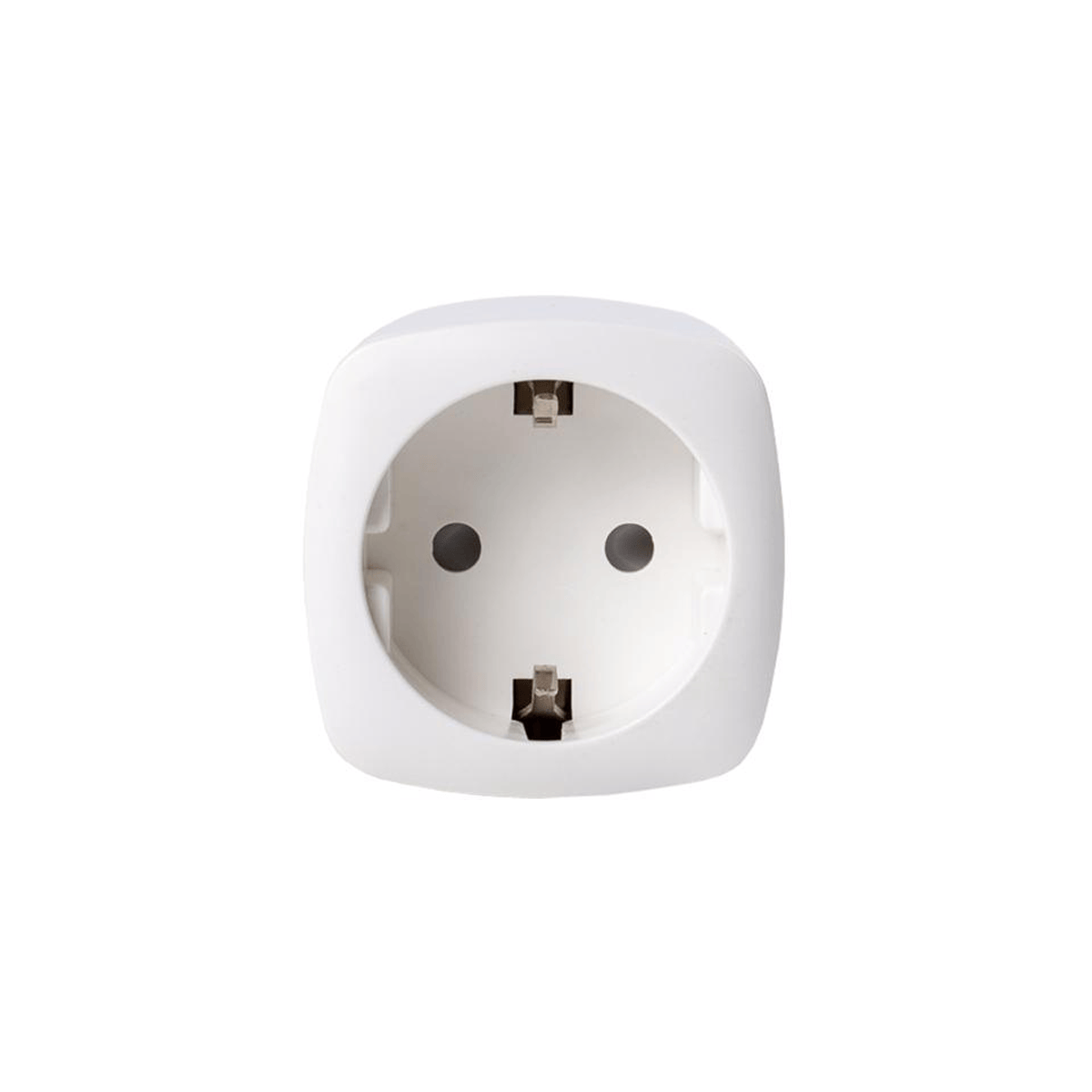

- The plug and socket are the European round-pin (Schuko) type shown in the photos and in the official quick start guide.
Technical Specifications
| Model | DS-PSP1-WB |
| Power button | 1, for enrollment |
| Scenario setting | By alarm, by operation, by fault, by schedule, by manual |
| RF method | Two-way communication |
| RF frequency | 433 MHz |
| Wireless security | AES-128 |
| Max. load | 10 A |
| LED status | 1 (green/red) |
| Operating temperature | -10 °C to +55 °C |
| Operating humidity | 10% to 90% |
| Dimensions (W x H x D) | 52 x 52 x 88 mm |
| Weight | 85 g |
| Installation | Plug into socket |
