IMOU HMR300 4G LTE Wi-Fi Router (300Mbps, SIM Card) | HMR300

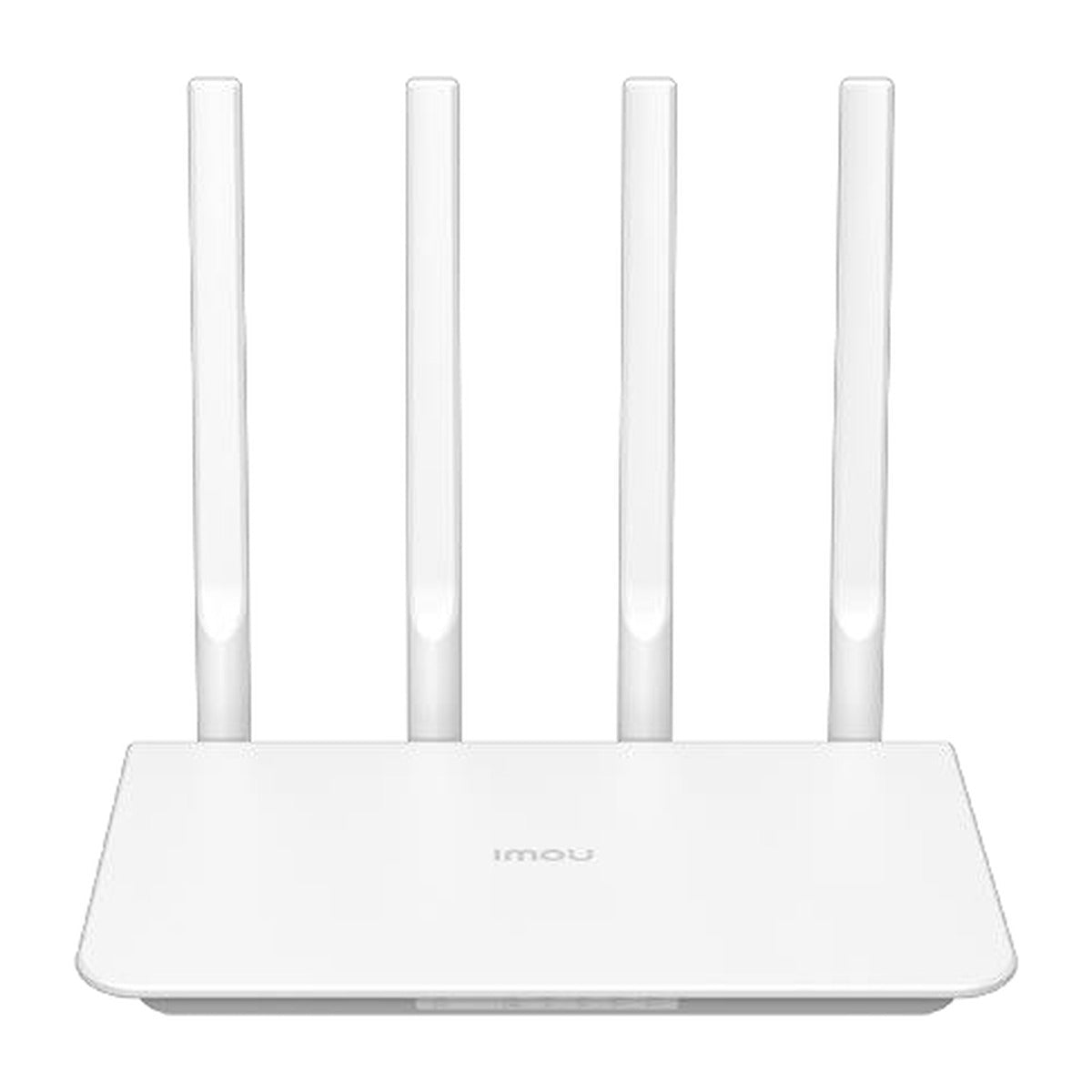

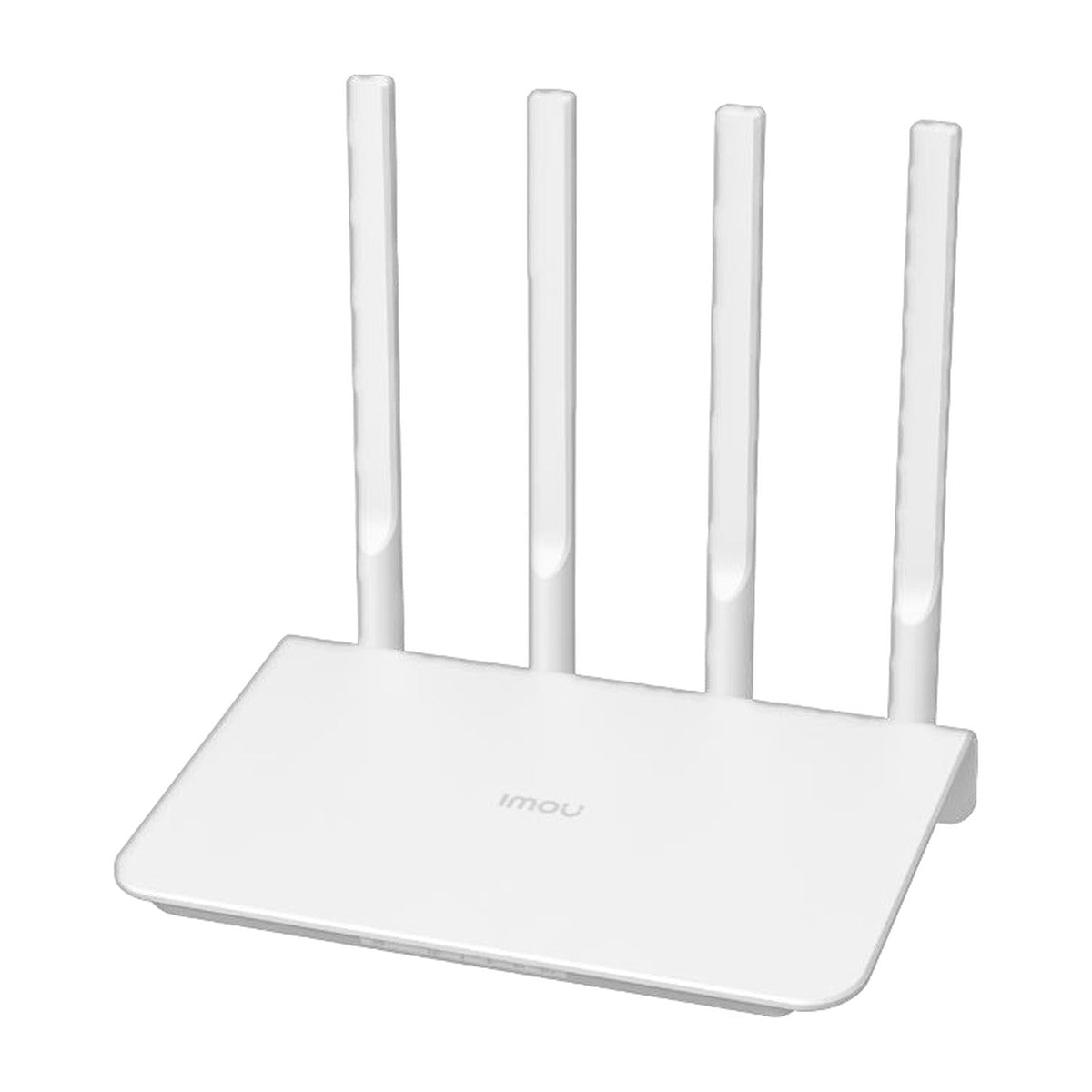

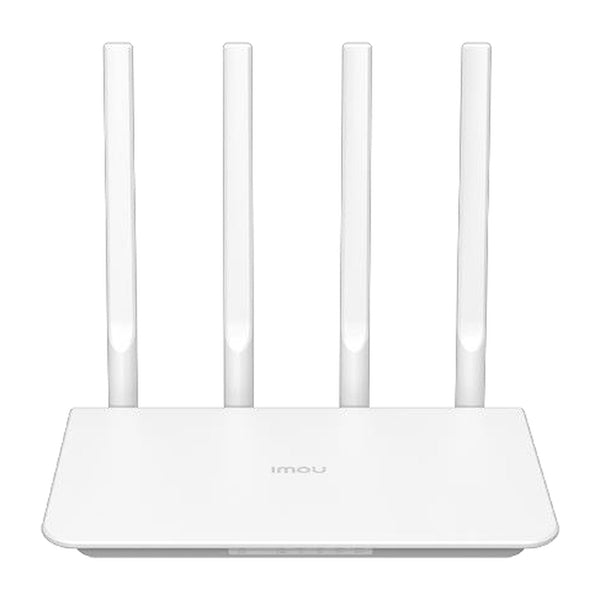

The IMOU HMR300 is a 4G LTE router: insert a micro SIM card and it shares the mobile connection over 300Mbps 2.4GHz Wi-Fi and its LAN ports. It supports LTE Cat 4 (up to 150Mbps download / 50Mbps upload), also works with a wired internet line, and has four external antennas (two for Wi-Fi and two for LTE).
4G SIM Card Plug & Play: Insert a 4G micro SIM card and the router connects to the internet, making it useful where installing a cable line is not convenient. It is compatible with a wide range of ISPs and also supports 3G (WCDMA).
300Mbps Wi-Fi: The 2.4GHz IEEE 802.11b/g/n Wi-Fi reaches up to 300Mbps for phones, laptops, smart devices and cameras, with up to 32 clients in real-time connection.
4 External Antennas: Two Wi-Fi antennas and two 4G antennas give better 4G signal reception and wider Wi-Fi coverage.
4G or Wired, with WAN Backup: The WAN port accepts a wired connection (PPPoE / Dynamic IP / Static IP), and the router offers WAN backup for normal router mode. Guest Wi-Fi, Wi-Fi schedule, QoS, DDNS, DMZ, port forwarding and UPnP are supported.
Who it's for / Works with: Sites without a fixed internet line, such as farms, cabins, shops, construction sites or temporary setups, and for connecting Wi-Fi cameras where only 4G coverage is available. Works with 4G micro SIM cards.
Good to know: A SIM card and data plan are not included. Wi-Fi is 2.4GHz only, the wired ports are 100Mbps, IPv4 only, and setup is through the PC web configuration page. Check that your operator uses one of the supported LTE bands listed below.
What's in the Box
◆ Router ×1
◆ Power adapter ×1
◆ Quick start guide ×1
Technical Specifications
| Specification | IMOU HMR300 |
|---|---|
| 4G speed | LTE Cat 4, DL 150Mbps / UL 50Mbps |
| Network bands | LTE-FDD: B1/3/5/7/8/20/28 (2100/1800/850/2600/900/800/750 MHz); LTE-TDD: B38/40/41 (2600/2300/2500 MHz); WCDMA: B3/8 (1800/900 MHz) |
| Wi-Fi standard | 2.4GHz: IEEE 802.11b/g/n |
| Wi-Fi speed | Up to 300Mbps |
| Antennas | 4 × external (2 × Wi-Fi + 2 × LTE) |

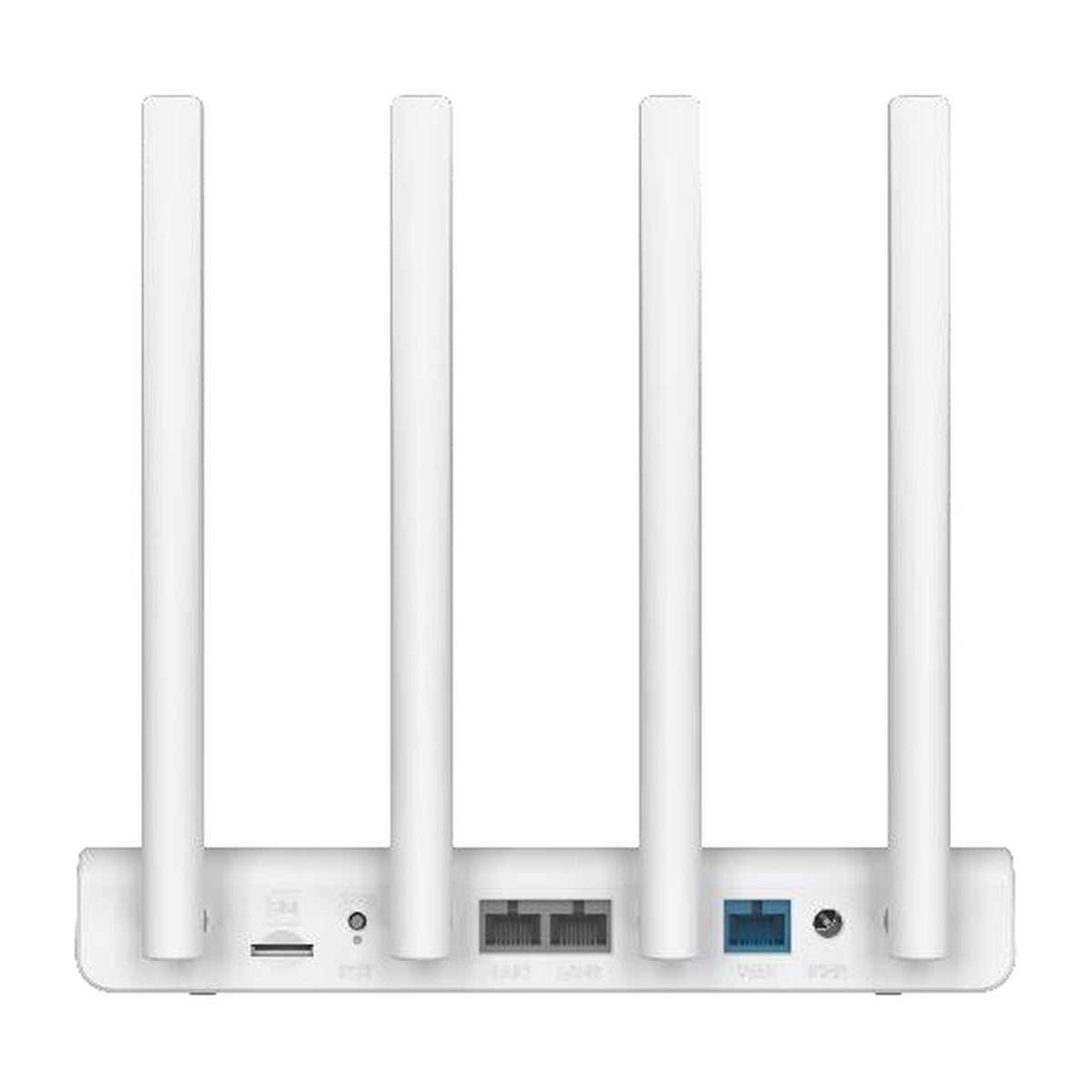

| Network ports | 1 × 100Mbps WAN, 2 × 100Mbps LAN |
| Button | 1 × Reset |
| LED indicators | System, Wi-Fi, 4G signal strength |
| Memory | 8MB ROM, 64MB RAM |
| WAN connection type | 4G; wired (PPPoE / Dynamic IP / Static IP) |
| Wireless security | WPA-PSK / WPA2-PSK, hidden SSID |
| Features | Wi-Fi schedule, guest Wi-Fi, QoS, DDNS, DMZ, port forwarding, UPnP |
| IP version | IPv4 only |
| Management | PC web configuration page |
| Power supply | DC 12V 1A |
| Power consumption | < 12W |
| Operating environment | -10°C to +45°C, less than 95% RH |
| Dimensions (L×W×H) | 200 × 125 × 190 mm |
| Certification | CE |
📄 Datasheet: Download the official IMOU HMR300 datasheet (PDF)
