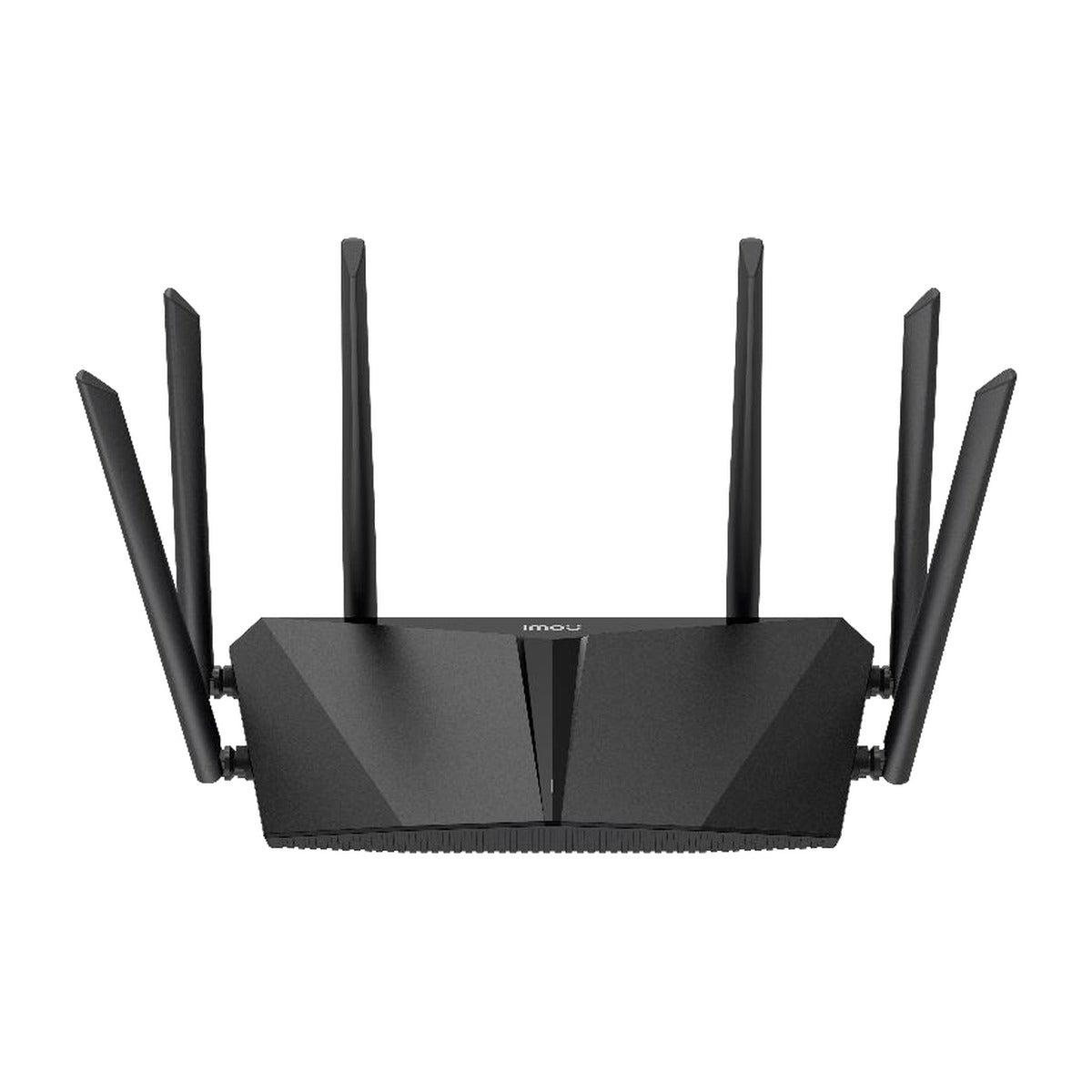

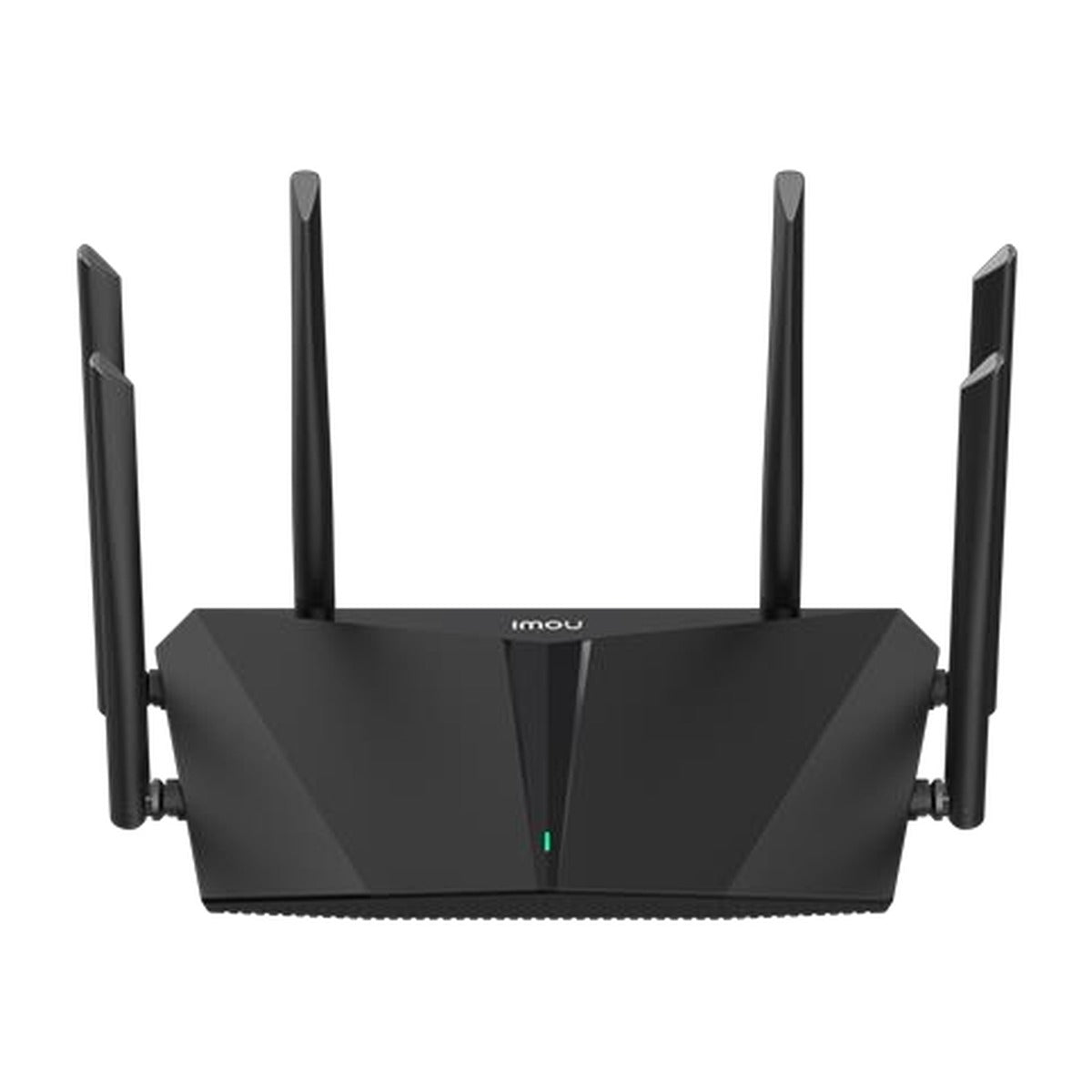

IMOU AC1200 Dual-Band Gigabit Mesh Wi-Fi Router | HR1200G-A
The IMOU HR1200G-A is a Wi-Fi 5 (802.11ac) dual-band router with a combined speed of up to AC1200 (300Mbps on 2.4GHz + 867Mbps on 5GHz), one Gigabit WAN port and three Gigabit LAN ports. It supports IMOU Link 2.0 mesh and has six external 5dBi antennas.
Gigabit Ports + AC1200 Wi-Fi: All four wired ports run at up to 1000Mbps, which suits NVRs, computers and TVs that need fast, stable wired connections. On Wi-Fi, the 2.4GHz band reaches up to 300Mbps and the 5GHz band up to 867Mbps.
IMOU Link 2.0 Mesh: Several compatible IMOU routers can be joined into one mesh network for seamless roaming across a larger home. Three mesh methods are supported: wireless, wired and parallel mesh, so you can choose what suits the building.
Wi-Fi Auto-Sync & Stream Accelerate for IMOU Cameras: IMOU cameras connect to the router automatically and stay connected even after you change the Wi-Fi name or password. A dedicated transmit channel keeps IMOU camera video smooth and helps prevent cloud-recording loss when the network is busy.
Home Network Features: Up to 64 clients in real-time connection, parental control, guest network, IPTV, QoS, VPN (PPTP/L2TP), DDNS, DMZ, port forwarding and UPnP. It can work as a wireless router, repeater or access point and is managed from a PC or mobile web page or the Imou Life app.
Who it's for / Works with: Homes and small offices that need Gigabit wired ports and dual-band Wi-Fi, users who want to extend coverage with IMOU Link 2.0 mesh, and households with IMOU Wi-Fi cameras.
Good to know: This is a Wi-Fi 5 (802.11ac) router, not Wi-Fi 6. It has no SIM slot. A mesh network requires additional compatible IMOU routers.
What's in the Box
◆ Router ×1
◆ Ethernet cable ×1
◆ Power adapter ×1
◆ Quick start guide ×1
Technical Specifications
| Specification | IMOU HR1200G-A |
|---|---|
| Wi-Fi standard | 2.4GHz: IEEE 802.11b/g/n; 5GHz: IEEE 802.11a/n/ac (Wi-Fi 5) |
| Frequency | 2.4GHz & 5GHz (dual-band) |
| Wi-Fi speed | 2.4GHz: 300Mbps; 5GHz: 867Mbps (AC1200) |
| Antennas | 6 × external 5dBi |

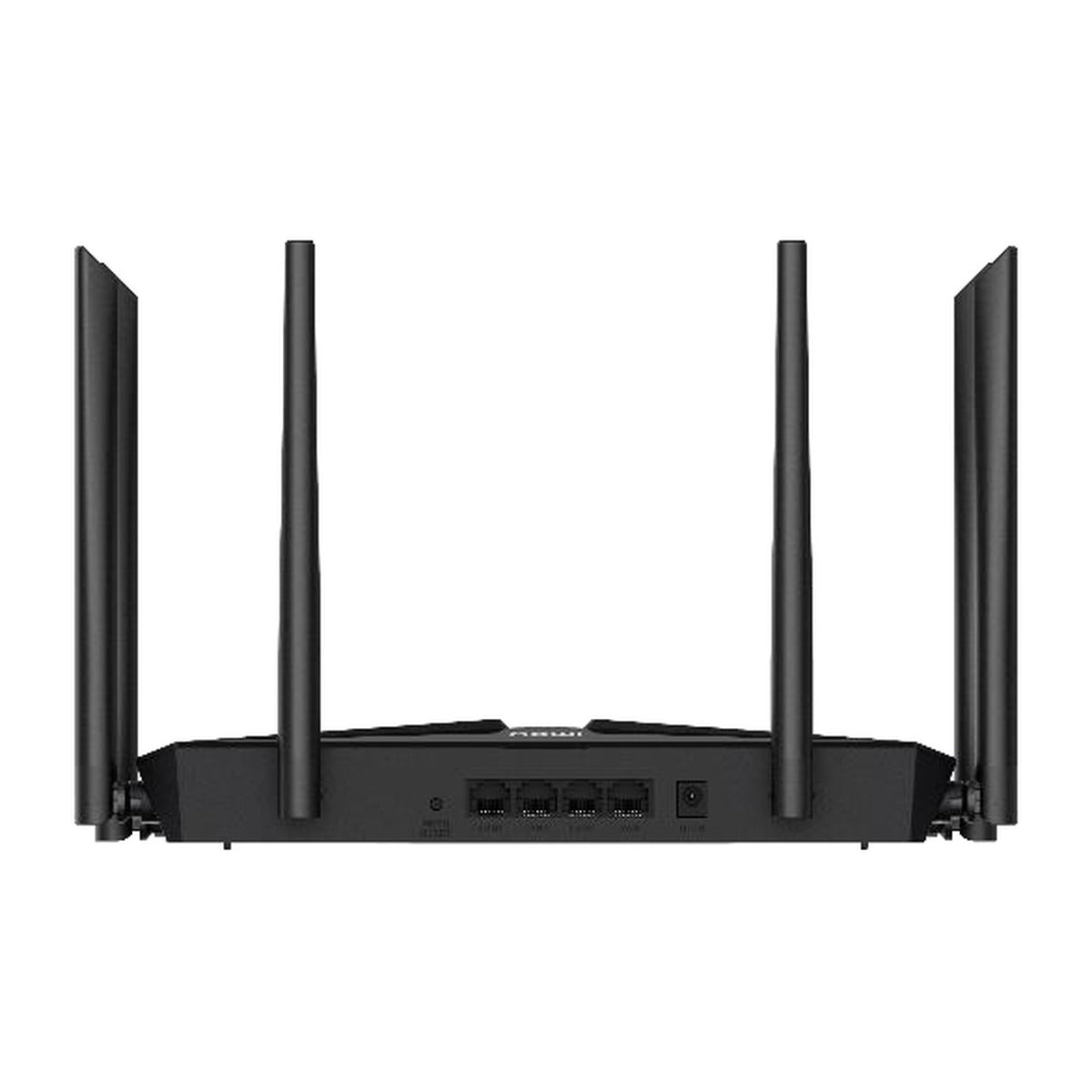

| Network ports | 1 × Gigabit WAN, 3 × Gigabit LAN |
| Mesh | IMOU Link 2.0: wired, wireless and parallel mesh |
| Buttons | 1 × Mesh/Reset |
| LED indicator | Two-color light (red & green) |
| Memory | 16MB ROM, 128MB RAM |
| WAN connection type | PPPoE / Dynamic IP / Static IP |
| Operating modes | Wireless router, repeater, AP |
| Wireless security | WPA-PSK / WPA2-PSK, hidden SSID |
| Features | IPv4/IPv6, parental control, guest network, IPTV, QoS, VPN (PPTP, L2TP), DDNS, DMZ, port forwarding, UPnP |
| Management | PC web, mobile web, Imou Life app |
| Power supply | DC 12V 1A |
| Power consumption | < 12W |
| Operating environment | -10°C to +45°C, less than 95% RH |
| Dimensions (L×W×H) | 289.7 × 153.8 × 185.8 mm |
| Certification | CE |
📄 Datasheet: Download the official IMOU HR1200G-A datasheet (PDF)
