IMOU 300Mbps Wi-Fi Router with 4 External Antennas | HR340

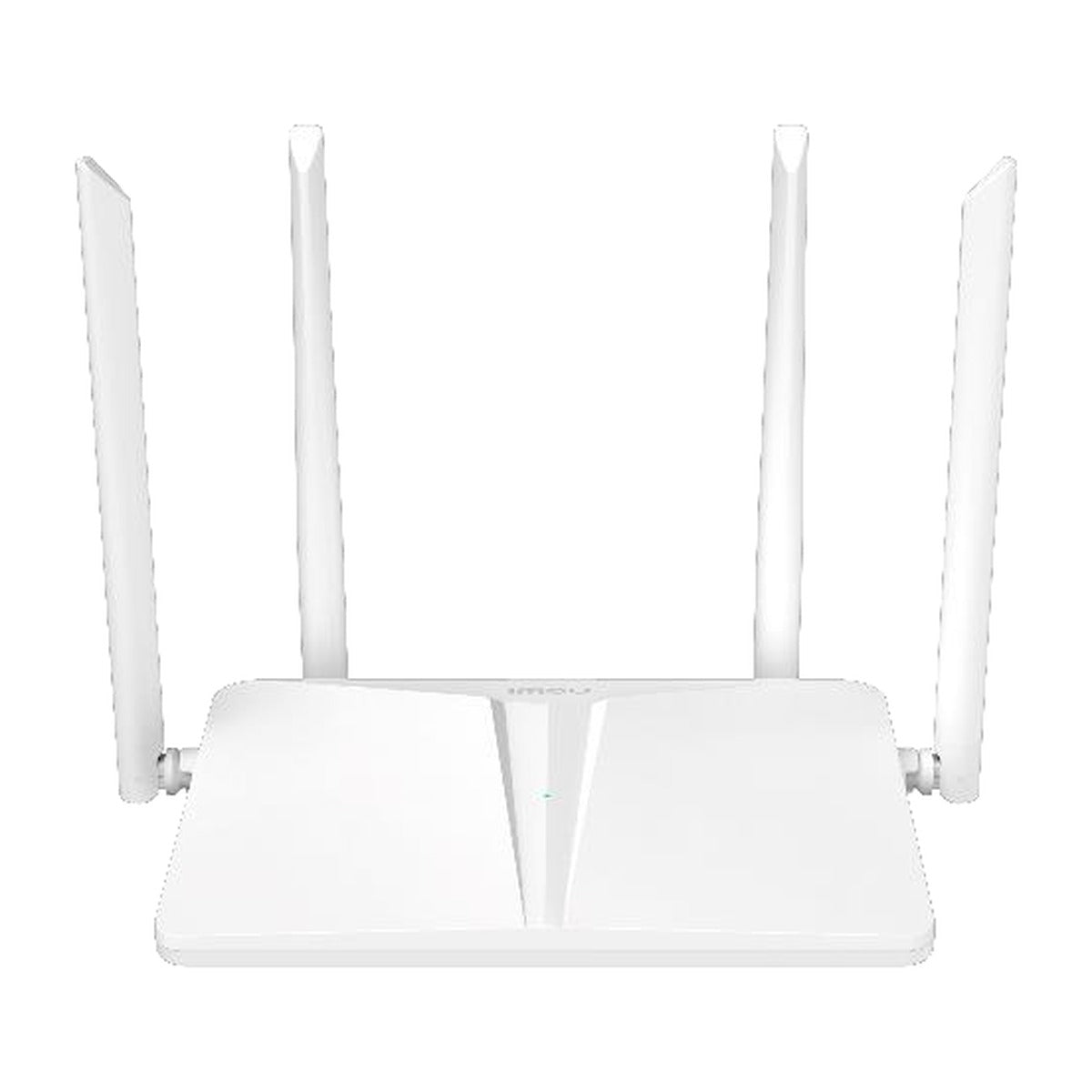

The IMOU HR340 is a single-band 2.4GHz Wi-Fi 4 (802.11b/g/n) router with up to 300Mbps wireless speed, four external 5dBi antennas, one 100Mbps WAN port and three 100Mbps LAN ports. It is designed to work closely with IMOU cameras and can be managed from the Imou Life app.
Color: White
300Mbps 2.4GHz Wi-Fi: Based on IEEE 802.11b/g/n, the HR340 delivers up to 300Mbps on the 2.4GHz band for everyday browsing, streaming and smart-home devices. Four external 5dBi antennas spread the signal around the home.
Wi-Fi Auto-Sync for IMOU Cameras: The router automatically discovers nearby IMOU cameras and connects them. If you later change the Wi-Fi name or password, the cameras are refreshed and reconnected automatically, so you don't have to set each camera up again.
IMOU Camera Stream Accelerate: Video from IMOU cameras uses a dedicated transmit channel, keeping live view smooth and reducing cloud-recording loss even when the Wi-Fi is busy.
App Management, Parental Control & Guest Wi-Fi: Manage the network remotely from the Imou Life app, set parental controls for children's devices and create a separate guest Wi-Fi for visitors. The router also offers IPTV, QoS, VPN (PPTP/L2TP), DDNS, DMZ, port forwarding and UPnP, and can run as a wireless router, repeater or access point.
Who it's for / Works with: Homes and small spaces that need a simple 2.4GHz network, especially households using IMOU Wi-Fi cameras (auto-sync and stream acceleration). Managed via PC web page, mobile web page or the Imou Life app.
Good to know: This is a 2.4GHz-only router (no 5GHz band) and its wired ports are 100Mbps, not Gigabit. It does not have a SIM slot.
What's in the Box
◆ Router ×1
◆ Ethernet cable ×1
◆ Power adapter ×1
◆ Quick start guide ×1
Technical Specifications
| Specification | IMOU HR340 |
|---|---|
| Wi-Fi standard | IEEE 802.11b/g/n (Wi-Fi 4) |
| Frequency | 2.4GHz |
| Wi-Fi speed | Up to 300Mbps |
| Antennas | 4 × external 5dBi |

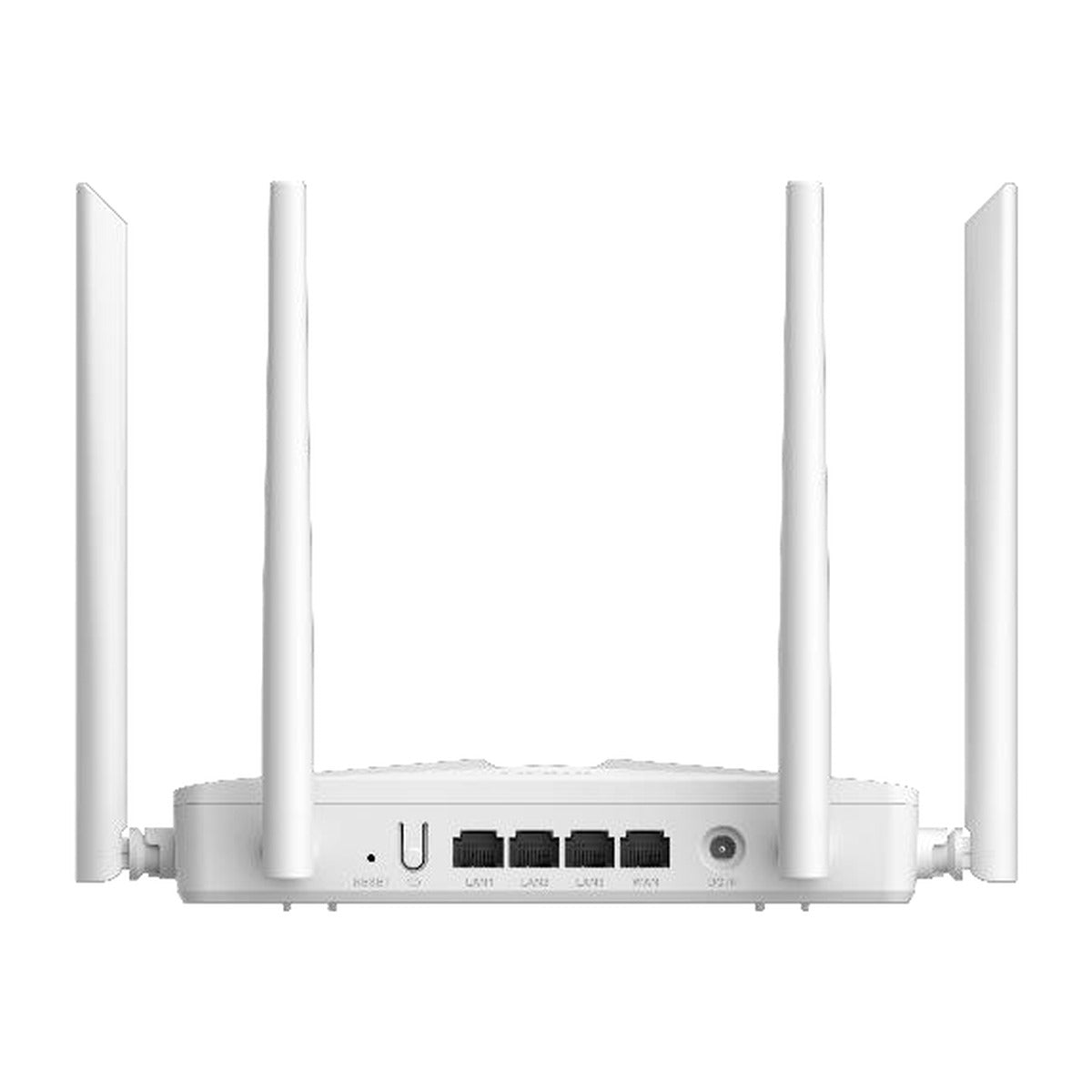

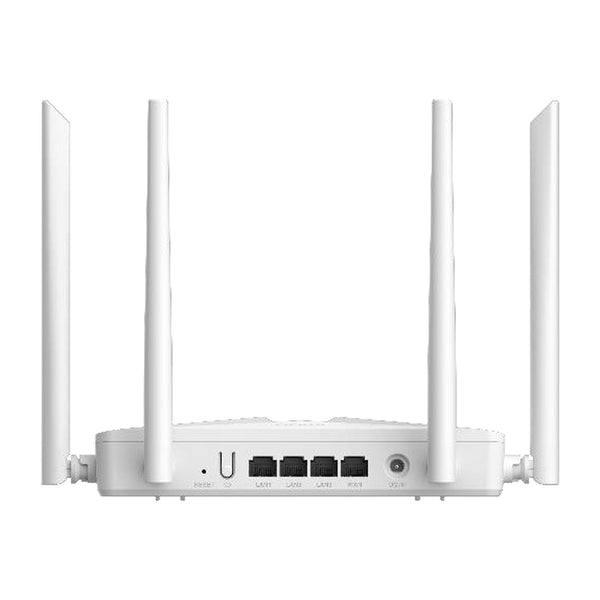

| Network ports | 1 × 100Mbps WAN, 3 × 100Mbps LAN |
| Buttons | 1 × WPS, 1 × Reset |
| LED indicator | Two-color light (red & green) |
| Memory | 8MB ROM, 64MB RAM |
| WAN connection type | PPPoE / Dynamic IP / Static IP |
| Operating modes | Wireless router, repeater, AP |
| Wireless security | WPA-PSK / WPA2-PSK, hidden SSID |
| Features | IPv4/IPv6, parental control, guest Wi-Fi, IPTV, QoS, VPN (PPTP, L2TP), DDNS, DMZ, port forwarding, UPnP |
| Management | PC web, mobile web, Imou Life app |
| Power supply | DC 12V 0.5A |
| Power consumption | < 6W |
| Operating environment | -10°C to +45°C, less than 95% RH |
| Dimensions (L×W×H) | 236.5 × 144.2 × 183.8 mm |
| Certification | CE |
📄 Datasheet: Download the official IMOU HR340 datasheet (PDF)
