IMOU-C AX1500 Wi-Fi 6 Gigabit Mesh Router | HX15
IMOU-C AX1500 Wi-Fi 6 Gigabit Mesh Router | HX15
Couldn't load pickup availability
IMOU AX1500 Wi-Fi 6 Gigabit Mesh Router | HX15
The IMOU HX15 is a dual-band Wi-Fi 6 (802.11ax) router with a combined speed of up to AX1500 (300Mbps on 2.4GHz + 1201Mbps on 5GHz), one Gigabit WAN port and three Gigabit LAN ports. It has six external 5dBi antennas, supports IMOU Link 2.0 mesh and up to 128 clients in real-time connection.
Color: Black
Wi-Fi 6 AX1500: Wi-Fi 6 is built for homes with many connected devices. The 5GHz band reaches up to 1201Mbps and the 2.4GHz band up to 300Mbps, and WPA3-SAE encryption is supported alongside WPA-PSK/WPA2-PSK.

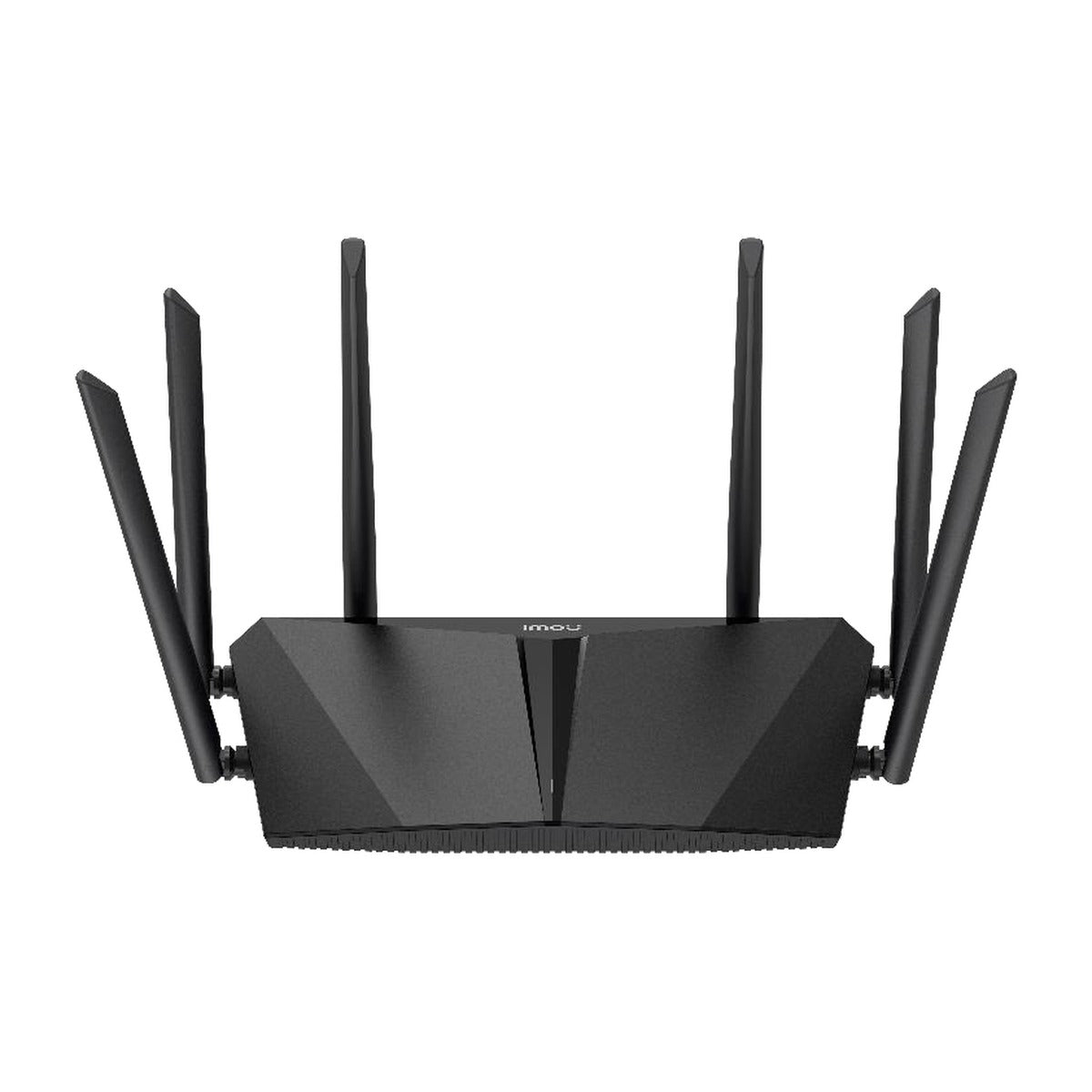

Six External 5dBi Antennas: Six high-gain antennas spread the Wi-Fi signal across the rooms of the home.

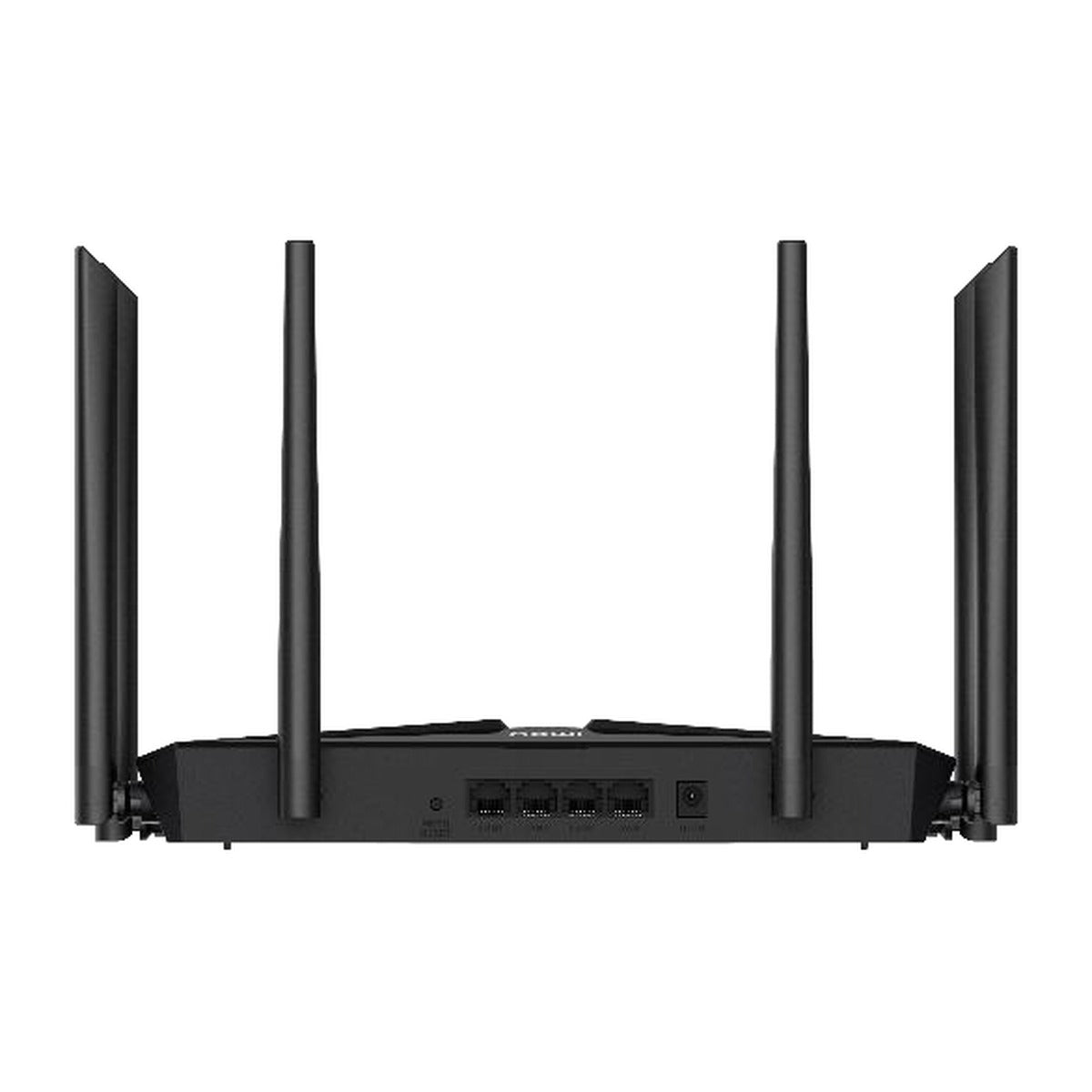

Gigabit Wired Ports: One Gigabit WAN and three Gigabit LAN ports give wired connections of up to 1000Mbps for computers, TVs, consoles and NVRs.
IMOU Link 2.0 Mesh: Join the HX15 with other compatible IMOU routers to build one mesh network with seamless roaming. Wireless, wired and parallel mesh connections are supported, so it can be set up to suit apartments, villas or buildings with many walls.
Wi-Fi Auto-Sync & Stream Accelerate for IMOU Cameras: Nearby IMOU cameras connect automatically and stay connected even after you change the Wi-Fi name or password. A dedicated transmit channel keeps IMOU camera video smooth and reliable when the network is busy.
Home Network Features: Parental control, guest network, IPTV, QoS, VPN (PPTP/L2TP), DDNS, DMZ, port forwarding and UPnP are supported. It can work as a wireless router, repeater or access point and is managed from a PC or mobile web page or the Imou Life app.
Who it's for / Works with: Homes with many devices that want Wi-Fi 6 and Gigabit wired ports, users who plan to expand coverage with IMOU Link 2.0 mesh, and households with IMOU Wi-Fi cameras.
Good to know: AX1500 is the combined maximum of both bands. A mesh network requires additional compatible IMOU routers. There is no SIM slot.
What's in the Box
◆ Router ×1
◆ Ethernet cable ×1
◆ Power adapter ×1
◆ Quick start guide ×1
Technical Specifications
| Specification | IMOU HX15 |
|---|---|
| Wi-Fi standard | 2.4GHz: IEEE 802.11b/g/n; 5GHz: IEEE 802.11a/n/ac/ax (Wi-Fi 6) |
| Frequency | 2.4GHz & 5GHz (dual-band) |
| Wi-Fi speed | 2.4GHz: 300Mbps; 5GHz: 1201Mbps (AX1500) |
| Antennas | 6 × external 5dBi |
| Network ports | 1 × Gigabit WAN, 3 × Gigabit LAN |
| Mesh | IMOU Link 2.0: wired, wireless and parallel mesh |
| Clients | Up to 128 in real-time connection |
| Buttons | 1 × Mesh/Reset |
| LED indicator | Two-color light (red & green) |
| Memory | 16MB ROM, 128MB RAM |
| WAN connection type | PPPoE / Dynamic IP / Static IP |
| Operating modes | Wireless router, repeater, AP |
| Wireless security | WPA-PSK / WPA2-PSK / WPA3-SAE, hidden SSID |
| Features | IPv4/IPv6, parental control, guest network, IPTV, QoS, VPN (PPTP, L2TP), DDNS, DMZ, port forwarding, UPnP |
| Management | PC web, mobile web, Imou Life app |
| Power supply | DC 12V 1A |
| Power consumption | < 12W |
| Operating environment | -10°C to +45°C, less than 95% RH |
| Certification | CE |
📄 Datasheet: Download the official IMOU HX15 datasheet (PDF)
