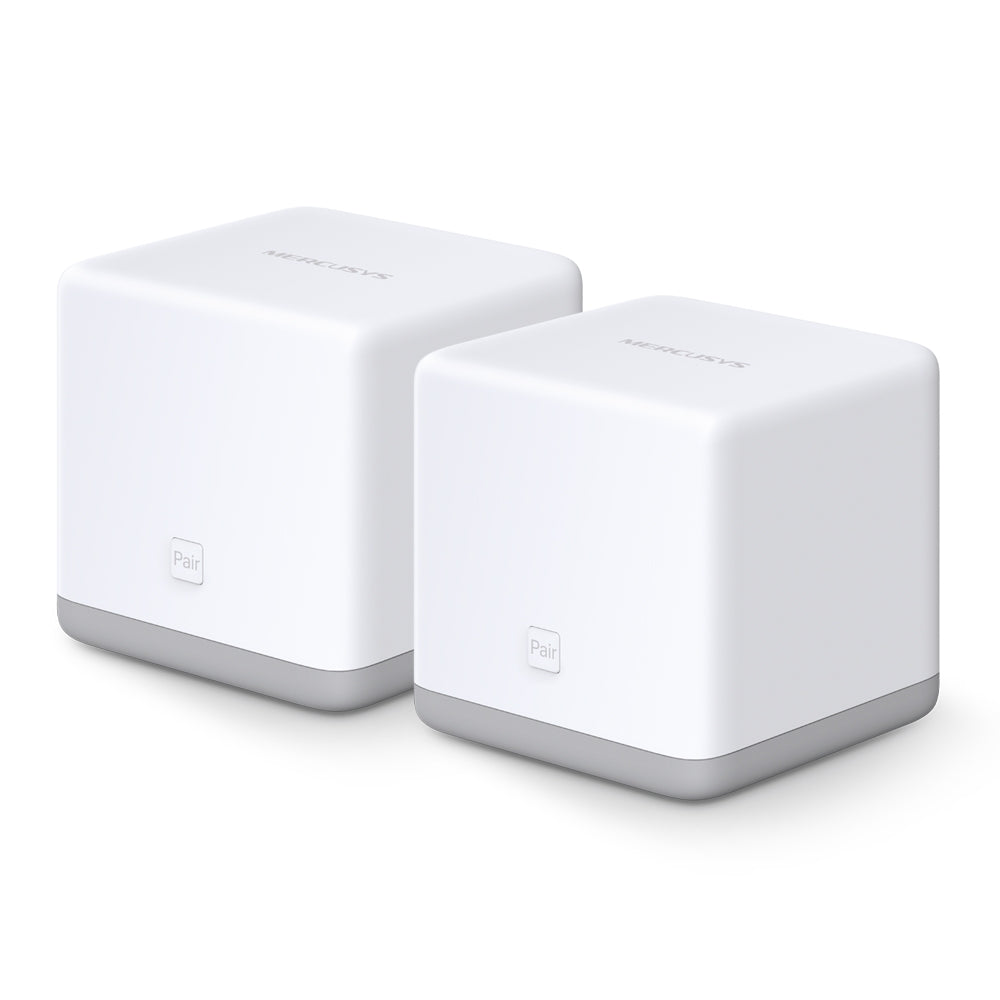

Mercusys Halo S3 300 Mbps Whole Home Mesh Wi-Fi System

Product Description

One Unified Network – With advanced Mesh Technology, Halo S3 units work together to form one unified whole-home network with one Wi-Fi name and one password.

Seamless Roaming – Automatically switch between Halos as you move around your home, always getting the best signal to enjoy the fastest connections for all your devices.

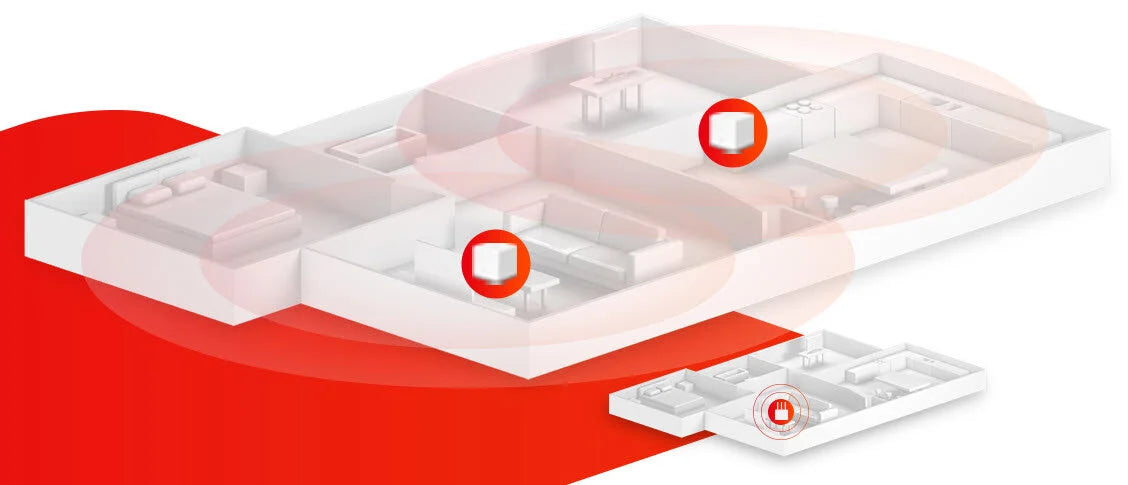

Ultra-High-Performance Wi-Fi – Blanket up to 2,200 square feet (200 m²) with high-speed Wi-Fi, ideal for 2–4-bedroom houses.

Connects over 40 devices – Enjoy lag-free connection and non-stop entertainment on all your devices, at the same time.

*Please note that the Halo H series and S series cannot work together.

Specification:

Wireless

◆ Wireless Standards: IEEE 802.11b/g/n
◆ Frequency: 2.4 – 2.5 GHz
◆ Wi-Fi Speed: Up to 300 Mbps on 2.4 GHz

Reception Sensitivity

◆ 11g 6M: -95 dBm
◆ 11g 54M: -77 dBm
◆ 11n 20M MCS7: -75 dBm
◆ 11n 40M MCS7: -72 dBm

◆ Transmission Power: < 20 dBm (EIRP)
◆ Wireless Security: WPA2-PSK + AES
◆ Wireless Functions: Enable/Disable Wireless Radio, Wireless Statistics
◆ Mesh Protocol: 802.11k / 802.11v

Hardware

◆ Dimensions: 88 × 88 × 88 mm (3.5 × 3.5 × 3.5 in)

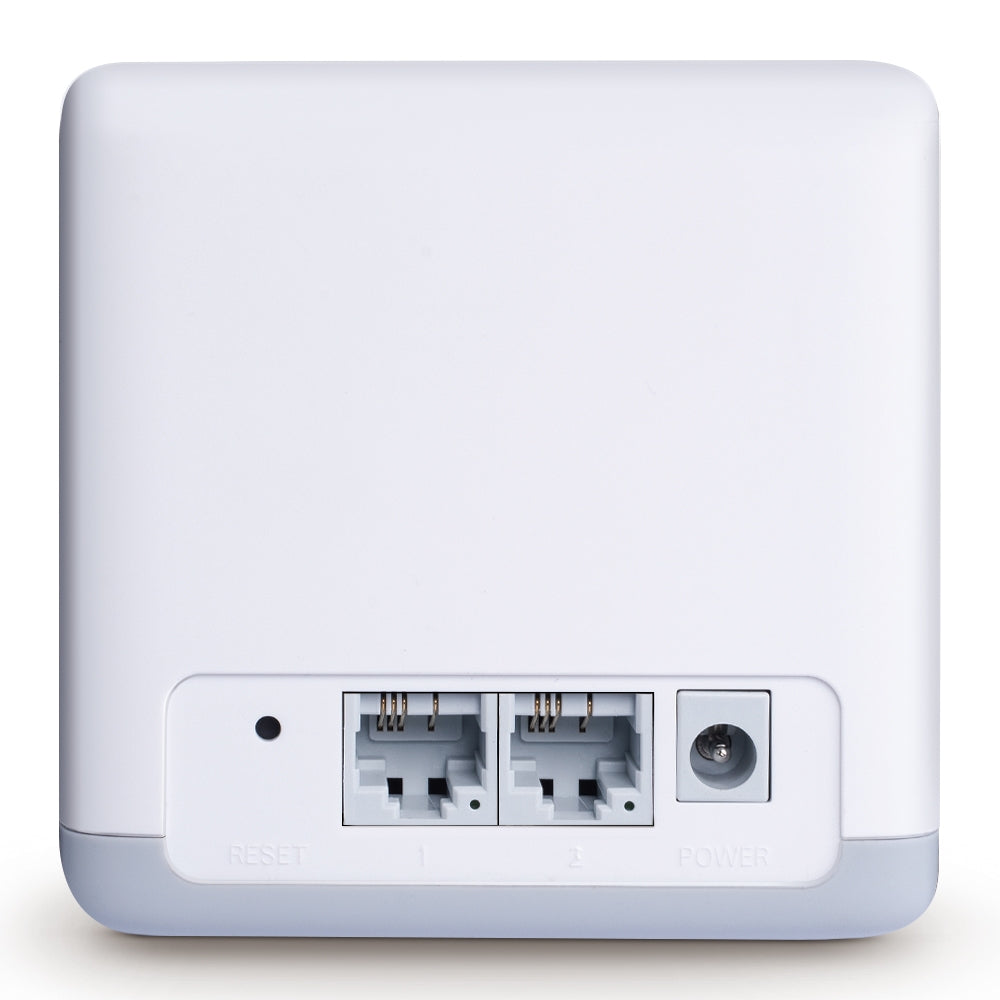

◆ Interfaces: 2 × 10/100 Mbps ports per unit (WAN/LAN auto-sensing)
◆ Buttons: Pair Button, Reset Button
◆ External Power Supply: 9V / 0.6A

Software

WAN Types

◆ Dynamic IP
◆ Static IP
◆ PPPoE
◆ PPTP
◆ L2TP

Management

◆ Access Control
◆ Local Management
◆ Remote Management

Port Forwarding

◆ Virtual Server
◆ UPnP
◆ DMZ
◆ Port Triggering

◆ Protocols: IPv4, IPv6
◆ Guest Network: 2.4 GHz Guest Network
◆ DHCP: Server, Address Reservation, DHCP Client List

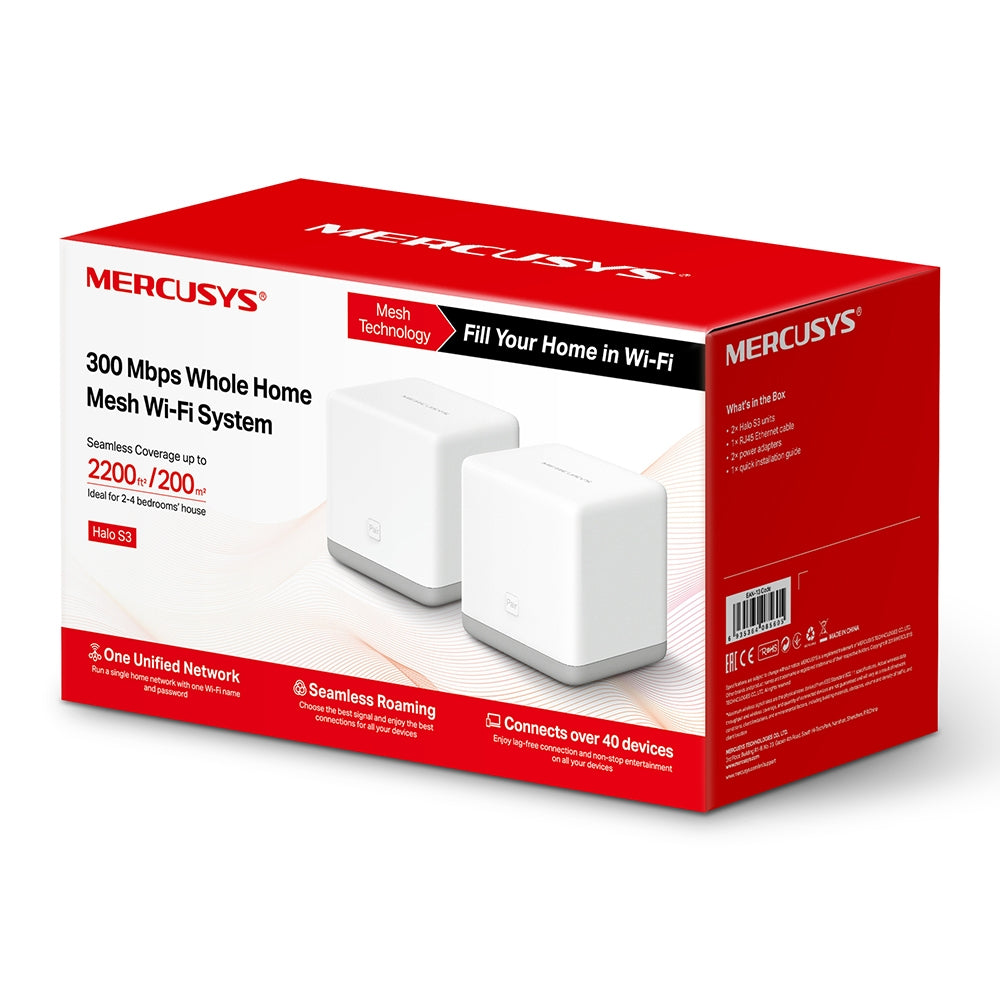

Package Contents

◆ 2 × Halo S3 Units
◆ 1 × RJ45 Ethernet Cable
◆ 2 × Power Adapters
◆ 1 × Quick Installation Guide

Environment

◆ Operating Temperature: 0°C to 40°C (32°F to 104°F)
◆ Storage Temperature: -40°C to 70°C (-40°F to 158°F)
◆ Operating Humidity: 10% to 90% (Non-Condensing)
◆ Storage Humidity: 5% to 90% (Non-Condensing)
