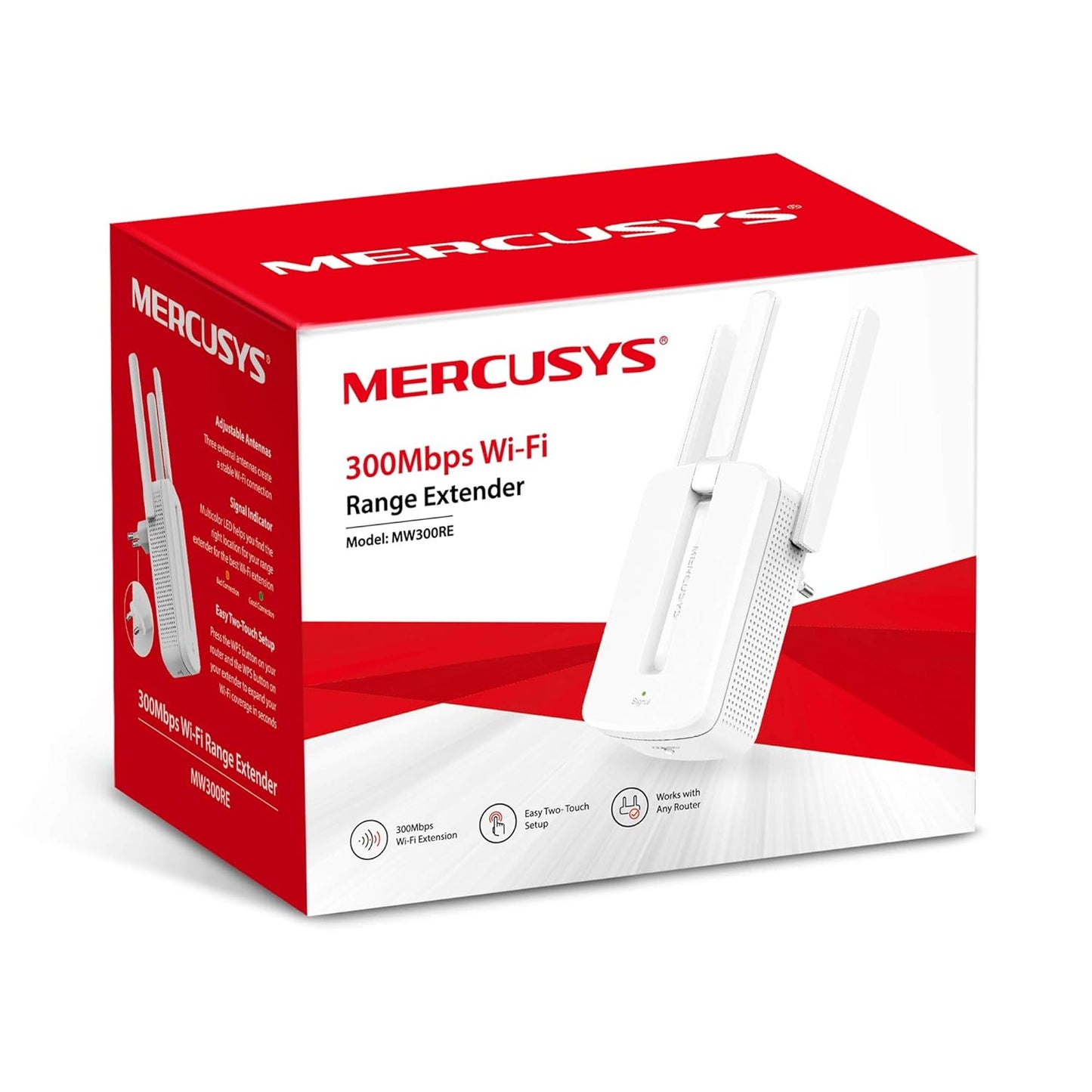

Mercusys MW300RE | 300 Mbps Wi-Fi Range Extender

Description:

◆ Range Extender mode boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly

◆ Three external antennas with MIMO technology help set the MW300RE apart from ordinary range extenders

◆ Easily expand wireless coverage at easy two-touch setup or a push of WPS button

◆ Miniature size and wall-mounted design make it easy to deploy and move flexibly

◆ The multicolor LED helps you to find the right location to deliver the best Wi-Fi extension

Mercusys MW300RE Specification:

300Mbps Wi-Fi Range Extender

━━━━━━━━━━━━━━━━━━

Wireless Performance

Wireless Standards: IEEE 802.11n / g / b
Frequency: 2.4GHz
Speed: Up to 300Mbps
Transmission Power: <20dBm

Reception Sensitivity
11g 54M: -75dBm
11n HT20 MCS7: -73dBm
11n HT40 MCS7: -70dBm

Wireless Security: WPA / WPA2, WPA-PSK / WPA2-PSK

━━━━━━━━━━━━━━━━━━

Wireless Functions

Wireless MAC Address Filtering
Domain Login Function
Transmit Power Control

━━━━━━━━━━━━━━━━━━

Management

Web-Based Management

━━━━━━━━━━━━━━━━━━

Hardware Features

Dimensions: 101 × 75 × 39 mm
Buttons: Reset / WPS
Power Consumption: Approx. 4.3W
Antennas: 2 × External Antennas

━━━━━━━━━━━━━━━━━━

Certifications

CE, RoHS

━━━━━━━━━━━━━━━━━━

Package Contents

MW300RE 300Mbps Wi-Fi Range Extender
Quick Installation Guide

━━━━━━━━━━━━━━━━━━

Environmental Conditions

Operating Temperature: 0°C – 40°C
Storage Temperature: -40°C – 70°C
Operating Humidity: 10% – 90% Non-Condensing
Storage Humidity: 5% – 90% Non-Condensing

* Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage per ft2 are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection quality, and client condition.
