Mercusys MW325R WIRELESS N 300 ROUTER

Description:

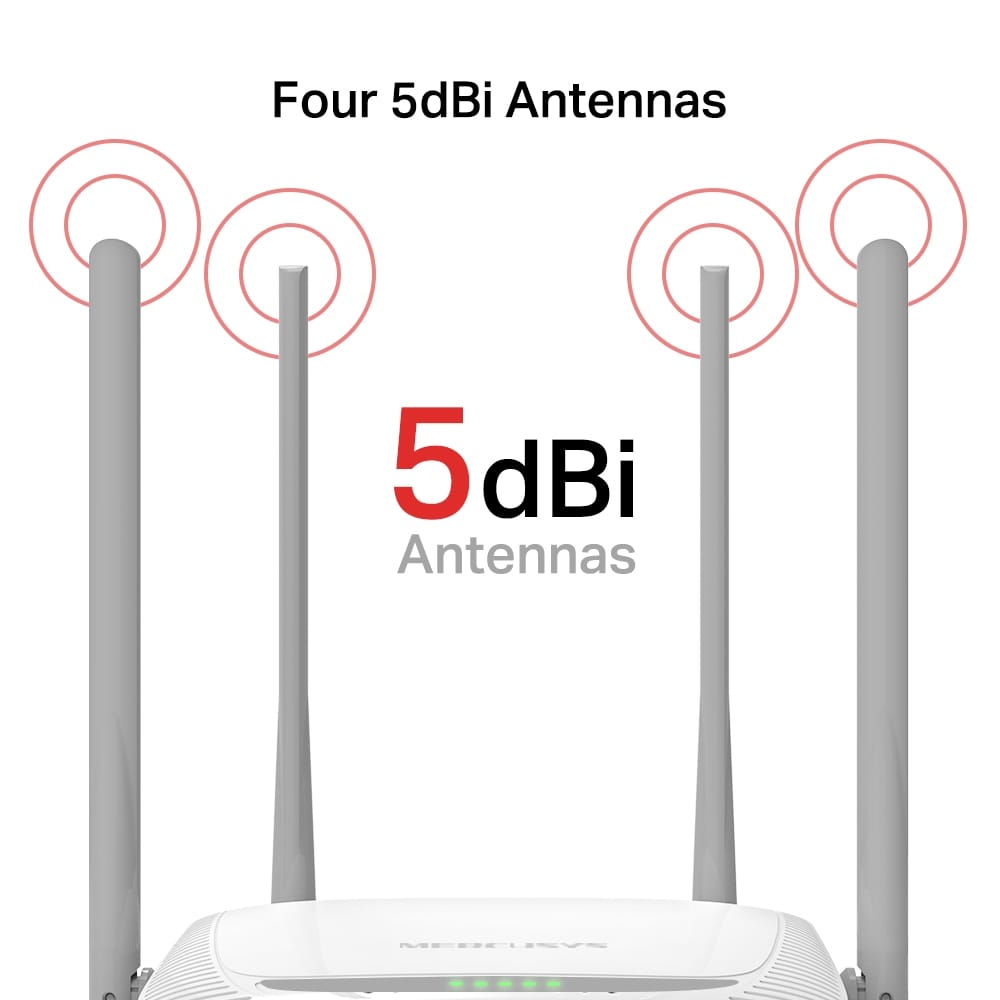

Great Coverage: four 5dBi antennas provide wide wireless coverage

Enhanced Signal: high gain antennas dramatically increase wireless signal strength, size and stability

300Mbps Wireless Speed: ideal for HD streaming, online gaming, and large file downloads

Easy Installation: intuitive webpage guides you through the setup process in minutes

MERCUSYS MW325R – 300Mbps Enhanced Wireless N Router

Wireless

Wireless Standards

◆ IEEE 802.11n
◆ IEEE 802.11g
◆ IEEE 802.11b

Frequency

◆ 2.4 – 2.5 GHz

Wi-Fi Speeds (N300)

◆ 11n: Up to 300 Mbps (Dynamic)
◆ 11g: Up to 54 Mbps (Dynamic)
◆ 11b: Up to 11 Mbps (Dynamic)

Reception Sensitivity

◆ 270 Mbps: -70 dBm @10% PER
◆ 130 Mbps: -72 dBm @10% PER
◆ 54 Mbps: -74 dBm @10% PER
◆ 11 Mbps: -87 dBm @10% PER
◆ 6 Mbps: -92 dBm @10% PER
◆ 1 Mbps: -94 dBm @10% PER

Transmission Power

◆ <20 dBm

Wireless Security

◆ WPA-PSK
◆ WPA2-PSK

Wireless Functions

◆ Enable/Disable Wireless Radio
◆ WDS Bridge

Hardware

◆ Dimensions: 167 × 118 × 33 mm
◆ 1× 10/100 Mbps WAN Port
◆ 3× 10/100 Mbps LAN Ports
◆ 4× 5dBi Fixed Omni-Directional Antennas
◆ Reset Button
◆ Power Supply: 5V DC / 0.6A

Software

WAN Types

◆ Dynamic IP
◆ Static IP
◆ PPPoE
◆ L2TP
◆ PPTP

Management

◆ Access Control
◆ Local Management
◆ Remote Management

Port Forwarding

◆ Virtual Server
◆ UPnP
◆ DMZ

Dynamic DNS

◆ Oray

Firewall Security

◆ IP & MAC Address Binding

Protocols

◆ IPv4

Guest Network

◆ 2.4 GHz Guest Network

DHCP

◆ DHCP Server
◆ DHCP Client List

Environment

◆ Operating Temperature: 0°C ~ 40°C
◆ Storage Temperature: -40°C ~ 70°C
◆ Operating Humidity: 10% ~ 90% Non-Condensing
◆ Storage Humidity: 5% ~ 90% Non-Condensing

◆ Certifications: CE, ROHS

Package Contents

◆ 300Mbps Enhanced Wireless N Router (MW325R)
◆ Power Adapter
◆ RJ45 Ethernet Cable
◆ Quick Installation Guide
