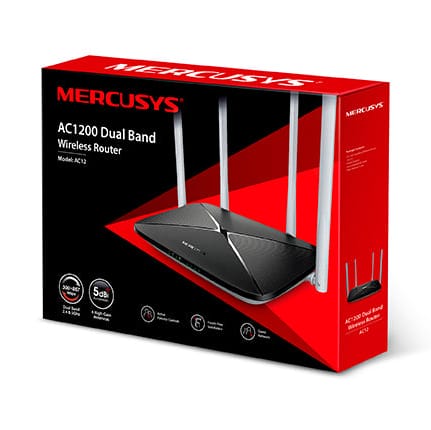

Mercusys AC1200 Dual Band Wireless Router | AC12

Mercusys AC1200 Dual Band Wireless Router | AC12

Description:

Supports 802.11ac standard : the next generation of Wi-Fi

Enjoy smooth online gaming and video streaming with dual band 1200Mbps Wi-Fi

4 External Antennas Greatly Expand Wireless Coverage

Guest Network Access provides secure Wi-Fi access for guests sharing your home or office network

Easy installation: intuitive webpage guides you through the setup process in minutes

IPTV and IPv6 Supported

Mercusys AC12 – AC1200 Dual Band Router

Wireless

Wireless Standards

◆ IEEE 802.11a/n/ac – 5 GHz
◆ IEEE 802.11b/g/n – 2.4 GHz

Frequency

◆ 2.4 – 2.5 GHz
◆ 5.15 – 5.25 GHz

Wi-Fi Speeds (AC1200)

◆ 2.4 GHz: 300 Mbps
◆ 5 GHz: 867 Mbps

Reception Sensitivity

5 GHz:
◆ 11a 6M: -92 dBm
◆ 11a 54M: -75 dBm
◆ 11ac 20M MCS8: -70 dBm
◆ 11ac 40M MCS9: -64 dBm
◆ 11ac 80M MCS9: -60 dBm

2.4 GHz:
◆ 11g 6M: -95 dBm
◆ 11g 54M: -77 dBm
◆ 11n 20M MCS7: -74 dBm
◆ 11n 40M MCS7: -71 dBm

Wireless Security

◆ WPA-PSK
◆ WPA2-PSK

Wireless Functions

◆ Enable/Disable Wireless Radio
◆ Wireless Statistics

Hardware

◆ Dimensions: 222 × 140 × 32 mm
◆ Antennas: 4 × 5dBi Fixed Antennas
◆ Ethernet Ports:
– 1× 10/100 Mbps WAN
– 3× 10/100 Mbps LAN
◆ WPS/Reset Button
◆ Power Supply: 9V / 0.85A

Software

WAN Types

◆ Dynamic IP
◆ Static IP
◆ PPPoE
◆ L2TP
◆ PPTP

Management

◆ Access Control
◆ Local Management
◆ Remote Management

Port Forwarding

◆ Virtual Server
◆ UPnP
◆ DMZ

Firewall Security

◆ IP & MAC Address Binding

Guest Network

◆ 2.4 GHz Guest Network
◆ 5 GHz Guest Network

DHCP

◆ DHCP Server

Environment

◆ Operating Temperature: 0°C ~ 40°C
◆ Storage Temperature: -40°C ~ 70°C
◆ Operating Humidity: 10% ~ 90% Non-Condensing
◆ Storage Humidity: 5% ~ 90% Non-Condensing

Package Contents

◆ AC1200 Wireless Dual Band Router (AC12)
◆ Power Adapter
◆ Ethernet Cable
◆ Quick Installation Guide
