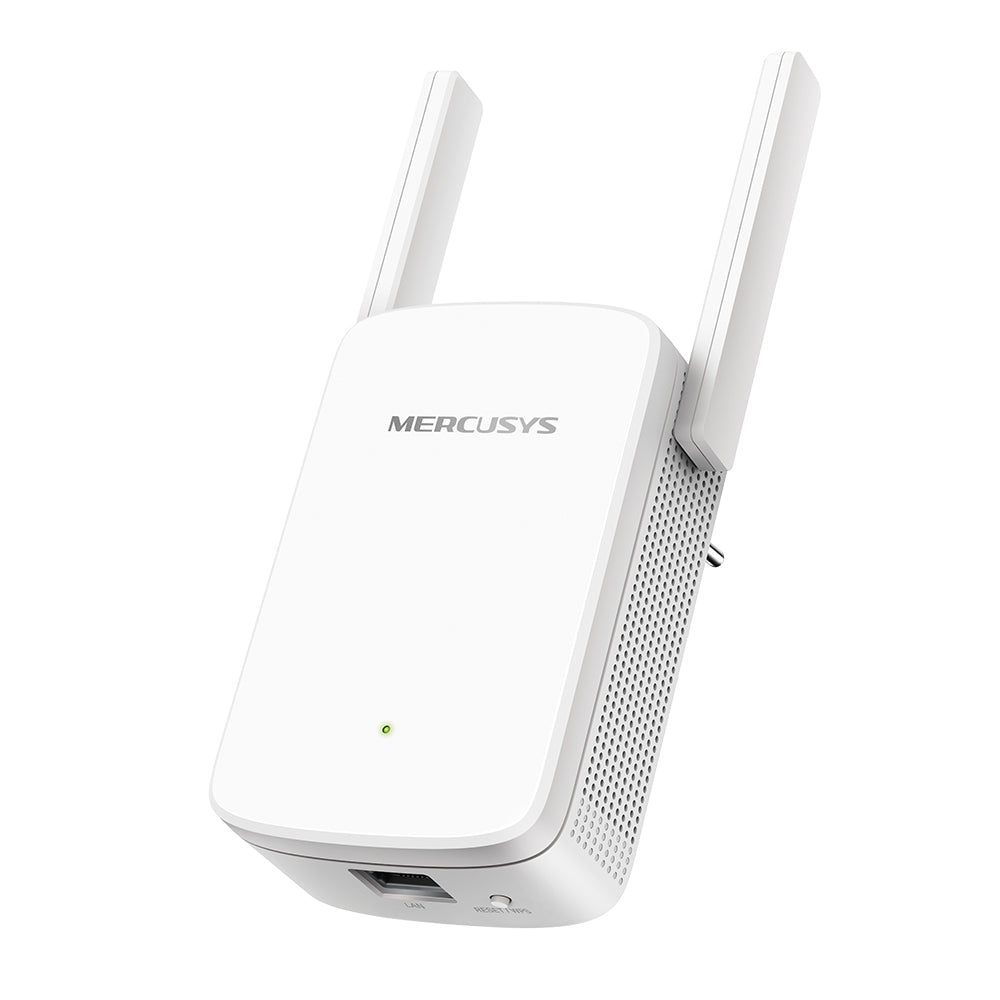

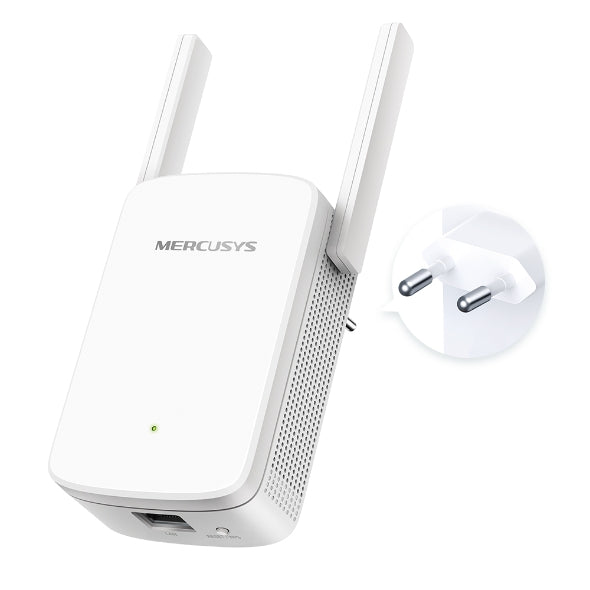

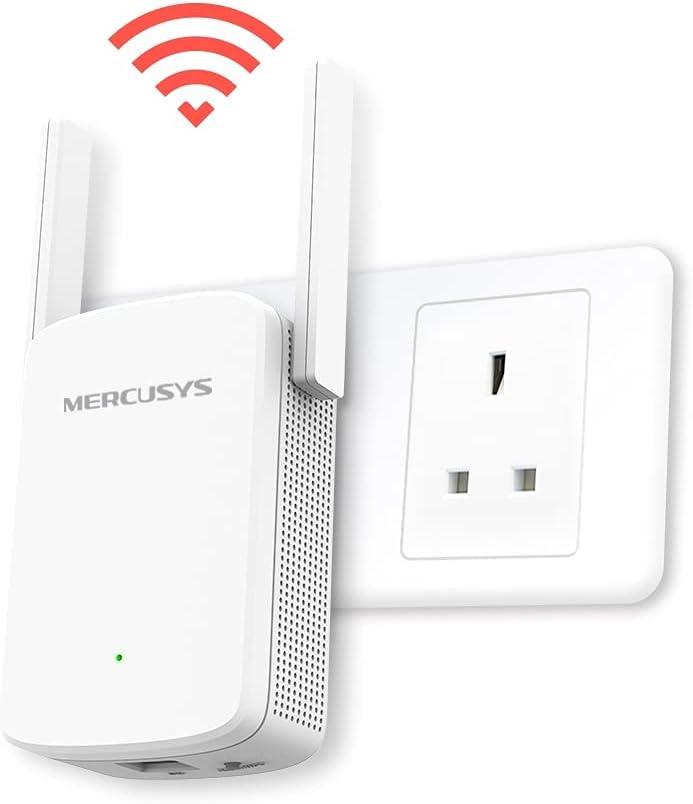

Mercusys AC1200 Wi-Fi Range Extender | ME30

Mercusys AC1200 Wi-Fi Range Extender / ME30

Mercusys ME30 | AC1200 Wi-Fi Range Extender

Description:

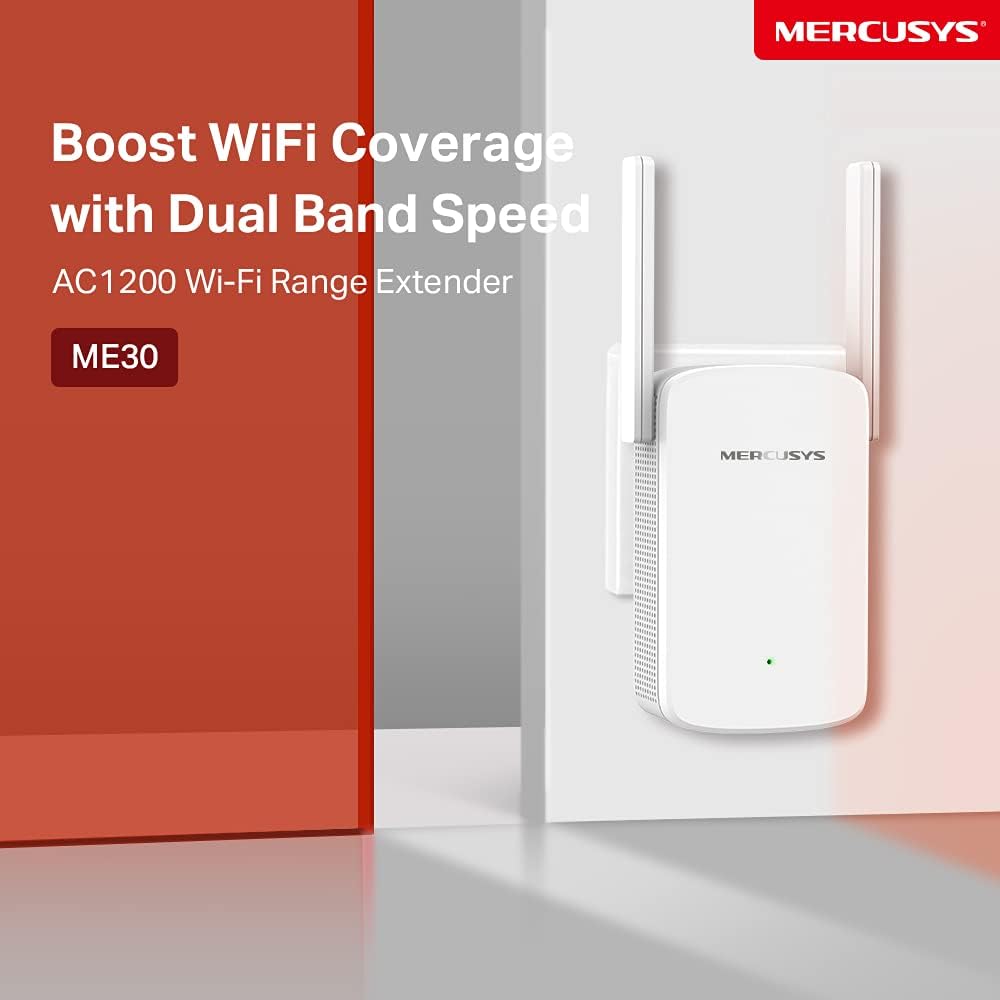

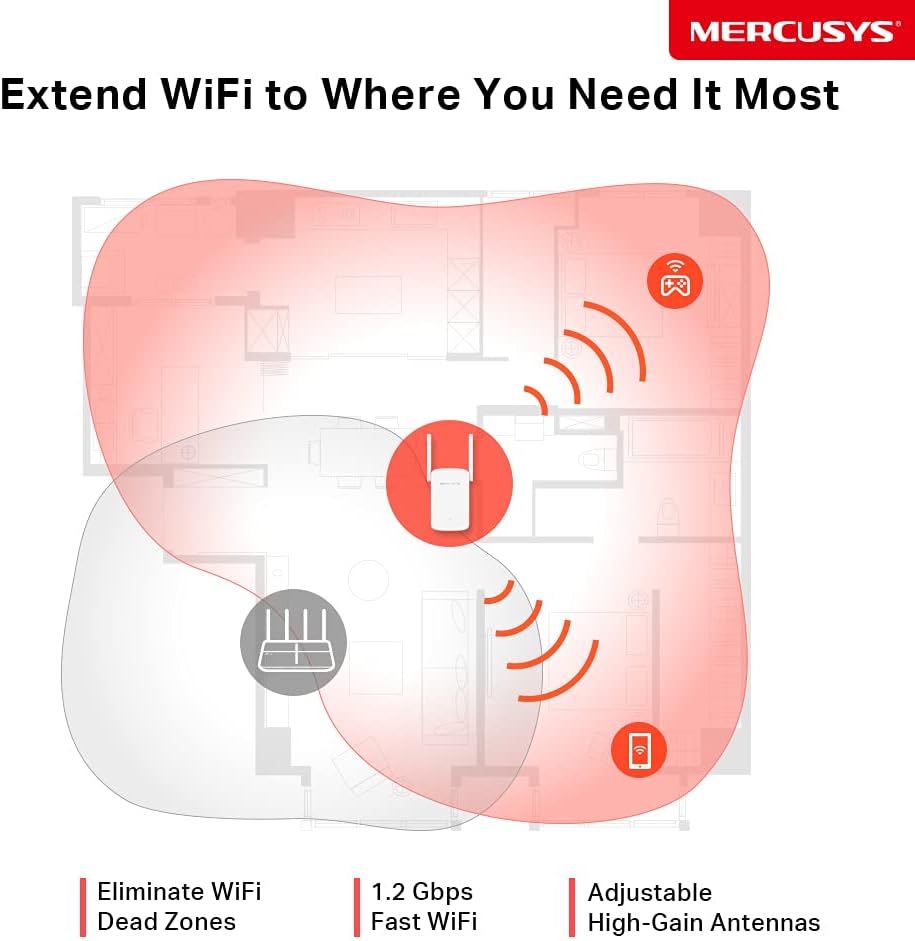

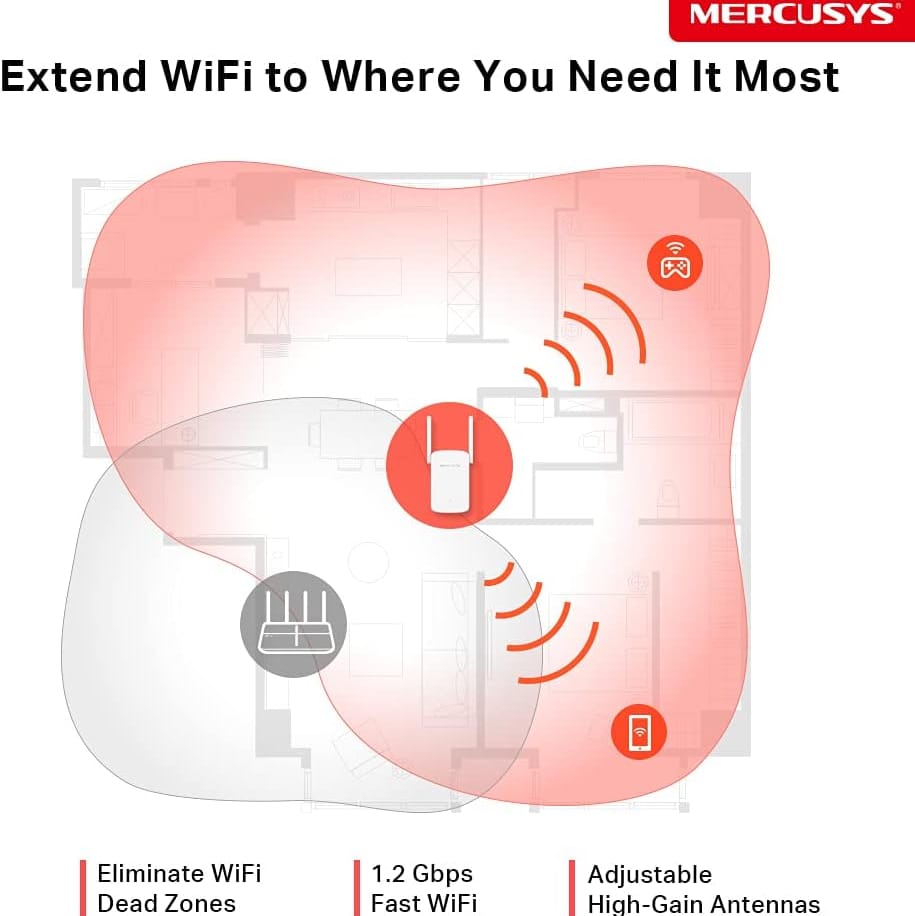

◆ Eliminate WiFi Dead Zones — Boosts WiFi signals to previously unreachable or hard-to-wire areas flawlessly

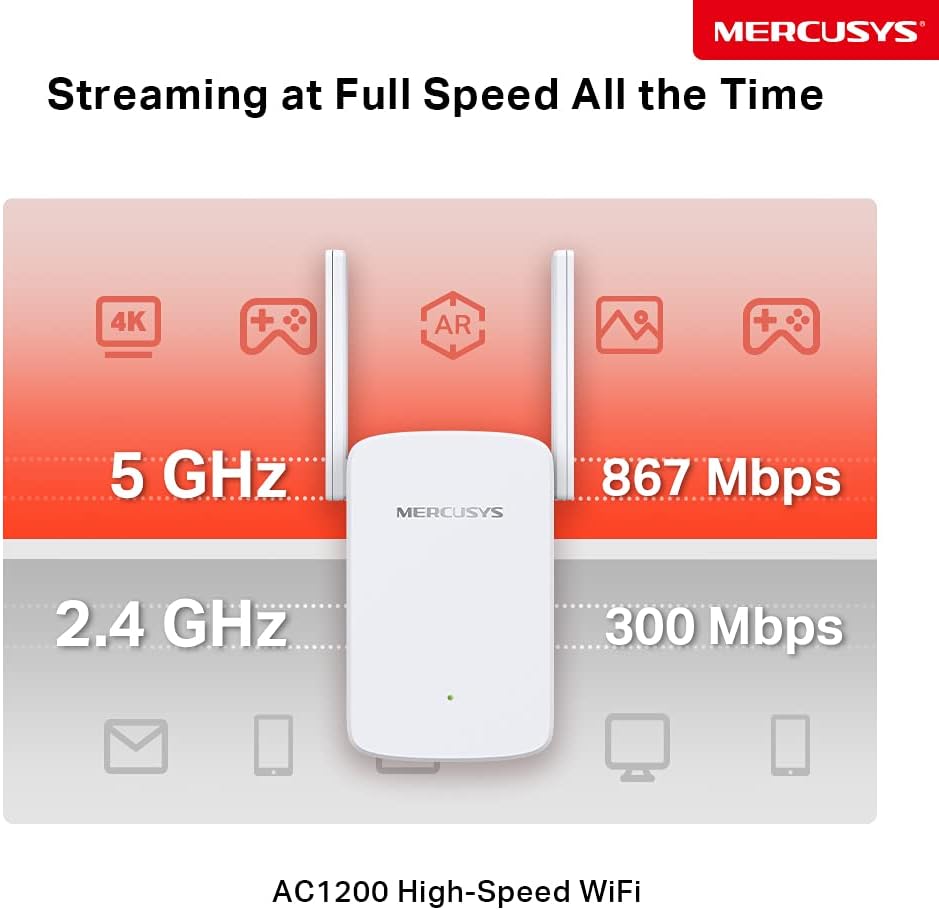

◆ AC1200 Dual Band WiFi — Keep your whole home connected with strong WiFi expansion at a combined speed of up to 1.2 Gbps

◆ Easy One-Touch Setup — Simply press the WPS button to expand your WiFi coverage in seconds

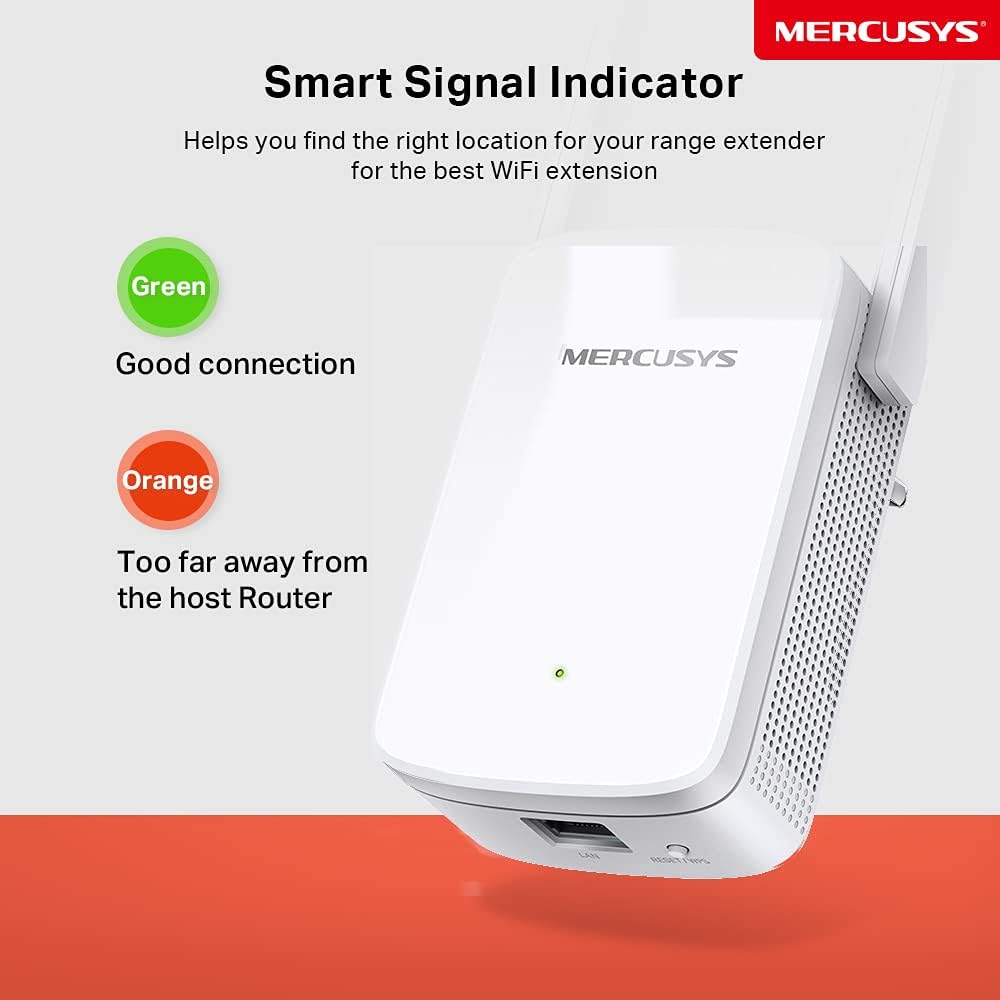

◆ Signal Indicator — Multicolor LED helps you find the right location for your range extender for the best WiFi extension

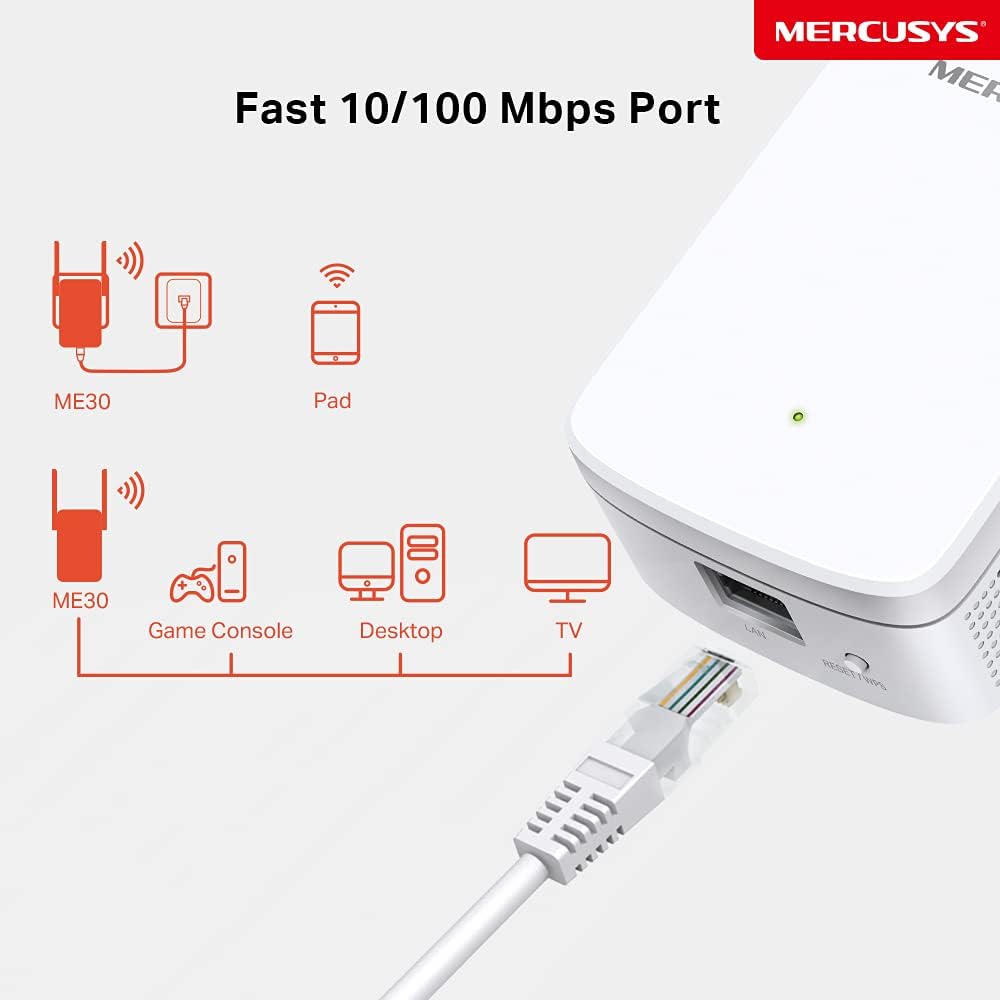

◆ Fast 10/100 Mbps Port — Provides speedy wired connections for PCs, IPTVs, and game consoles

◆ Works with Any Router or Wireless Access Point

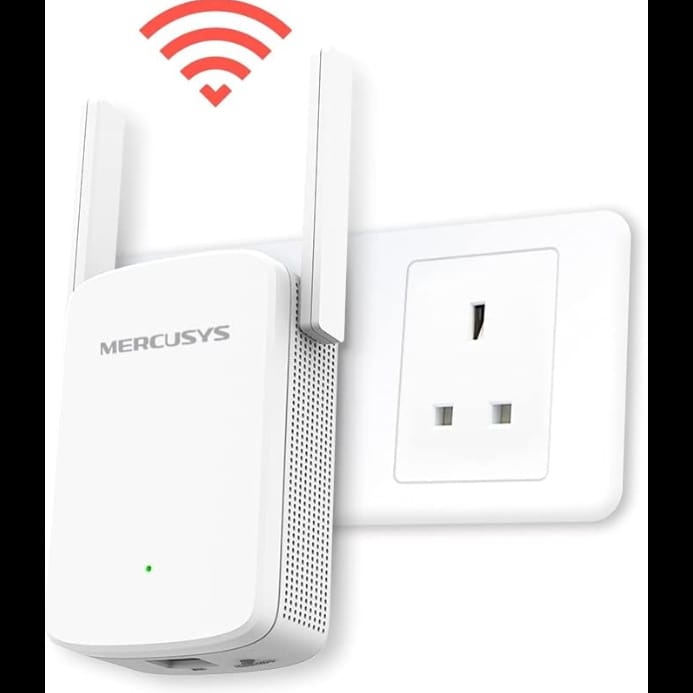

Mercusys ME30

AC1200 Wi-Fi Range Extender

━━━━━━━━━━━━━━━━━━

Wireless Performance

Wireless Standards:
IEEE 802.11ac/n/a (5GHz)
IEEE 802.11b/g/n (2.4GHz)

Frequency: 2.4 – 2.5GHz & 5GHz
WiFi Speed: Up to 1200Mbps
867Mbps (5GHz) + 300Mbps (2.4GHz)
Transmission Power: <20dBm

Reception Sensitivity
5GHz:
11ac HT80 MCS9: < -63dBm

2.4GHz:
11n HT40 MCS7: < -70dBm

Wireless Security: WPA-PSK / WPA2-PSK

━━━━━━━━━━━━━━━━━━

Hardware Features

Dimensions: 112 × 84.7 × 39 mm
Interface: 1 × 10/100Mbps RJ45 Port
Button: Reset / WPS
Antennas: 2 × External Antennas
Power Consumption: 9.2W

━━━━━━━━━━━━━━━━━━

Certifications

CE, RoHS

━━━━━━━━━━━━━━━━━━

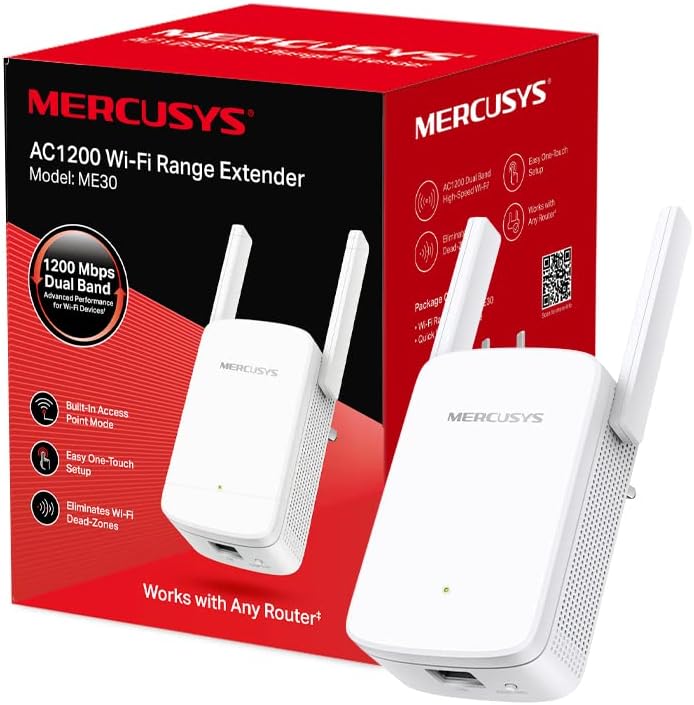

Package Contents

ME30 Wi-Fi Range Extender
Quick Installation Guide

━━━━━━━━━━━━━━━━━━

Environmental Conditions

Operating Temperature: 0°C – 40°C
Operating Humidity: 10% – 90% Non-Condensing

Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage per ft2 are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection quality, and client condition.

Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
