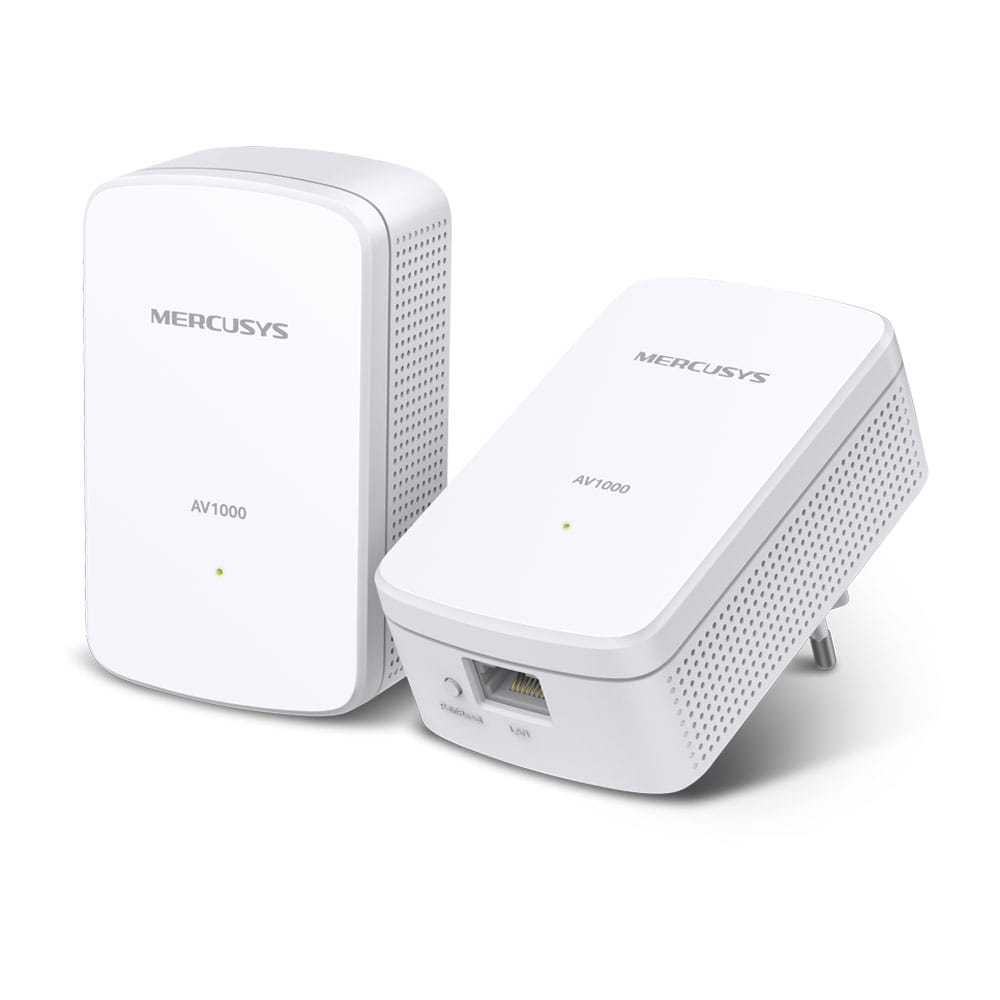

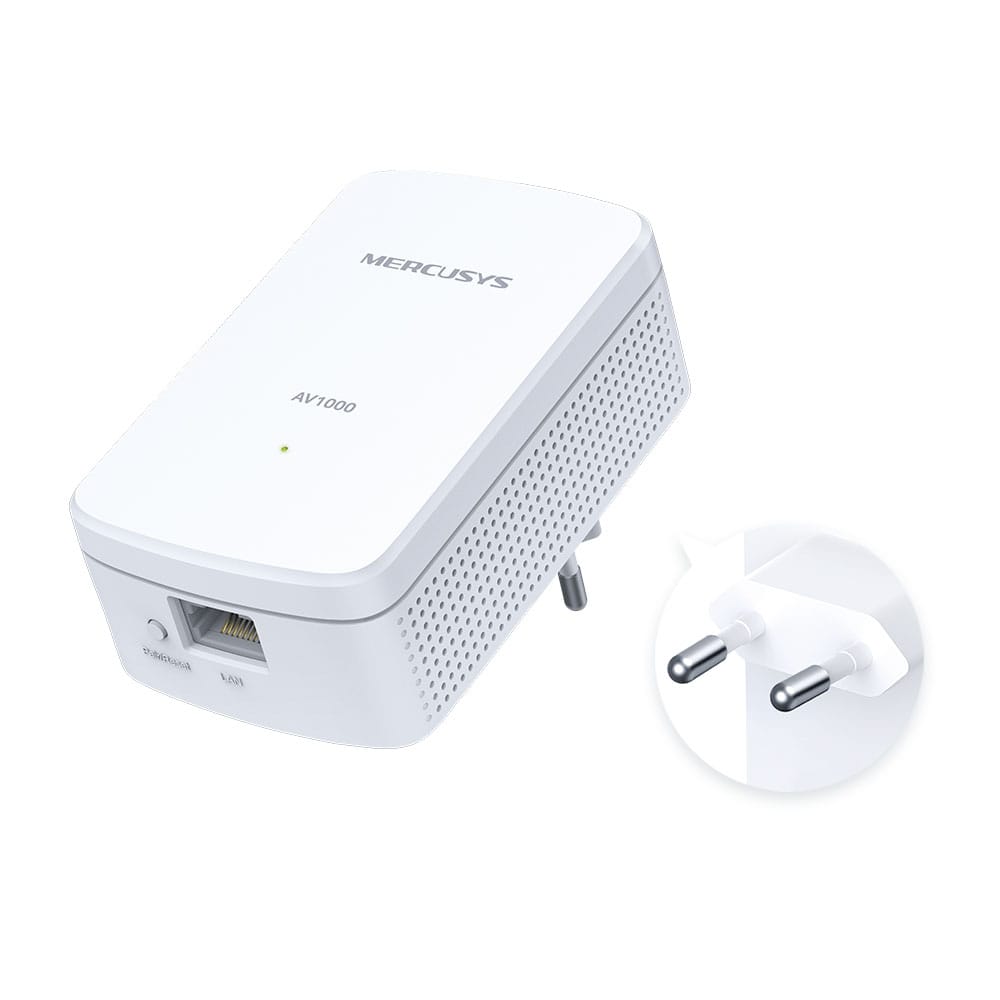

Mercusys AV1000 Gigabit Powerline Starter Kit | MP500 KIT

Mercusys AV1000 Gigabit Powerline Starter Kit | MP500 KIT

Mercusys MP500 KIT AV1000 Gigabit Powerline

Description:

◆ 1000 Mbps High-Speed Transfer Rate — Fast and stable transmissions with advanced HomePlug AV2

◆ Super-Fast Wired Connection — A gigabit port provides high-speed internet to PCs, IPTVs, and game consoles

◆ Plug & Play — No wiring and configuration required—simply plug in

◆ Easy Expansion — Expand coverage by simply adding more Powerline adapters

Mercusys MP500 KIT Specification:

AV1000 Gigabit Powerline Kit

━━━━━━━━━━━━━━━━━━

Powerline Performance

Range: Up to 300 meters over electrical wiring
Modulation Technology: OFDM (PLC)
Powerline Security: 128-bit AES Encryption

Standards & Protocols:
HomePlug AV2
HomePlug AV
IEEE 1901
IEEE 802.3 / 802.3u / 802.3ab

━━━━━━━━━━━━━━━━━━

Hardware Specifications

Dimensions: 101 × 60 × 36 mm
Button: Pair / Reset
LED Indicator: Power

Power Consumption (220V / 50Hz):
Maximum: 2.87W
Typical: 2.35W
Standby: 0.64W

━━━━━━━━━━━━━━━━━━

Package Contents

Powerline Ethernet Adapter
1 × Ethernet Cable (2m RJ45)
Quick Installation Guide

━━━━━━━━━━━━━━━━━━

Certifications

CE, RoHS

━━━━━━━━━━━━━━━━━━

Environmental Conditions

Operating Temperature: 0°C – 40°C
Operating Humidity: 10% – 90% Non-Condensing
Storage Humidity: 5% – 90% Non-Condensing

Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
